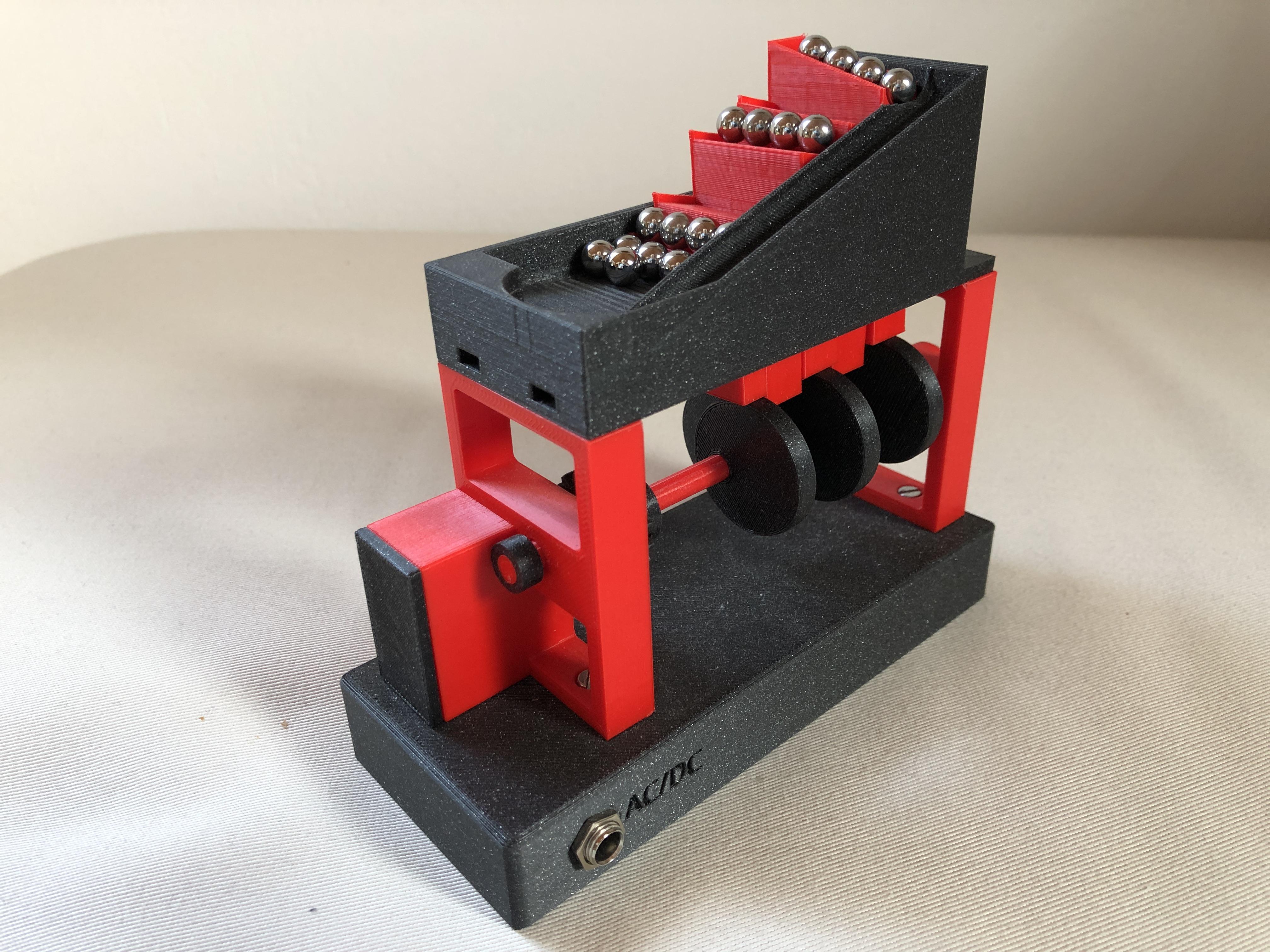

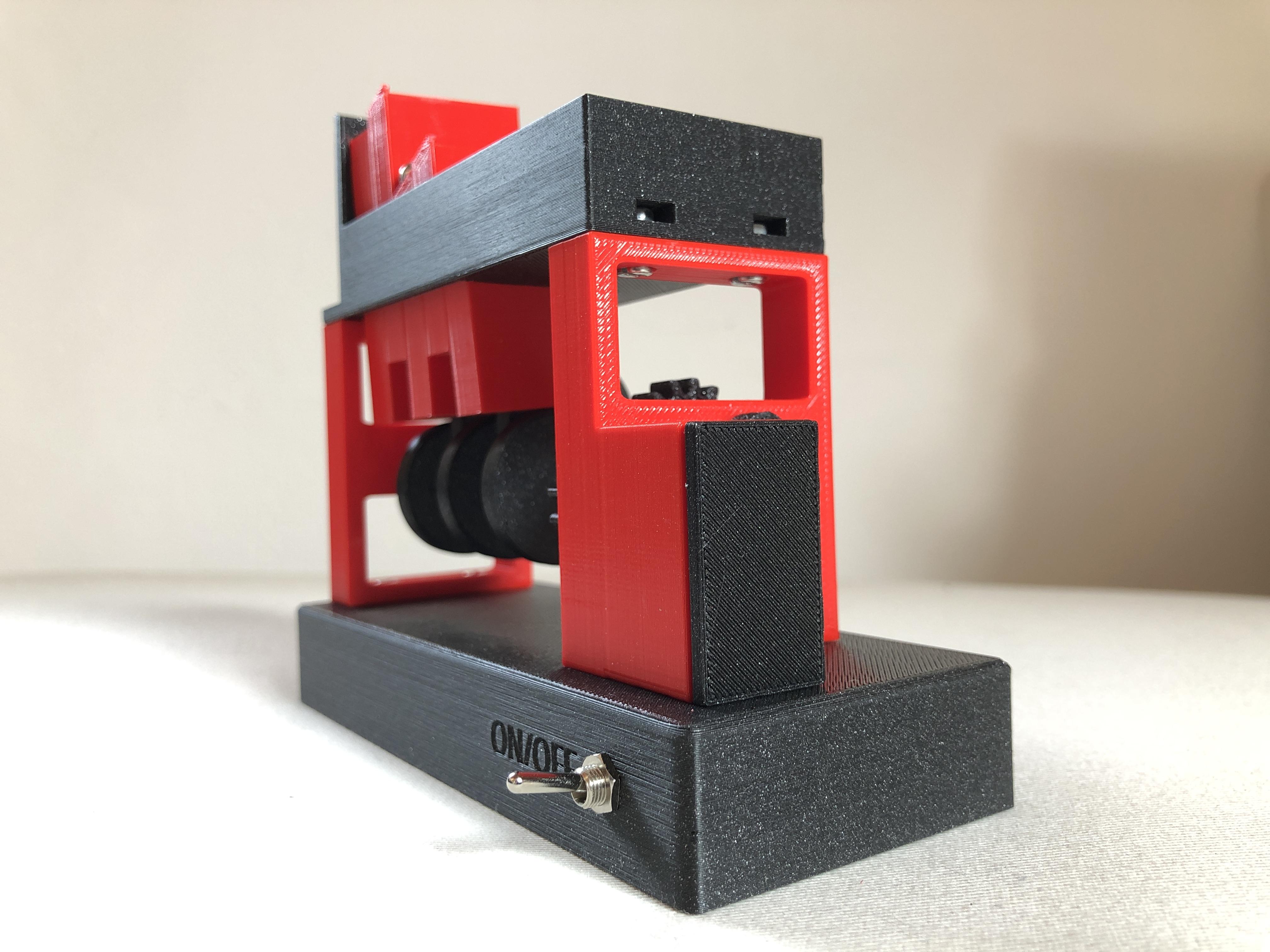

This project is about the revision and motorization of a great crank operated marble machine, to find on https://www.thingiverse.com/thing:3160563. Thanks to „3DprintedMarble“ for this little machine. I like it very much! His model is based on wooden models already published on YouTube many years ago, such as https://youtu.be/Tx2CTNYjrfE
In addition to the "motorization" this is a completely reworked project! I use the base as a container for battery, switch, AC/DC socket and wiring at the same time and therefore I had to redesign it, also the pillars.
Assembly preparations:
There are several parts in this project which are connected with screws.
So you need:
- 8x M3 x 7mm, Phillips round head screws or round head screws with slotted head.
- 1x metal sheet screw (2,2 x 9mm) for fixing the gearwheel. Alternatively you can also glue it.
For the electrics you need the following components:
- AC 125 V 6A ON-ON 3 Pins 2 Position Mini Toggle Switch
- 2.1 x 5.5mm 3-pole DC sockets connector, pin 2,1mm
- Mini DC 6V 30RPM Micro Gear Motor
- Battery clip connector with 15cm connection cable for 9V blocks
- Different colored wire
- Solder
- Soldering iron
For the running of the machine you need:
- 9V battery - to be fixed in the base (3-12V AC/DC universal power supply - for connection to the AC/DC jack)
- Many Steelballs/Marbles Ø 7mm, 12 already make a good appearance ... there should be at least 1!
After you have printed all parts start with ….
Remark:
As all parts are designed to fit very precisely, it may happen that you have to rework one or the other part a bit with sandpaper and/or cutter due to different dimensional accuracy of the printers and the different behavior of the filaments.
![MS_step_01b.png](/proxy/?url=https://content.instructables.com/FYX/6UHP/KOVH6APR/FYX6UHPKOVH6APR.png&filename=MS_step_01b.png)
![MS_step_01a.jpg](/proxy/?url=https://content.instructables.com/FUY/XIEH/KOVH6APQ/FUYXIEHKOVH6APQ.jpg&filename=MS_step_01a.jpg)
![MS_step_01.png](/proxy/?url=https://content.instructables.com/FCO/7TWB/KOVH6APP/FCO7TWBKOVH6APP.png&filename=MS_step_01.png)

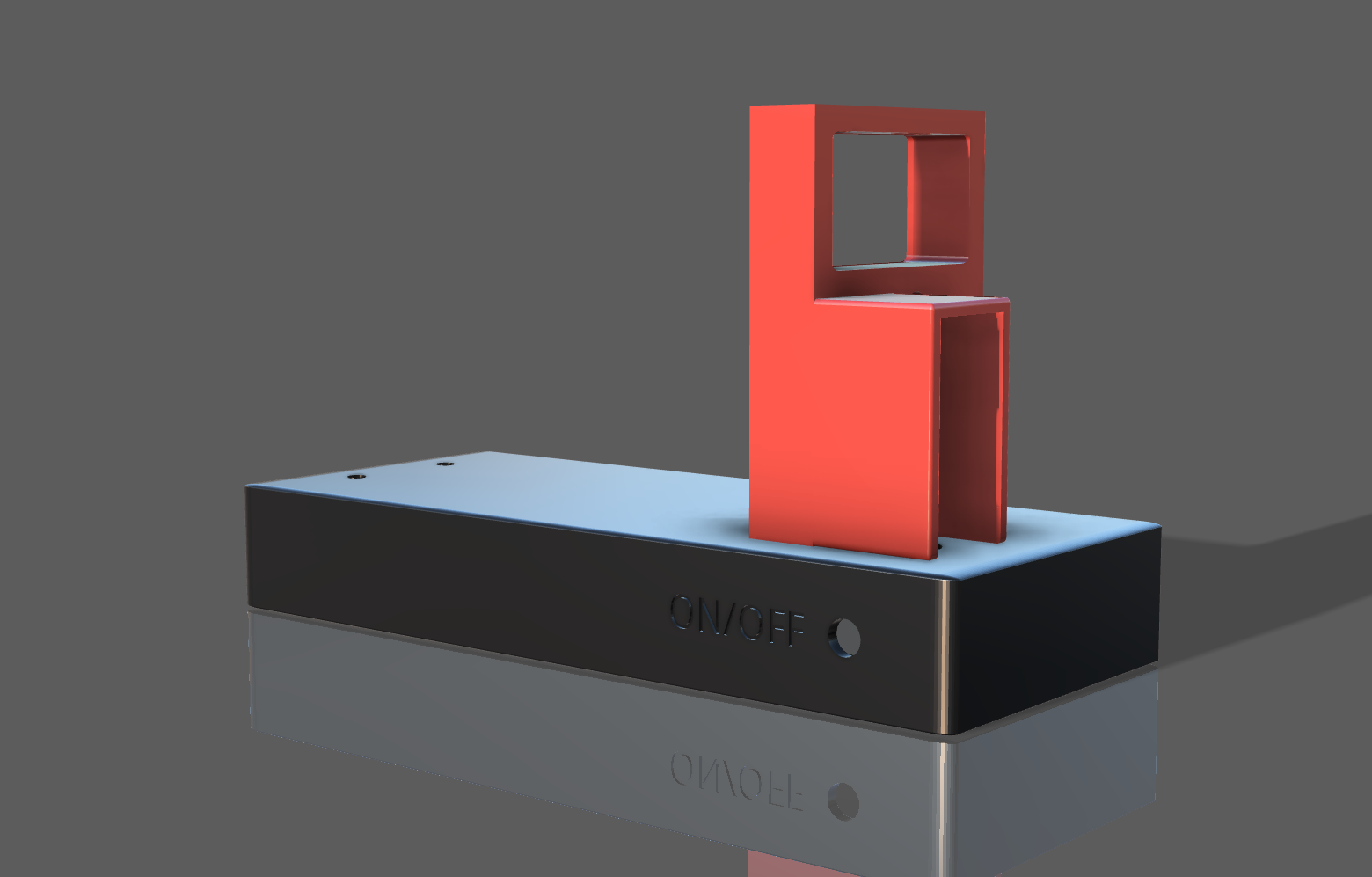

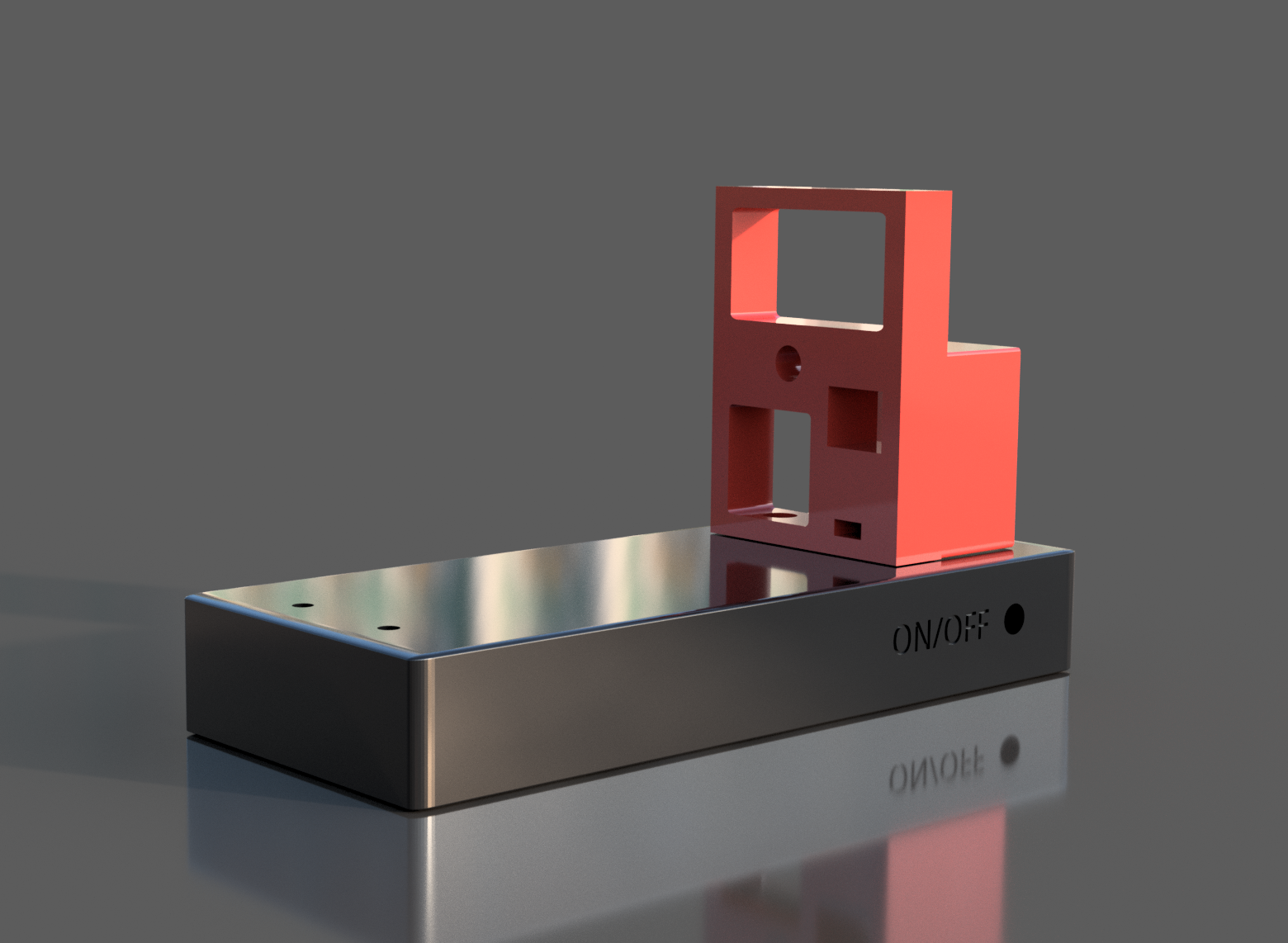

Attach "MC_Pillar_right" to "MC_Base". You need 2 screws Ø M3x7mm plus nuts. Note that the screw on the motor housing is inserted from below!
![MS_step_02.png](/proxy/?url=https://content.instructables.com/F7M/S5OV/KOVH6APS/F7MS5OVKOVH6APS.png&filename=MS_step_02.png)
![MS_step_03.png](/proxy/?url=https://content.instructables.com/FO0/FF41/KOVH6APT/FO0FF41KOVH6APT.png&filename=MS_step_03.png)
![MS_step_03a.png](/proxy/?url=https://content.instructables.com/F8W/R4G8/KOVH6APW/F8WR4G8KOVH6APW.png&filename=MS_step_03a.png)
![MS_step_03f.png](/proxy/?url=https://content.instructables.com/FNH/J6X0/KOVH6AQ2/FNHJ6X0KOVH6AQ2.png&filename=MS_step_03f.png)

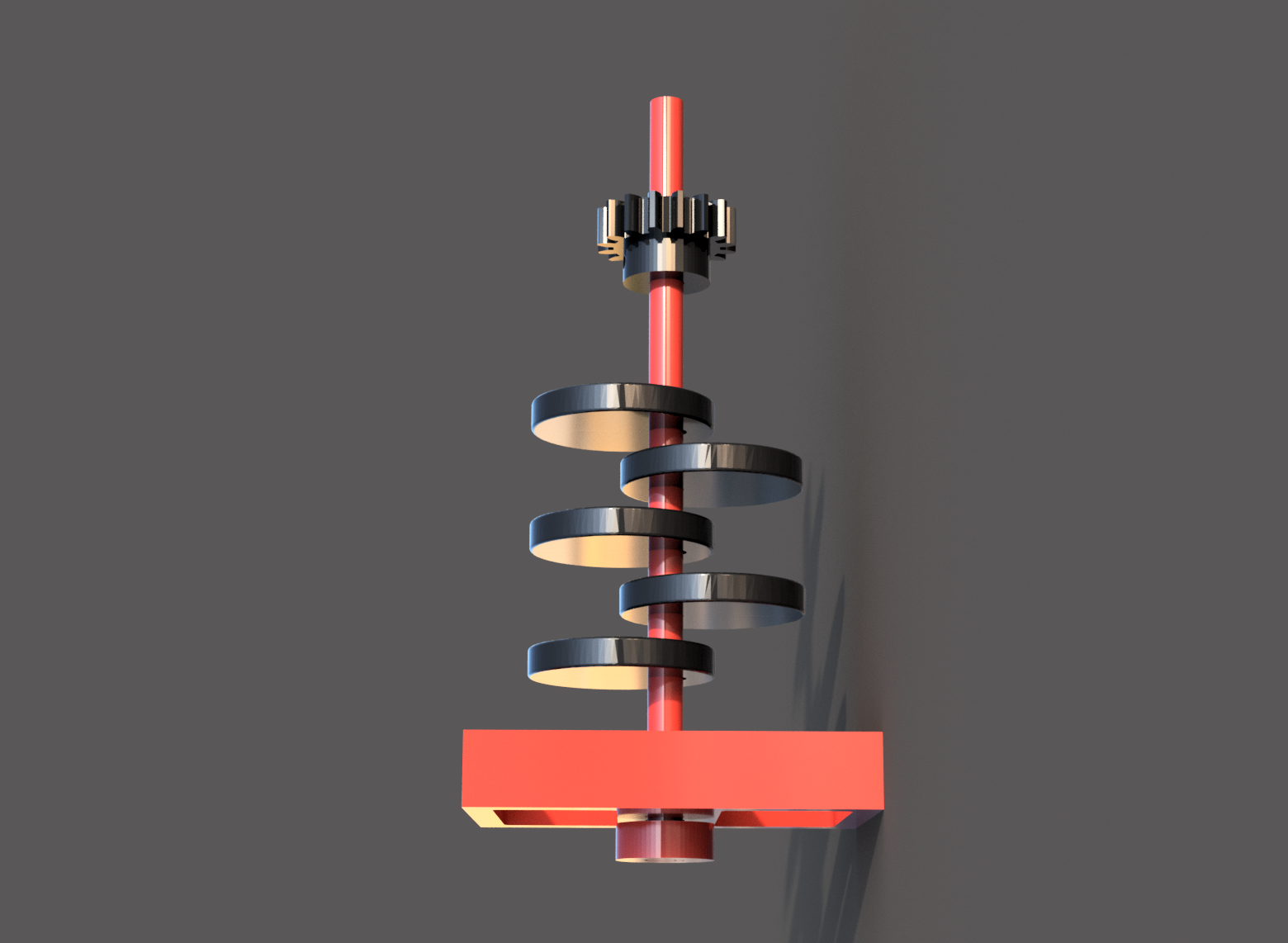

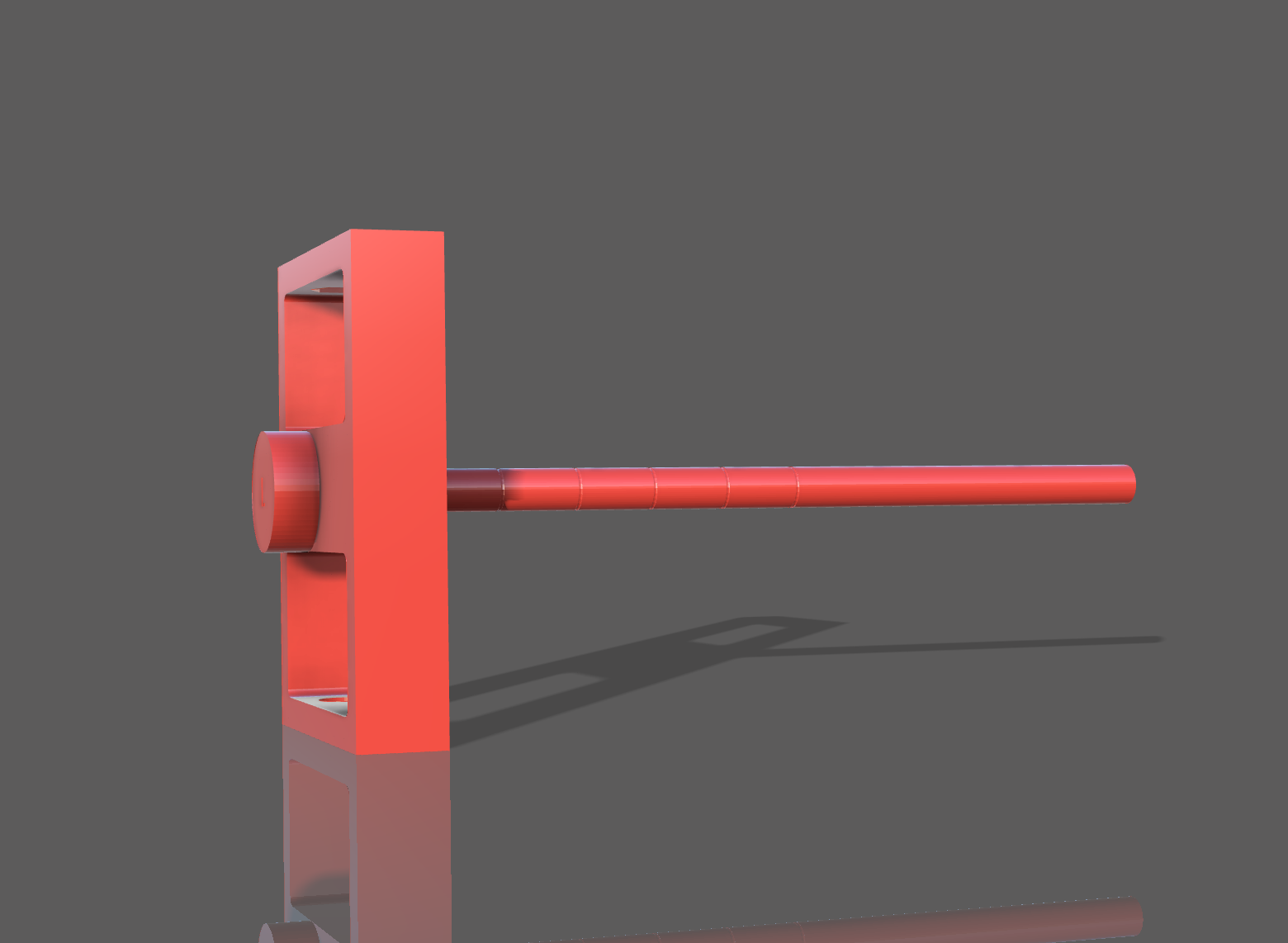

Insert "MC_shaft" through the hole of "MC_Pillar_left". Then line up the 5 "MC_Cam" on "MC_Shaft". There are markings that show you where the individual "MC_Cam" must be placed. Align each "MC_Cam" with the center of the mark. Then align them as shown in the pictures (one up, one down) and glue them in place.
Then set "MC_Gear_camshaft" to "MC_Shaft". You can wait with the alignment and the fixing.
![MS_step_03b.png](/proxy/?url=https://content.instructables.com/FGU/3PWB/KOVH6APZ/FGU3PWBKOVH6APZ.png&filename=MS_step_03b.png)
![MS_step_03g.JPG](/proxy/?url=https://content.instructables.com/FPX/03FZ/KOVH6AQ5/FPX03FZKOVH6AQ5.jpg&filename=MS_step_03g.JPG)
![MS_step_04.png](/proxy/?url=https://content.instructables.com/FN8/88XD/KOVH6AQA/FN888XDKOVH6AQA.png&filename=MS_step_04.png)
![MS_step_04a.png](/proxy/?url=https://content.instructables.com/FNG/I5IP/KOVH6AQB/FNGI5IPKOVH6AQB.png&filename=MS_step_04a.png)

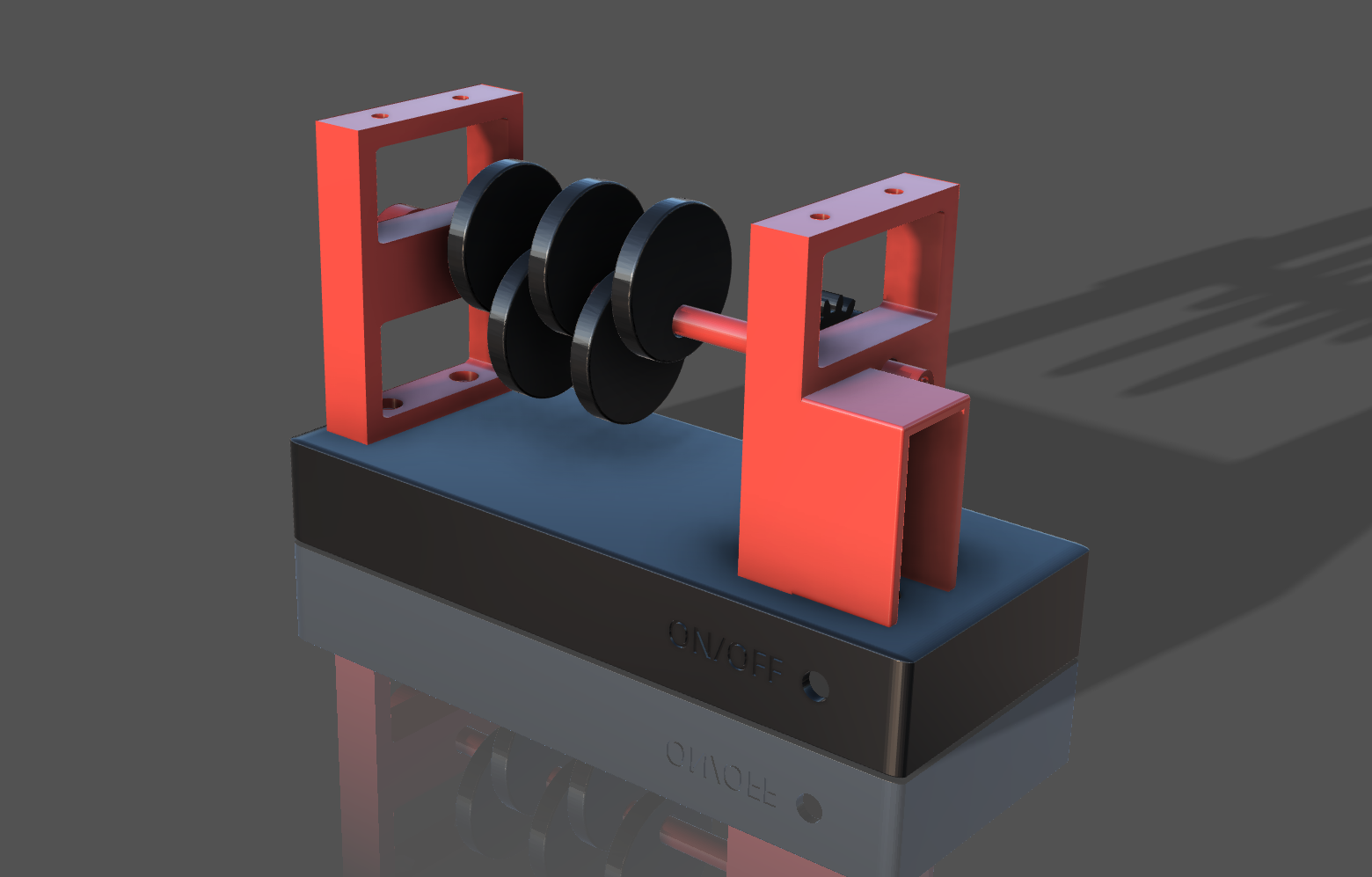

Now you can insert the assembled part into the hole of "MC_Pillar_right" and screw "MC_Pillar_left" to "MC_Base".
![MS_step_05.png](/proxy/?url=https://content.instructables.com/FT8/G1ST/KOVH6AQD/FT8G1STKOVH6AQD.png&filename=MS_step_05.png)
![MS_step_05b.JPG](/proxy/?url=https://content.instructables.com/FT7/26PM/KOVH6AQI/FT726PMKOVH6AQI.jpg&filename=MS_step_05b.JPG)
![MS_step_05c.JPG](/proxy/?url=https://content.instructables.com/FCY/SLSK/KOVH6AQL/FCYSLSKKOVH6AQL.jpg&filename=MS_step_05c.JPG)
Now you can fix "MC_Top" on "MC_Pillar_left" and "MC_Pillar_right" with 4 screws Ø M3x7mm plus nuts.
![MS_step_06a.jpg](/proxy/?url=https://content.instructables.com/FDI/3R86/KOVH6AQR/FDI3R86KOVH6AQR.jpg&filename=MS_step_06a.jpg)
![IMG_3234.JPG](/proxy/?url=https://content.instructables.com/FVQ/KMZ1/KOVH6DLF/FVQKMZ1KOVH6DLF.jpg&filename=IMG_3234.JPG)
![MC_step_09a.jpg](/proxy/?url=https://content.instructables.com/F6T/7DPP/KOVH6DK8/F6T7DPPKOVH6DK8.jpg&filename=MC_step_09a.jpg)
Now to the motor. Before you put it in, you should solder a red and a black cable (about 10 cm long) to the pole tabs. Red to + and black to -.
When you have done this, you can insert the motor into the intended place in the "MC_Pillar_right". Feed the two cables through the hole in the "MC_Base".
The recess for the motor is very narrow. This is intended so that the motor can sit firmly. Here you will probably have to rework a little bit with a file.
If the motor fits well, you can put "MC_Gear_motor" on the motor shaft and align "MC_Gear_camshaft" so that both gears mesh. After that you can fix "MC_Gear_camshaft" with a sheet metal screw (Ø 2.2x9.5mm) or with super glue.
After that you can mount "MC_Stopper" and "MC_Motor_hood". I think you don't need to glue them.
![MS_step_06.jpg](/proxy/?url=https://content.instructables.com/FO0/OTBO/KOVH6AQO/FO0OTBOKOVH6AQO.jpg&filename=MS_step_06.jpg)
![MS_step_06b.JPG](/proxy/?url=https://content.instructables.com/F7V/Q7RU/KOVH6AQT/F7VQ7RUKOVH6AQT.jpg&filename=MS_step_06b.JPG)
![MS_step_06c.JPG](/proxy/?url=https://content.instructables.com/FGZ/XMX3/KOVH6AQX/FGZXMX3KOVH6AQX.jpg&filename=MS_step_06c.JPG)
![Marble Climber Schaltplan_04.png](/proxy/?url=https://content.instructables.com/F3M/V38S/KOYC2N2D/F3MV38SKOYC2N2D.png&filename=Marble Climber Schaltplan_04.png)
![Marble Climber Schaltplan_05.png](/proxy/?url=https://content.instructables.com/FQD/AN55/KOYC2N2E/FQDAN55KOYC2N2E.png&filename=Marble Climber Schaltplan_05.png)
![Marble Climber Schaltplan_07.png](/proxy/?url=https://content.instructables.com/FGH/Y3G4/KOYC2N2F/FGHY3G4KOYC2N2F.png&filename=Marble Climber Schaltplan_07.png)
Attach the switch and the AC/DC jack.
Soldering …
I'm not an electrician, so I can't give you a schematic. I enclose photos and a 3D wiring view. I hope you can see how the wiring is done.
The yellow cable is for illustration purposes only! The red or black cable can also be used in its place.
I wanted to have the option to use the Marble Climber with multiple power sources, so I wired it for operation on battery (internal), AC/DC power supply and/or solar panel.
Note: If you don't need/want an AC/DC jack, the wiring would be much easier.
Downloads
![IMG_3235.JPG](/proxy/?url=https://content.instructables.com/F87/NB2N/KOVH6EFD/F87NB2NKOVH6EFD.jpg&filename=IMG_3235.JPG)
![IMG_3236.JPG](/proxy/?url=https://content.instructables.com/FQ1/I8FJ/KOVH6EGR/FQ1I8FJKOVH6EGR.jpg&filename=IMG_3236.JPG)

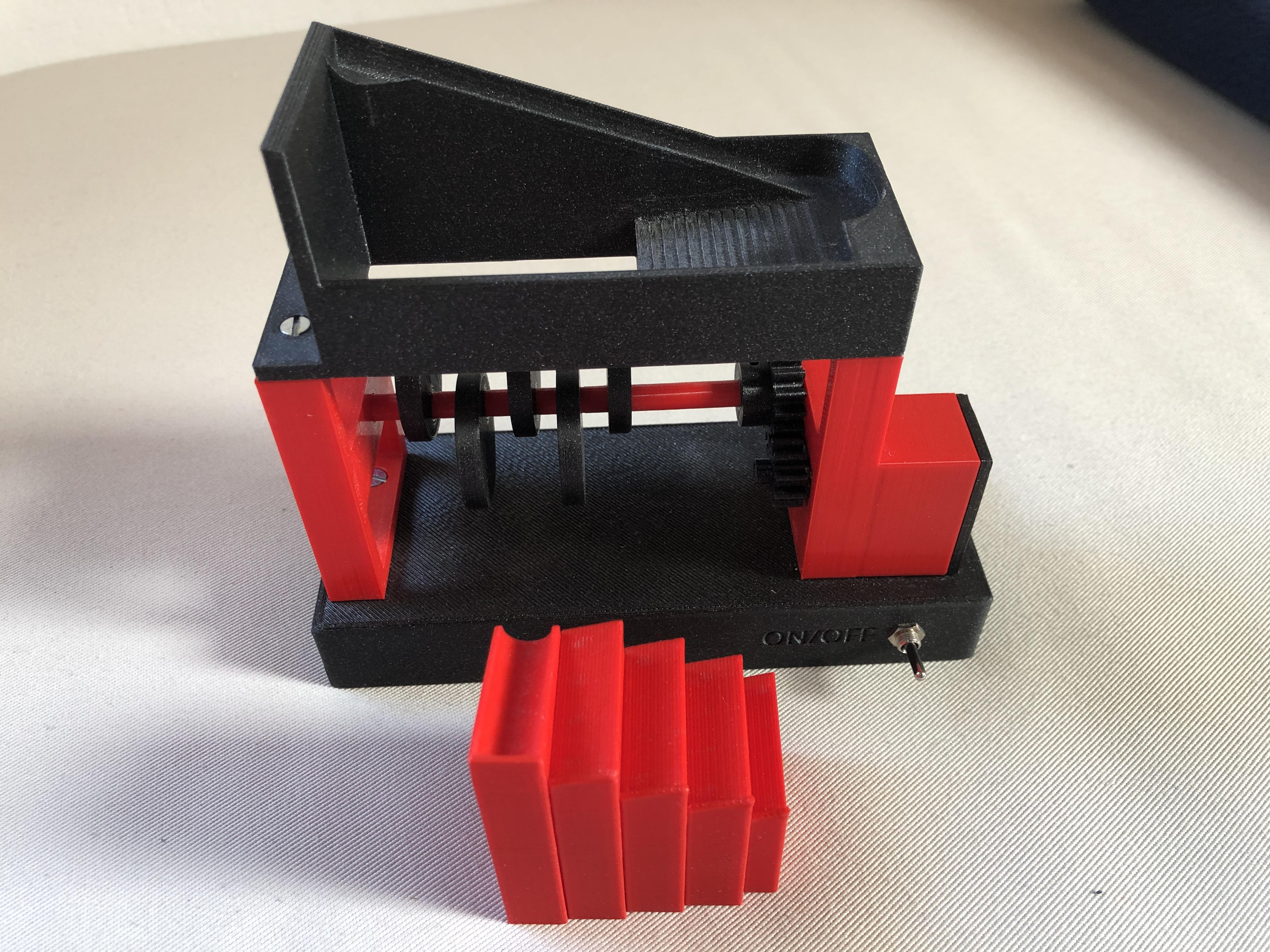

Final! Insert " MC_Piston_1-5" into the Marble Climber as shown in the photo.
Only for the very attentive among you:
Compared to the pictures in the video, you may notice that "Piston_1" is much narrower in the pictures in these instructions. I changed this after the video was published. It is an improvement!
Explanation: if there were a lot of balls in operation (more than 12), the first piston took up - due to the width - more than 4 balls every now and then, which could lead to 5 or more balls being brought up to the top. This occasionally resulted in these extra balls simply being thrown overboard. To prevent the first piston from picking up more than 4 balls, I've narrowed the top surface and widened the pistons 2-4 correspondingly, as well as the markings on the „MC_Shaft“.
