Maple Leaves


I was inspired by autumn to make maple leaves that change color. Pressing on the red, yellow or orange switches makes the green adjacent leaf change color!
This project uses thermochromic paint and a heating element to make the maple leaf change colors.
Materials used:
For Thermochromic paint:
Thermochromic paint
paint brush
mixing cup
Liquitex Fluid transparent Medium
Cloth:
I used cotton poly blend red, yellow and orange cloth
Denim for the main sample
Felt (for the switch)
Conductive fabric (Iron On preferred)
Conductive thread
Scissors
Needles
Regular thread
For Assembly:
Heat Gun
Hot Glue Gun
Iron
Battery (5v and 1Ampere) or switching mode DC regulated power supply
Access to Laser Cutter is a plus
Multimeter
Cut Your Leaf Shape


You can cut the maple leaf shape out of yellow, red and orange fabric.

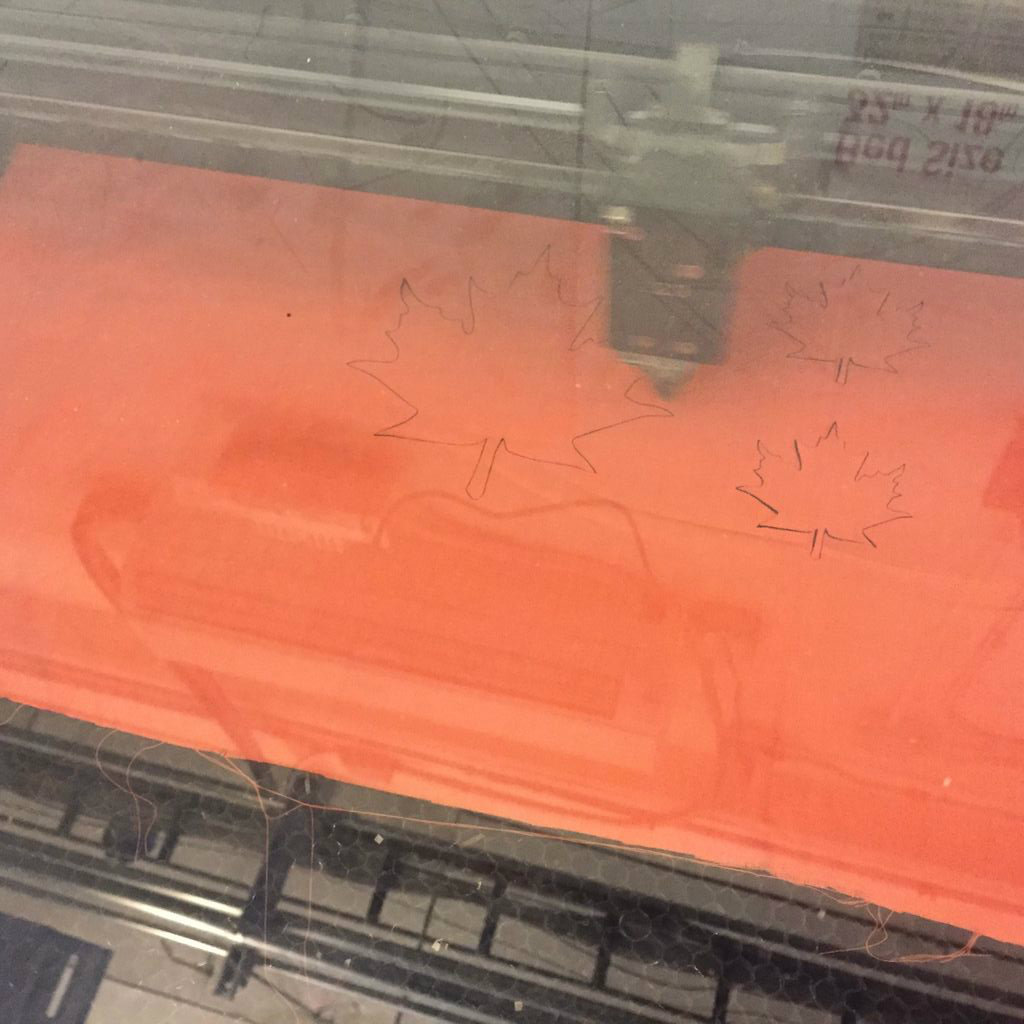

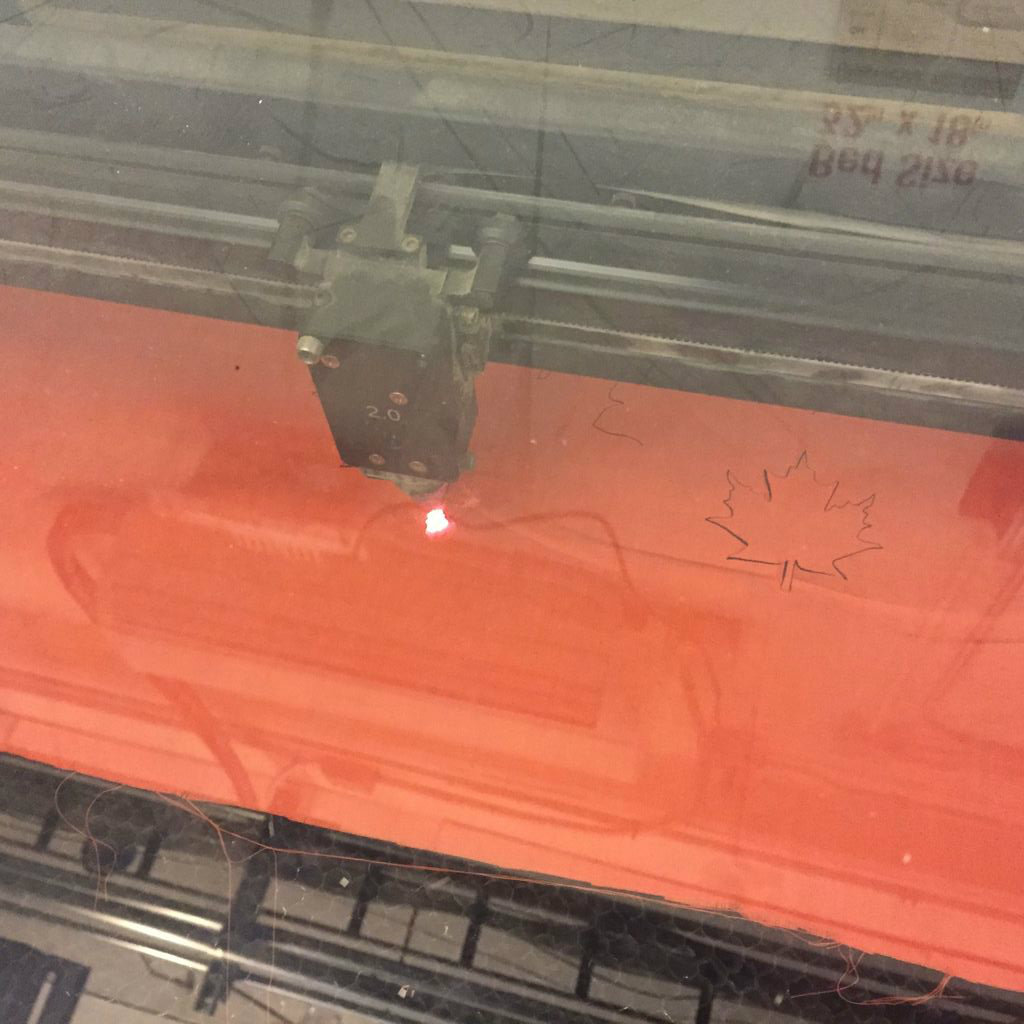

I have used a laser cutter to do this step to get a clean finish.
Cut Big shapes for the heating elements and smaller shapes for the switches.
Circuit

There are three parts to the circuit-
heating unit (the maple leaf that will change color)
The Switch (A smaller maple leaf that turns on when you press down on it)
Battery
Heating Element

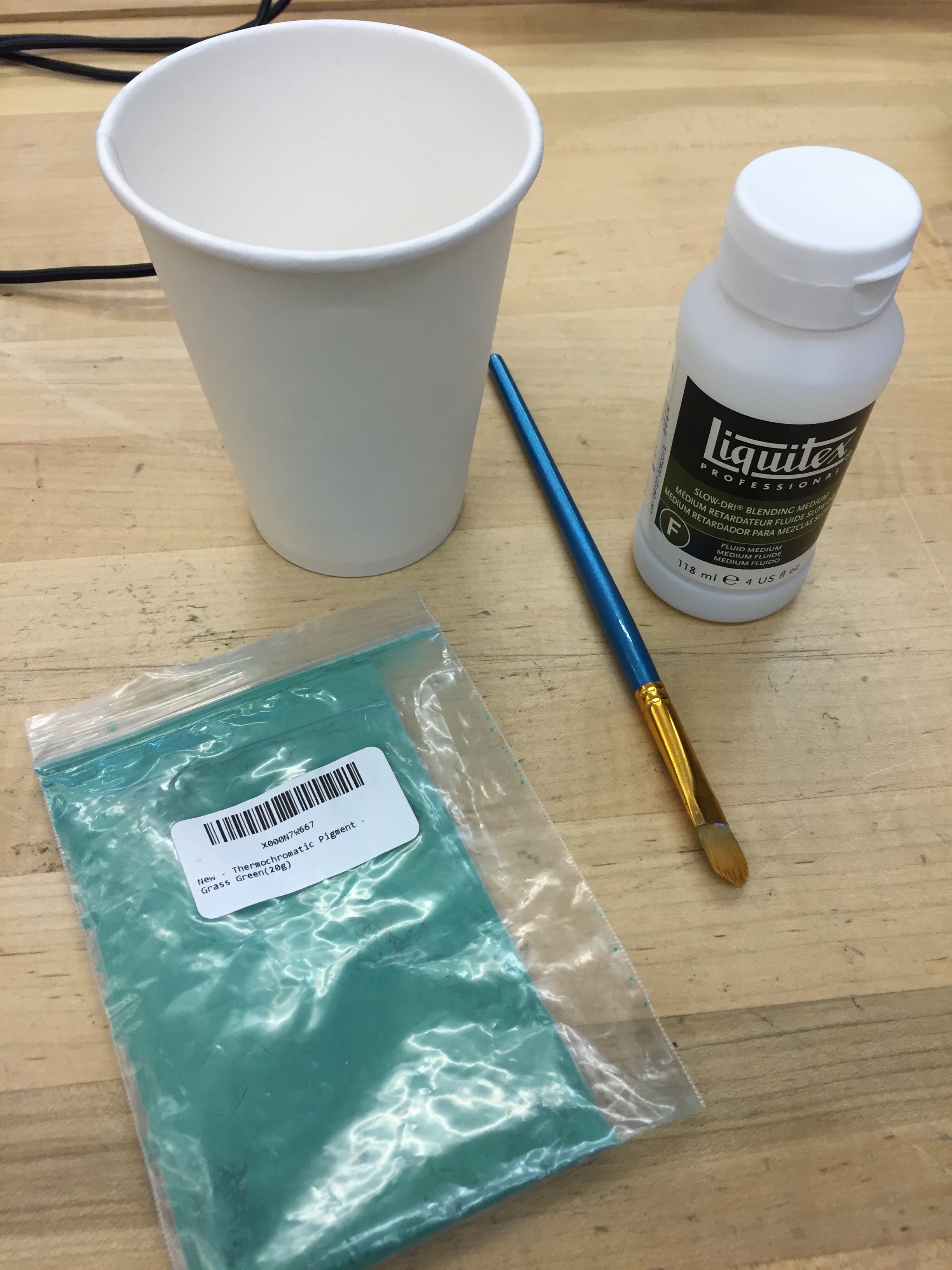

Mix the thermochromic pigment with the fabric medium. The viscosity should be fairly thick.

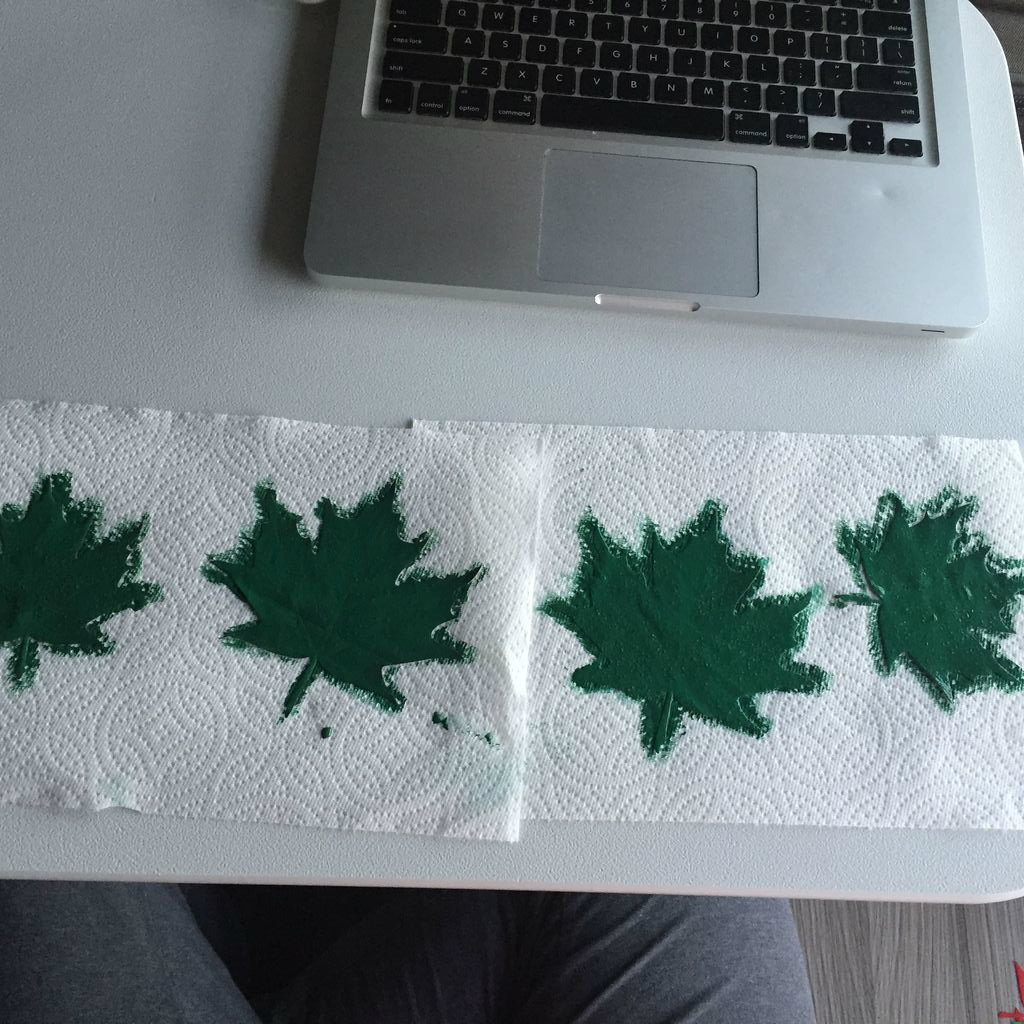

Apply multiple layers of pigment so that the color is an even thick green color.
Drying Process

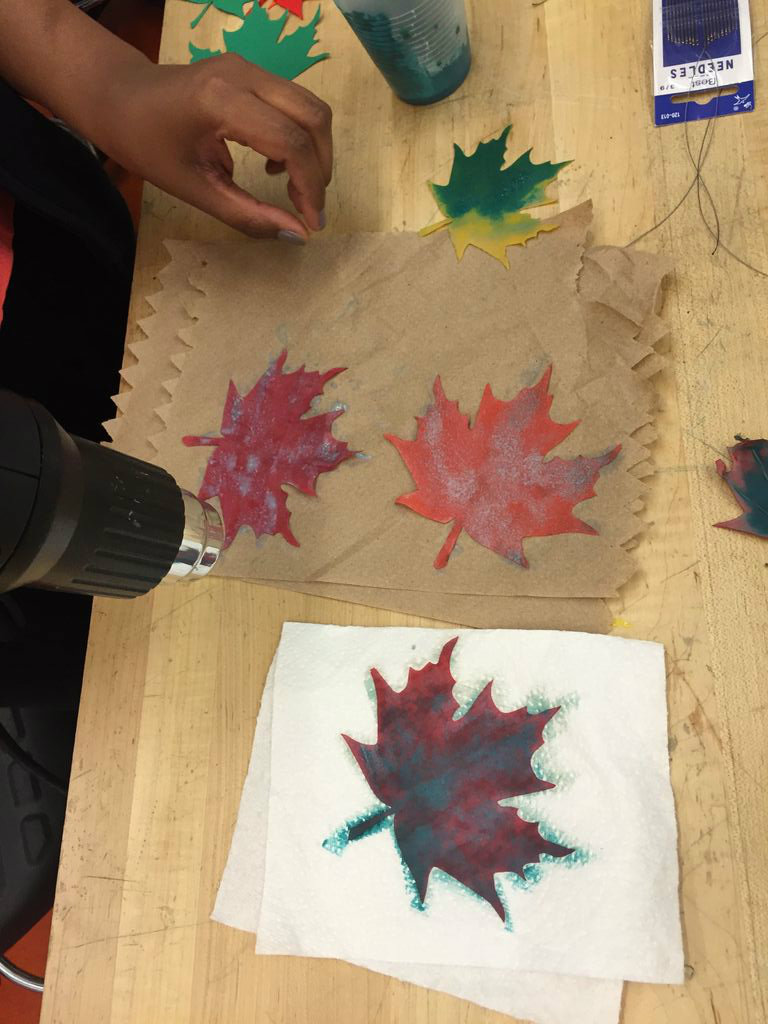

To fasten the drying process use the heat gun on the thermochromic pigment.
The Loop

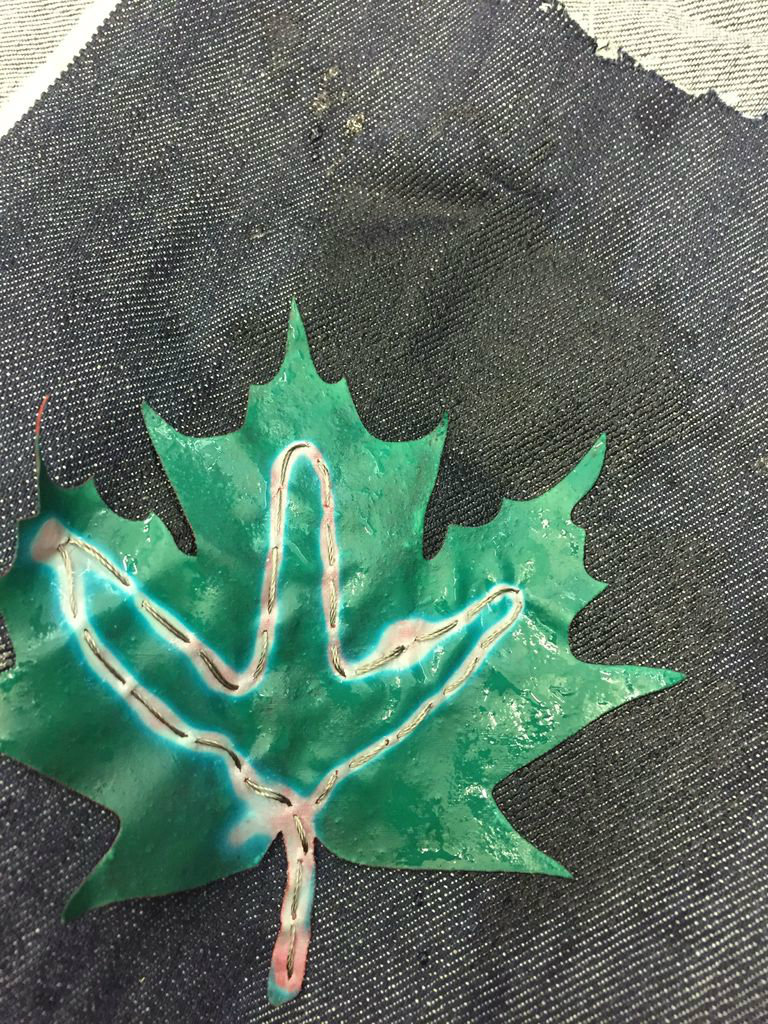

Create a loop on the leaf heating element.
Try not to do multiple stitches in one place as this might cause overheating.
Test the heating element by attaching it to the switching module before proceeding.
Make this with all three leaves.
The Switch

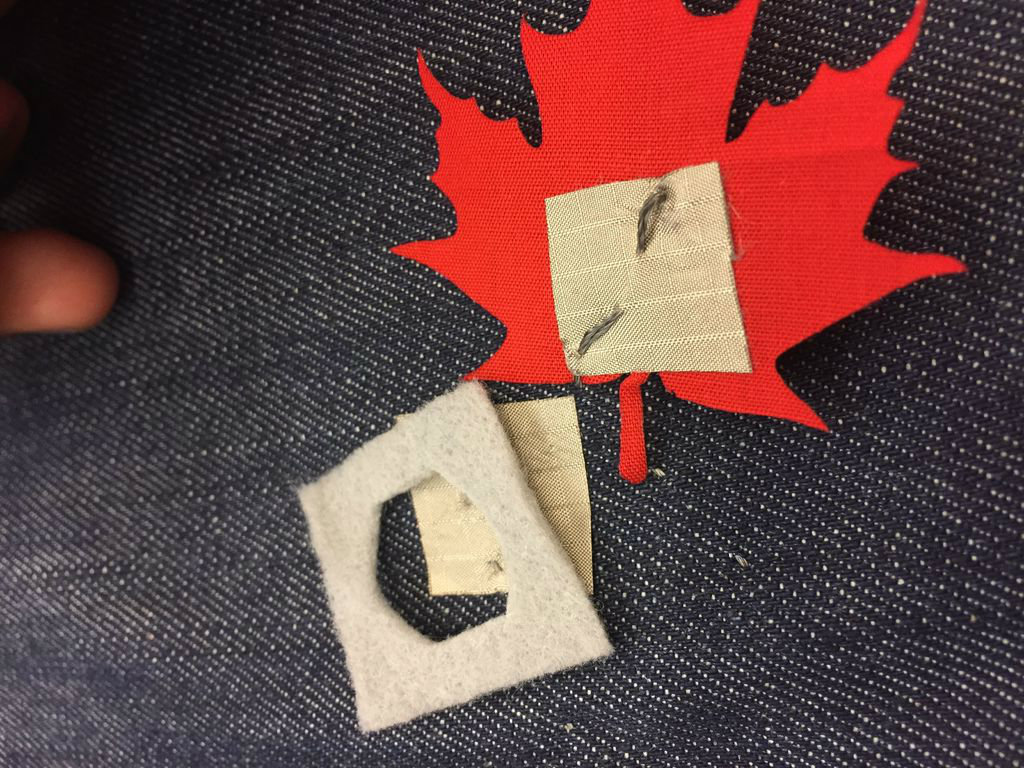

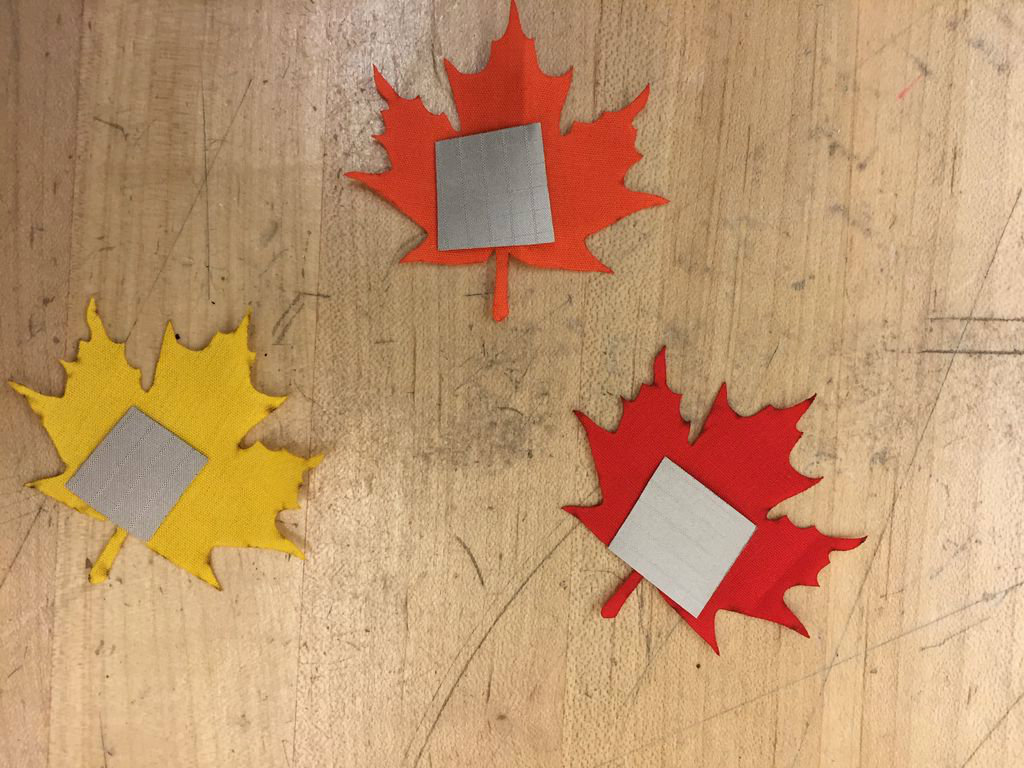

The switch is made by sandwiching the maple leaf, conductive fabric, a piece of felt and conductive fabric on the textile in that order.
Make three switches

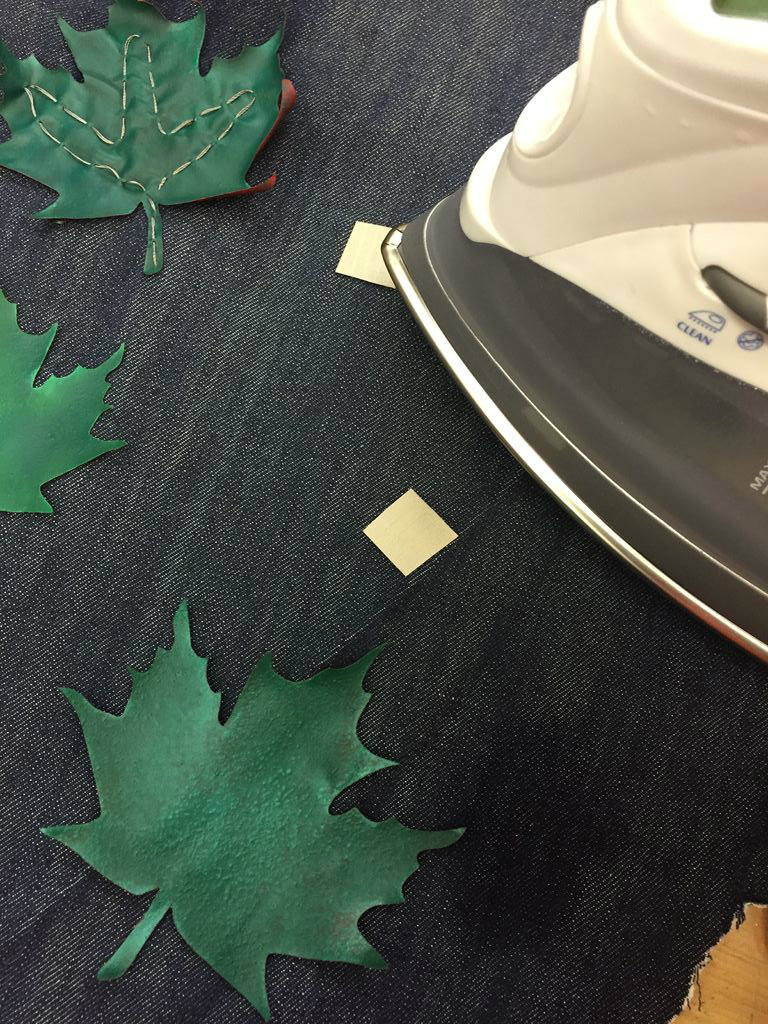

Attaching to the Textile

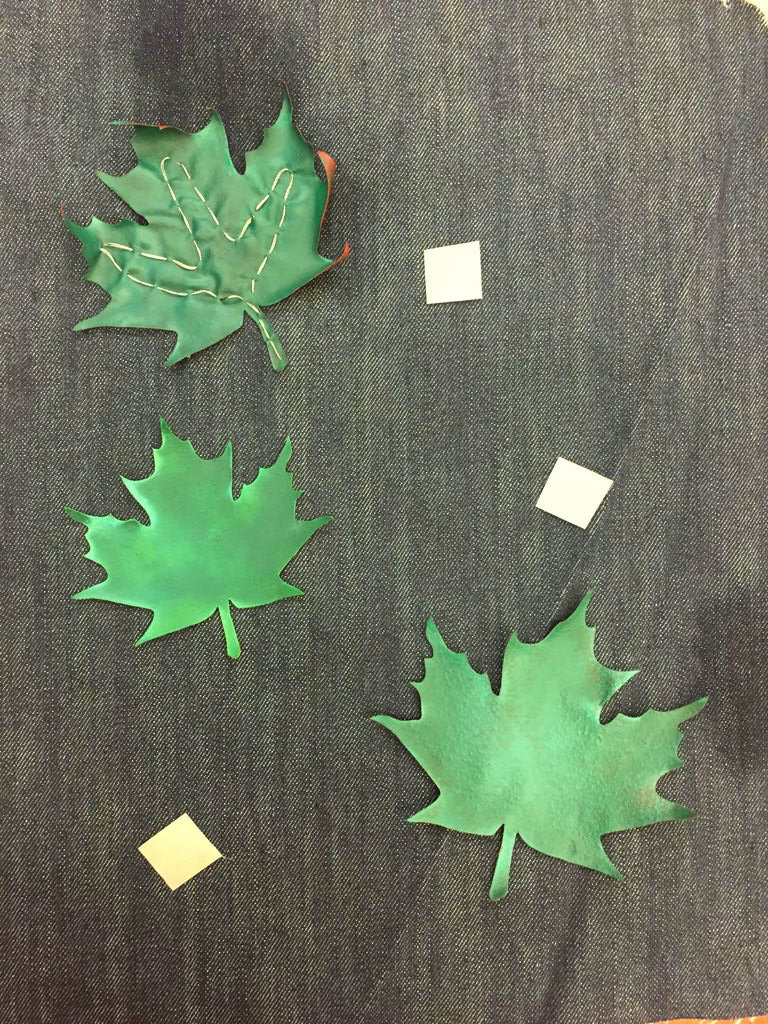

Attach the leaves and the switched onto the textile where the maple leaves are housed.
Insulate and Testing

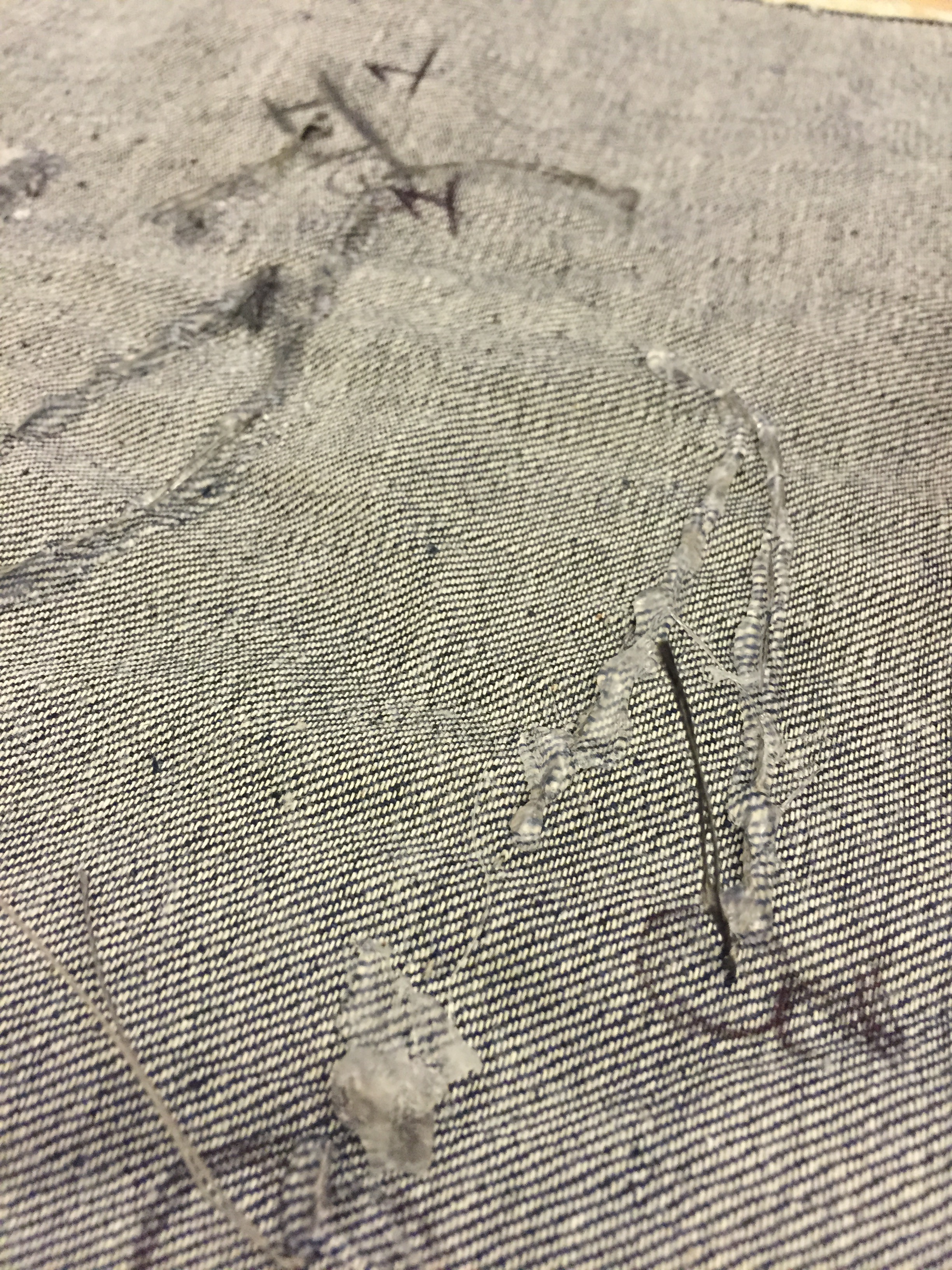

It is good to insulate the conductive thread after each step.
Use a multimeter to test whether the thread is still conductive.
Test

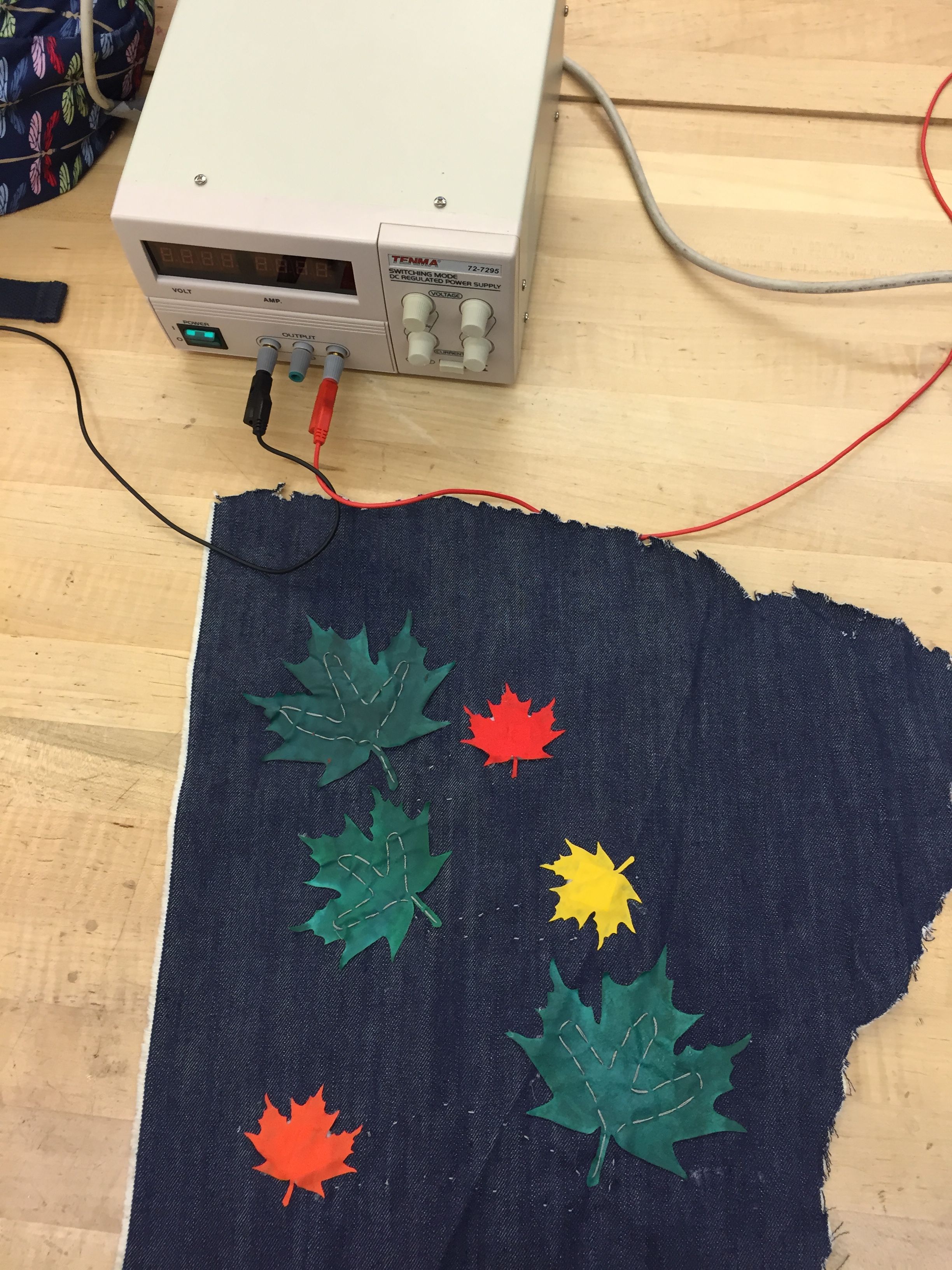

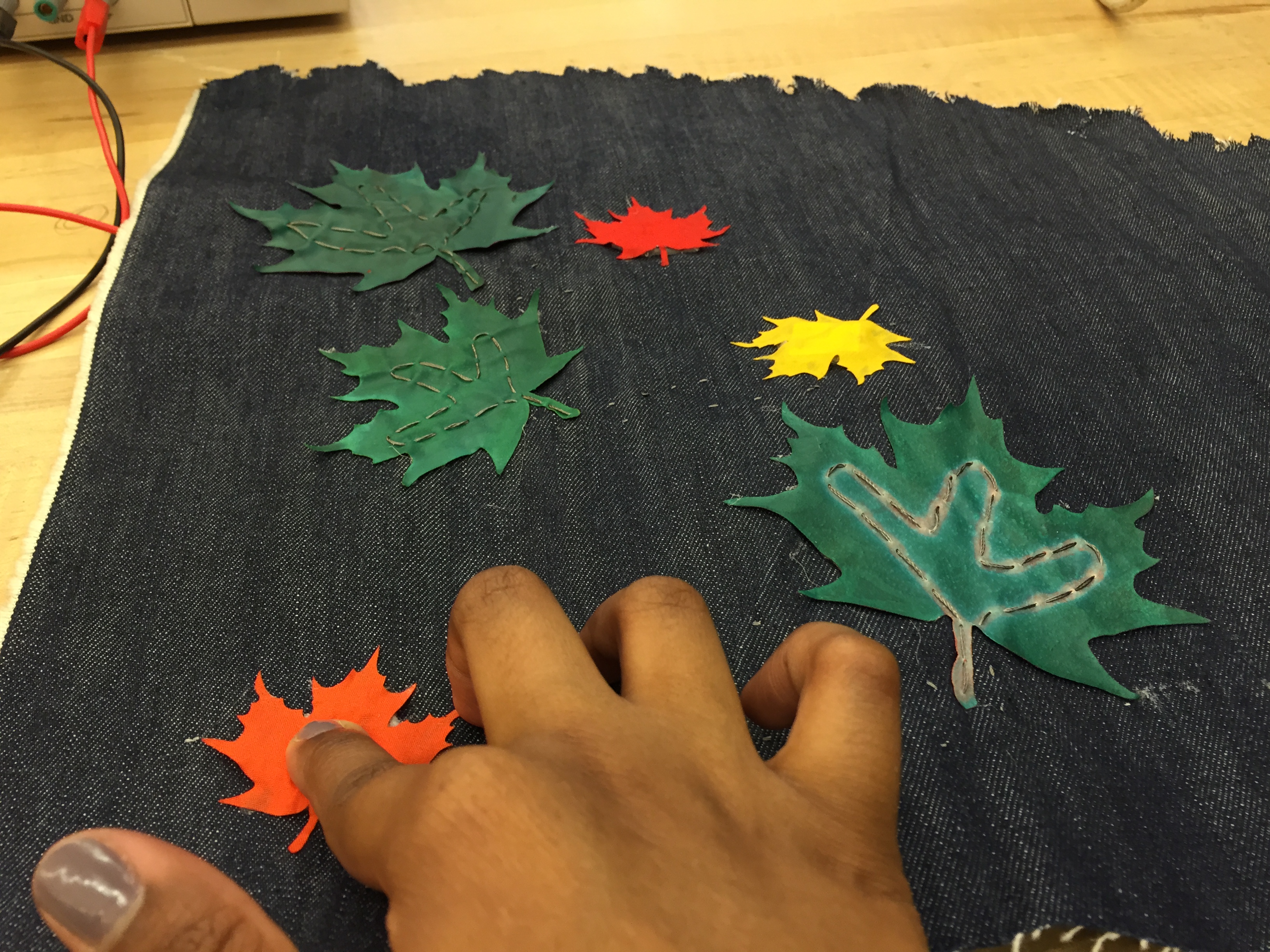

Once you have glued on the heating element and the switch you can test the color change with a switching mode power supply
Done!

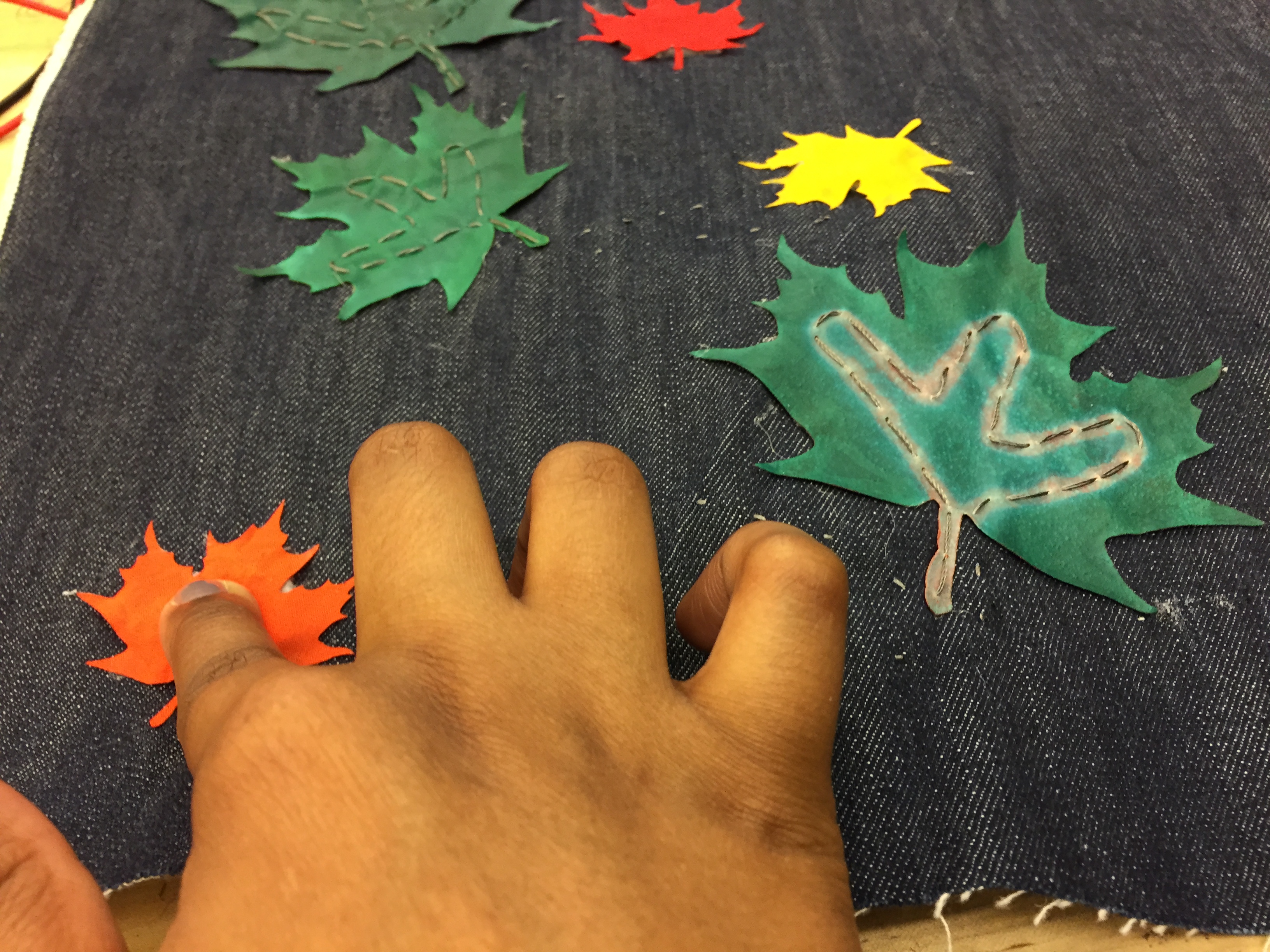

The textile is now ready. Press the buttons to watch the maple leaf change color.
