Man Don't Fret
![IMG_20211230_163054.jpg](/proxy/?url=https://content.instructables.com/FYO/LKJ0/LDBZX19F/FYOLKJ0LDBZX19F.jpg&filename=IMG_20211230_163054.jpg)
On the internet I saw a ludo made of wood. I liked that very much. We built one with my daughter.
Create File With CAD Program
![Screenshot_2023-01-25-21-16-10-324-edit_com.gstarmc.android.jpg](/proxy/?url=https://content.instructables.com/FE5/3PKI/LDBZX2A2/FE53PKILDBZX2A2.jpg&filename=Screenshot_2023-01-25-21-16-10-324-edit_com.gstarmc.android.jpg)

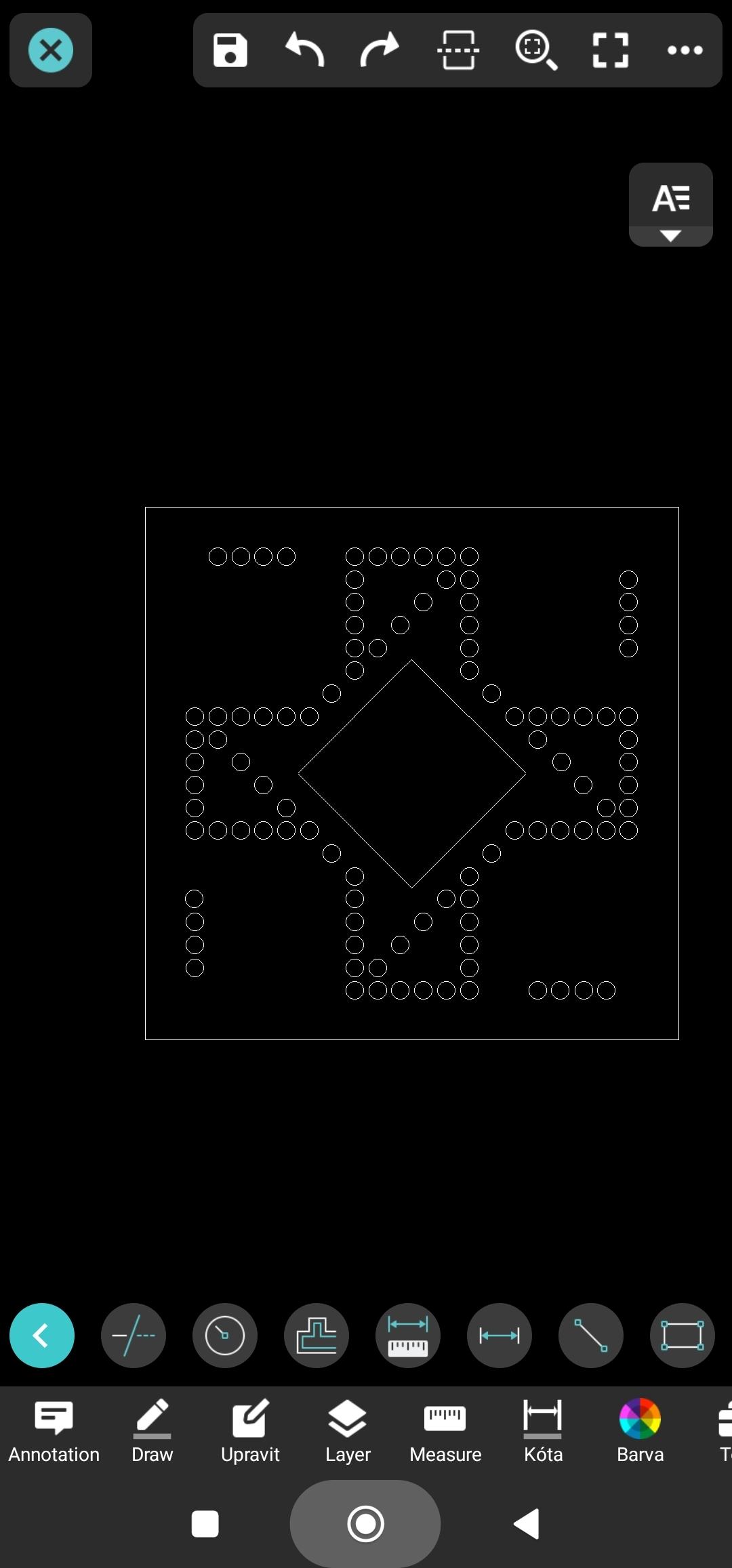

Since I wanted to make the playing field with my self-made Lowrider 2 CNC milling machine, I first had to create the CAD in DXF format. The playing field is 350mm x 350mm. The circles for the figures are 12mm in diameter
Create CNC File
![IMG_20211230_163305.jpg](/proxy/?url=https://content.instructables.com/FGE/G6TU/LDBZX19K/FGEG6TULDBZX19K.jpg&filename=IMG_20211230_163305.jpg)

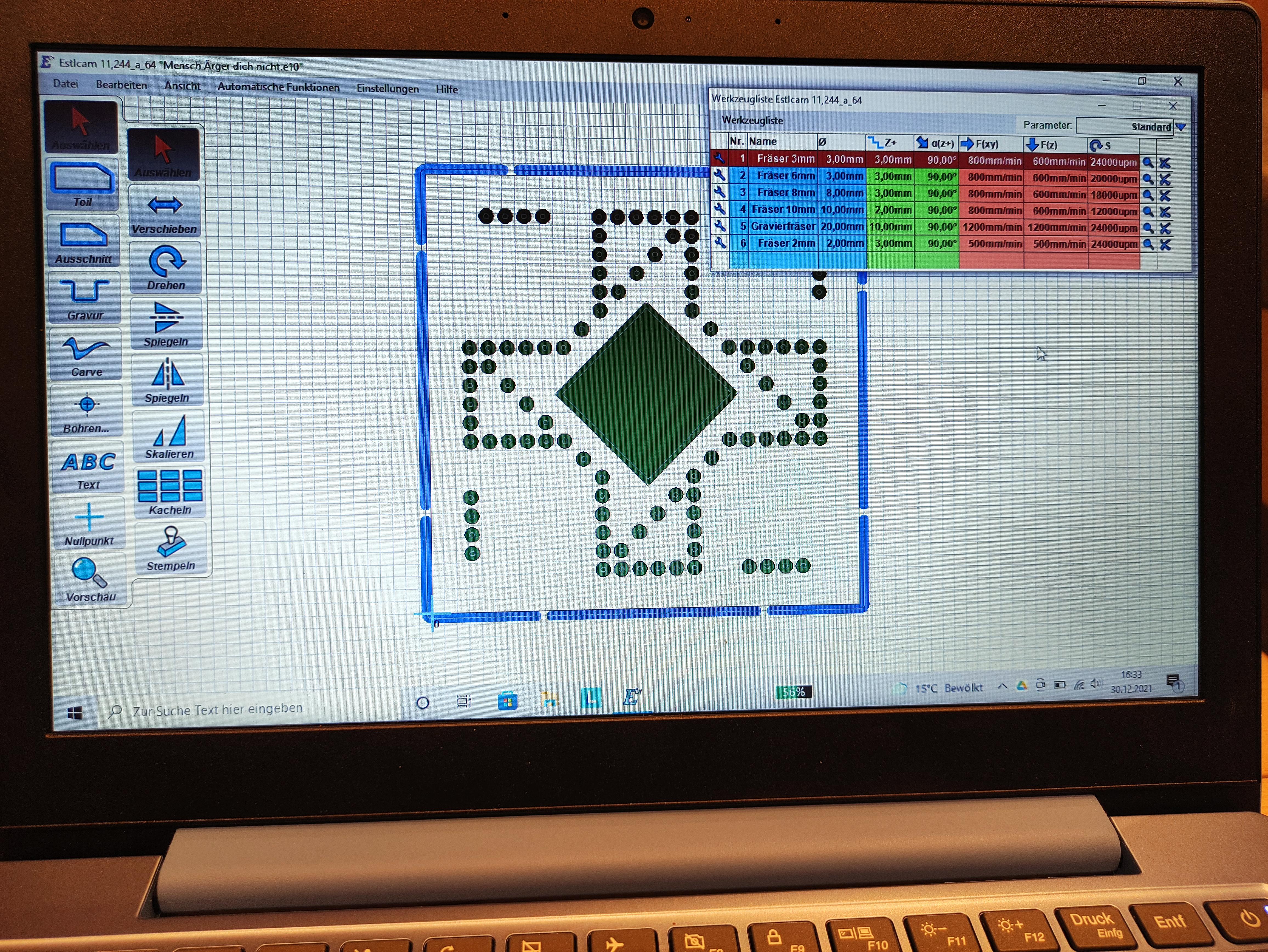

To create the milling program, the DXF file must be edited with Estlcam. The width, depth, etc. of the milling paths are defined here
Milling With the Lowrider 2 CNC
![IMG_20211230_104422.jpg](/proxy/?url=https://content.instructables.com/FM6/5582/LDBZX1AM/FM65582LDBZX1AM.jpg&filename=IMG_20211230_104422.jpg)
![IMG_20211230_104745.jpg](/proxy/?url=https://content.instructables.com/FP6/0H42/LDBZX1AV/FP60H42LDBZX1AV.jpg&filename=IMG_20211230_104745.jpg)
![IMG_20211230_104428.jpg](/proxy/?url=https://content.instructables.com/F31/IIGE/LDBZX1AR/F31IIGELDBZX1AR.jpg&filename=IMG_20211230_104428.jpg)
![IMG_20211230_110550.jpg](/proxy/?url=https://content.instructables.com/FT1/HW83/LDBZX1B2/FT1HW83LDBZX1B2.jpg&filename=IMG_20211230_110550.jpg)
![IMG_20211230_111956.jpg](/proxy/?url=https://content.instructables.com/F7U/WCIW/LDBZX1B7/F7UWCIWLDBZX1B7.jpg&filename=IMG_20211230_111956.jpg)

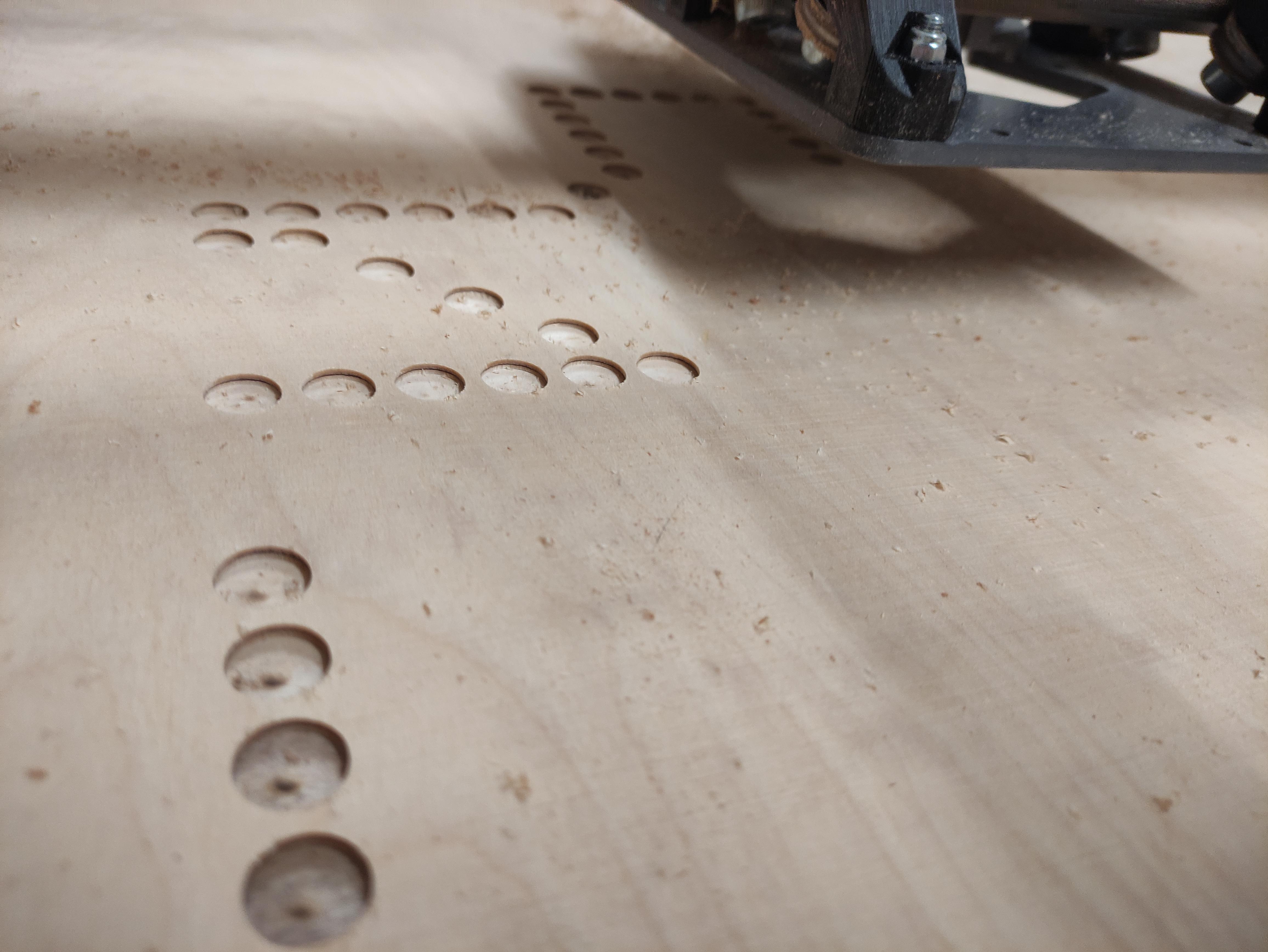

After the program has been created, milling can begin. The whole thing takes about 20 minutes.
It is milled with an 8mm shadow cutter.
Mark Start and Finish
![IMG_20211230_115959.jpg](/proxy/?url=https://content.instructables.com/FRW/7UV3/LDBZX1BE/FRW7UV3LDBZX1BE.jpg&filename=IMG_20211230_115959.jpg)

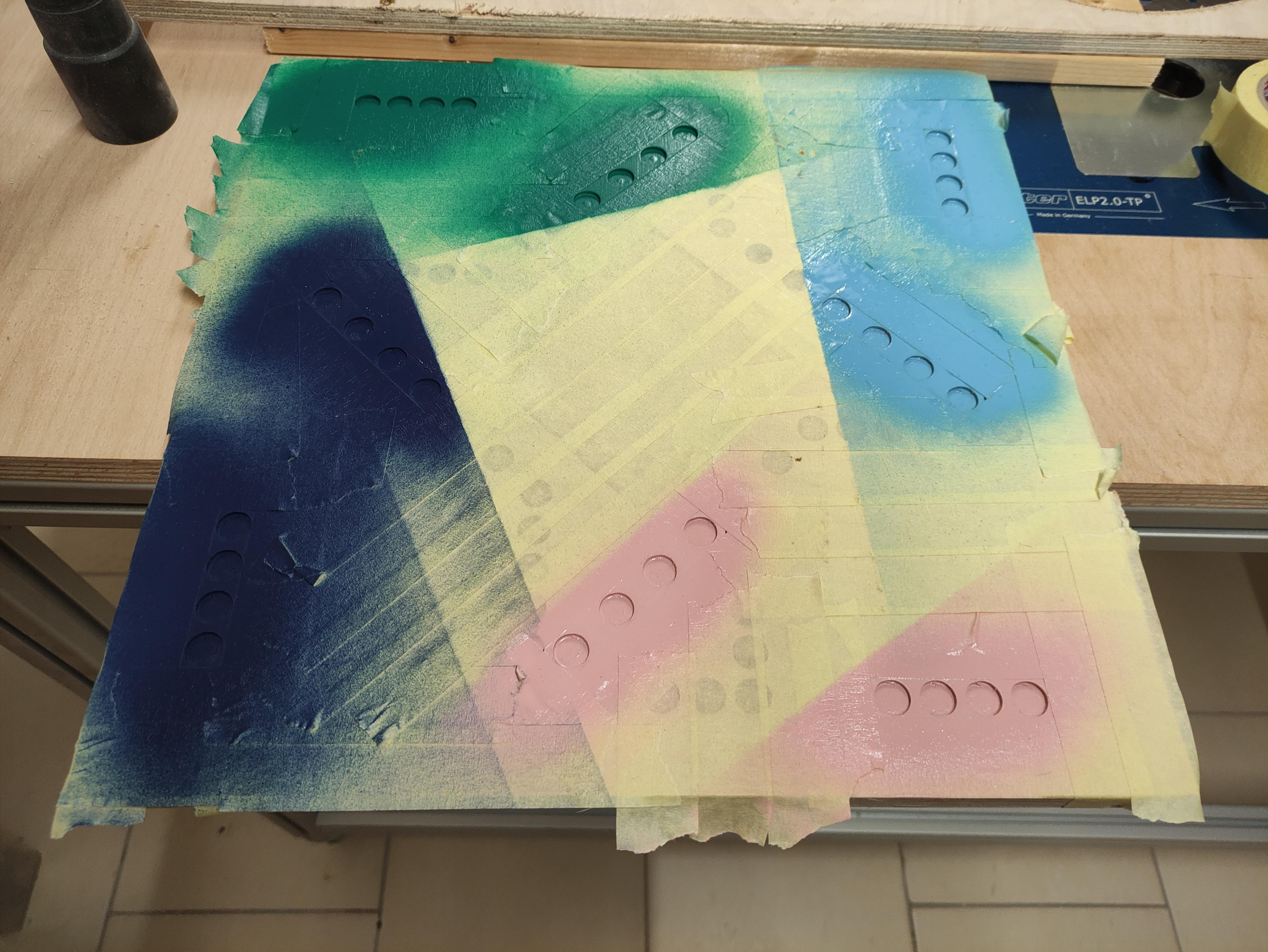

So that you can recognize the start and finish of the four colors, I painted them. Mask off everything except for the respective fields with adhesive tape.
Then use the spray can (paint for toys) to paint the 8 fields with one color each.
Painting Figures
![IMG_20211230_161925.jpg](/proxy/?url=https://content.instructables.com/F9M/8I9G/LDBZX1D5/F9M8I9GLDBZX1D5.jpg&filename=IMG_20211230_161925.jpg)
![IMG_20211230_161922.jpg](/proxy/?url=https://content.instructables.com/FRY/GQIT/LDBZX1CV/FRYGQITLDBZX1CV.jpg&filename=IMG_20211230_161922.jpg)
I bought the 12 mm wooden play figures in nature. These are also painted with the respective four colors
Sanding Down Game Board
![IMG_20211230_120309.jpg](/proxy/?url=https://content.instructables.com/F9J/NP8T/LDBZX1ER/F9JNP8TLDBZX1ER.jpg&filename=IMG_20211230_120309.jpg)
After the paint was completely dry I sanded the playing field with 240 grit. Until all paint residues are removed from the surface. Now only the 3mm deep holes are marked in color.
Treatment With Linseed Oil
![IMG_20211230_130849.jpg](/proxy/?url=https://content.instructables.com/F66/P0UE/LDBZX1XL/F66P0UELDBZX1XL.jpg&filename=IMG_20211230_130849.jpg)
Finally, the whole thing is treated with linseed oil. In this way, the entire game board is protected against water, grease, etc.
I applied the linseed oil in two passes with a brush
