Making a Stencil With the Silhouette Cutter

Having my own designs as stencils frees up my mixed-media art quite a bit. I can cut cardstock or mylar with a craft knife, but it's a luxury to have a machine that cuts complex designs.

It's also a delight to go searching for lovely, irregular patterns in photographs online. Many Flickr users offer Creative Commons licenses for their images and the site provides a special search category for such licenses.

This Instructable won't give all the details about using the Silhouette Studio software or cutter.

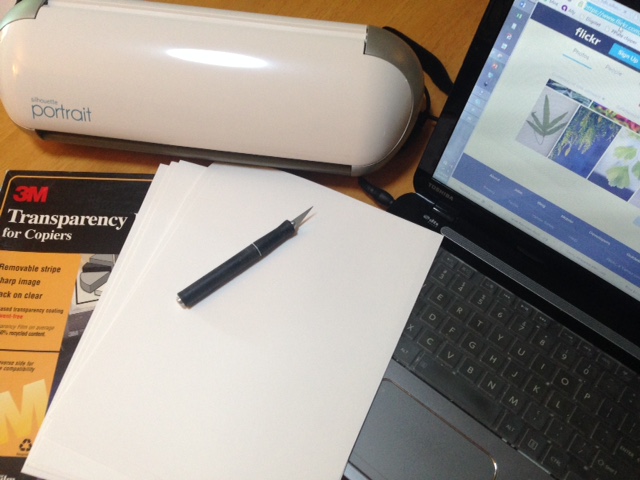

• Flickr.com
• Paint.net
• Silhouette Studio software
• cardstock
• olde time transparency film (remember overhead projectors, anyone?)
• Silhouette Portrait electronic cutting tool
• craft knife

• On Flickr, search for images with a Creative Commons license.
  I searched specifically for commercial use licenses--since I may want to sell an artwork that I make using my new stencil--and picked a nicely contrast-y photo of a fern leaf by Tanaka Juuyoh.

• Use Paint.net, a free digital image editor, to prep the photo.
  I converted the photo to black-and-white and saved a couple JPGs with different brightness and contrast settings.

• Make sure the shapes you want to outline for your stencil are light against dark.
  I don't know why, but when I tried this with a photo where the leaf shapes were dark against a light background, I couldn't get the Silhouette Studio software to trace it correctly.

• Open a JPG in Silhouette Studio and resize it to fit the page you'll be cutting it from, leaving a pretty wide border.
  The wide border will lend strength to the stencil, both when you remove it from the adhesive cutting mat and as you store and re-use it later.

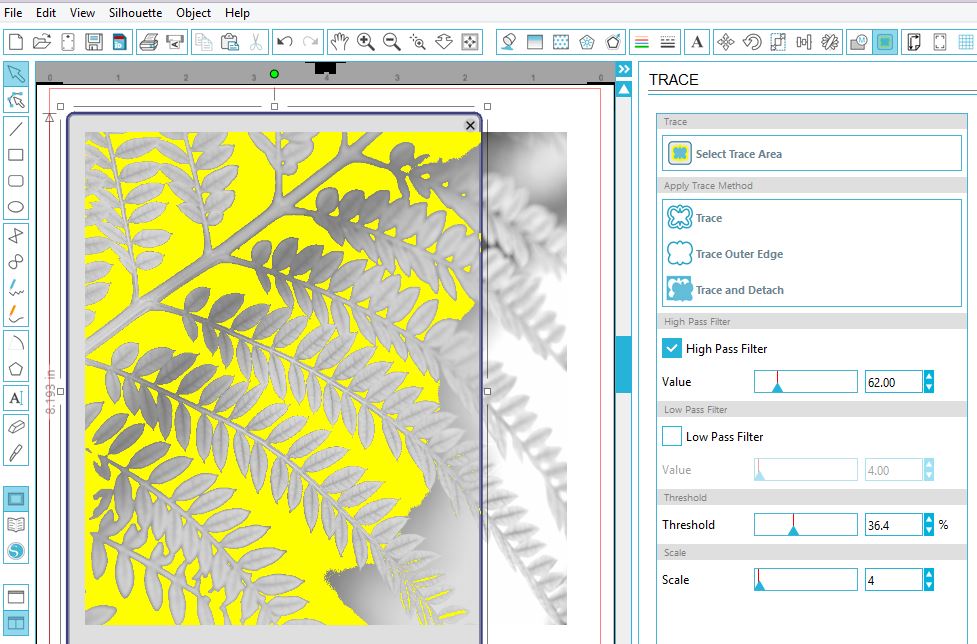

• Go to the Trace tab. Mess around with the Threshold and High Pass Filter settings until the shapes you want to capture are outlined in yellow.

• Click "Trace Outer Edge."

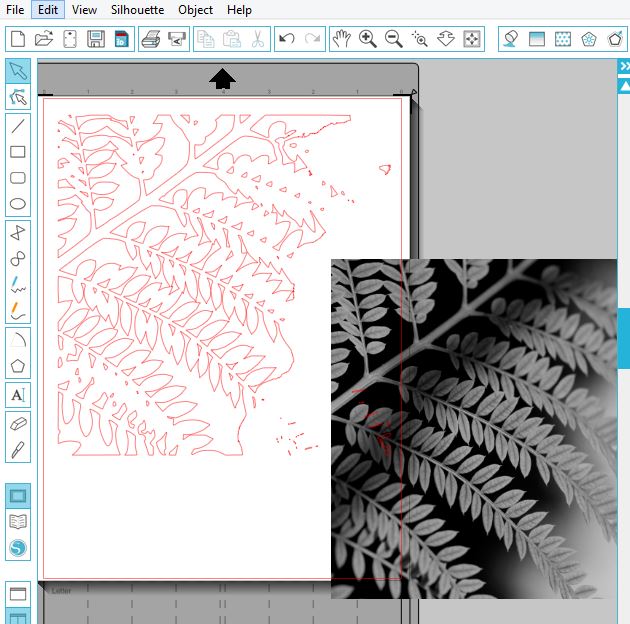

  When red lines replace the yellow areas, you can move the photo out of the way to see if the outlines capture the shape you want.

• You can keep Undoing and trying again until you've traced the shapes you want.

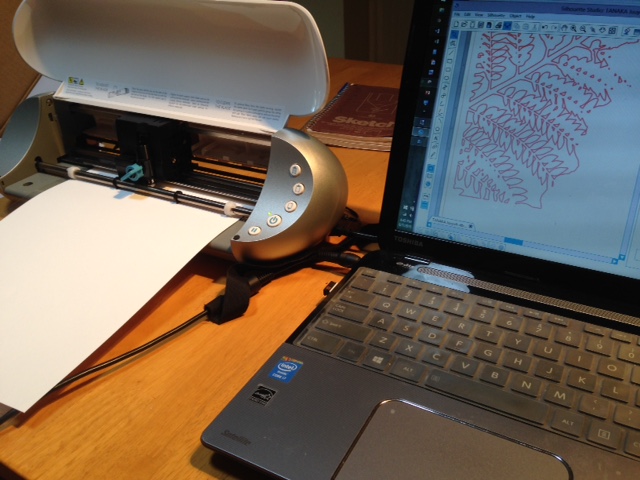

• Lay cardstock on the sticky mat and insert it into the cutter.
  Don't forget to use the gridded insert button!

• Try cutting with the blade setting recommended by the Silhouette software, but increase the blade depth if needed.

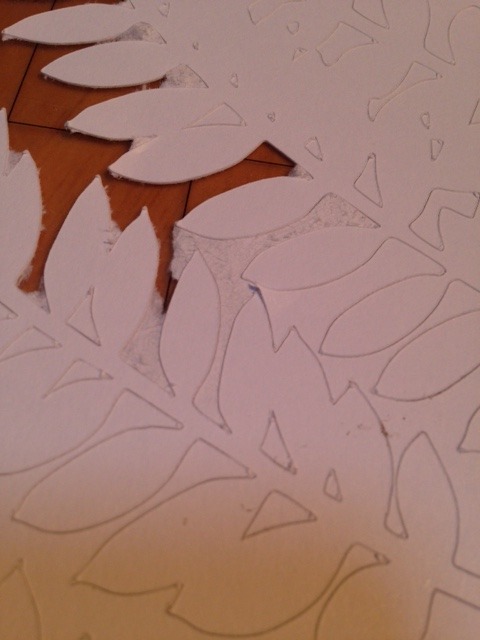

  I was pretty worried about wrecking the cutting mat, so I resisted a higher blade setting. But at the lower setting, when I tried to remove the waste areas, the cardstock came off in layers and I kept tearing parts of the the stencil.

• Remove the waste areas from the adhesive mat before carefully peeling off the stencil.

• Lay the transparency or mylar on the adhesive cutting mat and insert it.
  Don't forget to use the gridded insert button!

• Use the Test Cut feature until you've found blade depth and thickness settings that work.
  This took me a while. I finally cranked the thickness setting all the way up to 33. That plastic is tough!

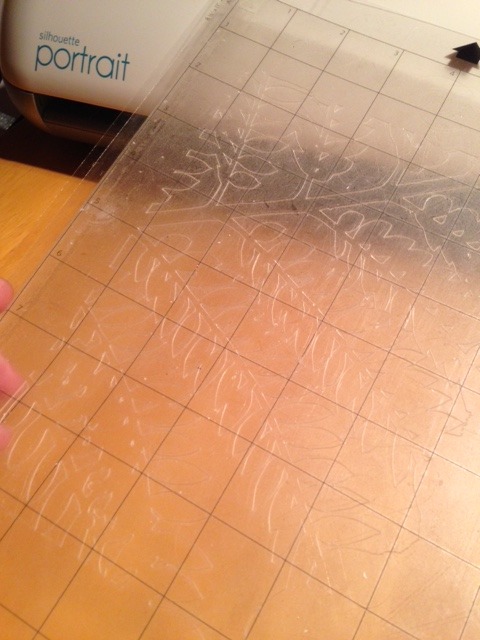

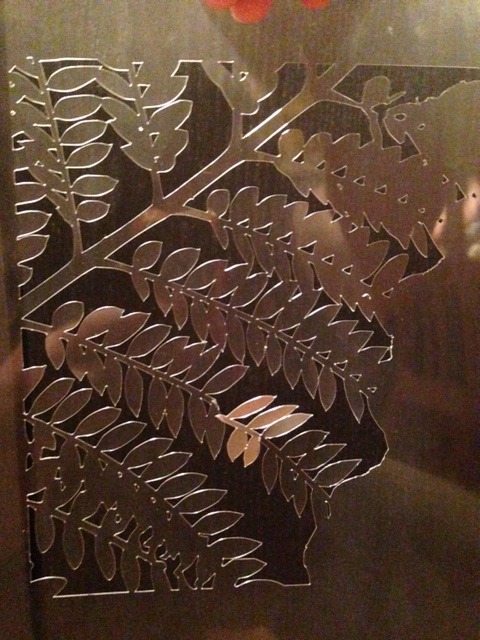

• Unlike with the cardstock, carefully pull the stencil off the adhesive and then remove the waste bits.
  Removing the nearly invisible waste bits was a pain, but I think it's easier than levering them out while the stencil is still adhered.
