Making a Balista

by CJStephens in Outside > Siege Engines

9115 Views, 205 Favorites, 0 Comments

Making a Balista


So to be clear I personally would consider this more of a giant sling shot then a balista. Due to the fact that it is powered by rubber bands instead of a bow. And why did I build a balista you are probably wondering... Well It was a Tuesday I was really board, and when I get board my mind starts thinking off all the things I could be building and that day my mind was on cross bows! So I'm like what the heck i am going to build a giant cross bow! I know I have way to much time on my hands...

So I hope you like it! And as always I love hearing all of your opinions and thoughts!

Caleb Stephens

The Stuff You Need! Tools/Materials

HAnd cattipult and balista vidoe and pics 068.JPG
HAnd cattipult and balista vidoe and pics 039.JPG
HAnd cattipult and balista vidoe and pics 034.JPG

As far as what I used, I basically walked around my shop and yard and picked up all the trash and pieces of scrap from random projects.

So I ended up with a few 2x4s

about 15 feet of old oak barn siding

I used surgical tubing that my mom had, its the same stuff they use on sling shots and it worked very well.

some old chain

I have a lot of scrap steel laying around from blacksmithing so I used pieces of bar stock and angle iron

some old bolts and nuts

screws 3" and 2 1/2''

and I painted mine black just because black bows look cool! And it was kind of the only color spray paint I had. Unless I painted it yellow and I really was not seeing a bow that looked like a troll had peed on it....

Tools!

A drill, I just recently got a 20v Dewalt impact driver, and It was a very good investment, and is one of my favorite power tools i own.

Table saw, or chisel if you really want to go the brico bart way and use all hand tools. :P

Hammer

Angle grinder with cut off wheels

Wrenches for making sure all your nuts are nice and tight

A square for marking your angles, the square is that triangle marking device for all those who dont know.

And some patience, lets just say the reason it took so long to post this was becasue there might have been a few strings broke and 2x4s thrown...

The Base

HAnd cattipult and balista vidoe and pics 033.JPG
HAnd cattipult and balista vidoe and pics 031.JPG
HAnd cattipult and balista vidoe and pics 032.JPG
HAnd cattipult and balista vidoe and pics 029.JPG
HAnd cattipult and balista vidoe and pics 030.JPG
HAnd cattipult and balista vidoe and pics 045.JPG
HAnd cattipult and balista vidoe and pics 046.JPG
HAnd cattipult and balista vidoe and pics 053.JPG
HAnd cattipult and balista vidoe and pics 054.JPG
HAnd cattipult and balista vidoe and pics 052.JPG
HAnd cattipult and balista vidoe and pics 093.JPG
Ballist take two pics 009.JPG
Ballist take two pics 003.JPG
Ballist take two pics 006.JPG
Ballist take two pics 007.JPG
Ballist take two pics 008.JPG
Ballist take two pics 005.JPG

So I am sorry for not having detailed instructions for building this part. This is the base to my old trebuchet that was kind of small and did not ever work right. But the base it self is pretty self explainable. So I used this opportunity to teach my little brother how to use a angle grinder and let him sand it all smooth he did a good job for his first time.

After that was all cleaned up this is what I ended up doing.

I took two pieces of angle iron and screwed them to the sides so they made the whole base taller. Then I cut another piece to bolt across the two angle iron uprights so that the bow would have something to rest on.

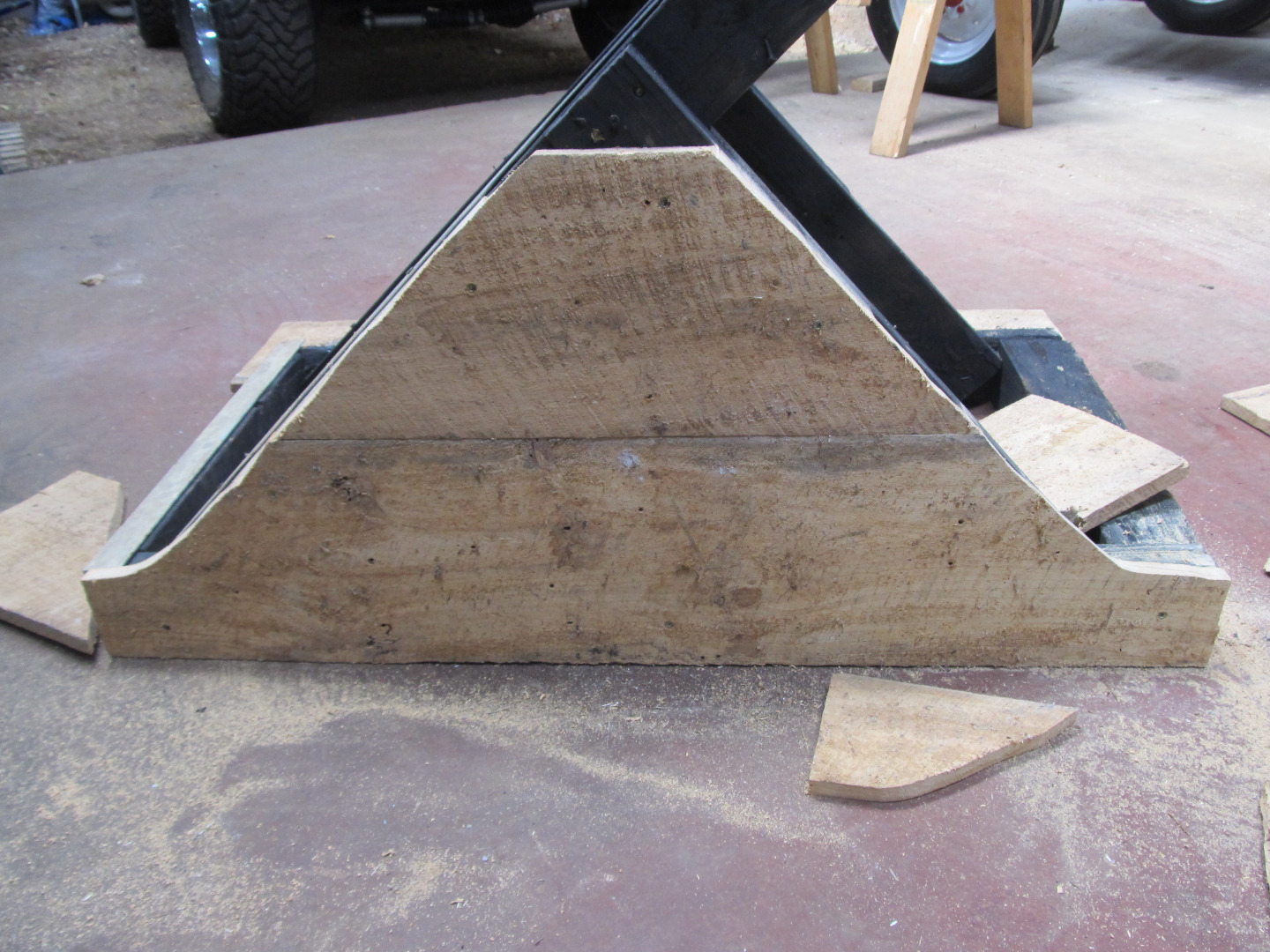

After I got the angle iron on, I used some old oak barn wood and started filling in the frame, just to make it look more solid and add more strength. This ended up making the base close to 30 pounds more heavy.

Keep in mind that this whole project was off the top of my head and I did not give it to much forethought so I will make a list of all the stuff I should have done at the end.

The Bow...

HAnd cattipult and balista vidoe and pics 037.JPG
HAnd cattipult and balista vidoe and pics 036.JPG
HAnd cattipult and balista vidoe and pics 038.JPG
HAnd cattipult and balista vidoe and pics 042.JPG
HAnd cattipult and balista vidoe and pics 059.JPG
HAnd cattipult and balista vidoe and pics 039.JPG
Ballist take two pics 016.JPG
HAnd cattipult and balista vidoe and pics 040.JPG

Like I said I would not call this a bow myself its more of a T shaped thing to hold the string but it works.

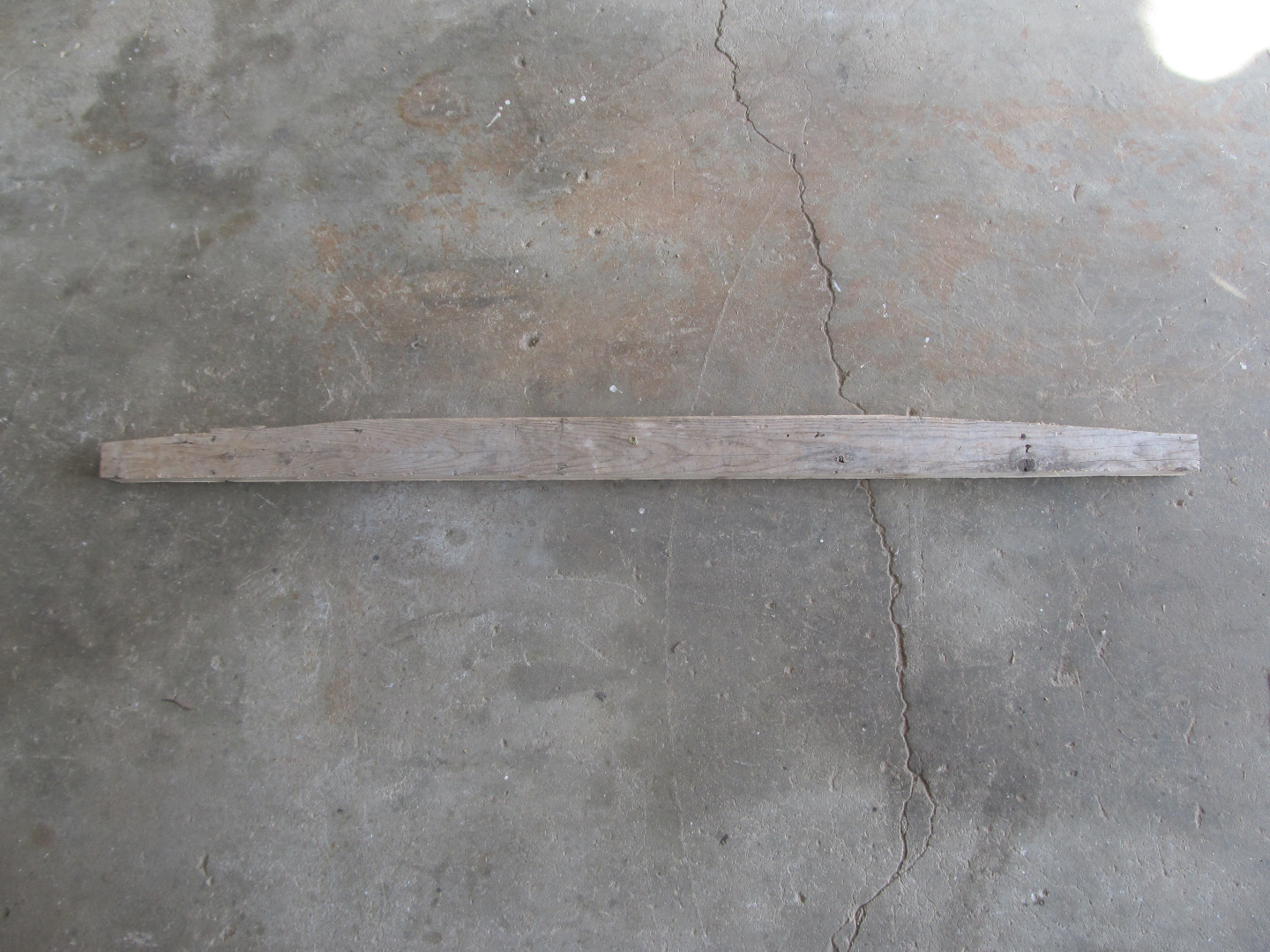

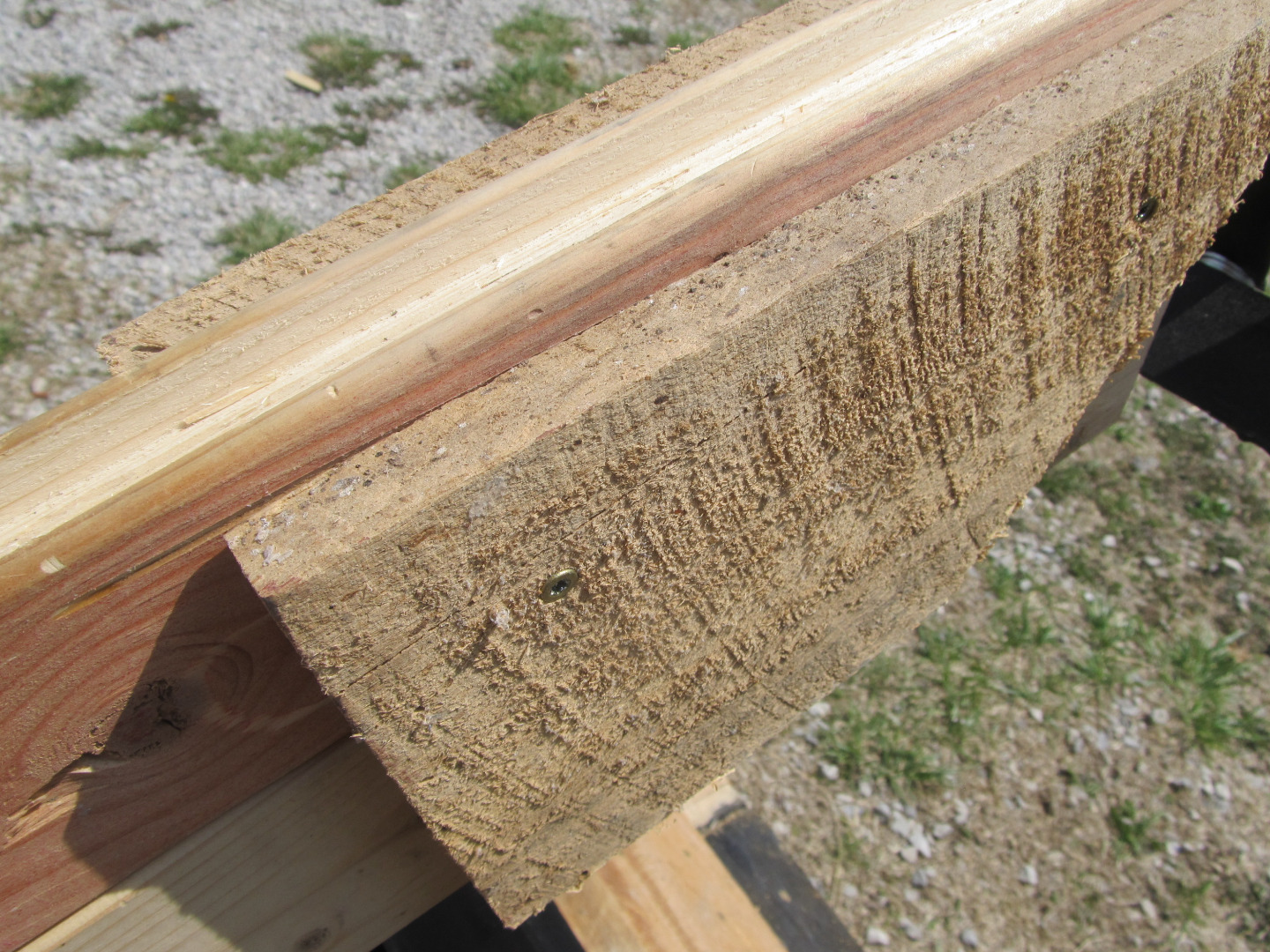

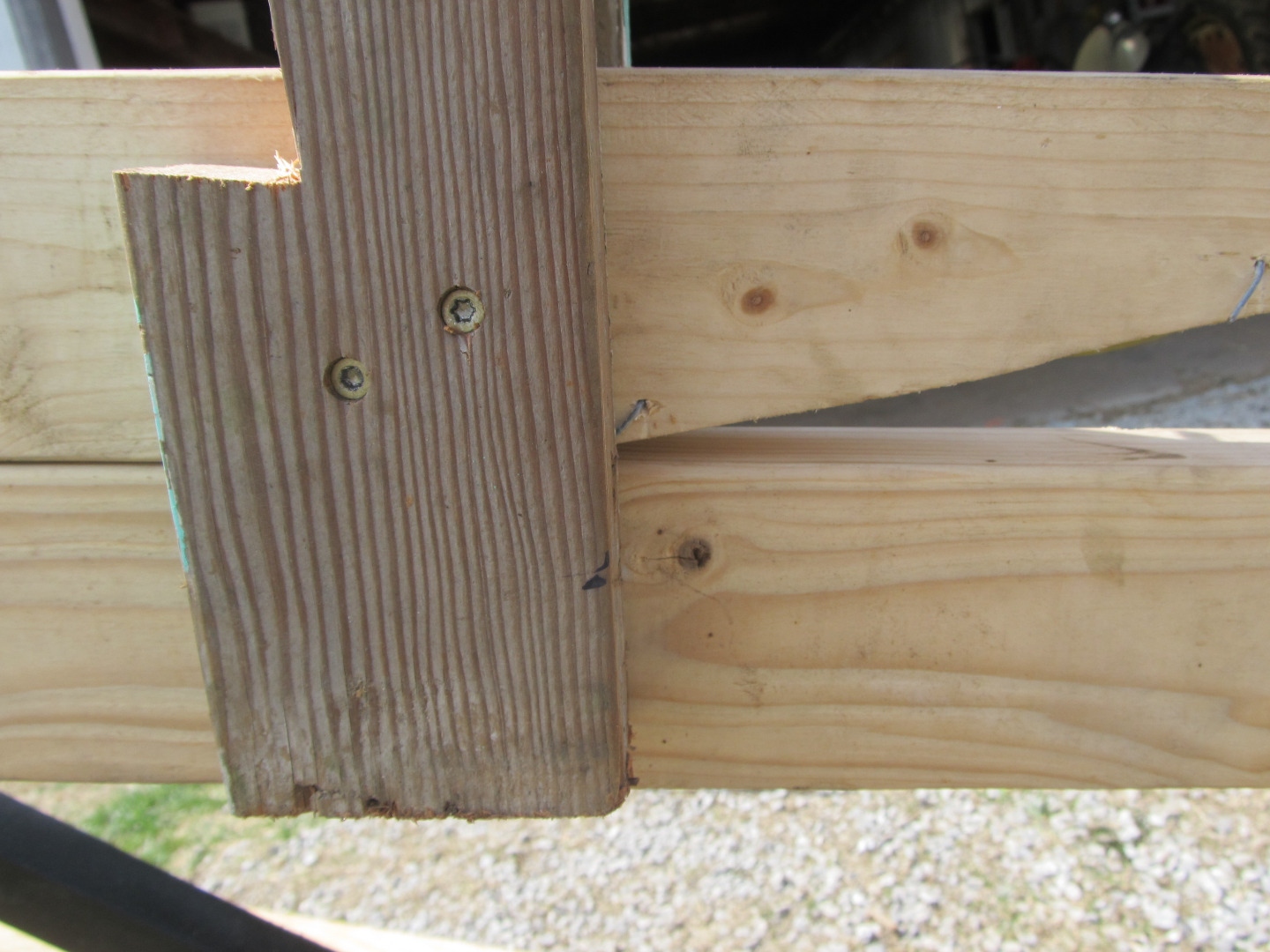

I took a 2x4 and cut a grove in it for so the bolt had a guide. I did this with a table saw if you dont have a table saw your could do this all with a chisel. then I took another board for the "bow" i made mine 4 1/2 feet wide and 5 foot long. And to add stability I put two 45 degree braces in.

Mounting the Bow

HAnd cattipult and balista vidoe and pics 064.JPG
HAnd cattipult and balista vidoe and pics 058.JPG
HAnd cattipult and balista vidoe and pics 060.JPG
HAnd cattipult and balista vidoe and pics 061.JPG
HAnd cattipult and balista vidoe and pics 063.JPG
HAnd cattipult and balista vidoe and pics 062.JPG
HAnd cattipult and balista vidoe and pics 057.JPG
HAnd cattipult and balista vidoe and pics 056.JPG
HAnd cattipult and balista vidoe and pics 055.JPG
HAnd cattipult and balista vidoe and pics 054.JPG
HAnd cattipult and balista vidoe and pics 051.JPG
HAnd cattipult and balista vidoe and pics 050.JPG
HAnd cattipult and balista vidoe and pics 048.JPG
HAnd cattipult and balista vidoe and pics 049.JPG
HAnd cattipult and balista vidoe and pics 093.JPG

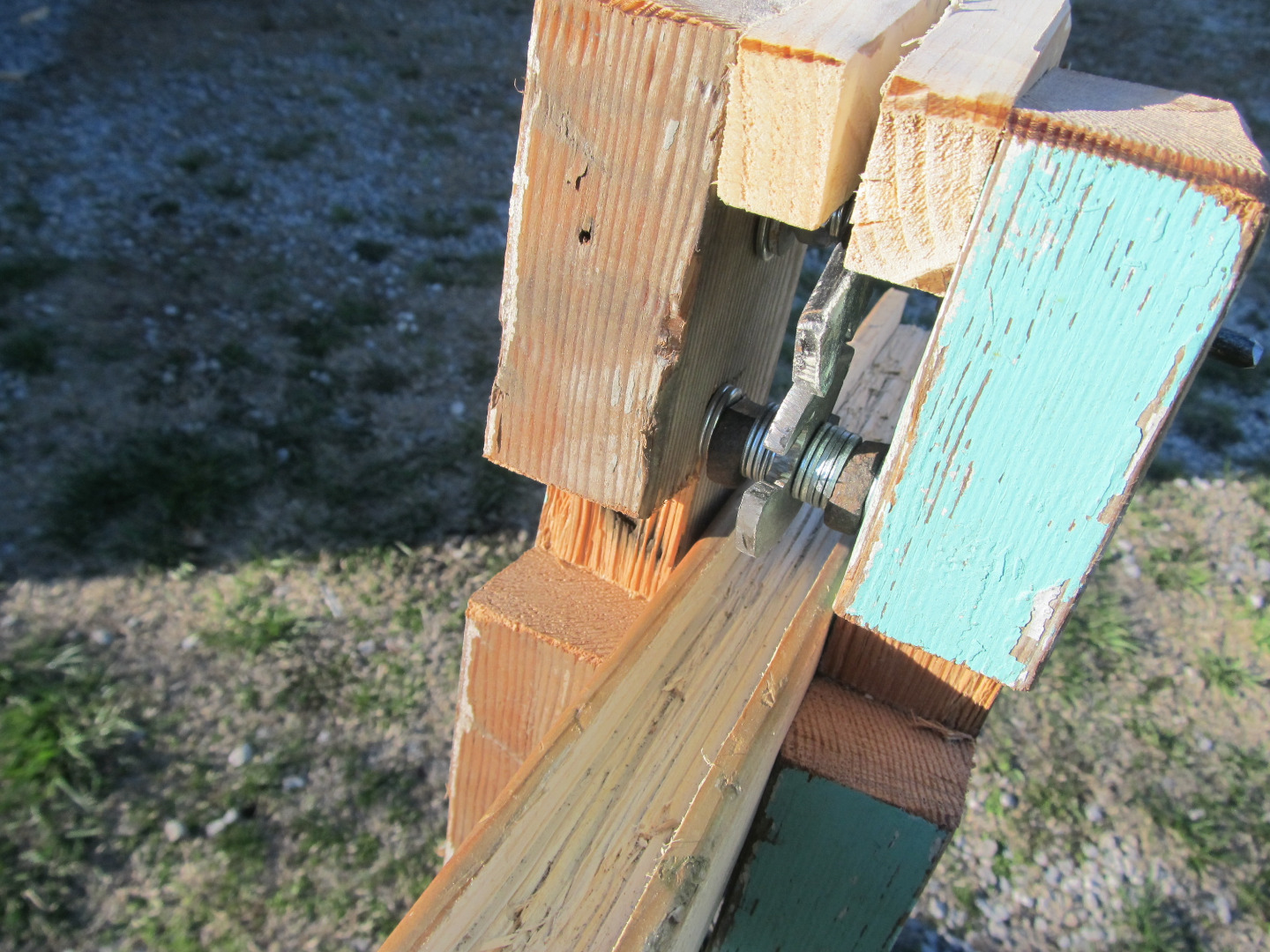

I made the this so that i could swivel the bow witch enables me to aim a little.

First I took a bolt and cut the head off with my angle grinder then I drilled a hole in between the two braces, and I took that bolt a threaded it into the hole. just make sure that the pin is somewhat strait.

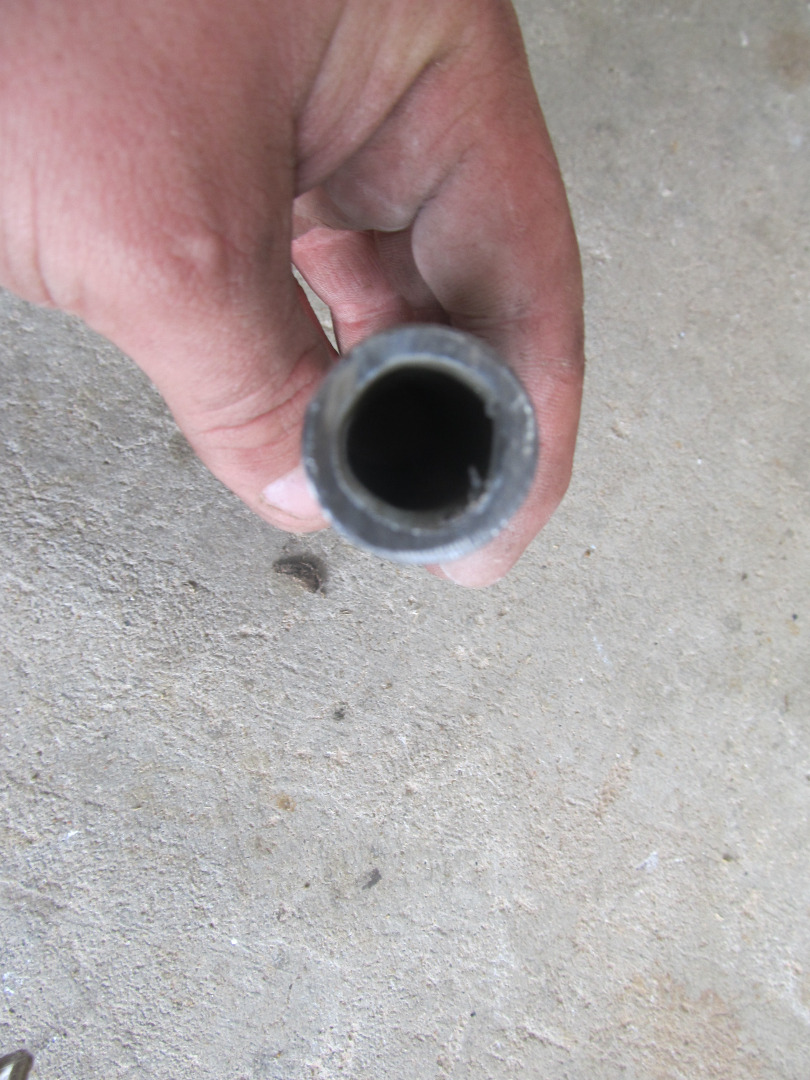

Now this part took a lot of time to get it to work right but I got it all figured out for you now. I took about a 4" piece of pipe and flattened one end of it and drilled a hold through the flattened end. then bolted that to the center of the angle iron cross piece.

Then take your pin and slid it in the pipe. if you did not know thats how it worked then you might want to check your self. just sayin

The Triger

HAnd cattipult and balista vidoe and pics 073.JPG
HAnd cattipult and balista vidoe and pics 065.JPG
HAnd cattipult and balista vidoe and pics 066.JPG
HAnd cattipult and balista vidoe and pics 067.JPG
HAnd cattipult and balista vidoe and pics 072.JPG
HAnd cattipult and balista vidoe and pics 069.JPG
HAnd cattipult and balista vidoe and pics 068.JPG
HAnd cattipult and balista vidoe and pics 071.JPG
HAnd cattipult and balista vidoe and pics 070.JPG
HAnd cattipult and balista vidoe and pics 074.JPG
HAnd cattipult and balista vidoe and pics 076.JPG
HAnd cattipult and balista vidoe and pics 075.JPG
HAnd cattipult and balista vidoe and pics 081.JPG
HAnd cattipult and balista vidoe and pics 080.JPG
HAnd cattipult and balista vidoe and pics 079.JPG
HAnd cattipult and balista vidoe and pics 078.JPG
HAnd cattipult and balista vidoe and pics 082.JPG
HAnd cattipult and balista vidoe and pics 077.JPG

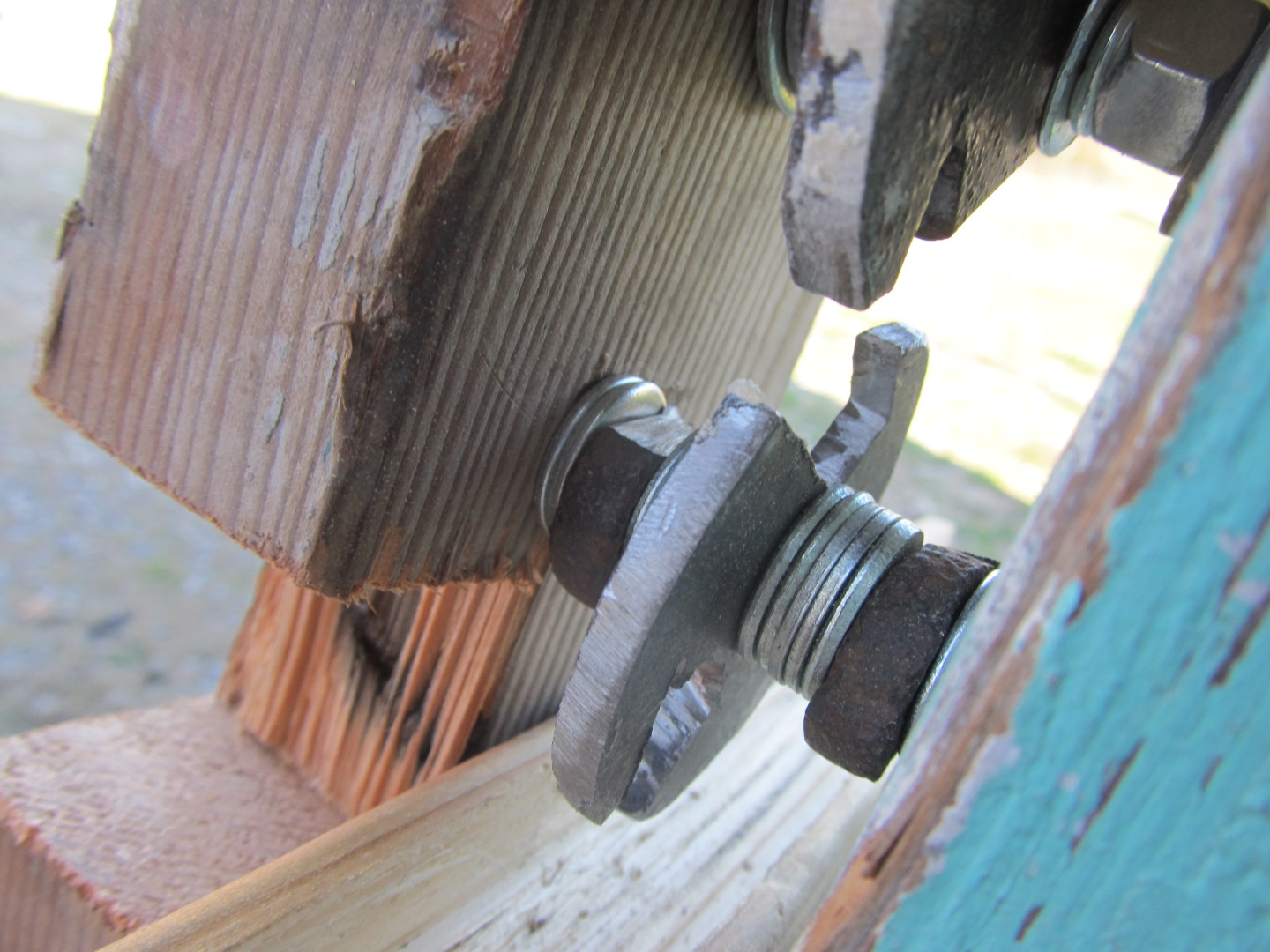

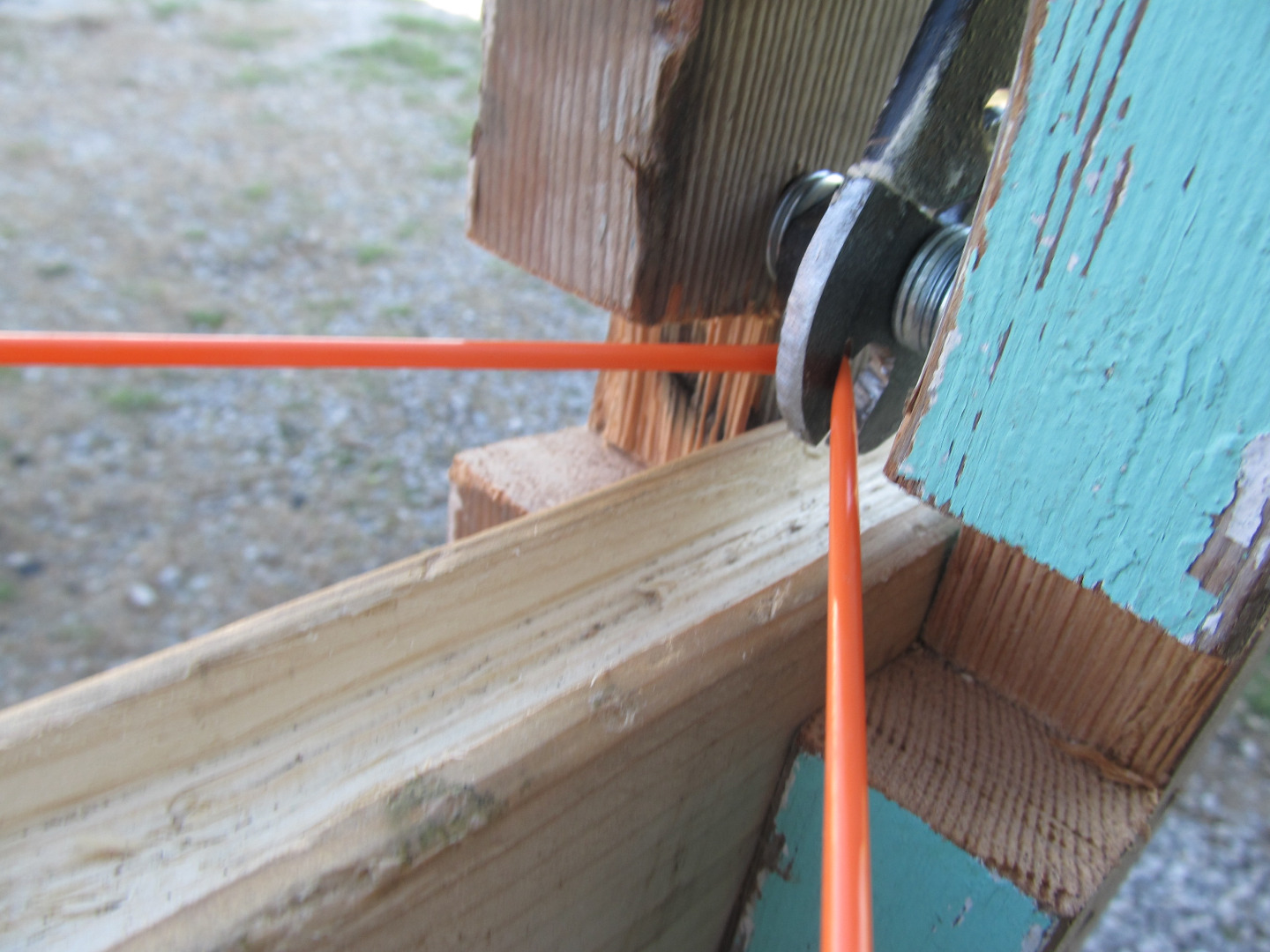

Now this is thee most complicated part of the whole thing! I ended up useing a design that is almost the same as some of the knex guns I used to make when I was little. The basic Idea is that the wheel holds the string and then you have a lever holding all the presser on the back side of the wheel.

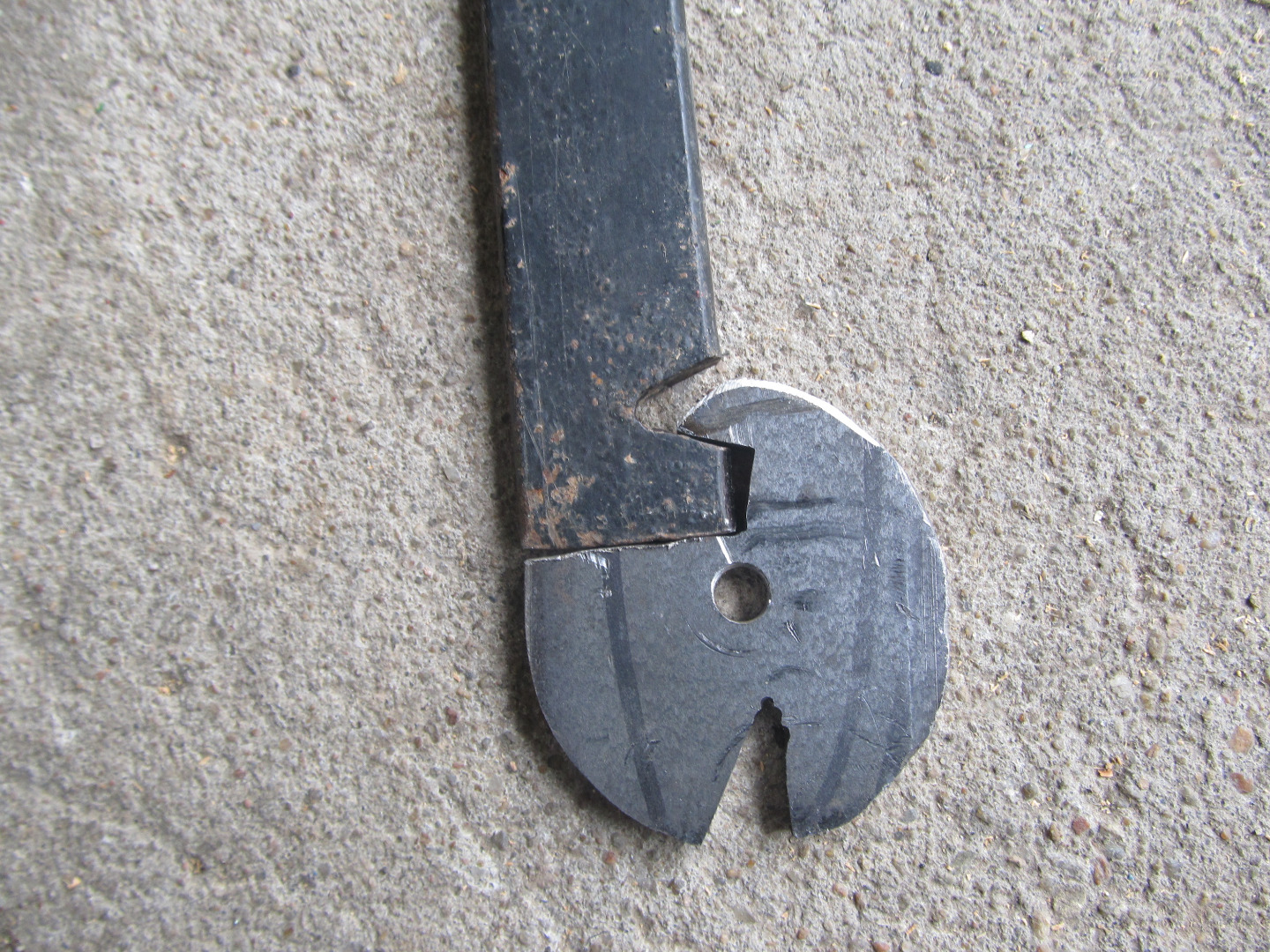

The first thing you need to do is take a piece of bar stock and cut out your wheel. And drill a hole right in the middle!

Then I took another bar that was from some sort of garden steak and I was to lazy to cut it all flush and grind it down all pretty so I just kind of started cutting the wheel so it fit in nice and snug.

After your wheel is snug you have to get something to hold it all together. i used two 2x4s drilled some holes put two pins in and then lined my lever and wheel up. you also need a lot of washers to make sure the spacing stays the same.

I added a lot of pictures of this so you could see everything well.

Putting It Together.

Ballist take two pics 022.JPG
Ballist take two pics 019.JPG
Ballist take two pics 018.JPG
Ballist take two pics 014.JPG
Ballist take two pics 013.JPG
Ballist take two pics 012.JPG
Ballist take two pics 011.JPG
Ballist take two pics 010.JPG
HAnd cattipult and balista vidoe and pics 092.JPG
HAnd cattipult and balista vidoe and pics 091.JPG
HAnd cattipult and balista vidoe and pics 089.JPG

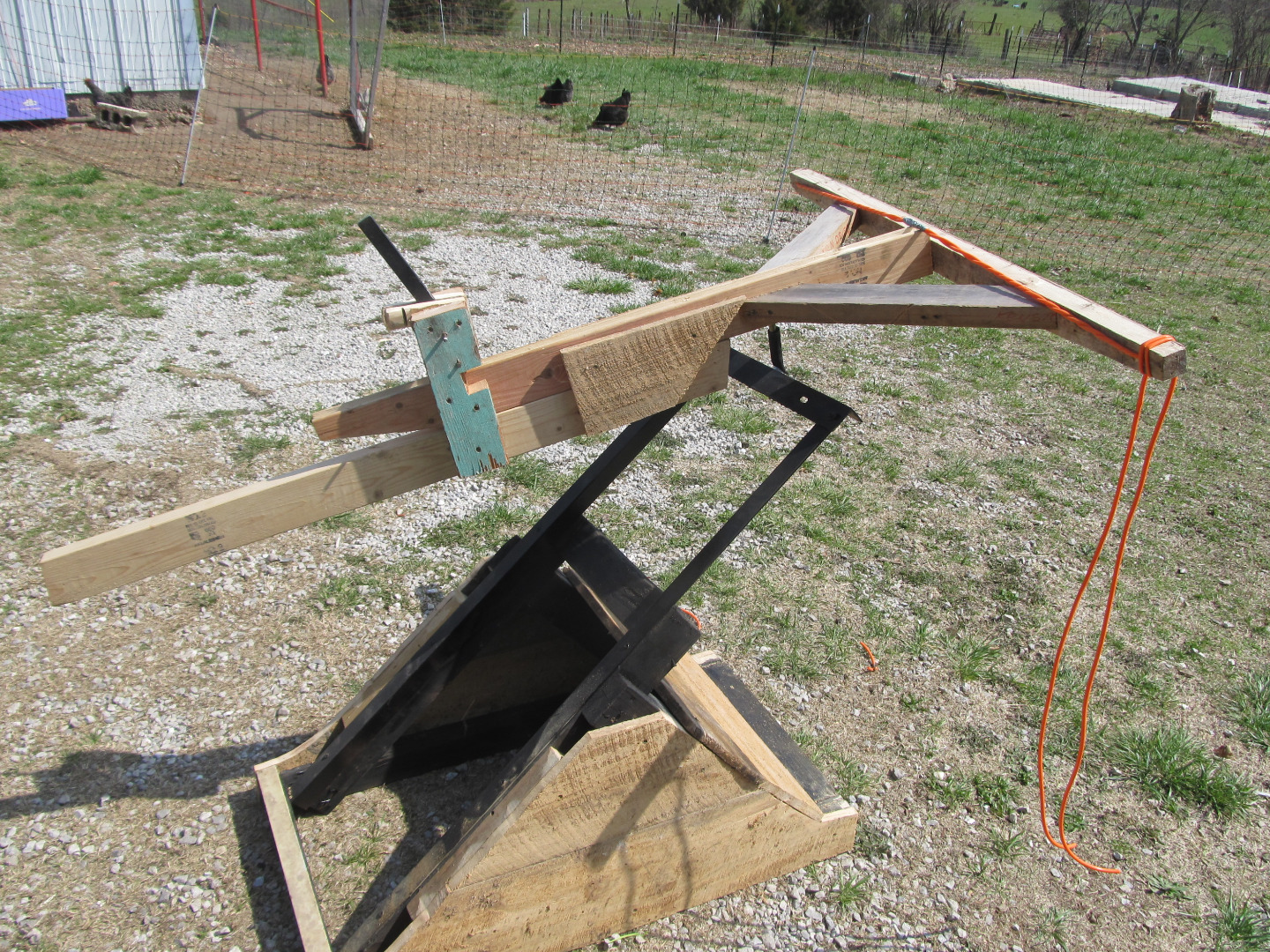

Once you have your base bow and trigger your can slap it all together!

I mounted my trigger first, when you do this make sure that the wheel is facing the right way, and that it is just above the track so that the sting locks in nice and tight. another thing I had to do to the trigger was make two cut outs so that i could pull the string back into the wheel.

From there you can add what ever you want to it really more bracing, wheels, spikes, chains, and other decorations. I kept mine pretty simple.

The String

HAnd cattipult and balista vidoe and pics 085.JPG
Ballist take two pics 017.JPG
Ballist take two pics 015.JPG
Ballist take two pics 016.JPG
Ballist take two pics 021.JPG
HAnd cattipult and balista vidoe and pics 088.JPG
HAnd cattipult and balista vidoe and pics 086.JPG

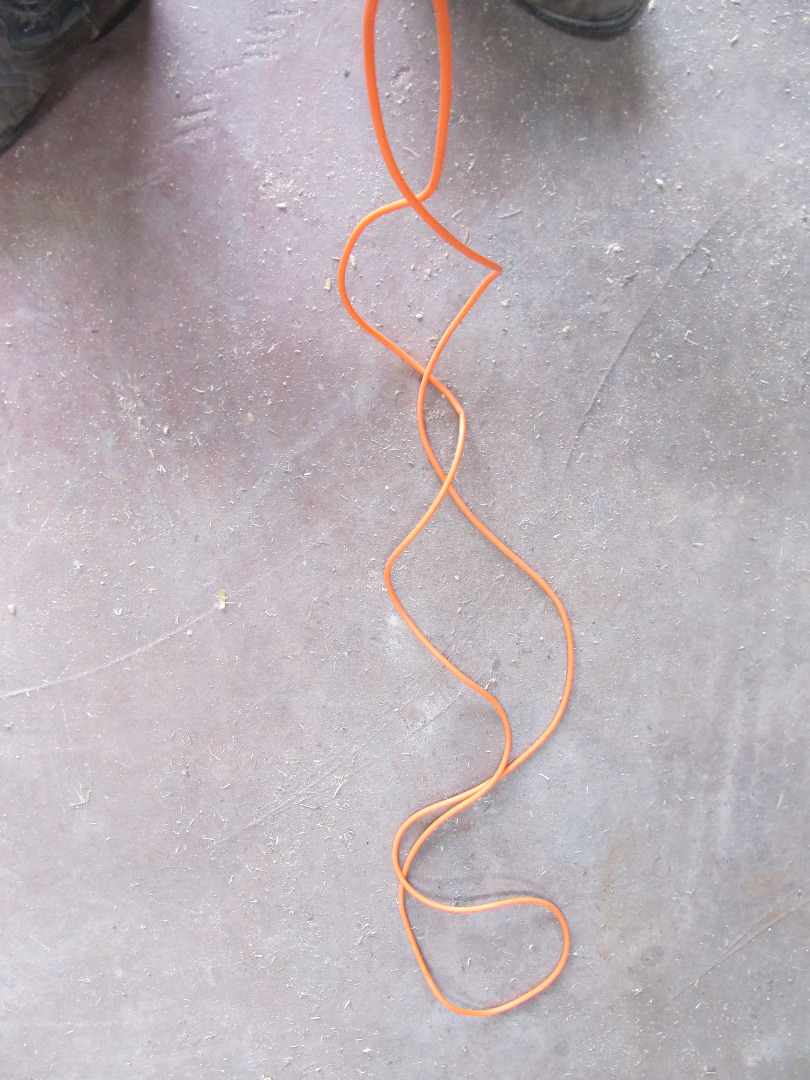

This was the most painful part of this build. I ended up having two strings snap on me and that did not feel to good! in fact it kind of hurt and I might have got really mad at it. but after a few tries I found that taking two of the bands and twisting them together made it a lot stronger and it stopped snapping.

To string the bow I just drilled to holes in the end of the bow and ran my tubing through them. and pulled them pretty tight the bow was about 50 Lbs of pressure by the third time I strung it.

by the end I was very happy with it though it took a while to get it all fine tuned and working smooth, but she fired every time after I was done!

Final Thoughts

HAnd cattipult and balista vidoe and pics 089.JPG
HAnd cattipult and balista vidoe and pics 088.JPG
HAnd cattipult and balista vidoe and pics 086.JPG

So I liked this little project I did, It turned out great i think. Not really the most butiful thing but i was never aiming for the most beautiful crossbow.

If I could redo it I would have spent the day blacksmithing instead. but then there would never be this instructable...

I think I would change my bow to something flexible ether PVC or i would have taken some Osage and made a bow for it.

I would have defiantly made a little more fine tuned trigger this one works great but it could be way smother.

But in the end i got it to shoot about 75 yards witch was good!

Well thank you so much for looking at my instructable! And anything you have to say about it or questions please ask away! I love hearing from everyone.

And I Would appreciate your vote if you feel this is worthy!

Caleb Stephens
