Making a Self-driving Robot. WALL-E. Coding Robot.Ultrasonic Sensor. Laser Cutter.

by hmh7701 in Circuits > Robots

1028 Views, 5 Favorites, 0 Comments

Making a Self-driving Robot. WALL-E. Coding Robot.Ultrasonic Sensor. Laser Cutter.


How to make an autonomous robot. Infrared sensor robot. wall-e. co2 laser cutter.

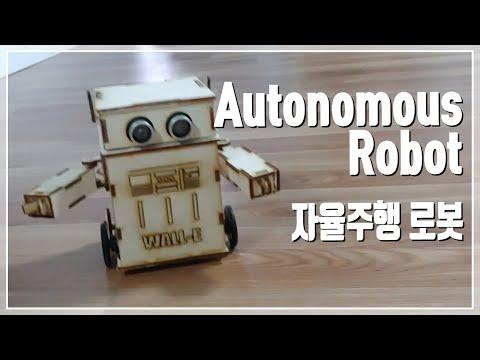

We made a robot that detects obstacles using Ultrasonic sensor and DC motors.

I can't speak English. So I write with a translator. Please excuse me.

Supplies

Laser cutter.

Ultrasonic sensor

DC motor.

Servo Control Board

3T wooden board.

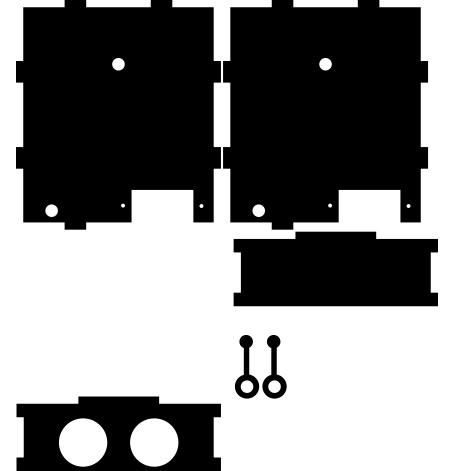

Drawing.

Software: Illustrator

Downloads

WALL-E_최종1.ai

WALL-E_최종2.ai

WALL-E_최종3.ai


Laser cutting.

50W CO2 laser cutting machine.



Put a DC motor and wheels on the side.




Combine the Servo Control Board on the left.



Connect the DC motor and infrared sensor to the top plate.






Connect 3 DC motors, Ultrasonic sensor, and batteries to the Servo Control Board

Insert the wheel with a 5mm wooden rod.



Put the body together.



Put your hair together and stick it on your body.




Put your arms together and stick them on your body.

Use a 5mm wooden stick to insert your arms.



If you put the switch on the back, it's working.
