Storing pots is a pain. They're heavy, bulky, don't necessarily stack well, and when you need one, you don't want to have to move other heavy pots to get to it. Some people have large kitchens and drawers dedicated to pots, others use ... *the hanging pot rack* (sounds of doom and gloom).
I came up with an alternate option that doesn't use much space and up-cycled a piece of furniture in the process. It's really easy. Here's how I did it, and maybe you can have a variation on your own.
Supplies
- Old futon frame with "horizontal" bracing
- Micrometer or mm ruler
- 3D printer and filament
- Pots!
Design Some Hooks
I looked around the internet for "pot hooks" that would fit and kept being disappointed at how overpriced they were. Someone from business school must've come up with the idea of giving away pot racks but selling the hooks for a premium.
I started thinking, if I printed them thick enough, I bet they could hold a pot. So I started with the most basic of shapes, keeping the center of gravity as close to the base as possible.

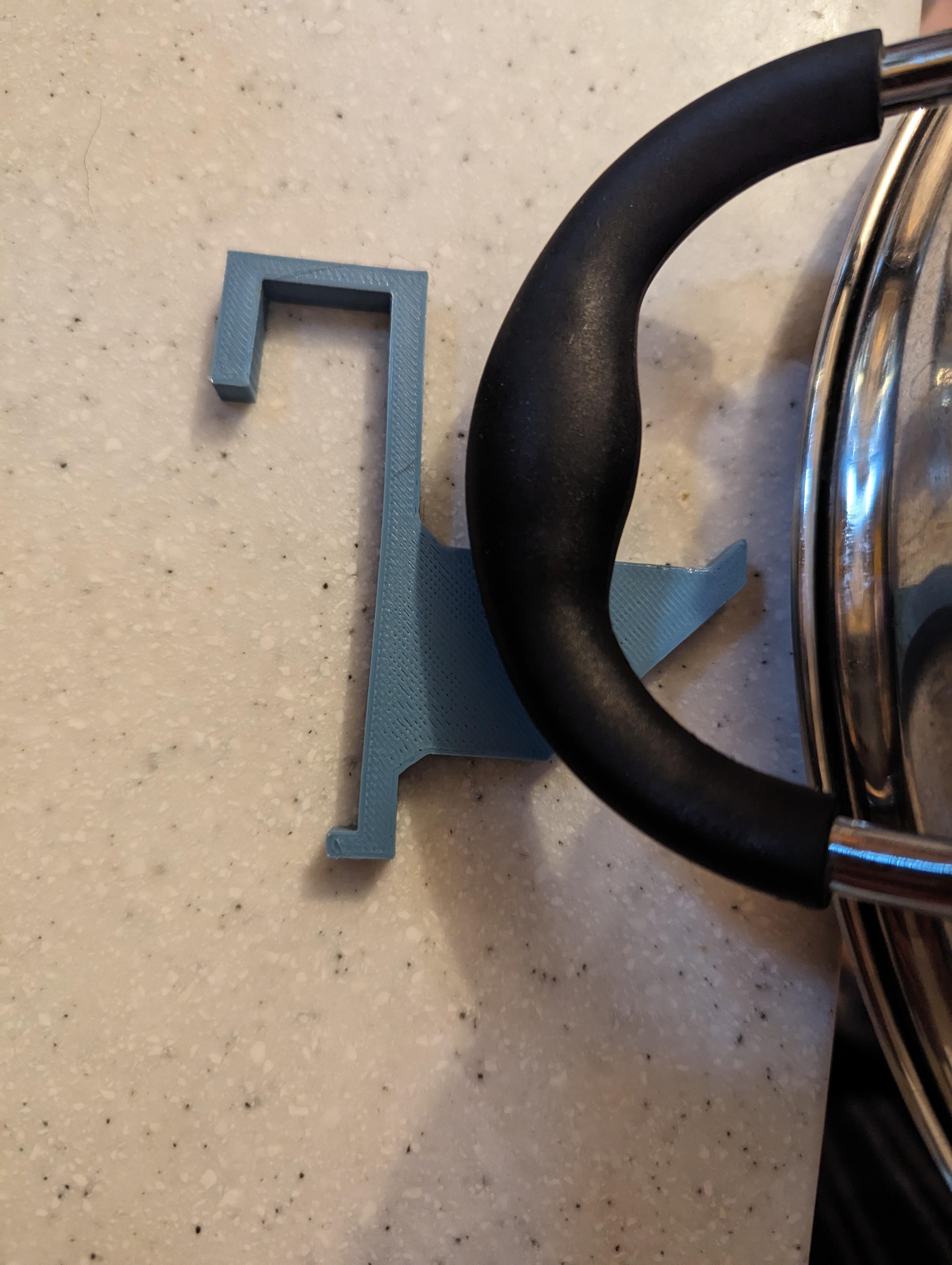

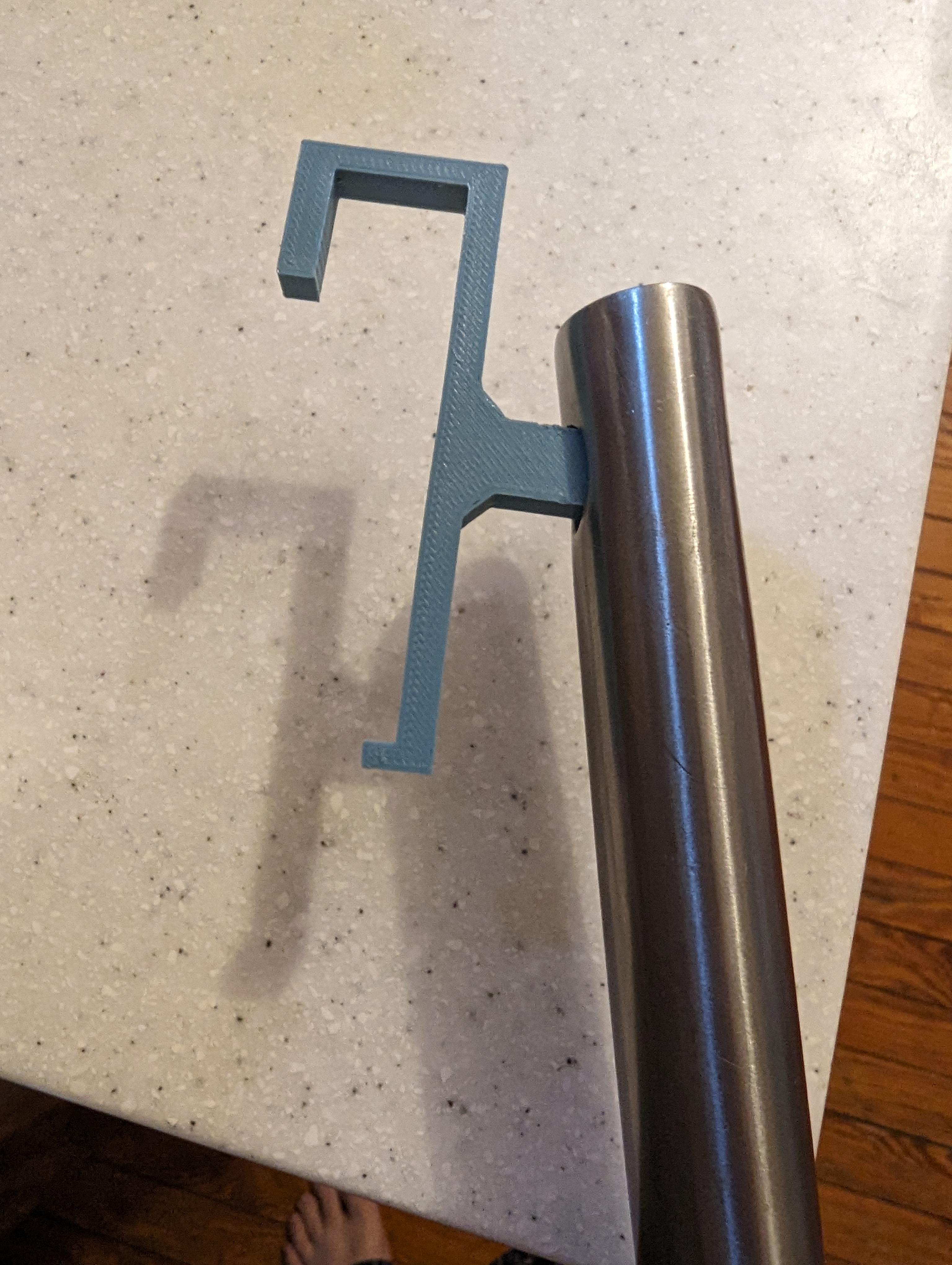

Taking measurements of the slats, I came up with a basic hook that would let me drop it over the top of the wooden slat, with just enough of a protrusion on the bottom to hold it in place. I figured that I would make a fancier one once this one failed, but the simple design just worked.
Frame Preparation and Mount
In my case, the entire frame was fairly self-contained and looked good as-is. I needed to saw off a couple of dowels that were sticking out, but that was about all of the prep work that I did for the rack.

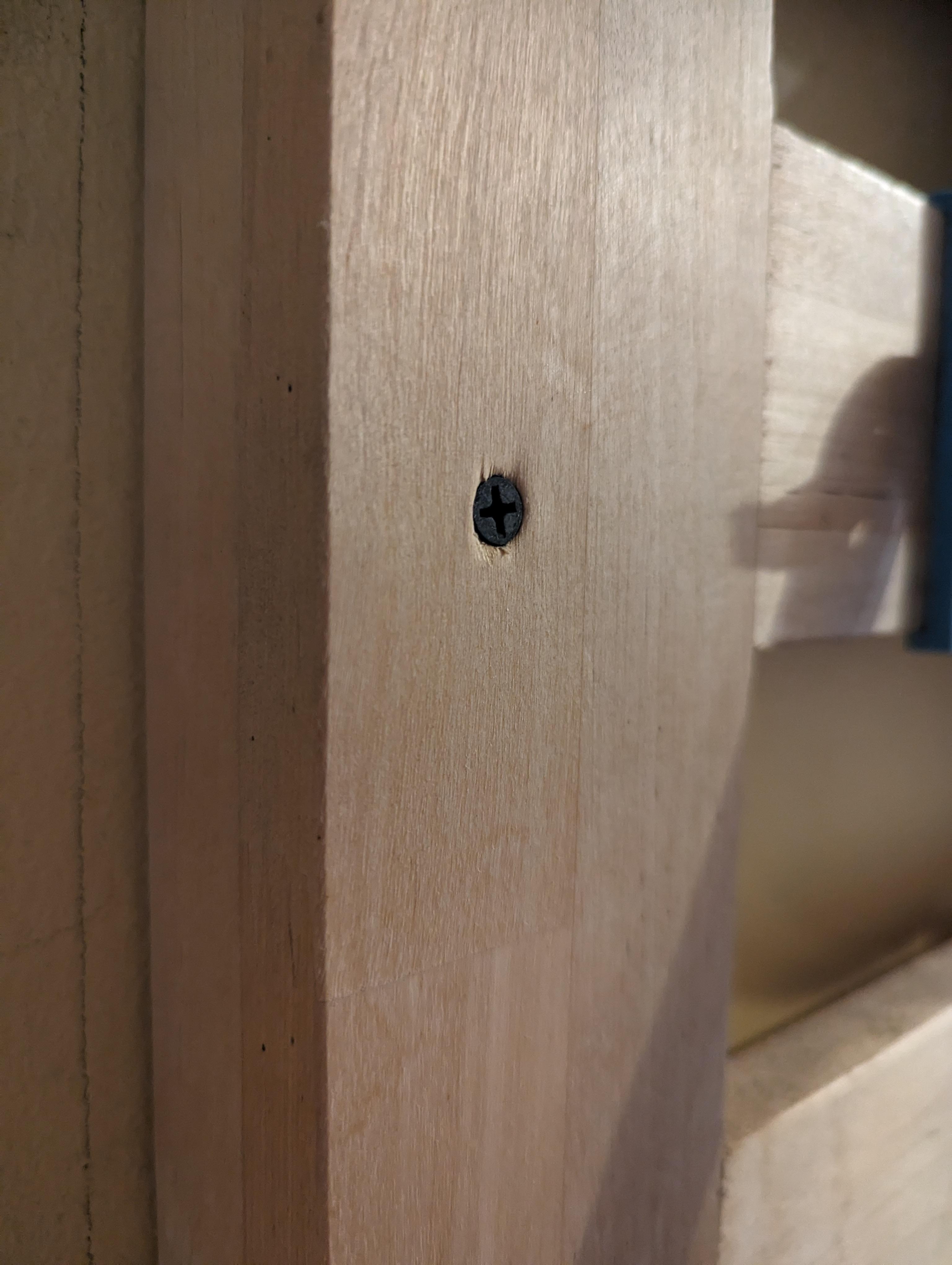

I wanted some flexibility with mounting the rack, plus it was really heavy to hold up while trying to screw perfectly to the wall. For this reason, I decided to first mount a couple of 1-inch thick strips of wood to the plaster/concrete wall. These strips were easier to drill and hold for exact placement with the plaster wall mount screws. I spaced them the exact distance as the width of the rack, and attached them to the wall. Then I simply screwed the frame directly to the mount (pre-drilling holes to reduce the chance of wood splitting)
The 1 inch strips ended up having an additional benefit -- I was able to slide the pot lids into them as well. Big win! That's always a flaw with hanging racks.
Print and Enjoy

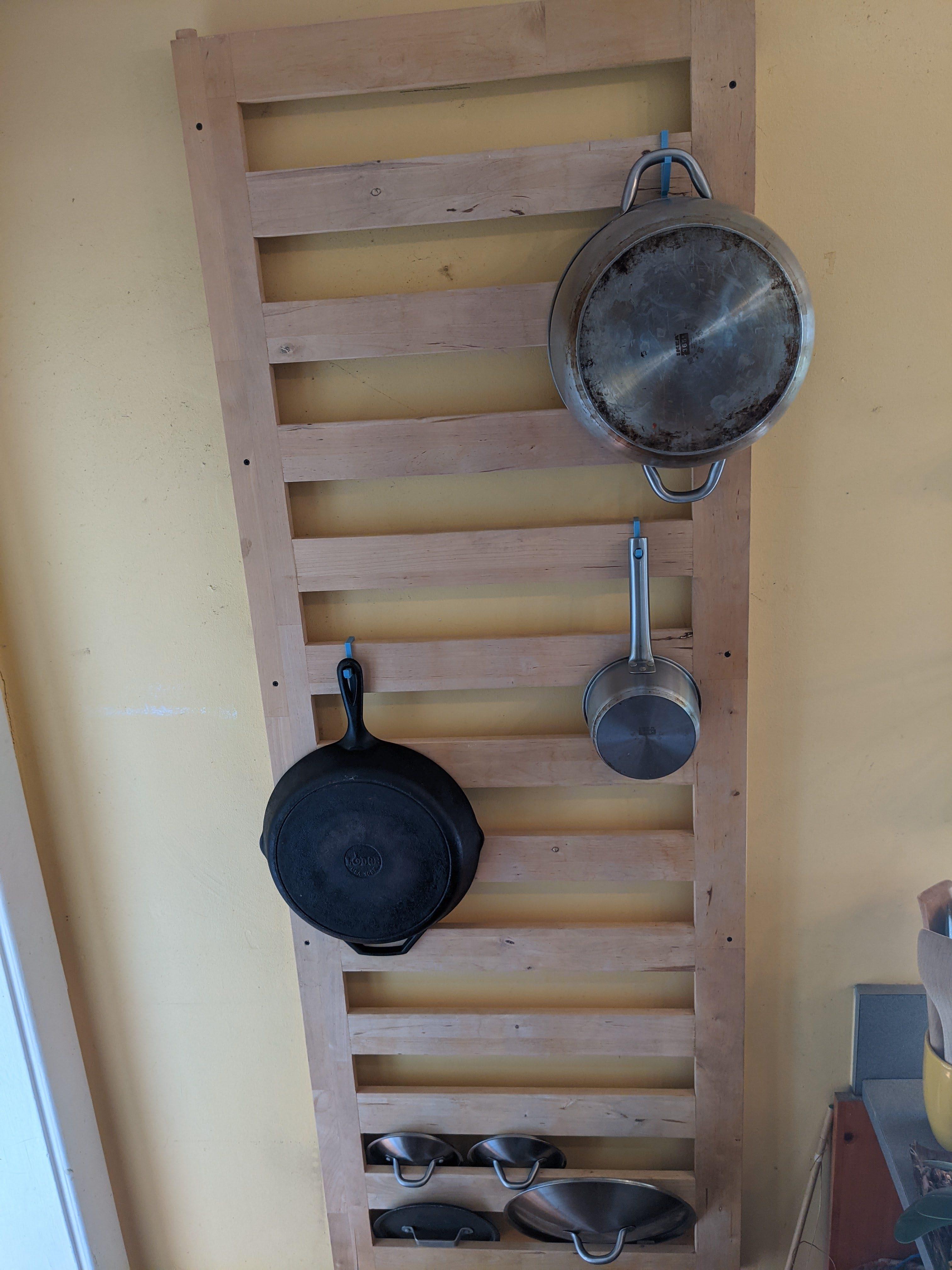

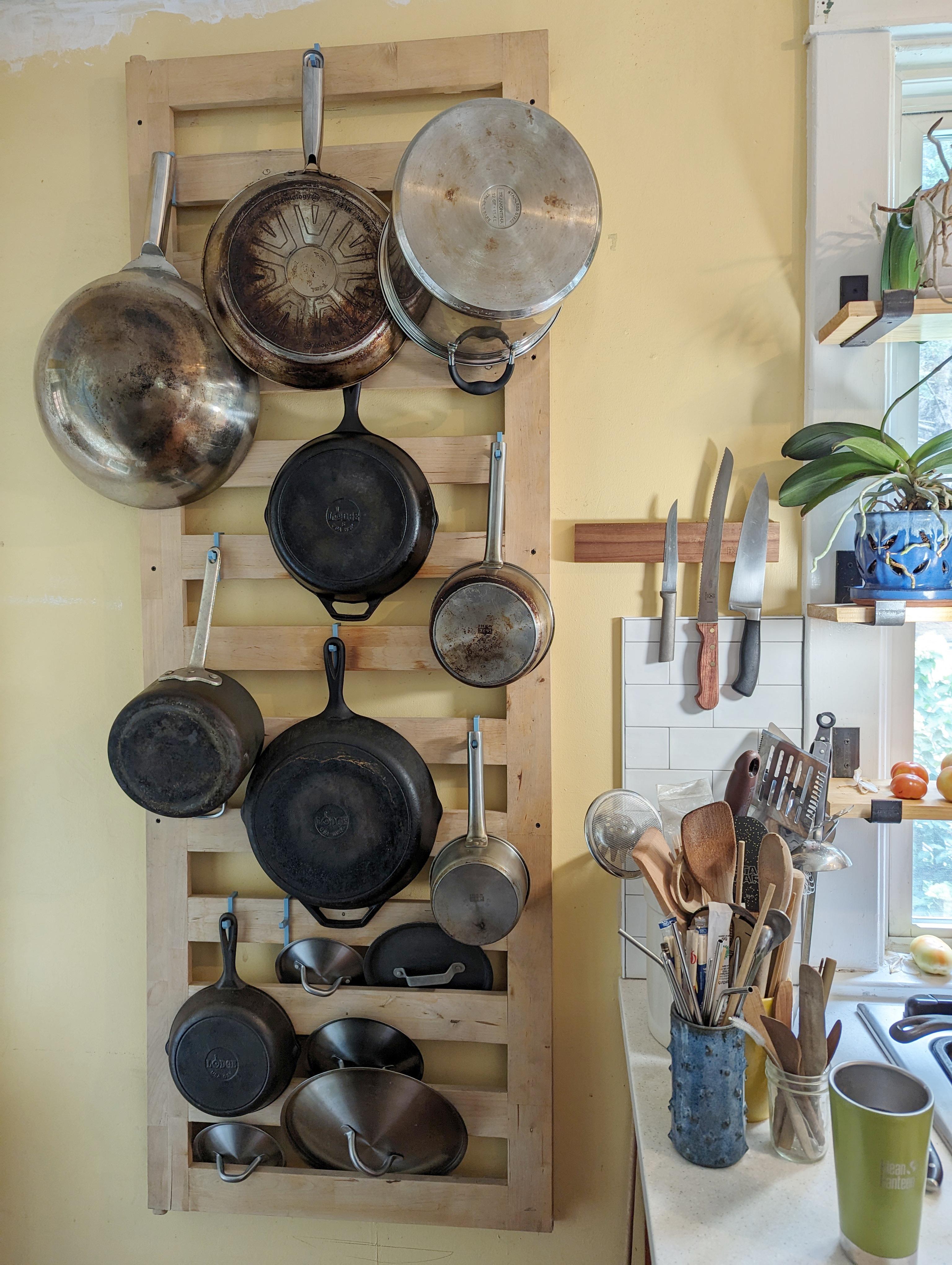

In the two years since I've created this, I've kept very heavy cast iron pots on hooks with no problems whatsoever. I've never had a pot fall off, and the use of space is just amazing. This was a completely unused space in my kitchen, but I needed to keep it free as a walking space. Now, I can place all of my pots (and lids!) in a location that's not in the way and still very close to the stove.
I know that newer futon racks may not be constructed in the same way, but I feel like the concept can still be adapted for different style futon frames. You will need to adjust the hooks to fit for the frame that you find/have, but you can Tink this design, ungroup to see how it's constructed, and modify as you need. I've used basic block and triangle shapes, so modifications should be easy.
Enjoy!
Please comment here or on Thingiverse if you like my design.
