Making a Nasa Shuttle Plane Launcher RC From Used Parts

by Achmad Choiruman in Workshop > Science

251 Views, 1 Favorites, 0 Comments

Making a Nasa Shuttle Plane Launcher RC From Used Parts

WhatsApp Image 2021-11-08 at 09.30.44 (3).jpeg
Unusual reuse : Making a miniature Nasa shuttle from some used goods
This project was carried out as a means of training life skills and forging to become entrepreneurs in extra-curricular junior high schools at our place as you can see in our video.


WhatsApp Image 2021-12-02 at 16.25.01.jpeg
bahan nasa.jpg

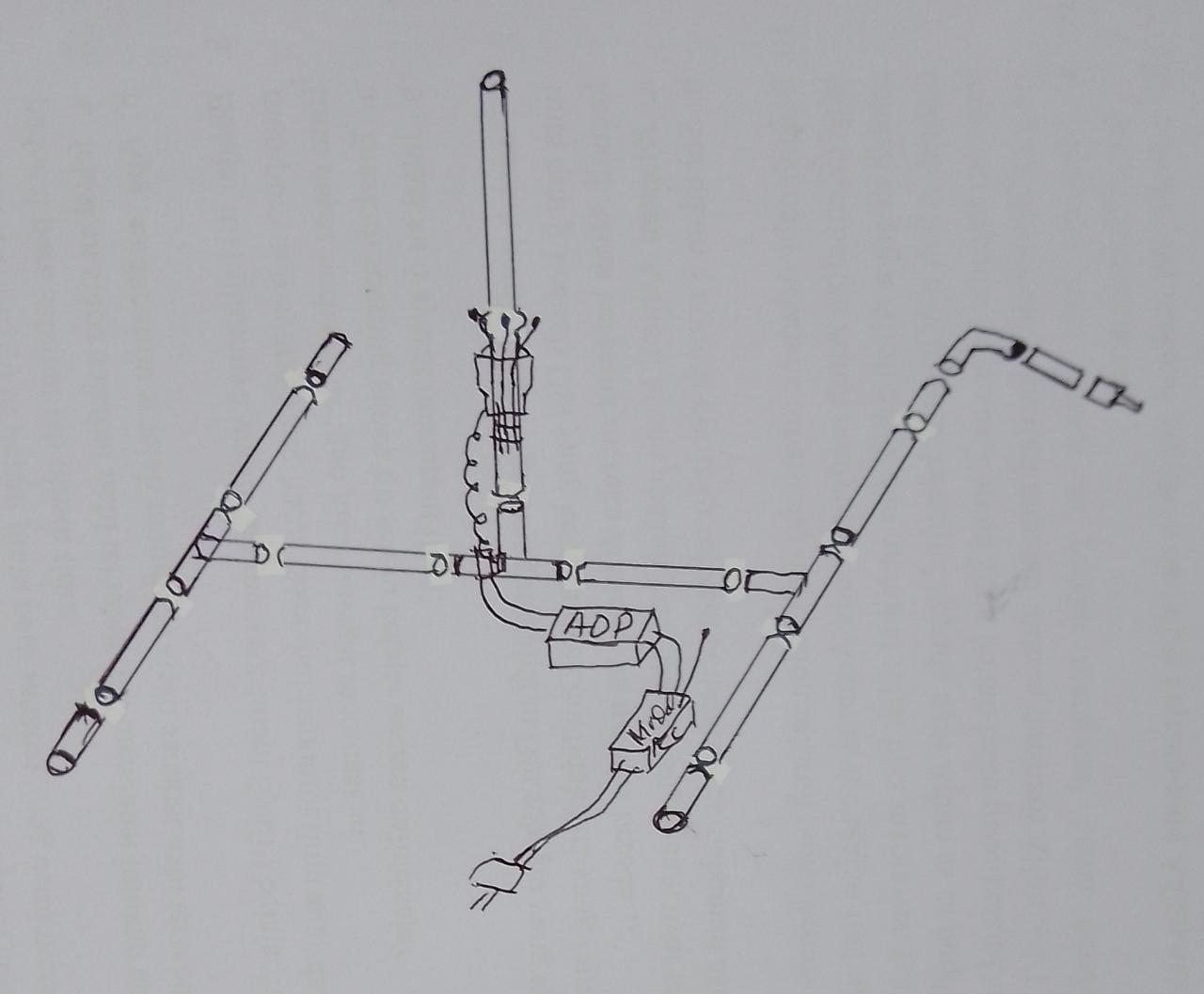

Cut many PVC pipe as ordered and seen on the picture and then arrange them as seen in the picture

WhatsApp Image 2021-12-02 at 17.04.49 (1).jpeg
WhatsApp Image 2021-12-02 at 17.04.49.jpeg
WhatsApp Image 2021-11-07 at 16.34.30.jpeg

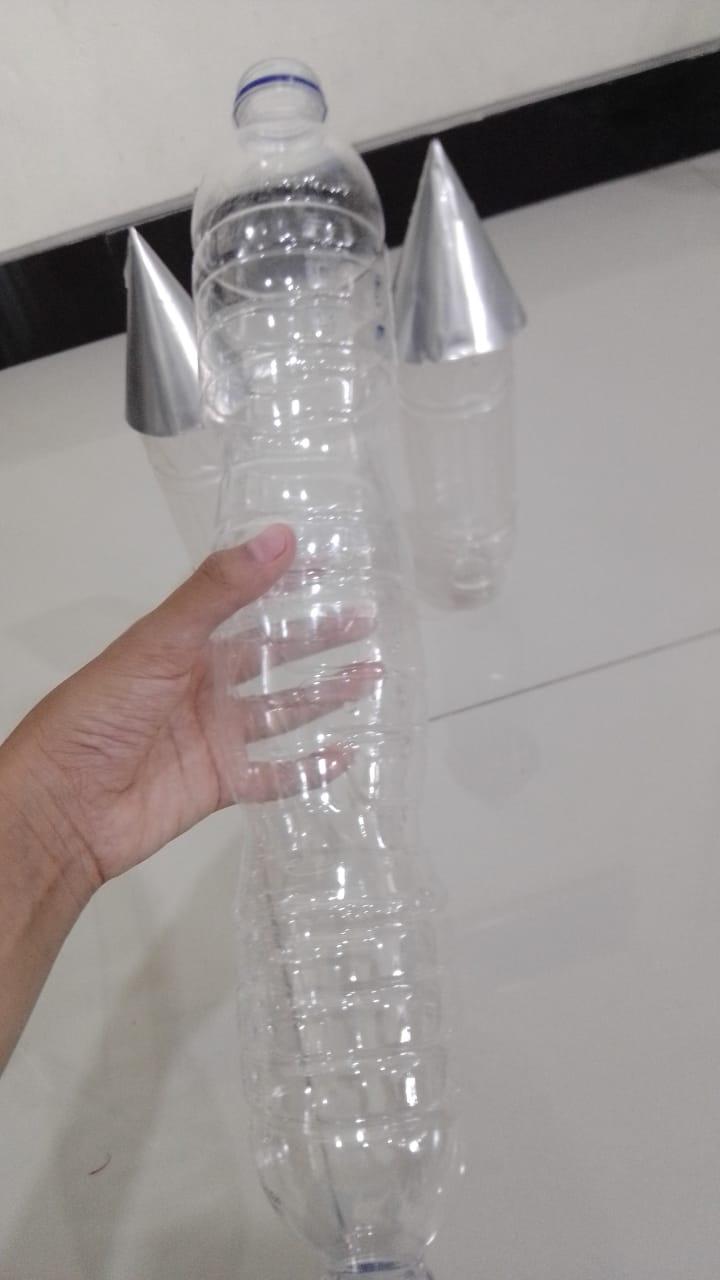

Take 3 old soft drink cans to make a cone on each top of the plane
Put a plasticine at the top of the center of the plane's cone as a weight as seen in the picture
color it white for the right and left sides of the plane and with orange in the middle with spray paint


WhatsApp Image 2021-11-05 at 15.57.36 (1).jpeg
WhatsApp Image 2021-12-03 at 12.23.17.jpeg
sKEMATIK LAUNCHER RC.jpg

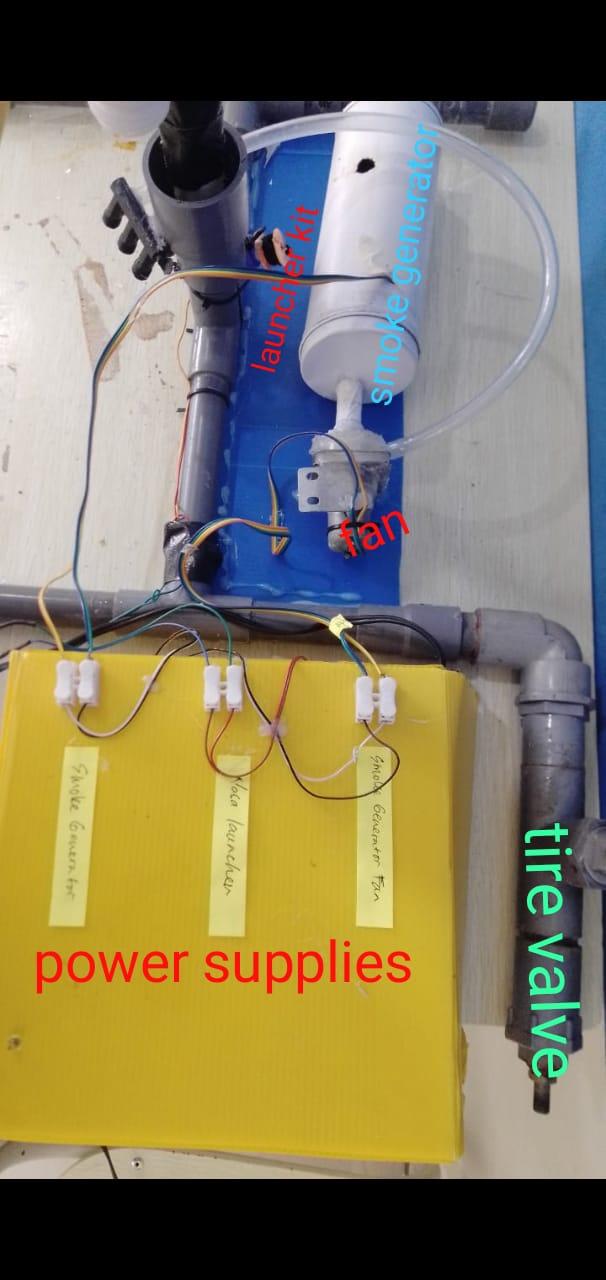

Existing components are in accordance with the schematic in the drawing, Make sure each direction of the cable connection is appropriate so that it avoids short contacts and the tool can work properly




Smoke generator in Nasa Shuttle Plane Replica RC
Try each power supply to start each engine. Make sure the smoke generator is on when the plug is plugged into the mains socket. Then, make sure the fan is on when the "A" button is clicked. And make sure the launcher kit works properly when the "B" remote button is clicked .And to launch the plane must be filled with water in the middle so that it can withstand the wind that comes out of it when it shoots into the air slowly and alternately with water that comes out far into the air.









Last launch of Nasa shuttle plane replica RC disturbed by the unfavorable weather. So I explain and describe the smoke generator and its launcher with a video.Thank you for your watching this instructables.
