Making a Garden Bench From an Old Worktop
by Deanswood in Workshop > Woodworking
285 Views, 1 Favorites, 0 Comments
Making a Garden Bench From an Old Worktop
![ABEF34D7-B557-456D-AA03-ED313A7962D5.jpeg](/proxy/?url=https://content.instructables.com/FVR/2S56/L7YS2J5X/FVR2S56L7YS2J5X.jpg&filename=ABEF34D7-B557-456D-AA03-ED313A7962D5.jpeg)
I don’t have an extensive array of power tools so this will mostly be hand tools, but if I have a power tool that will work I won’t be shy!
I also have some pieces of teak, and some reclaimed pine floor boards which I will use for the legs and supports.
Supplies
Reclaimed oak worktop
Reclaimed pine floorboards totalling about 2 metres long
Teak, 2cm by 5 cm by 200 cm
Marking Up and Cutting the Leg Tenons
![E9B38DDC-FF42-4A33-B1B5-BE98C9630742.jpeg](/proxy/?url=https://content.instructables.com/F0G/OUN2/L41BF3FW/F0GOUN2L41BF3FW.jpg&filename=E9B38DDC-FF42-4A33-B1B5-BE98C9630742.jpeg)
![A5220746-0B88-424B-B47D-F361B1ED288E.jpeg](/proxy/?url=https://content.instructables.com/FVJ/HTUP/L41BF3BY/FVJHTUPL41BF3BY.jpg&filename=A5220746-0B88-424B-B47D-F361B1ED288E.jpeg)
![603CC0A0-0E48-496E-A862-FDB97A14BA15.jpeg](/proxy/?url=https://content.instructables.com/F3C/0MHL/L41BF3FK/F3C0MHLL41BF3FK.jpg&filename=603CC0A0-0E48-496E-A862-FDB97A14BA15.jpeg)
![A505EDE0-7E81-404C-B2AA-37EF22F71E48.jpeg](/proxy/?url=https://content.instructables.com/FO4/5HHO/L41BF3FR/FO45HHOL41BF3FR.jpg&filename=A505EDE0-7E81-404C-B2AA-37EF22F71E48.jpeg)
![5290EE7D-58C3-42D9-99EA-9A5A7DEAEE4D.jpeg](/proxy/?url=https://content.instructables.com/FNI/E8SO/L41BF3FN/FNIE8SOL41BF3FN.jpg&filename=5290EE7D-58C3-42D9-99EA-9A5A7DEAEE4D.jpeg)
![5CD08146-9989-455A-A5E2-65191450A05A.jpeg](/proxy/?url=https://content.instructables.com/FMN/JFL8/L41BF3G2/FMNJFL8L41BF3G2.jpg&filename=5CD08146-9989-455A-A5E2-65191450A05A.jpeg)

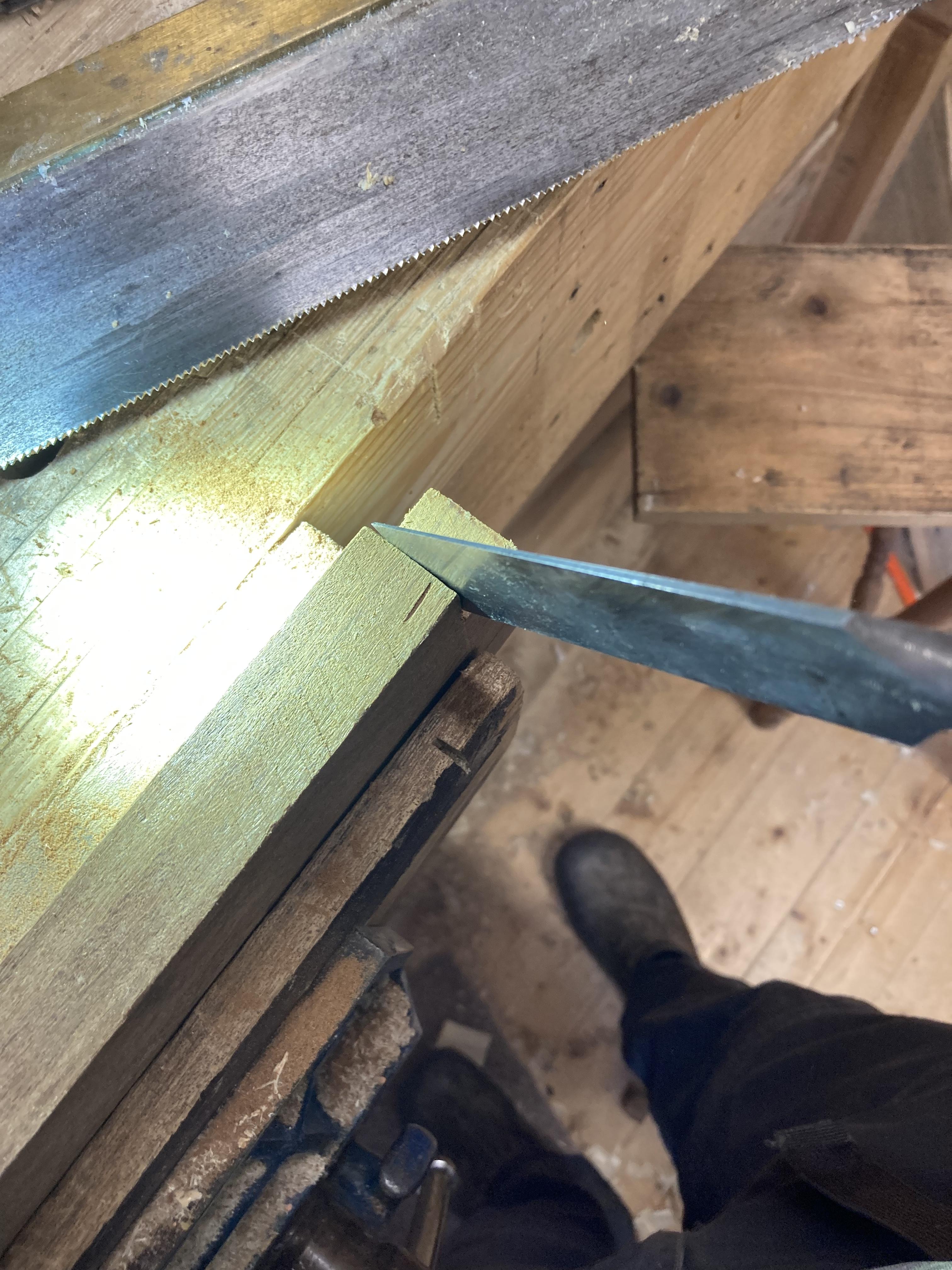

First of all, we needed to cut the legs to length. We are tall in my family so we deliberately cut the legs long. We spent a certain amount of time sitting on things of different heights before we decided the height we wanted the bench at. Subtract the thickness of the top and add a bit for the tenons and then you have the length of the legs. Cut them to length with your method of choice. I only have hand tools so that was my friendly cross cut saw.
Loads of tutorials online on how to cut tenons so I will not do that here but I always cut the tenons before the mortices (I don't think this is as controversial as with dovetails). I have a marking gauge with two pins, which I believe is called a mortice gauge. Marking up tenons that are all the same size means I can leave the pins set and they are the right size when I come to mark the mortices.
I of course didn't do this and cut the first tenon lengthwise along the leg (see the picture of chopping the mortice later to see what I mean). Looking at it after I cut it, I was concerned this wouldn't be strong enough so cut the remaining tenons so they were more square. I then left the mortice gauge set to this so I only needed to reset it once.
Definitely don't do what I do!
Shaping the Bench
![AC2D0ED6-CFA4-4D7F-86F3-3EA4EAE3B2A3.jpeg](/proxy/?url=https://content.instructables.com/FSH/B519/L41BF3GN/FSHB519L41BF3GN.jpg&filename=AC2D0ED6-CFA4-4D7F-86F3-3EA4EAE3B2A3.jpeg)
![2F6C15F0-C6CC-430B-A493-E3B8F45AA2BE.jpeg](/proxy/?url=https://content.instructables.com/FE0/3S5W/L41BF3H4/FE03S5WL41BF3H4.jpg&filename=2F6C15F0-C6CC-430B-A493-E3B8F45AA2BE.jpeg)
![3050940E-10BD-4EED-AE58-276B56204E55.jpeg](/proxy/?url=https://content.instructables.com/FNQ/6PXY/L41BF3GV/FNQ6PXYL41BF3GV.jpg&filename=3050940E-10BD-4EED-AE58-276B56204E55.jpeg)
![14AB4F80-0EEC-418D-B79E-B0173141B751.jpeg](/proxy/?url=https://content.instructables.com/FS5/K2WU/L41BF3HP/FS5K2WUL41BF3HP.jpg&filename=14AB4F80-0EEC-418D-B79E-B0173141B751.jpeg)
![C5AAE7CF-CEE6-4E33-9DA3-97B0E98A80D2.jpeg](/proxy/?url=https://content.instructables.com/FPU/2R96/L41BF3TQ/FPU2R96L41BF3TQ.jpg&filename=C5AAE7CF-CEE6-4E33-9DA3-97B0E98A80D2.jpeg)
So next thing was to sort out the reclaimed worktop.
I decided to sand it back as I didn't know what finish was on there now and if I got back to raw wood I'd know what I needed to do to look after it.

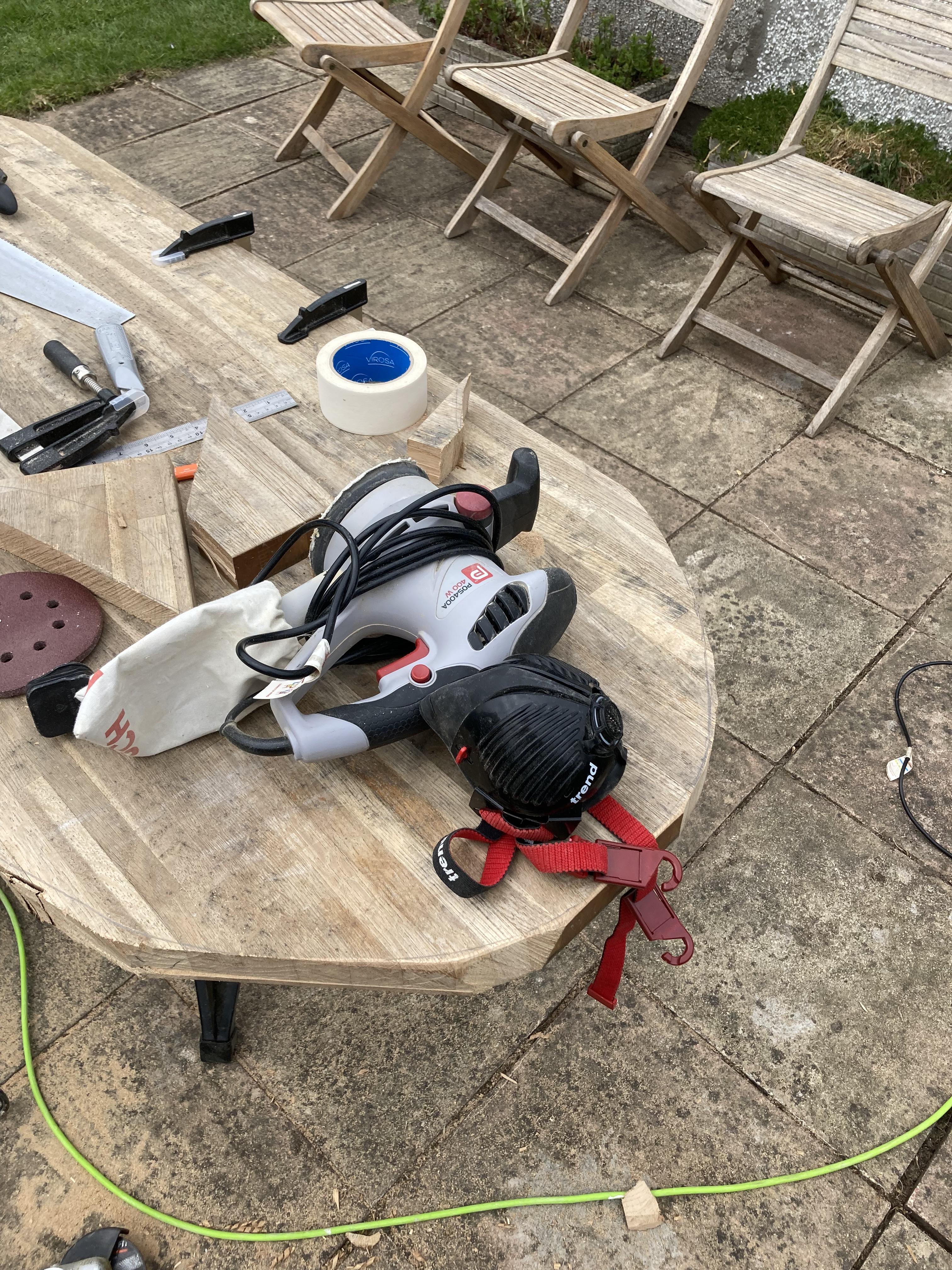

I cheated here as I have a random orbital sander and it really didn't take long. Wasn't looking for a really fine finish so I think I only went to something like 120. It's for a bench that will live outside so it just needed not to snag.
Next was the painful bit. I wanted to shape the ends to it didn't look like someone had just dumped a worktop on some legs, even though I was just dumping a worktop on some legs. I didn't have the power tools to do this with so I ended up using a combination of hand saw and a big gouge to shape it. It was a pain and if you can find someone with a power tool for this part of the job, I'd recommend it.
I ended up reshaping this a few times as I didn't like the first attempts I made and there was a lot of refinement.
Once the shape was ok, I rounded over the top using a spokeshave just to make sure there were no sharp edges to dig in to legs.
Completing the Legs
![12EE4848-314A-41F6-BDF7-18675112ED10.jpeg](/proxy/?url=https://content.instructables.com/FOD/Q9TN/L55BRIZ5/FODQ9TNL55BRIZ5.jpg&filename=12EE4848-314A-41F6-BDF7-18675112ED10.jpeg)
![0A61598F-4035-4995-B0C0-BC4A8EF1421D.jpeg](/proxy/?url=https://content.instructables.com/FZW/AXL0/L55BRIYM/FZWAXL0L55BRIYM.jpg&filename=0A61598F-4035-4995-B0C0-BC4A8EF1421D.jpeg)
So having shaped the top I can now finish the frame for the legs. This just involves putting in stretchers to create the base the bench will sit on.
I did this first as it just makes it easier to manage the pieces and then make sure I cut the mortices in the top in the right place if I make the frame first. Then I can use the frame itself for the markup and not rely on trying to make really accurate measurements.
So I used some old floor boards we had removed from our house for the long stretchers and some pallet wood for the short stretchers. I used through tenons for the long stretchers Same as a normal mortise and tenon except the mortise goes all the way through the leg.
I then used a wedged dowel to pin the tenon through the other side of the leg and glued it all together.
Fitting the Legs
![61FE1013-FFDD-437C-AE8A-72C735B0FE97.jpeg](/proxy/?url=https://content.instructables.com/FVW/CH1A/L7YS2JDM/FVWCH1AL7YS2JDM.jpg&filename=61FE1013-FFDD-437C-AE8A-72C735B0FE97.jpeg)
![C822551E-9467-4609-ACC3-8CEC3D9F954D.jpeg](/proxy/?url=https://content.instructables.com/FQ0/V6J7/L7YS2JJ3/FQ0V6J7L7YS2JJ3.jpg&filename=C822551E-9467-4609-ACC3-8CEC3D9F954D.jpeg)
![D40871DD-7025-4375-8B20-71AB337819A8.jpeg](/proxy/?url=https://content.instructables.com/F12/UXPG/L55BRIY2/F12UXPGL55BRIY2.jpg&filename=D40871DD-7025-4375-8B20-71AB337819A8.jpeg)
![4BD6BDA1-E383-4691-AD1B-09C372C6BACF.jpeg](/proxy/?url=https://content.instructables.com/F33/TBOT/L55BRIXL/F33TBOTL55BRIXL.jpg&filename=4BD6BDA1-E383-4691-AD1B-09C372C6BACF.jpeg)
![3AC24F9D-0EC9-49BB-8905-C250B8A335FF.jpeg](/proxy/?url=https://content.instructables.com/FGW/06O4/L7YS2JAB/FGW06O4L7YS2JAB.jpg&filename=3AC24F9D-0EC9-49BB-8905-C250B8A335FF.jpeg)
![E43259DD-0465-4795-9475-DFF1B8370540.jpeg](/proxy/?url=https://content.instructables.com/FTM/1HVV/L5FBT5MC/FTM1HVVL5FBT5MC.jpg&filename=E43259DD-0465-4795-9475-DFF1B8370540.jpeg)

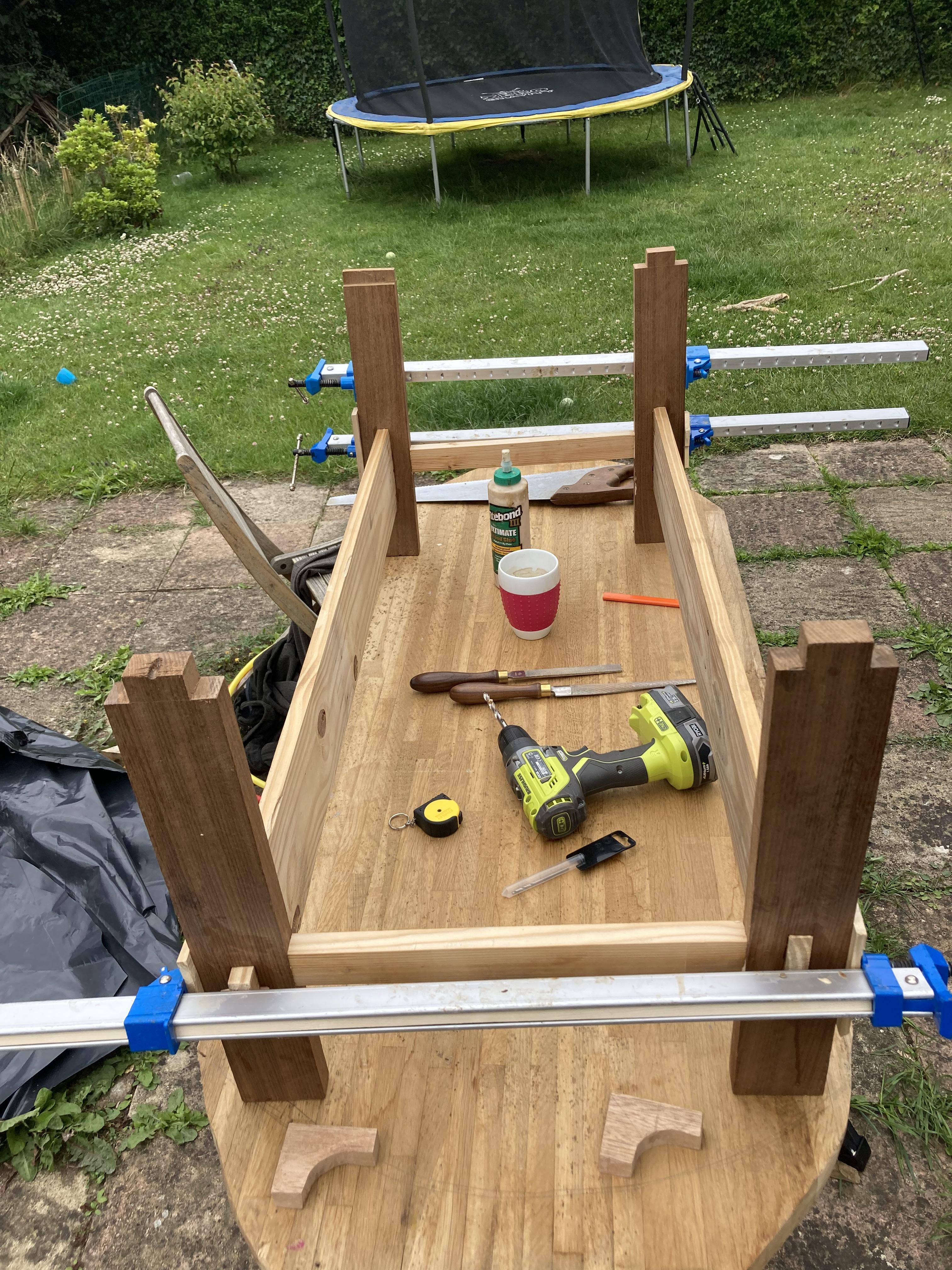

So now the frame for the legs is complete I can use that to mark out the mortices for the framework.

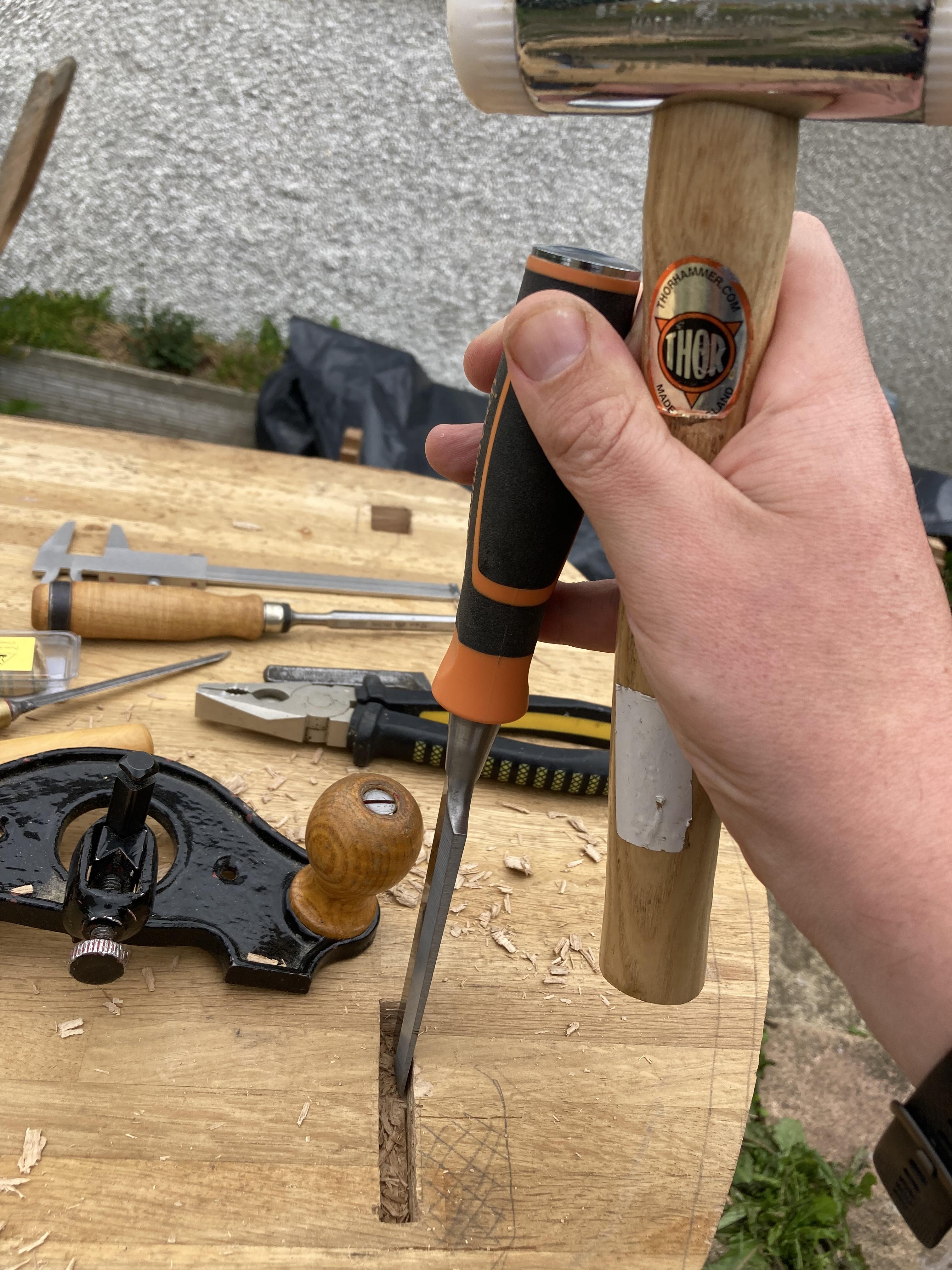

With the top upside down on the workmate, I can put the legs on the top and mark out the position for the mortices. Then it's simply chop them out with a chisel in the normal way. I also have a cheap router plane which is a bit of a pain to set the depth on but is very useful. I used this to flatten the bottom of the mortise.
Having fit the legs, I decided the frame could do with some additional support just to help resist some of the lateral forces. This honestly had nothing to do with my shoddy joinery and a lack of confidence in my mortise work. Honest.

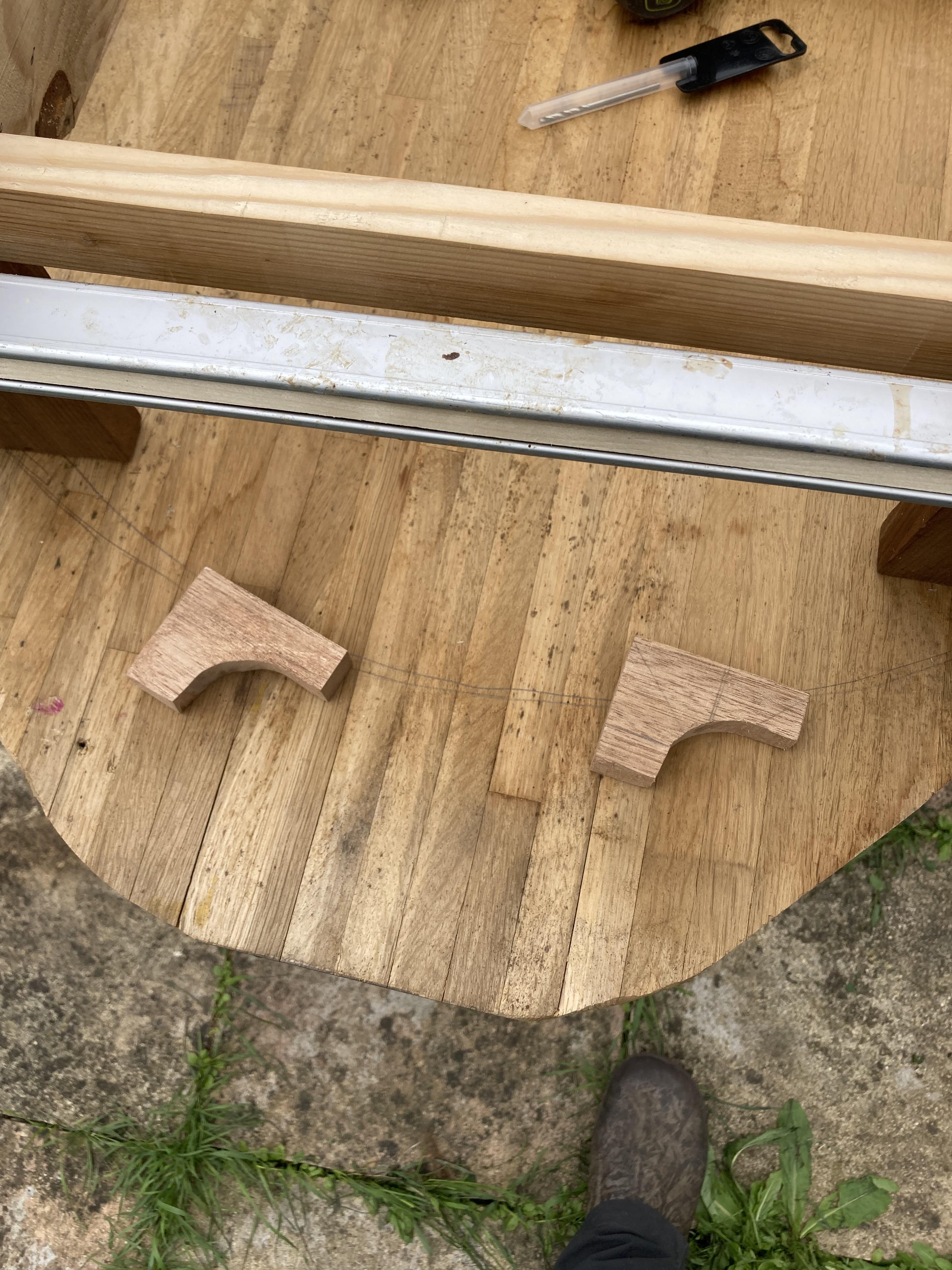

So I don't know what they are officially called, but I decided to put some angled supports on a couple of the joints to spread the pressure. I used some offcuts of teak to make these. I had some vaguely square pieces so I marked a diagonal as a start and then drew a slightly more attractive curved shape and cut it out with a coping saw. These were then glued into place and clamped.
It's worth pointing out the clamping was something of a challenge. Creative use of masking tape solved this and I would heartily recommend you explore the uses of masking tape as a clamp.
Once the glue dried, I used a combination of spokeshave and gouges to soften the sharp edges and put what I considered attractive chamfers on the stretchers and support pieces. I kept the legs square other than the bottoms of the legs. The feet should be chamfered as if they aren't, when the bench is moved there is a risk of them feet catching and causing splits in the legs.

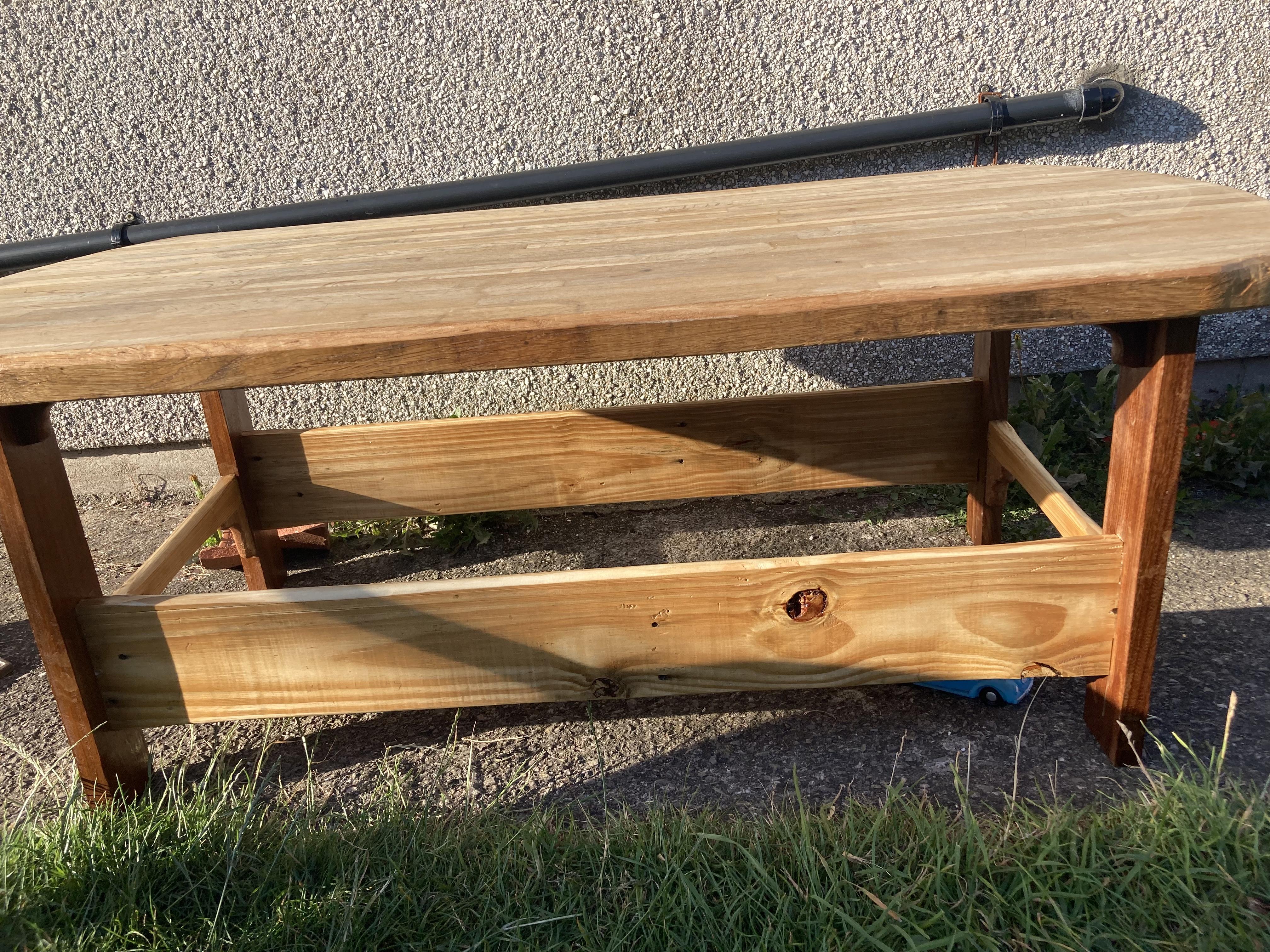

And I'm Done
So as I said, my wife is definitely in charge and once I had the bench on its feet, she was happy with the the large, coffee table like look of the bench and found it comfortable not to have a back so she vetoed it.
It means the look of the bench is not quite what I intended as I would have made it a little narrower as I left it that wide to enable me to put a back on it but c'est la vie.
Hope this has been useful.
