Making PCB With Heat Toner Transfer Paper and Laminator.
by saharaupro in Circuits > Soldering
5425 Views, 32 Favorites, 0 Comments
Making PCB With Heat Toner Transfer Paper and Laminator.
![pcb_toner_transf_lami_19.png](/proxy/?url=https://content.instructables.com/F4H/1JD4/IK2V28U8/F4H1JD4IK2V28U8.png&filename=pcb_toner_transf_lami_19.png)
There are many ways to make PCB.
My favorite method is with Heat Toner Transfer Paper and Laminator.
![pcb_toner_transf_lami_02.png](/proxy/?url=https://content.instructables.com/FWY/OTNR/IK2V28M5/FWYOTNRIK2V28M5.png&filename=pcb_toner_transf_lami_02.png)
![pcb_toner_transf_lami_03.png](/proxy/?url=https://content.instructables.com/FUB/XXDF/IK2V28M6/FUBXXDFIK2V28M6.png&filename=pcb_toner_transf_lami_03.png)
![pcb_toner_transf_lami_04.png](/proxy/?url=https://content.instructables.com/FVL/L5L8/IK2V28N9/FVLL5L8IK2V28N9.png&filename=pcb_toner_transf_lami_04.png)
Cut the copper board and clean the surface.
![pcb_toner_transf_lami_06.png](/proxy/?url=https://content.instructables.com/F1N/SC1C/IK2V28NE/F1NSC1CIK2V28NE.png&filename=pcb_toner_transf_lami_06.png)
![pcb_toner_transf_lami_05.png](/proxy/?url=https://content.instructables.com/F28/9QKL/IK2V28NC/F289QKLIK2V28NC.png&filename=pcb_toner_transf_lami_05.png)
![pcb_toner_transf_lami_07.png](/proxy/?url=https://content.instructables.com/F5N/IH3F/IK2V28OK/F5NIH3FIK2V28OK.png&filename=pcb_toner_transf_lami_07.png)
![pcb_toner_transf_lami_08.png](/proxy/?url=https://content.instructables.com/FMU/9FY3/IK2V28OL/FMU9FY3IK2V28OL.png&filename=pcb_toner_transf_lami_08.png)
Print PCB pattern on paper with draft mode.
Put the Heat Toner Transfer Paper on printed draft image and taped.
Then print PCB pattern again with high quality mode.
![pcb_toner_transf_lami_09.png](/proxy/?url=https://content.instructables.com/F0W/563Z/IK2V28PO/F0W563ZIK2V28PO.png&filename=pcb_toner_transf_lami_09.png)
![pcb_toner_transf_lami_10.png](/proxy/?url=https://content.instructables.com/FGD/08FZ/IK2V28PP/FGD08FZIK2V28PP.png&filename=pcb_toner_transf_lami_10.png)
![pcb_toner_transf_lami_11.png](/proxy/?url=https://content.instructables.com/FUR/EU8M/IK2V28PQ/FUREU8MIK2V28PQ.png&filename=pcb_toner_transf_lami_11.png)

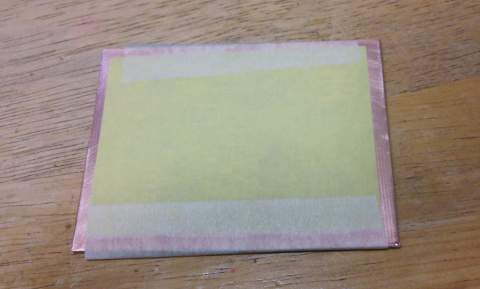

Cut printed Heat Toner Transfer Paper and put on the copper board and taped.
Put the copper board and Heat Toner Transfer Paper into the laminator about 10 times.
![pcb_toner_transf_lami_12.png](/proxy/?url=https://content.instructables.com/F0X/UIFV/IK2V28QT/F0XUIFVIK2V28QT.png&filename=pcb_toner_transf_lami_12.png)
![pcb_toner_transf_lami_13.png](/proxy/?url=https://content.instructables.com/FB2/7SF3/IK2V28QV/FB27SF3IK2V28QV.png&filename=pcb_toner_transf_lami_13.png)
![pcb_toner_transf_lami_14.png](/proxy/?url=https://content.instructables.com/F6O/I00G/IK2V28RY/F6OI00GIK2V28RY.png&filename=pcb_toner_transf_lami_14.png)

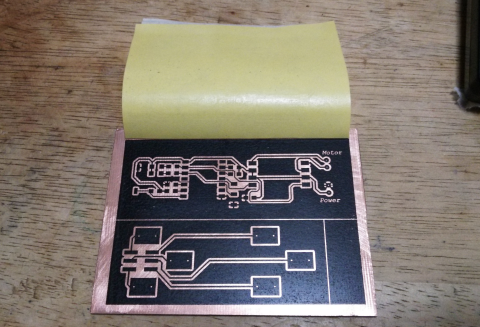

Put off the Heat Toner Transfer Paper.
Check the pin holes and dot on them with marker.
![pcb_toner_transf_lami_15.png](/proxy/?url=https://content.instructables.com/FG3/R7VZ/IK2V28T1/FG3R7VZIK2V28T1.png&filename=pcb_toner_transf_lami_15.png)
![pcb_toner_transf_lami_16.png](/proxy/?url=https://content.instructables.com/FDQ/ZRCD/IK2V28T2/FDQZRCDIK2V28T2.png&filename=pcb_toner_transf_lami_16.png)
![pcb_toner_transf_lami_17.png](/proxy/?url=https://content.instructables.com/FXY/4IAE/IK2V28T3/FXY4IAEIK2V28T3.png&filename=pcb_toner_transf_lami_17.png)
Etched.
![pcb_toner_transf_lami_18.png](/proxy/?url=https://content.instructables.com/FXV/4U2I/IK2V28T5/FXV4U2IIK2V28T5.png&filename=pcb_toner_transf_lami_18.png)
![pcb_toner_transf_lami_19.png](/proxy/?url=https://content.instructables.com/F6T/SPOX/IK2V298K/F6TSPOXIK2V298K.png&filename=pcb_toner_transf_lami_19.png)
Cut and separate each boards.
