My grandpa recently passed away and my dad tasked me with the responsibility of making his urn, this project is dedicated to him.
Supplies
I got all the wood and supplies needed at my local Woodcraft store
3/4" thick 7" wide piece of walnut
miter saw
sander
clamps
wood glue
super glue (optional)
Mineral oil
Cutting the Front and Side Pieces
![IMG-2534.JPG](/proxy/?url=https://content.instructables.com/FDD/53Y5/KNX6LH8T/FDD53Y5KNX6LH8T.jpg&filename=IMG-2534.JPG)
![IMG-2535.JPG](/proxy/?url=https://content.instructables.com/FD5/UB9G/KNX6LH9A/FD5UB9GKNX6LH9A.jpg&filename=IMG-2535.JPG)
I started by cutting two pieces to 9" wide and two at 5 3/4" with a 45 degree angle.
I used a continuous grain cut pattern on all the sides by flipping the boards over for every cut.
Glue Up
![IMG-2537.JPG](/proxy/?url=https://content.instructables.com/FHL/25ZS/KNX6LH9U/FHL25ZSKNX6LH9U.jpg&filename=IMG-2537.JPG)
![IMG-2538.JPG](/proxy/?url=https://content.instructables.com/F2R/CEGY/KNX6LHA0/F2RCEGYKNX6LHA0.jpg&filename=IMG-2538.JPG)
![IMG-2539.JPG](/proxy/?url=https://content.instructables.com/FL2/8AU1/KNX6LHA9/FL28AU1KNX6LHA9.jpg&filename=IMG-2539.JPG)
![IMG-2541.JPG](/proxy/?url=https://content.instructables.com/FK5/VC0R/KNX6LHAA/FK5VC0RKNX6LHAA.jpg&filename=IMG-2541.JPG)
![IMG-2542.JPG](/proxy/?url=https://content.instructables.com/F1B/W5XS/KNX6LHAK/F1BW5XSKNX6LHAK.jpg&filename=IMG-2542.JPG)
![IMG-2540.JPG](/proxy/?url=https://content.instructables.com/FFL/I353/KNX6LHAT/FFLI353KNX6LHAT.jpg&filename=IMG-2540.JPG)

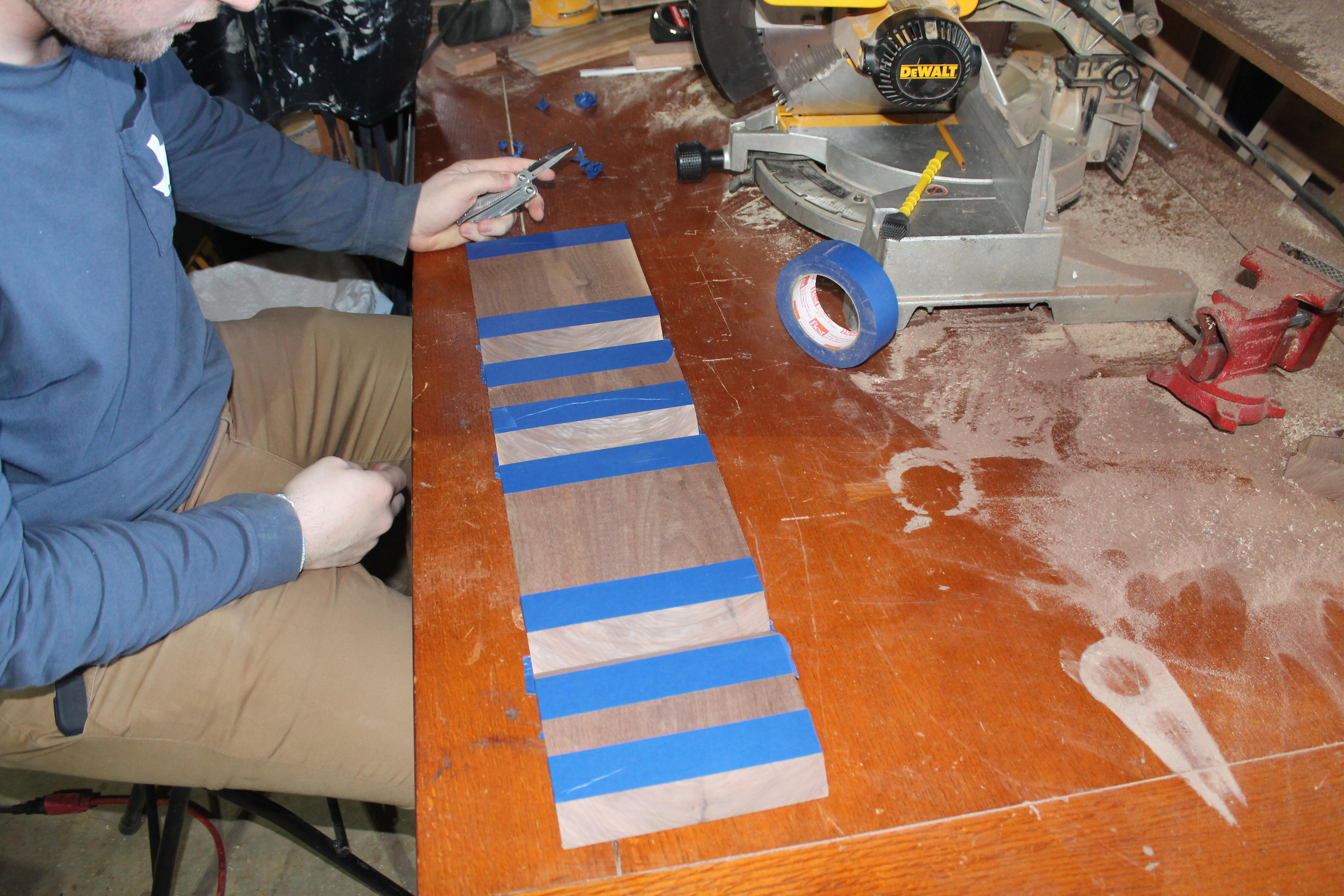

I taped the inside of the boxes to prevent glue from getting on it.

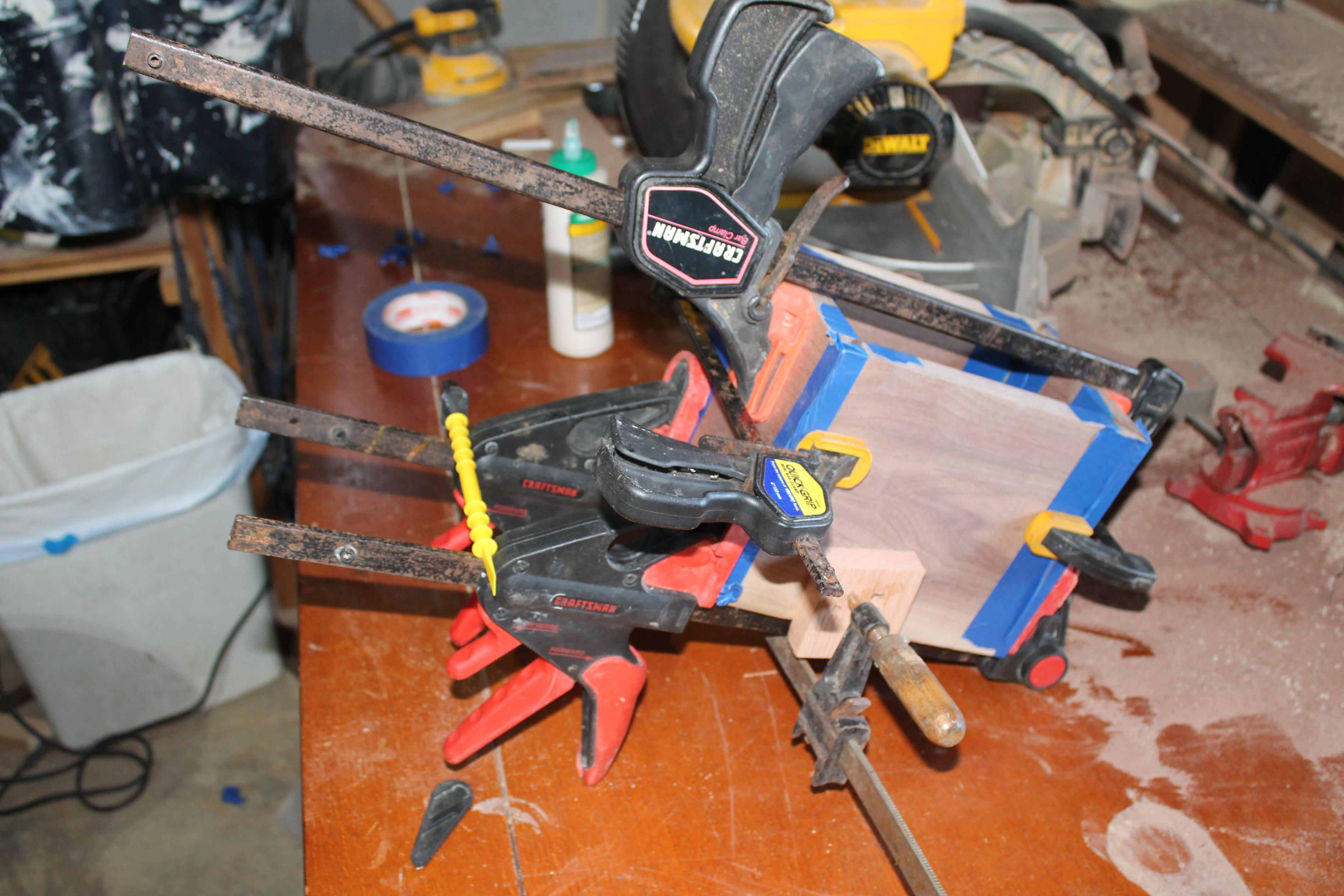

I then clamped it up.

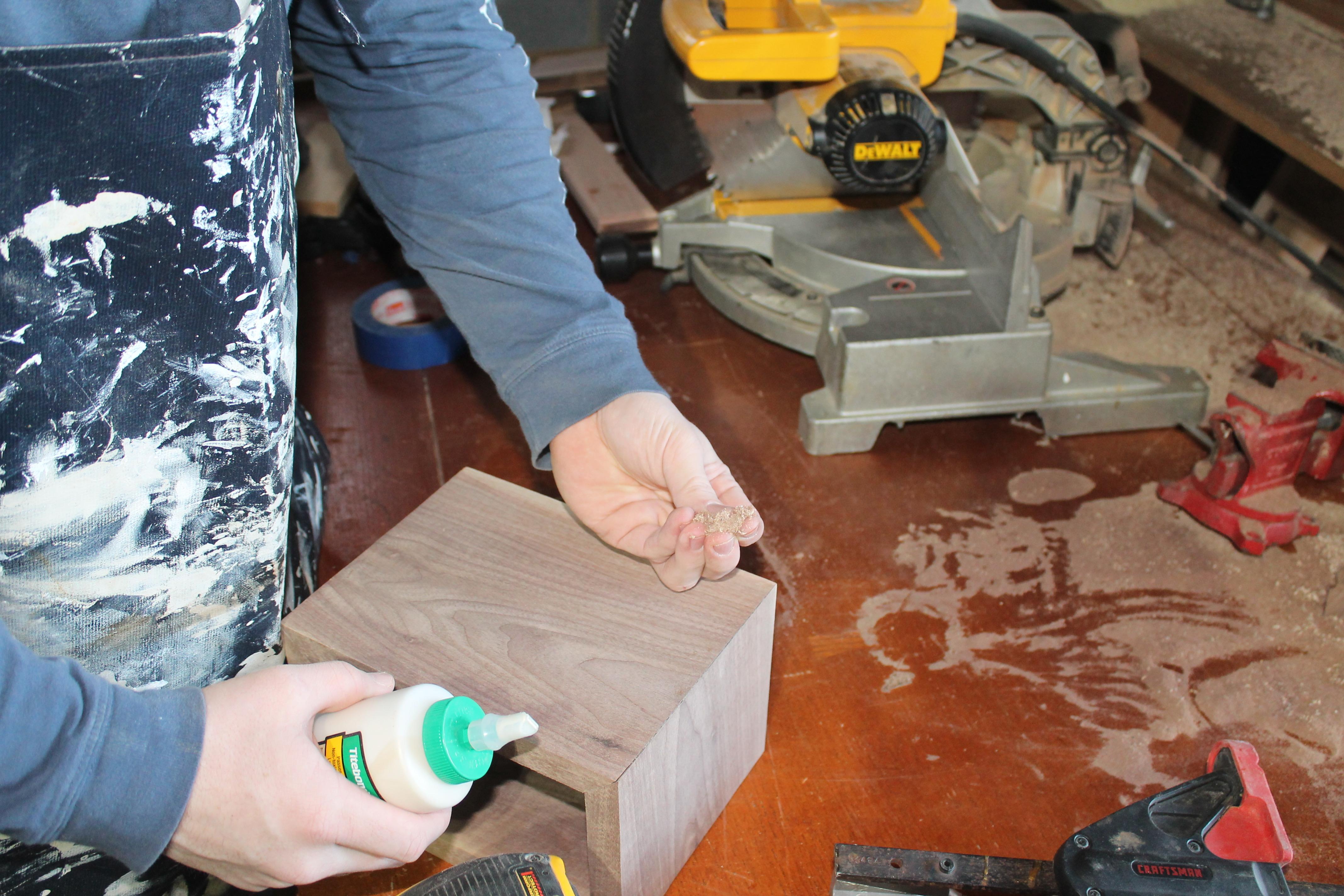

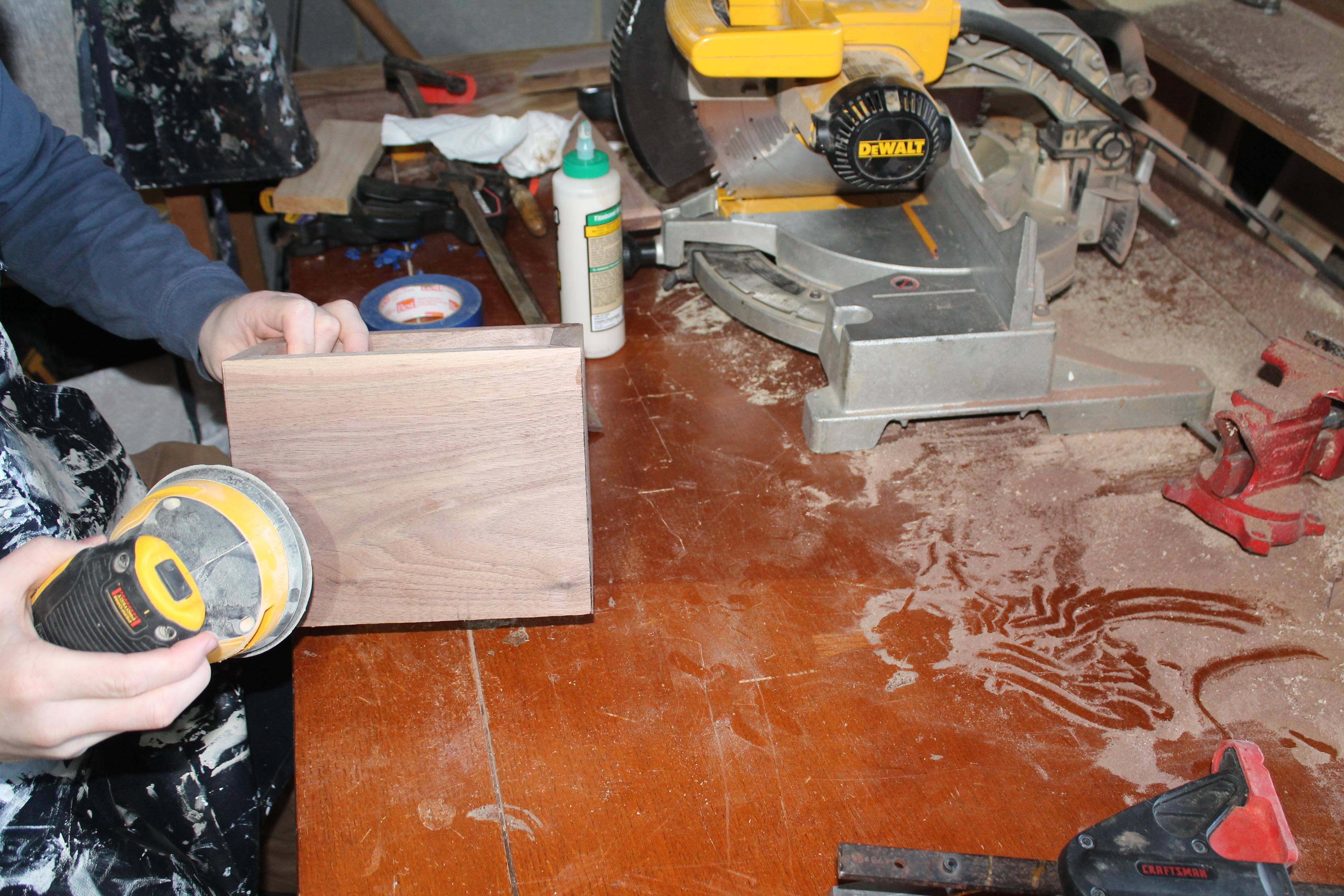

I filled in gaps between the pieces with some walnut saw dust and glue, sanding after.
Cutting the Top and Base Pieces
![IMG-2544.JPG](/proxy/?url=https://content.instructables.com/FN4/484R/KNX6LHG1/FN4484RKNX6LHG1.jpg&filename=IMG-2544.JPG)
![IMG-2545.JPG](/proxy/?url=https://content.instructables.com/F74/ODTI/KNX6LHG2/F74ODTIKNX6LHG2.jpg&filename=IMG-2545.JPG)
![IMG-2546.JPG](/proxy/?url=https://content.instructables.com/F50/N01F/KNX6LHG3/F50N01FKNX6LHG3.jpg&filename=IMG-2546.JPG)
I cut two pieces at 10" x 6 3/4. So that there can be one inch over-hang on the box.
Box Engraving
![IMG-2547.JPG](/proxy/?url=https://content.instructables.com/FC3/TBPZ/KNX6LHGH/FC3TBPZKNX6LHGH.jpg&filename=IMG-2547.JPG)
![IMG-2548.JPG](/proxy/?url=https://content.instructables.com/FBI/KE36/KNX6LHGI/FBIKE36KNX6LHGI.jpg&filename=IMG-2548.JPG)

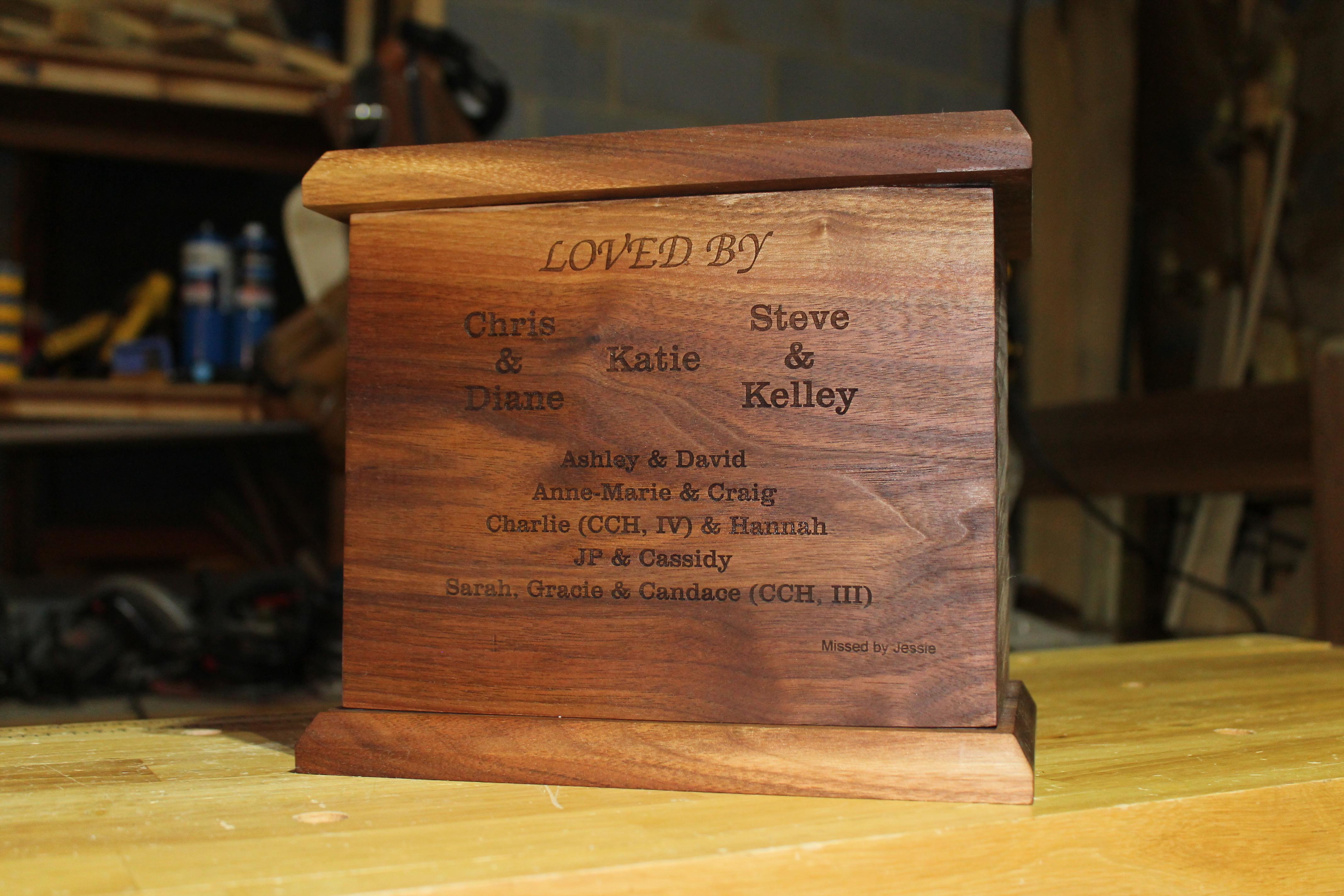

I got it engraved with my grandpas name, dates, and colleges he attended on the front and on the back we put all of my family's names.
You can also order a custom plaque online if you would rather that look.
Add Chamfer to Top and Base
![IMG-2549.JPG](/proxy/?url=https://content.instructables.com/FEB/FOUN/KNX6LHJA/FEBFOUNKNX6LHJA.jpg&filename=IMG-2549.JPG)
![IMG-2550.JPG](/proxy/?url=https://content.instructables.com/FJI/IT1F/KNX6LHMM/FJIIT1FKNX6LHMM.jpg&filename=IMG-2550.JPG)

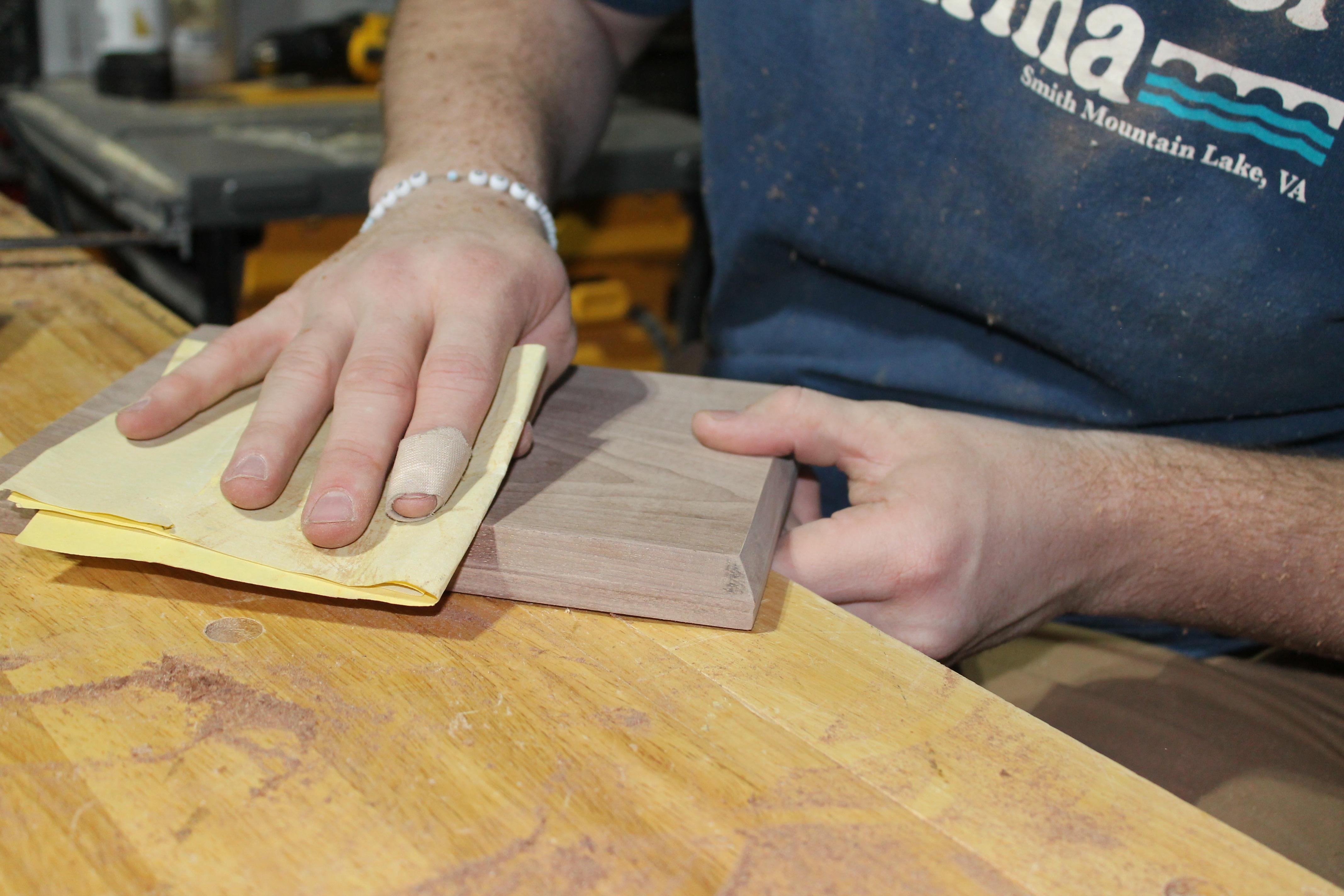

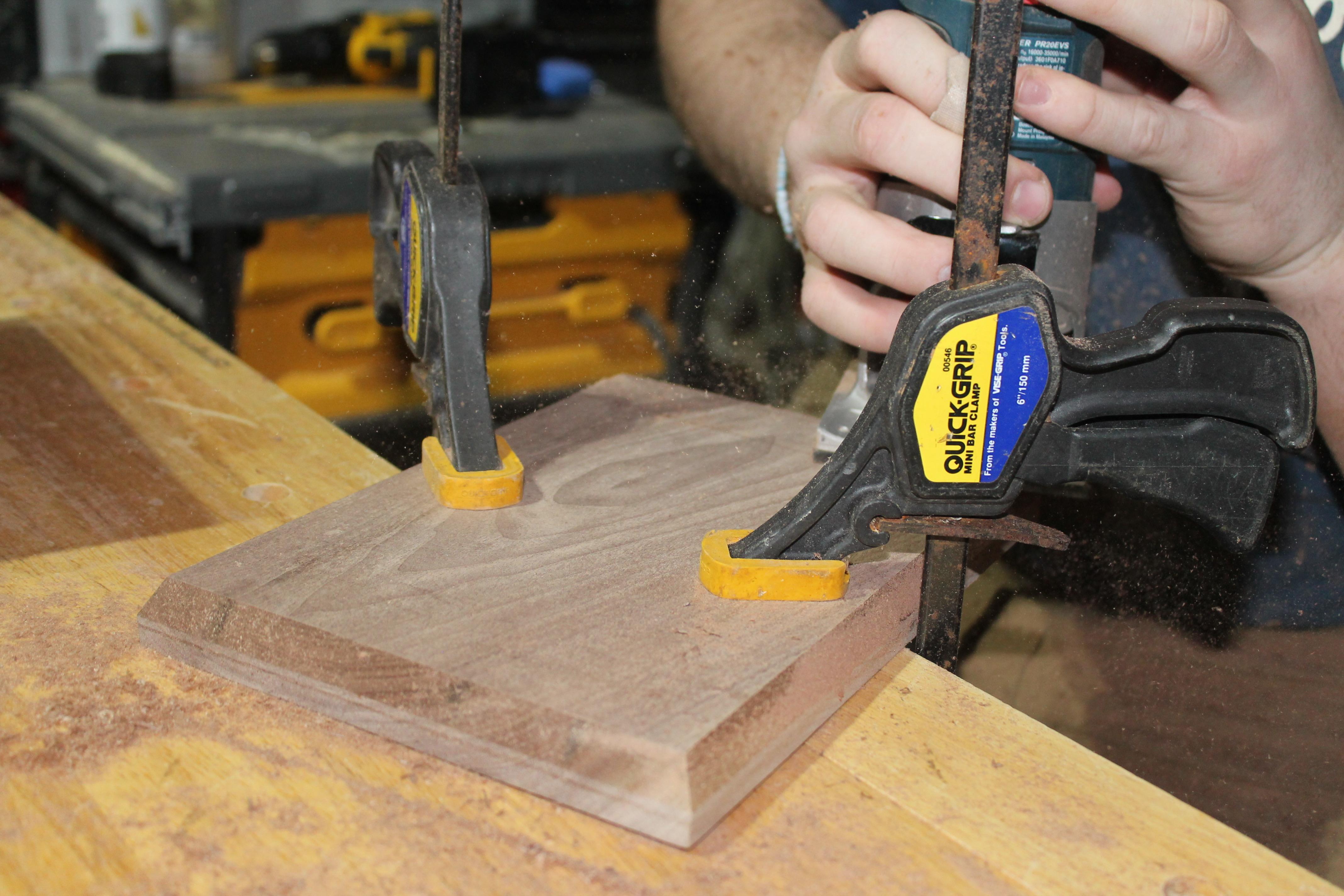

I used a 30 degree chamfer bit and went completely around both pieces and then sanded out some of the imperfections.
Glue on Top
![IMG-2551.JPG](/proxy/?url=https://content.instructables.com/FSJ/6920/KNX6LHOZ/FSJ6920KNX6LHOZ.jpg&filename=IMG-2551.JPG)
![IMG-2552.JPG](/proxy/?url=https://content.instructables.com/F1O/JBAM/KNX6LHP0/F1OJBAMKNX6LHP0.jpg&filename=IMG-2552.JPG)
![IMG-2553.JPG](/proxy/?url=https://content.instructables.com/FRP/1TES/KNX6LHP1/FRP1TESKNX6LHP1.jpg&filename=IMG-2553.JPG)

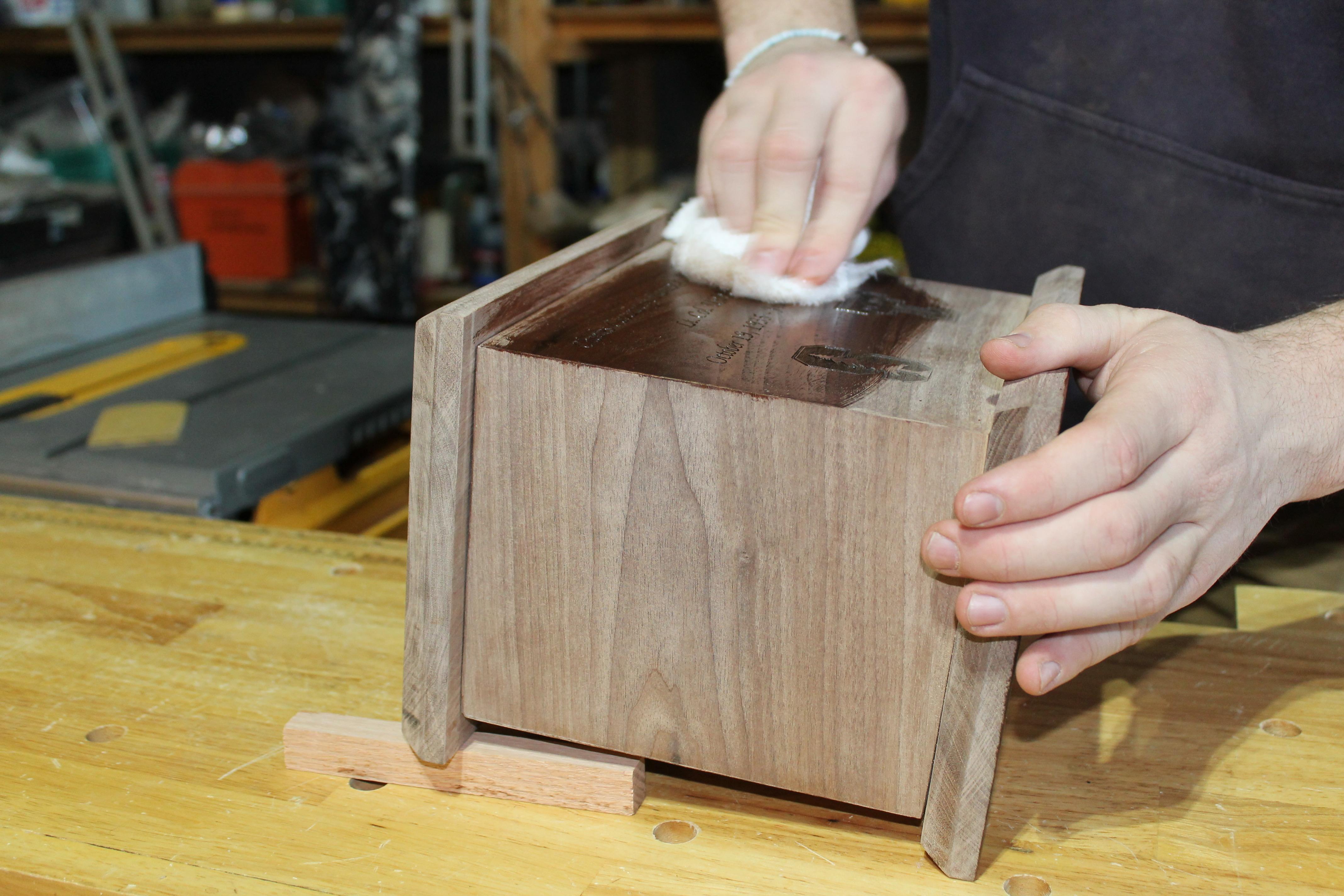

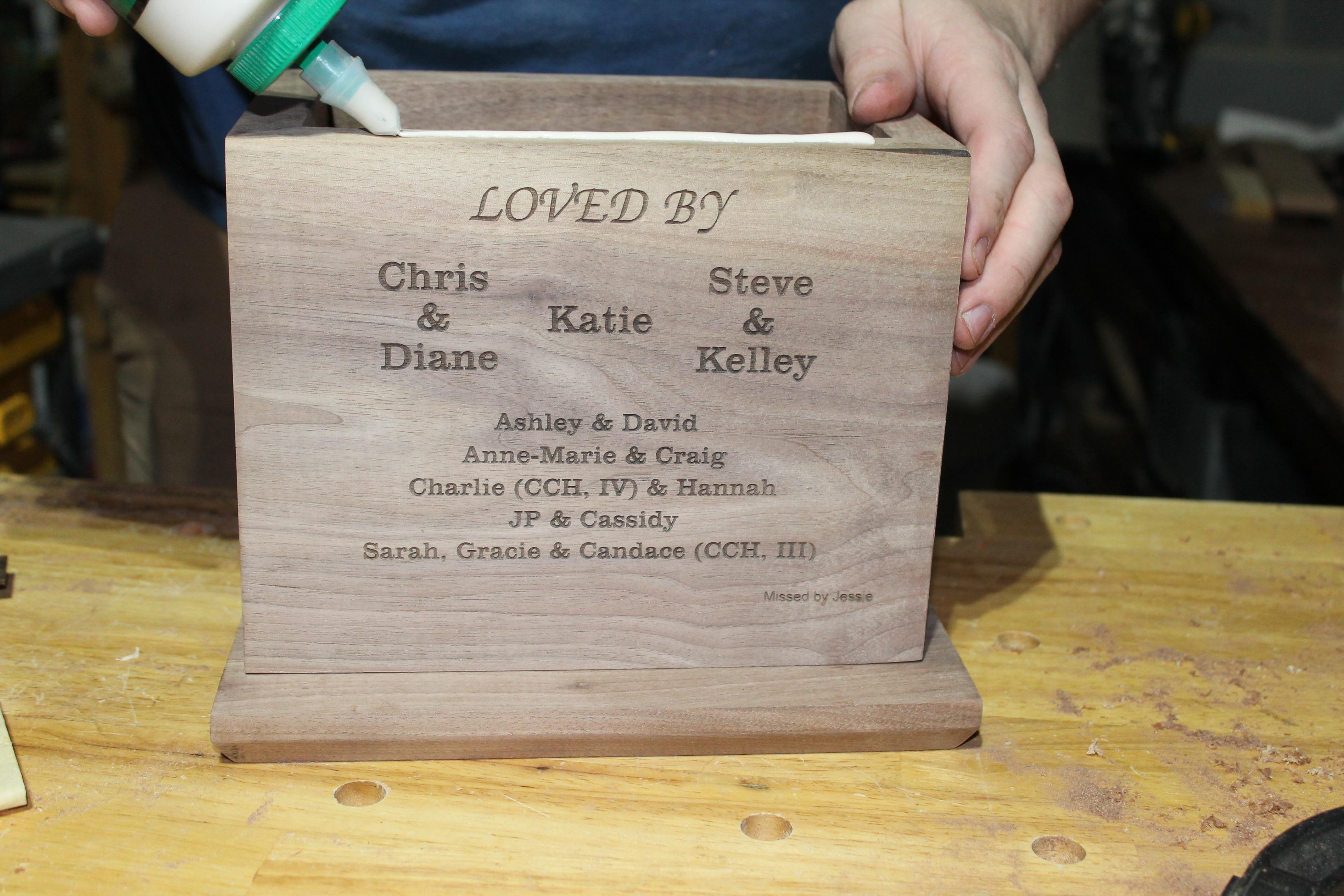

I glued on the top and clamped it down.
Screw on Bottom
![IMG-2554.JPG](/proxy/?url=https://content.instructables.com/F77/1WE9/KNX6LI05/F771WE9KNX6LI05.jpg&filename=IMG-2554.JPG)
![IMG-2555.JPG](/proxy/?url=https://content.instructables.com/FB6/SZP7/KNX6LI2P/FB6SZP7KNX6LI2P.jpg&filename=IMG-2555.JPG)
I carefully measured so that the screw holes would not break through the box.

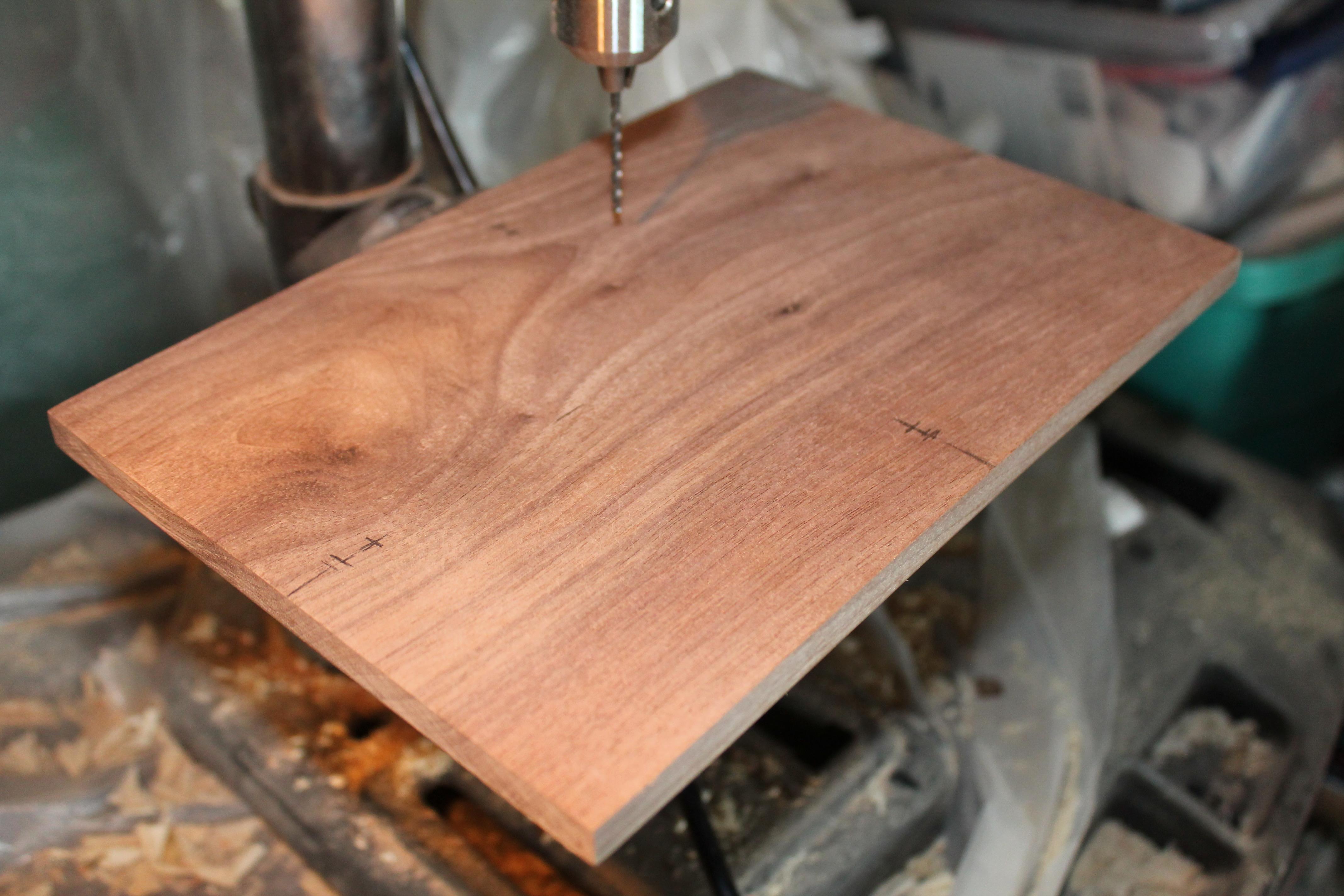

I drilled the pilot holes, counter sinking them so it is flush. Then I put the bottom on and then drilled in the screws.
I screwed this on instead of glueing so that we can put his ashes in and the screws are not visible on the bottom.
Adding the Military Emblems
![IMG-2556.JPG](/proxy/?url=https://content.instructables.com/FKV/IO81/KNX6LJ2O/FKVIO81KNX6LJ2O.jpg&filename=IMG-2556.JPG)
![IMG-2557.JPG](/proxy/?url=https://content.instructables.com/FL5/0OE0/KNX6LJ2P/FL50OE0KNX6LJ2P.jpg&filename=IMG-2557.JPG)
![IMG-2558.JPG](/proxy/?url=https://content.instructables.com/FEN/GLF1/KNX6LJ2V/FENGLF1KNX6LJ2V.jpg&filename=IMG-2558.JPG)
![IMG-2559.JPG](/proxy/?url=https://content.instructables.com/F9Q/L6HK/KNX6LJ35/F9QL6HKKNX6LJ35.jpg&filename=IMG-2559.JPG)
![IMG-2560.JPG](/proxy/?url=https://content.instructables.com/FJI/7ZP2/KNX6LJ36/FJI7ZP2KNX6LJ36.jpg&filename=IMG-2560.JPG)

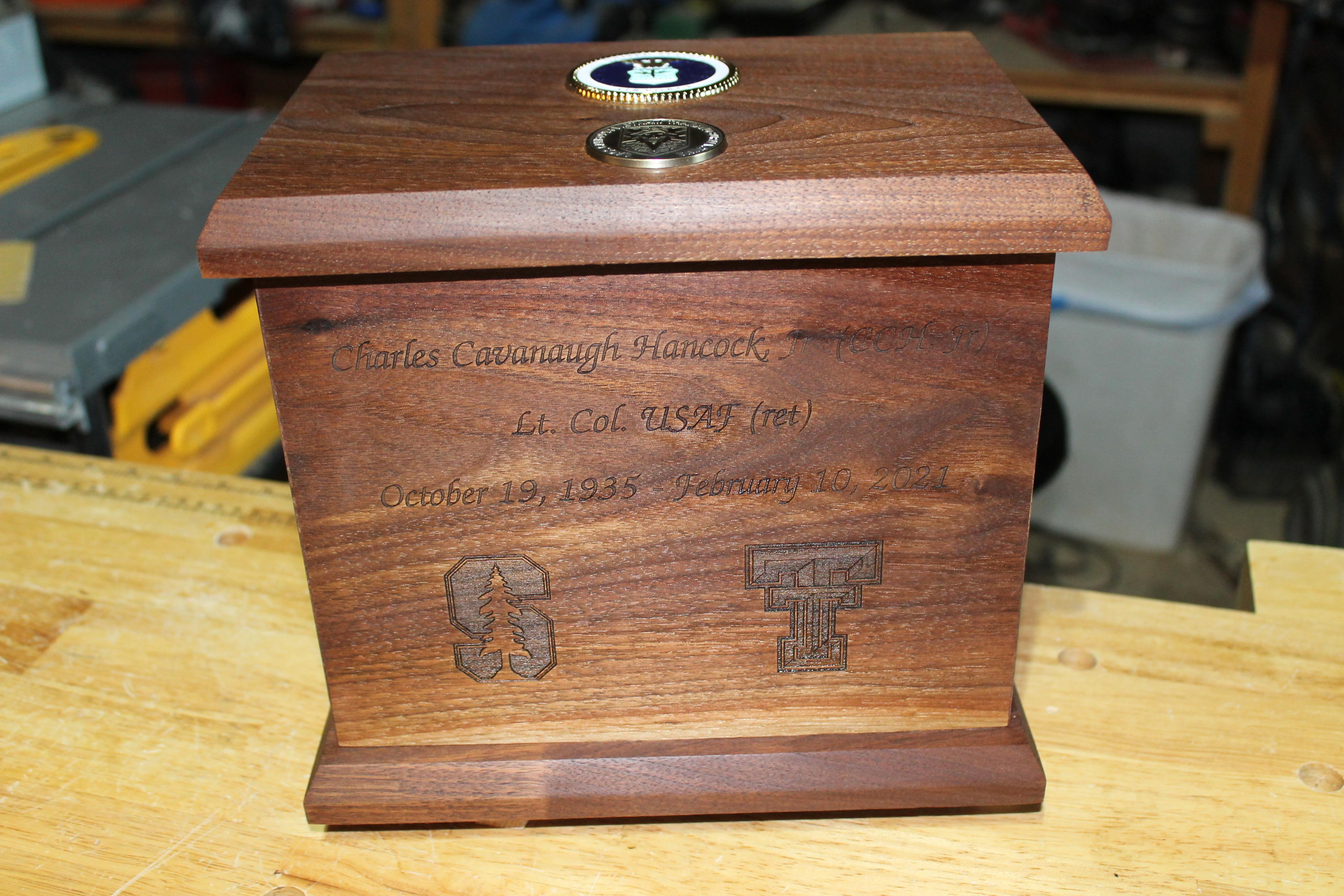

My grandpa was in the air force (the top emblem) and was also a liaison with SOG (the bottom emblem).

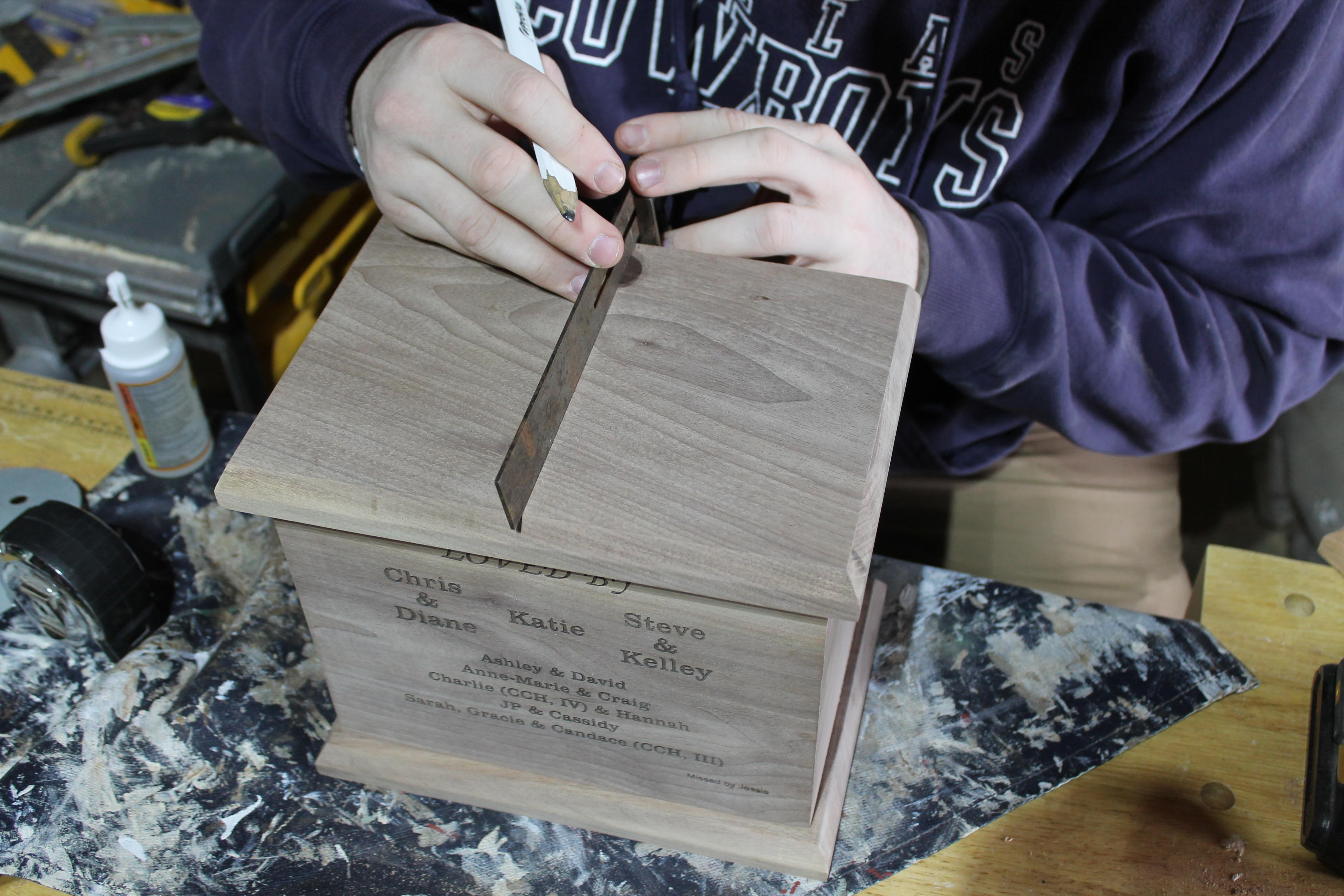

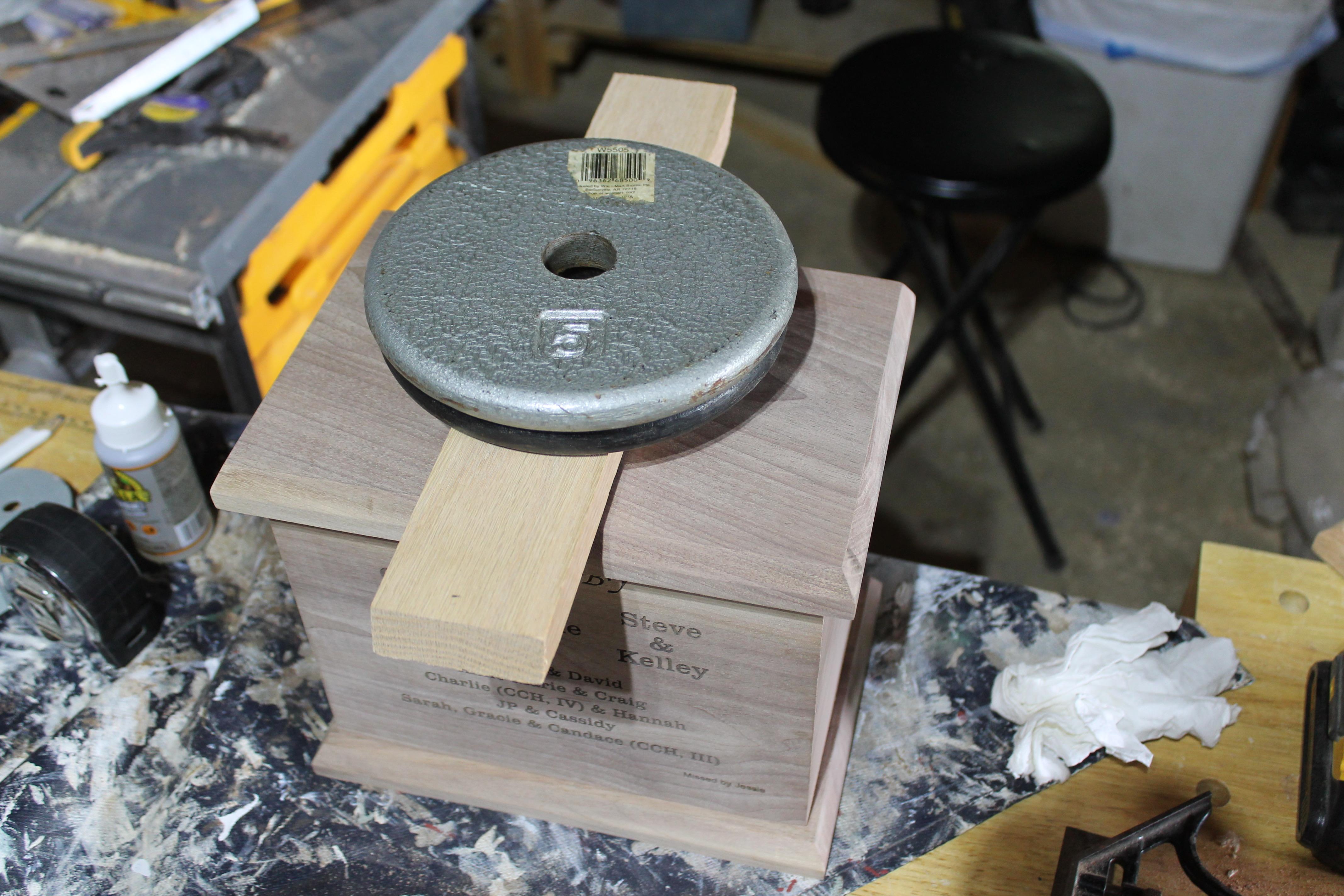

I found the center, lined them up and glued them on, putting weights on them to hold them down good.
Add Finish
![IMG-2561.JPG](/proxy/?url=https://content.instructables.com/F73/VIGI/KNX6LJAG/F73VIGIKNX6LJAG.jpg&filename=IMG-2561.JPG)
![IMG-2562.JPG](/proxy/?url=https://content.instructables.com/FLB/B4UU/KNX6LJAH/FLBB4UUKNX6LJAH.jpg&filename=IMG-2562.JPG)

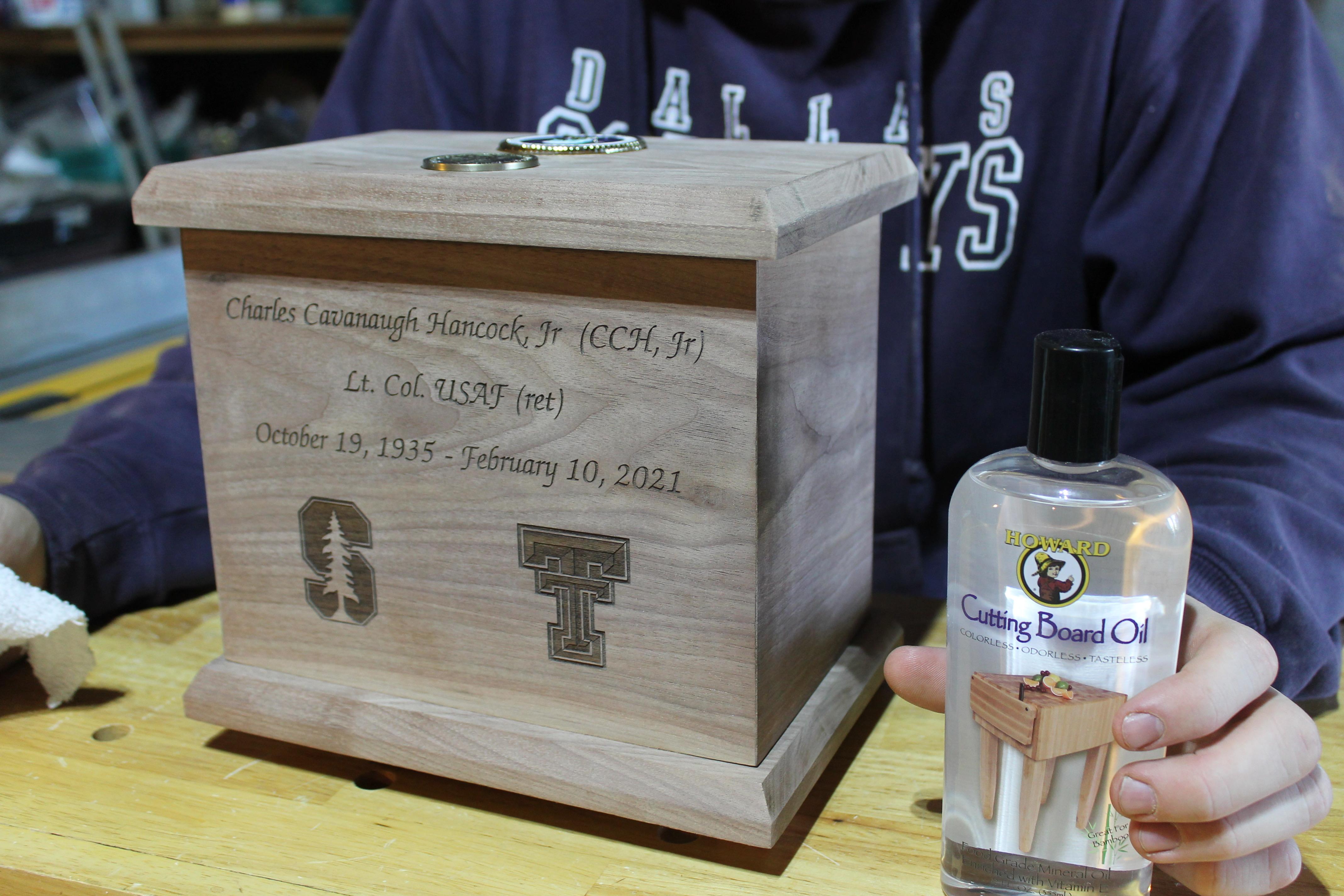

I used Mineral spirits to finish it because it makes walnut look fantastic.
This is actually mineral oil used for cutting boards but it still works great.
Finished Product
![IMG-2564.JPG](/proxy/?url=https://content.instructables.com/FHH/GTJP/KNX6LJW5/FHHGTJPKNX6LJW5.jpg&filename=IMG-2564.JPG)
![IMG-2565.JPG](/proxy/?url=https://content.instructables.com/FAY/MENZ/KNX6LJW6/FAYMENZKNX6LJW6.jpg&filename=IMG-2565.JPG)
![IMG-2566.JPG](/proxy/?url=https://content.instructables.com/FPI/ZFPM/KNX6LK1A/FPIZFPMKNX6LK1A.jpg&filename=IMG-2566.JPG)
![IMG-2563.JPG](/proxy/?url=https://content.instructables.com/F9Q/5WS8/KNX6LK1B/F9Q5WS8KNX6LK1B.jpg&filename=IMG-2563.JPG)
This project was extremely intimidating to do but meant a lot to me and I think it turned out amazing and know he would be proud of it.
