Make Footboard Piezo Generator!

Make a foothold development using piezo electric element.

Little energy and can make electricity.

Small movements, wind and step.

Piezoelectric generators is very good energy harvesting.

- Bimorph type piezoelectric elements (B)
- PCB (A)

- Bridge diodes (C)

- Wires

- rubber (D)

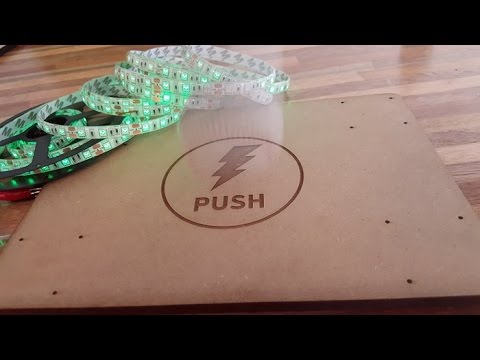

1. Solder the piezoelectric element and the diode bridge to the PCB. [ See the video ]

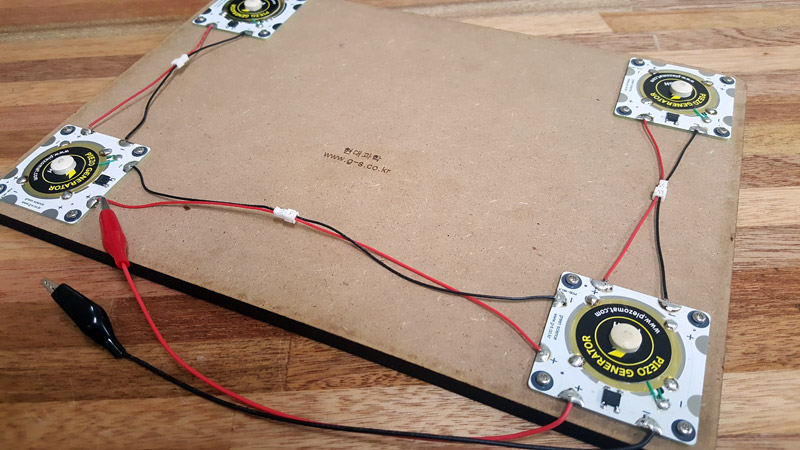

2. Attach the piezo generator on wooden boards. (4)

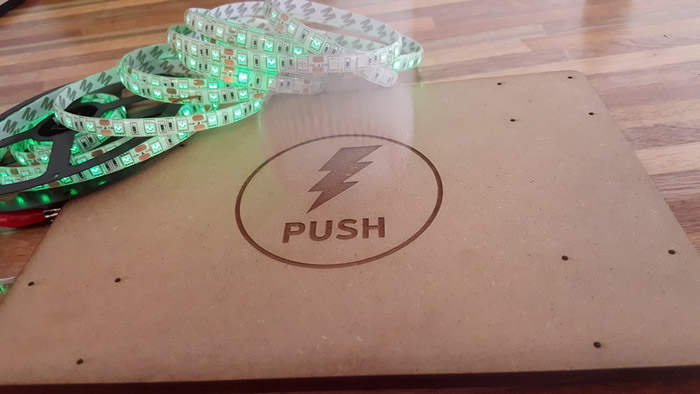

3. Press the ootboard piezo generator.
