Make Your Own Switched 9 Volt Battery Connector

by GrandadIsAnOldMan in Circuits > Reuse

3000 Views, 21 Favorites, 0 Comments

Make Your Own Switched 9 Volt Battery Connector

Make your own switched 9 volt battery connector-1.jpg

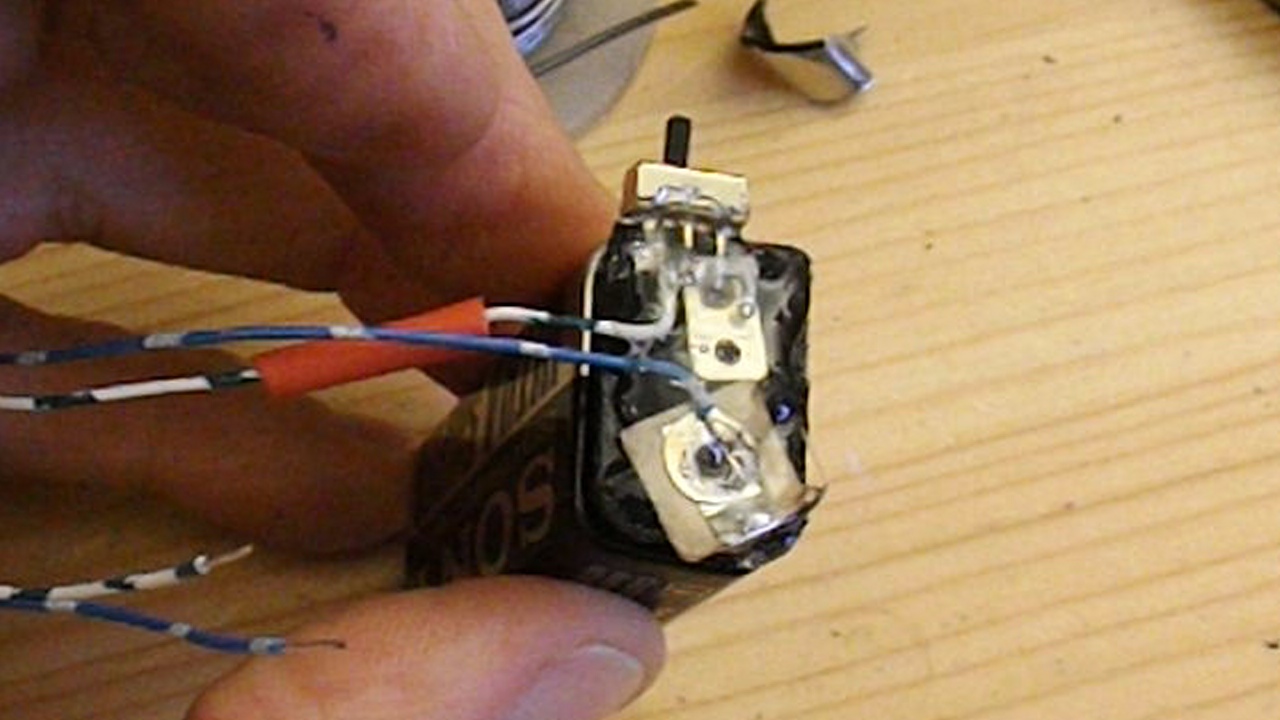

I use a lot of 9 volt batteries for my toy projects and I scavenge the terminal assembly from an old battery to make the connector for the power supply. At the same time I solder a switch into the assembly so it is a one piece unit. Then I top it off with a nice layer of hot glue to give it some strength.

Note. some 9 volt batteries have a different construction method and this assembly cannot be salvaged.
Components
-
Old 9 volt battery
Scavenged micro switch
Suitable gauge wire for your project

Tools
-
Wire cutters
Soldering iron
