Run OLED
![5567f43f4936d46887000bbd.jpeg](/proxy/?url=https://content.instructables.com/F7O/ITUG/IA8WKZOW/F7OITUGIA8WKZOW.jpg&filename=5567f43f4936d46887000bbd.jpeg)
I want to make the Smart watch.
but there are projects where I want to attach a small display for quickly figuring out the current state.
Parts
![IMG_20150529_111212.jpg](/proxy/?url=https://content.instructables.com/FG7/TJQ1/IA8WKM8M/FG7TJQ1IA8WKM8M.jpg&filename=IMG_20150529_111212.jpg)
![IMG_20150529_140317.jpg](/proxy/?url=https://content.instructables.com/FAG/E0I9/IA8WKPB3/FAGE0I9IA8WKPB3.jpg&filename=IMG_20150529_140317.jpg)
![보드 3D사진1-투명.png](/proxy/?url=https://content.instructables.com/FB9/941J/IA8WKZH9/FB9941JIA8WKZH9.png&filename=보드 3D사진1-투명.png)
- WIZwiki-W7500
- ARM Cortex-M0
- Hardwared TCP/IP
- Adafruit

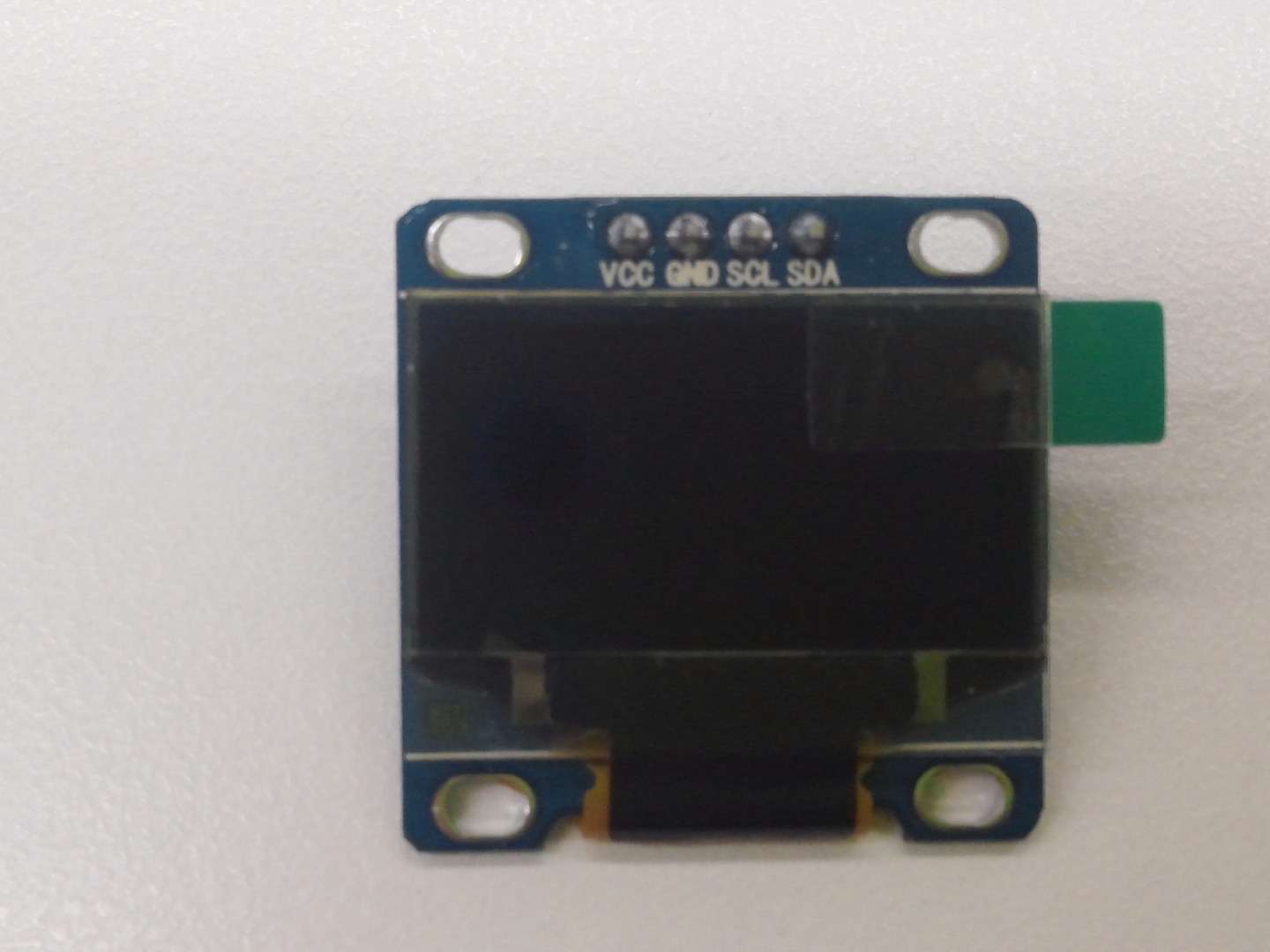

- OLED 128 x 64
- I2C communication
- Jumper line
Hardware parts for smart watch
WIZwiki-W7500
- 32-bit ARM Cortex-M0
- Flash : 128KB / SRAM : 16KB (up to 48KB)
- Hardwired TCP/IP Core (Supports MII Interface)
- Internal 8MHz Oscillator
- External crystal Oscillator (8~24MHz)
- 48MHz maximum frequency
- PLL for internal clock source
- ADC - 12bit, 8ch, 1Mbps
- DMA - UART, SPI, Software
- GPIO 53ea I/O
- 4 Timer/ 8 PWM
- 3 UART, 2 SPI, 2 I2C
- 32bit RNG
- Serial Wire Debug(SWD)
- Package : 64TQFP (7x7 mm)
Adafruit
- Power supply
- VDD = 1.65V to 3.3V for IC logic
- VCC = 7V to 15V for Panel driving
- For matrix display
- OLED driving output voltage, 15V maximum
- Segment maximum source current: 100uA
- Common maximum sink current: 15mA
- 256 step contrast brightness current control
- Embedded 128 x 64 bit SRAM display buffer
- Pin selectable MCU Interfaces:
- 8-bit 6800/8080-series parallel interface
- 3 /4 wire Serial Peripheral Interface
- I2C Interface
For detailed, please refer the attached file.
Downloads
Structure
![Overall.jpg](/proxy/?url=https://content.instructables.com/F6C/9X7Q/IA8WLDVK/F6C9X7QIA8WLDVK.jpg&filename=Overall.jpg)
WIZWatch is a simple system that is used a hardware platform called WIZwiki-W7500. The overall structure is in the picture above.
You can regulate the time using the button.
WIZwiki-W7500 Pinout
![보드 3D 핀아웃 완성.png](/proxy/?url=https://content.instructables.com/FXN/9S2B/IA8WL0AA/FXN9S2BIA8WL0AA.png&filename=보드 3D 핀아웃 완성.png)
Electronic Assembly
![W7500_OLED_connection.jpg](/proxy/?url=https://content.instructables.com/FJX/UBAN/IA8WKME7/FJXUBANIA8WKME7.jpg&filename=W7500_OLED_connection.jpg)

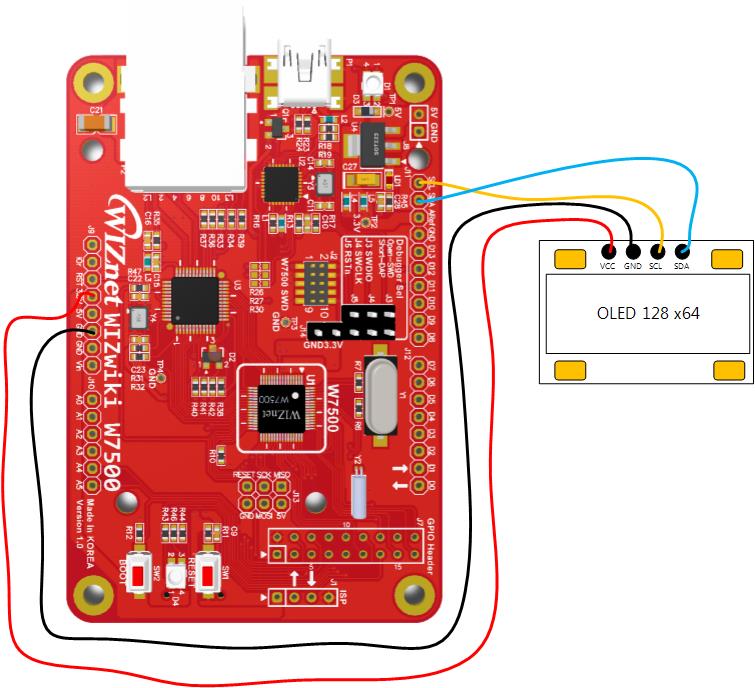

# WIZwiki-W7500 <--------------> OLED
- 3.3V <--------------------------> VCC
- GND <--------------------------> GND
- PA_09 <------------------------> SCL
- PA_10 <------------------------> SDA
Battery
You can simply connect battery by connecting (+) -> RAW, GND -> GND. You need to put (+) line to RAW pin in case you use any sort of external power supply, such as an external battery.
(I will write you about the details later on.)
Button
I will write you about the details later on.

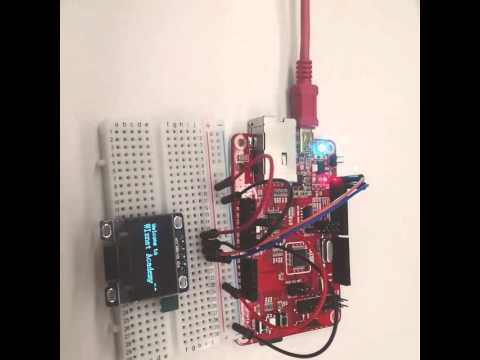

OLED TEST
![W7500 + OLED 128 x 64](/proxy/?url=https://content.instructables.com/FND/HAHA/IA8WL02K/FNDHAHAIA8WL02K.jpg&filename=W7500 + OLED 128 x 64)
If I can arrange the source code, you will upload it as soon as possible. : )
