If you have an old tooth-brush lying around, you can make a mini Oscillating Tool.
Well, actually you can also make it from a tooth-brush you use on daily bases.
You'll have a 2 in 1 Tooth-brush/Oscillating Tool.
You can use it to brush your teeth and when needed, transform to a cutting tool. Crazy? Maybe!
I did not want to destroy my tooth-brush, that's why I made it with a help of a 3D printer, but I'll give you some tips on how to make it without a 3D printer.
![01.jpg](/proxy/?url=https://content.instructables.com/FXY/3U0H/JCUUIQB9/FXY3U0HJCUUIQB9.jpg&filename=01.jpg)
![02.jpg](/proxy/?url=https://content.instructables.com/FNX/BER7/JCUUIQC2/FNXBER7JCUUIQC2.jpg&filename=02.jpg)
You'll want to use a toothbrush with a metal rod.

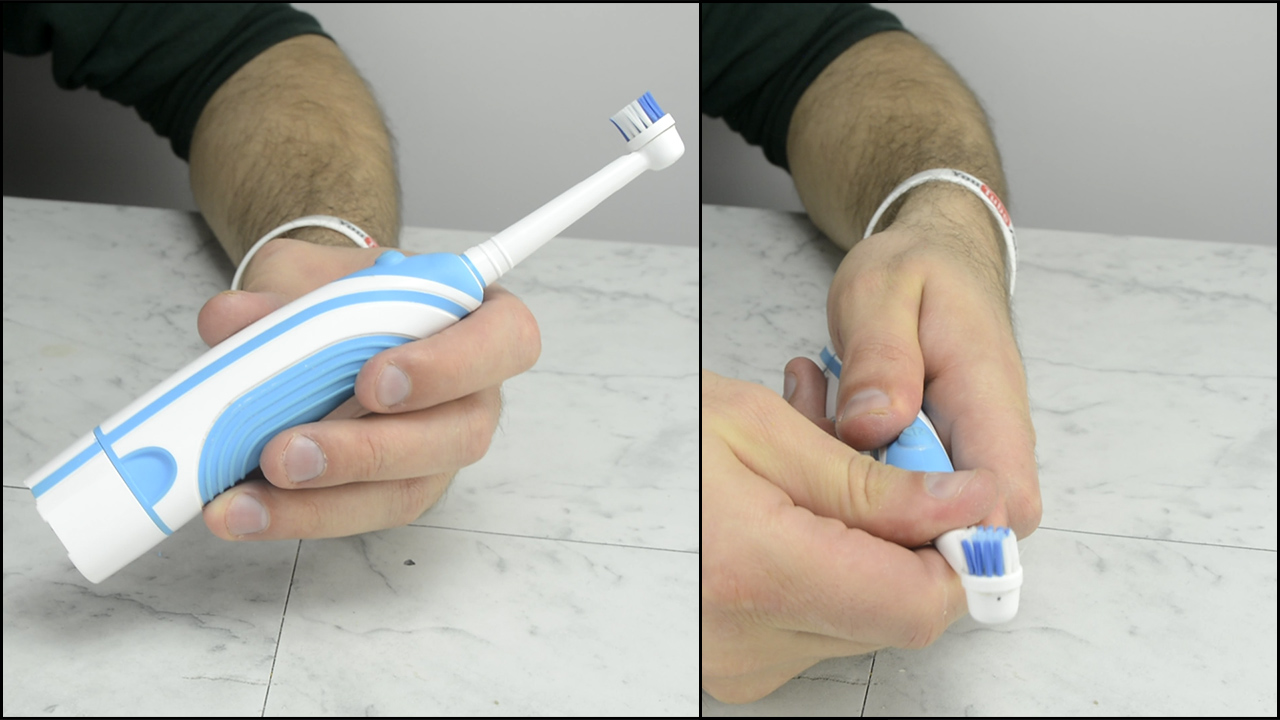

First I removed the head.
![03.jpg](/proxy/?url=https://content.instructables.com/FFF/UOZV/JCUUIQCC/FFFUOZVJCUUIQCC.jpg&filename=03.jpg)

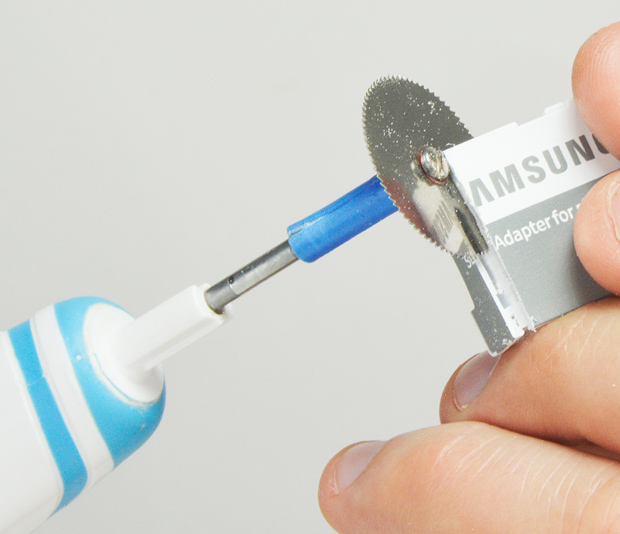

I 3D printed an adapter for my tooth-brush.
It lets me use rotary tool's accessories with my tooth-brush.
It just slides onto the rod.
If you don't have a 3D printer, you can make an adapter from a dowel (just try to make it light)
Hot glue also works. When I was first testing this thing, I drilled a hole in the saw blade and glued it to the rod with some hot glue.
As you probably know, the hot glue can be easily removed with some alcohol.
![04.jpg](/proxy/?url=https://content.instructables.com/FTC/14ED/JCUUIQCL/FTC14EDJCUUIQCL.jpg&filename=04.jpg)
![05.jpg](/proxy/?url=https://content.instructables.com/FWT/HWQF/JCUUIQCM/FWTHWQFJCUUIQCM.jpg&filename=05.jpg)

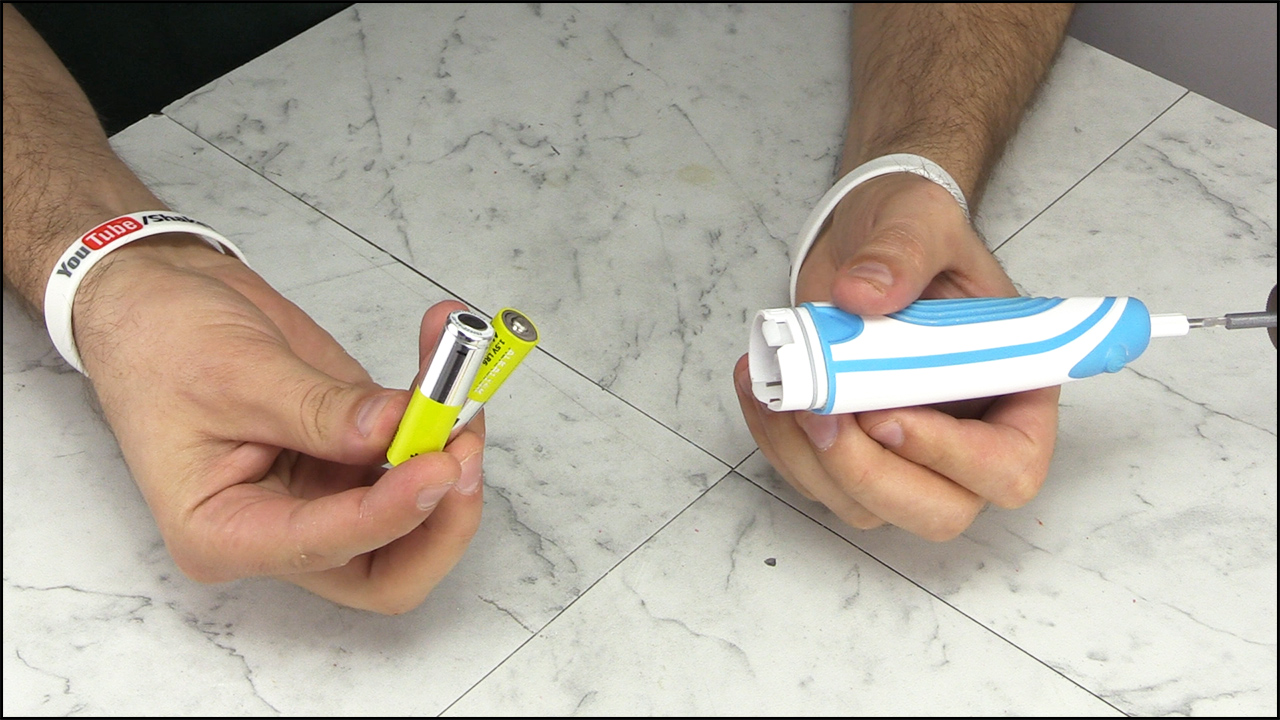

Most of tooth-brushes are powered with 1 or 2 AA batteries.
To successfully cut something, we need to make the motor spin faster. Easiest way to do is by increasing the voltage.
I used an adjustable power supply.
If your tooth-brush will be used only as an oscillating tool, you can solder the cables directly to the connectors.
Alternatively you can make a power supply powered battery from "AAA to AA" adapter.
In my case I used a 3D printer to make a dummy battery.
![06.jpg](/proxy/?url=https://content.instructables.com/FKA/SRA8/JCUUIQCN/FKASRA8JCUUIQCN.jpg&filename=06.jpg)
![07.jpg](/proxy/?url=https://content.instructables.com/FVB/L879/JCUUIQCW/FVBL879JCUUIQCW.jpg&filename=07.jpg)
![08.jpg](/proxy/?url=https://content.instructables.com/F0F/9R2L/JCUUIQCX/F0F9R2LJCUUIQCX.jpg&filename=08.jpg)
![09.jpg](/proxy/?url=https://content.instructables.com/FAG/RWCU/JCUUIQD6/FAGRWCUJCUUIQD6.jpg&filename=09.jpg)
![10.jpg](/proxy/?url=https://content.instructables.com/FVA/6OTW/JCUUIQDG/FVA6OTWJCUUIQDG.jpg&filename=10.jpg)
I removed the sleeve from electrical terminals and cut off the fork.

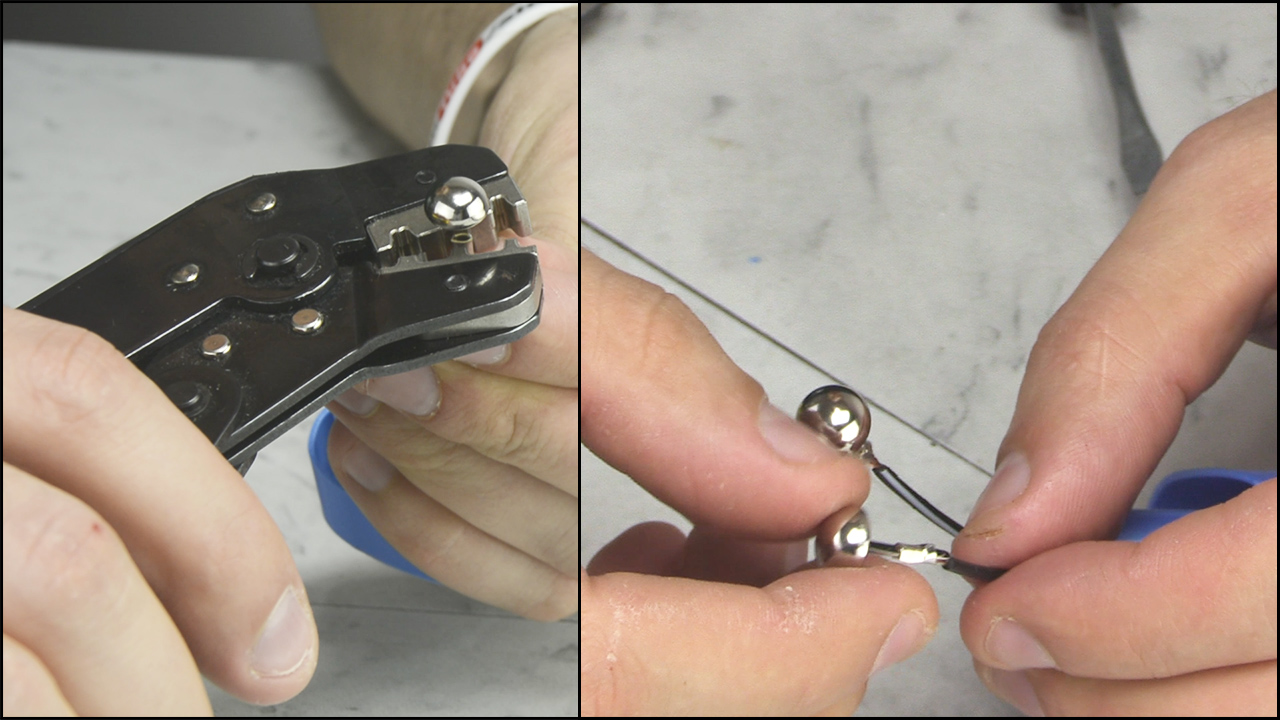

After inserting 2 springs, I crimped paper binding pins to the cables.
![11.jpg](/proxy/?url=https://content.instructables.com/FLN/STFK/JCUUIQE1/FLNSTFKJCUUIQE1.jpg&filename=11.jpg)
![11a.jpg](/proxy/?url=https://content.instructables.com/FLH/24AC/JCUUIQEU/FLH24ACJCUUIQEU.jpg&filename=11a.jpg)

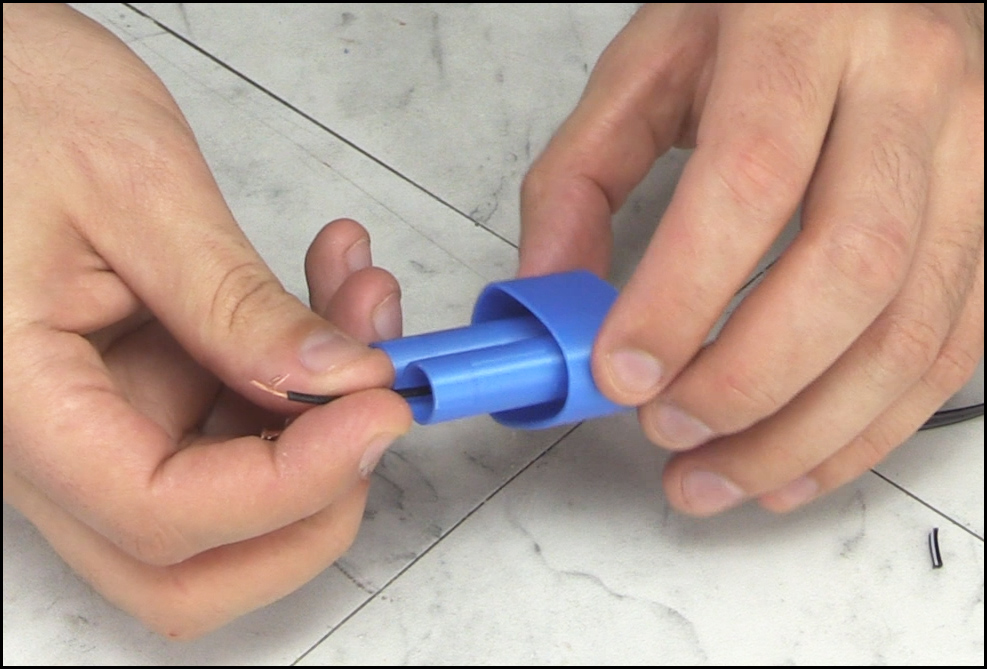

Then I put on the caps to keep binding pins in place.
The spring will allow binding pins to move, so it will be easier to reach the contact.
And last, I glued the cable to the case.
![12.jpg](/proxy/?url=https://content.instructables.com/FNT/IWG1/JCUUIQF3/FNTIWG1JCUUIQF3.jpg&filename=12.jpg)
![13.jpg](/proxy/?url=https://content.instructables.com/F9T/C86Y/JCUUIQF4/F9TC86YJCUUIQF4.jpg&filename=13.jpg)
![14.jpg](/proxy/?url=https://content.instructables.com/FHH/6XJI/JCUUIQF5/FHH6XJIJCUUIQF5.jpg&filename=14.jpg)
That's it!
We have made a cutting tool that can transform back into the tooth-brush.
Does it cut?
Yes it does, but it's not very powerful.
It's best to use very thin saw blades.
Remember that by the end of the day it's still a tooth-brush, so it might break down by using it that way :)
