Make an Electric Boat and Control It Using Smartphone

by theSTEMpedia in Circuits > Remote Control

3116 Views, 7 Favorites, 0 Comments

Make an Electric Boat and Control It Using Smartphone


Make, make your own boat,
And control it wirelessly,
Hurry, everyone gets on board,
We’re beginning in one, two, three!

And oh, don’t forget to gather the essentials such as a DC motor, servo, some polystyrene, fan, evive, and as always, loads of DIYing!

Things Needed

Hardware

  • evive
  • DC Motor
  • Servo Motor and its accessories
  • Thermocol (Polystyrene)
  • Metal Piece
  • Glue
  • Jumper Cables

Software

Making the Hull of the Boat

The design.JPG
The cutouts.JPG
the final cutouts.JPG
the boat.JPG

Let's start by making the hull of the boat using polystyrene.

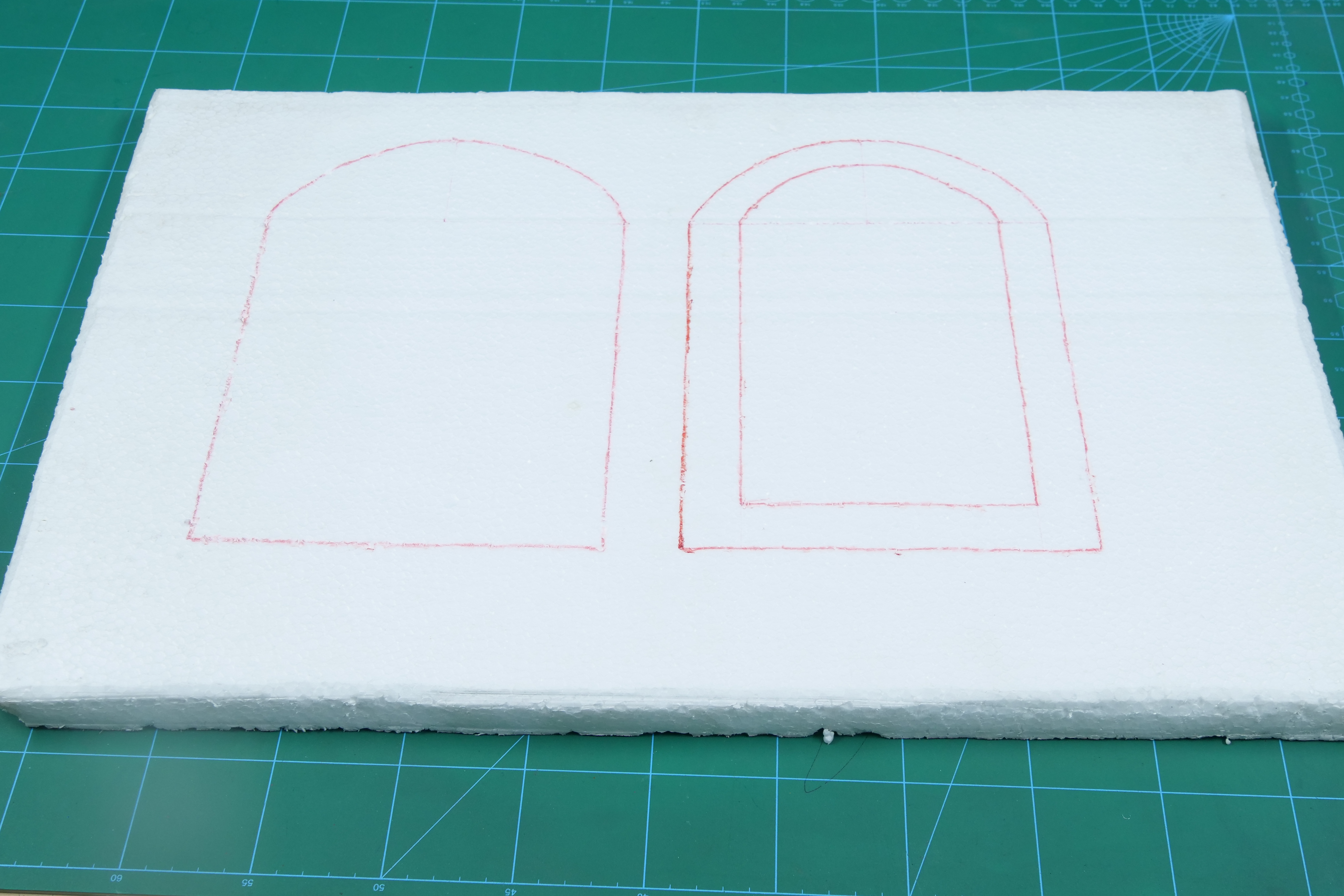

Take the polystyrene sheet and make the design of your water boat onto the sheet.

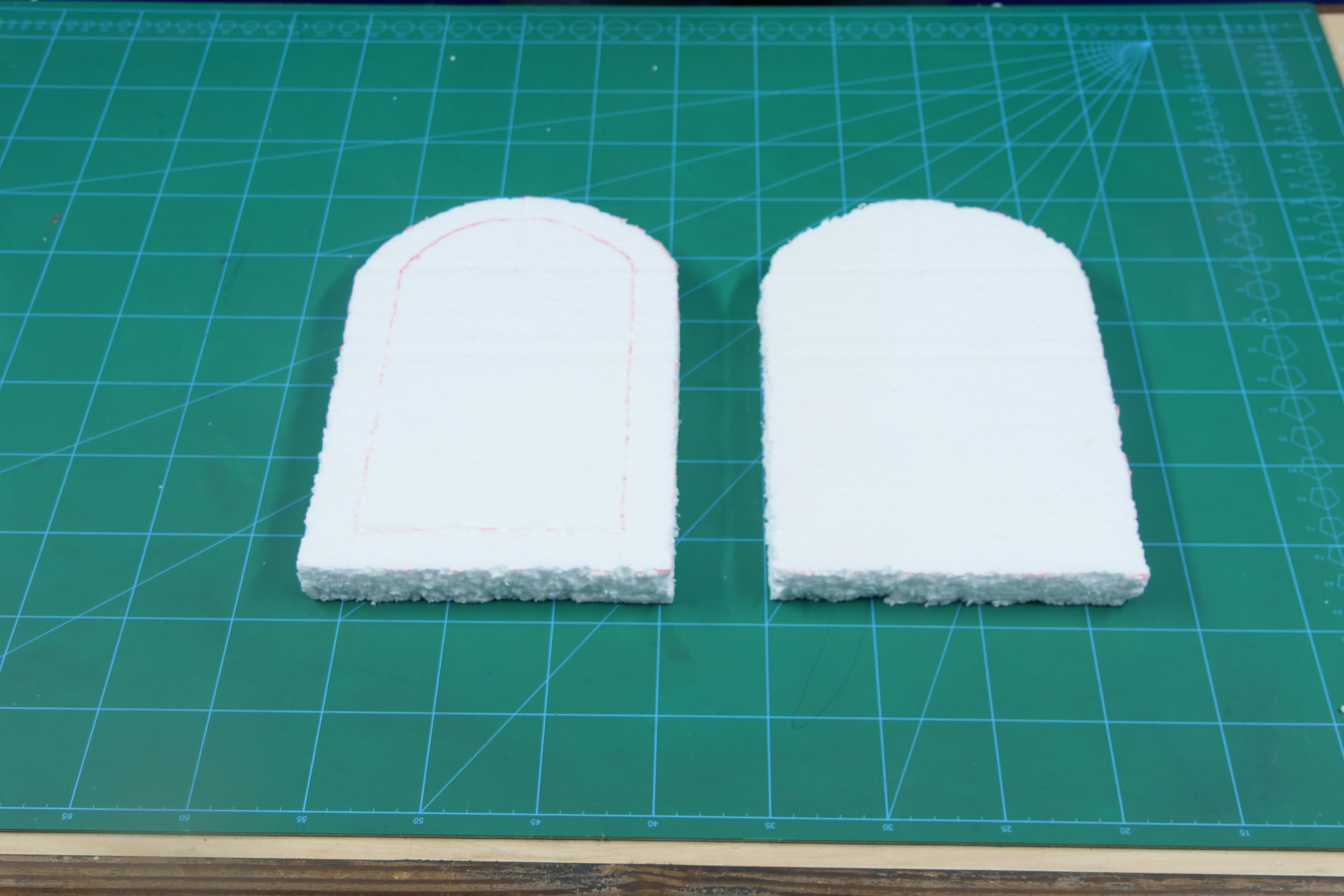

Once the design is ready, take the cutout.

I have made one hollow hull and one is the solid hull.

Glue the hollow hull onto the solid hull using glue.

Once done, keep it aside.

The DC Motor and Fan

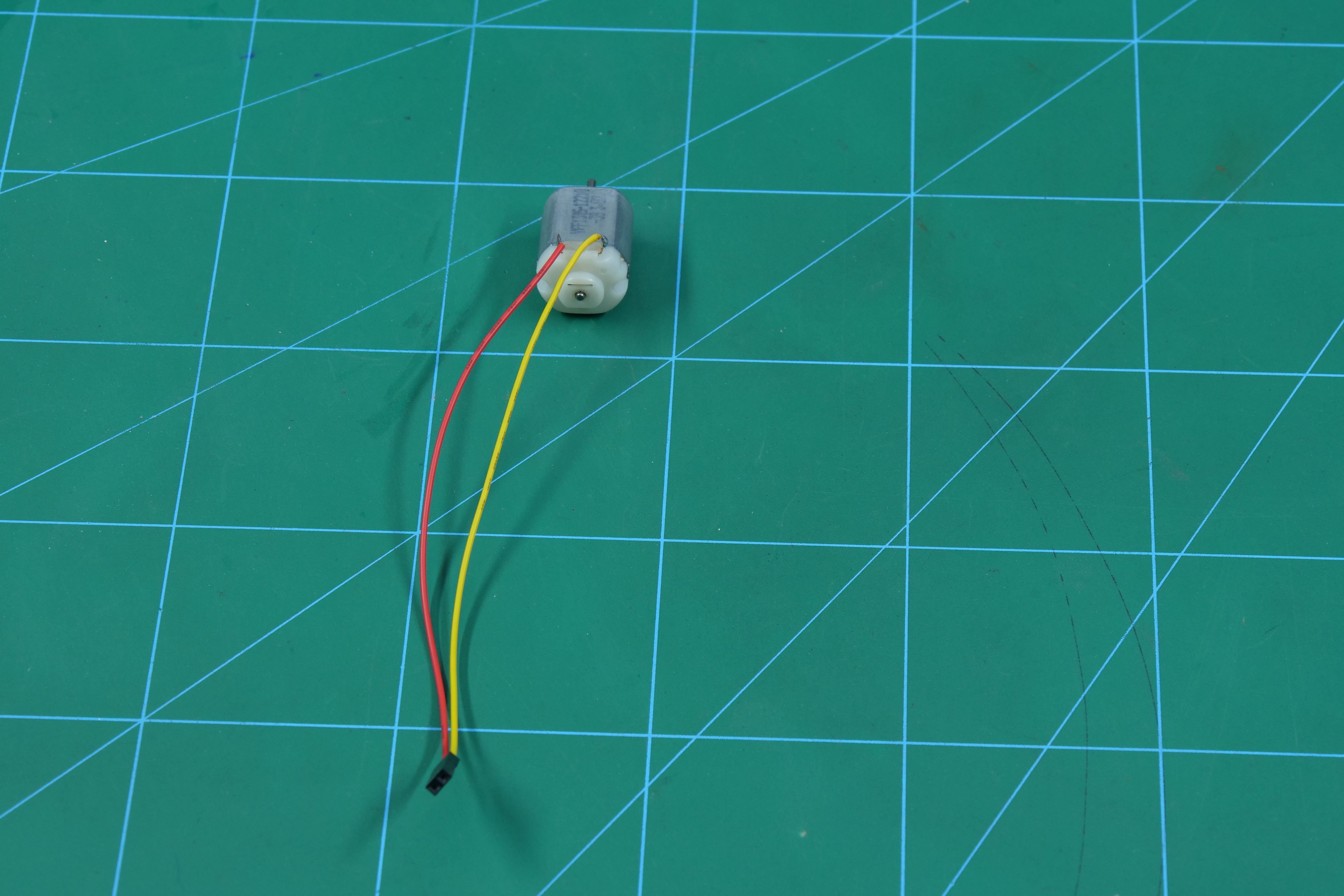

DC Motor.JPG
add the dc motot.JPG
add dc to the boat.JPG

We need a fan to make our boat move in the forward direction. Also, we need a DC Motor to make our fan rotate.

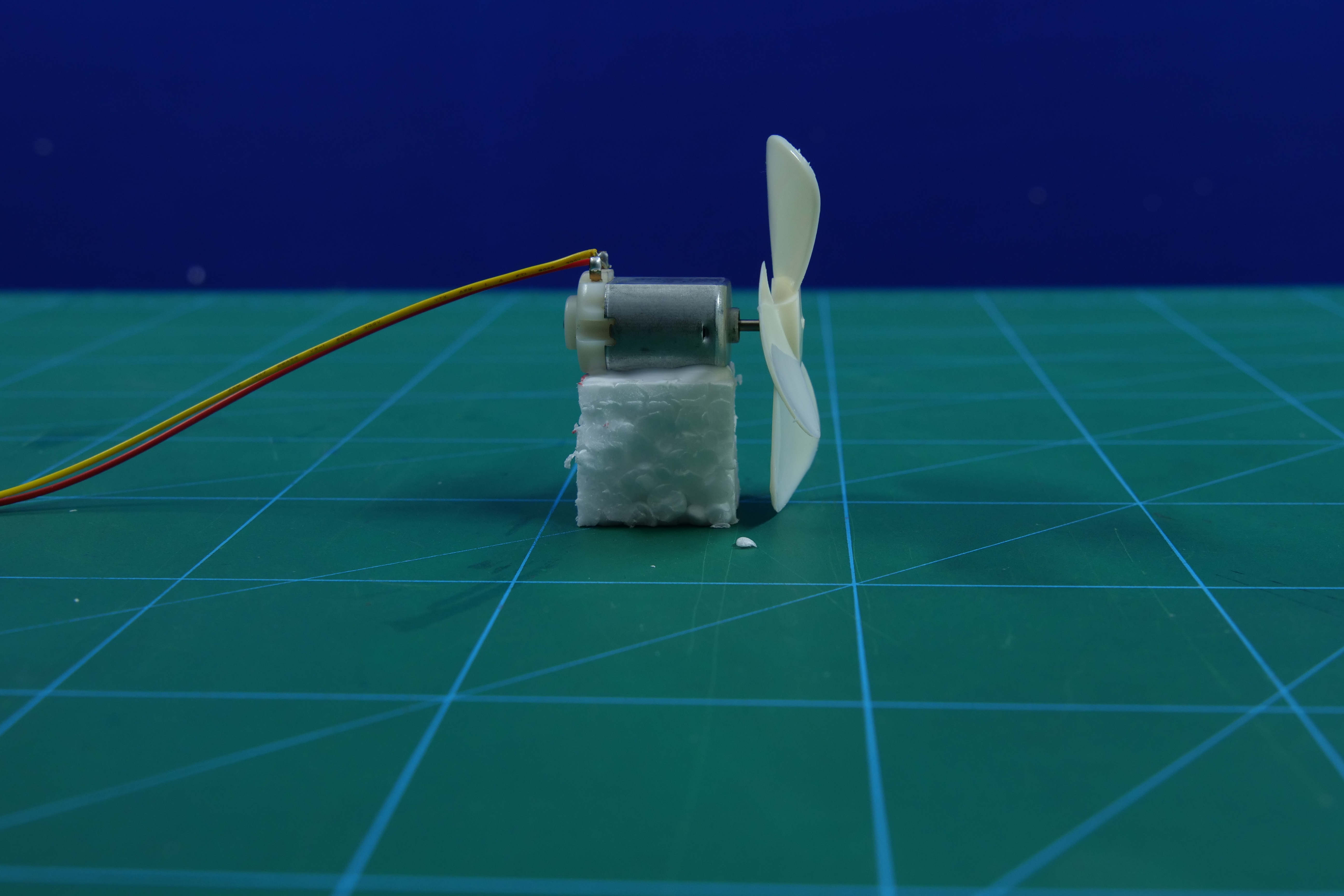

Thus take a small piece of polystyrene and attach the DC Motor onto this piece using the glue.

Take the fan and fix it on the free shaft of the DC Motor.

Fix this piece onto the hollow layer of the boat.

Completing the Assembly

metal cutout.JPG
add metal to servo.JPG

Now we need to make the boat change the direction.

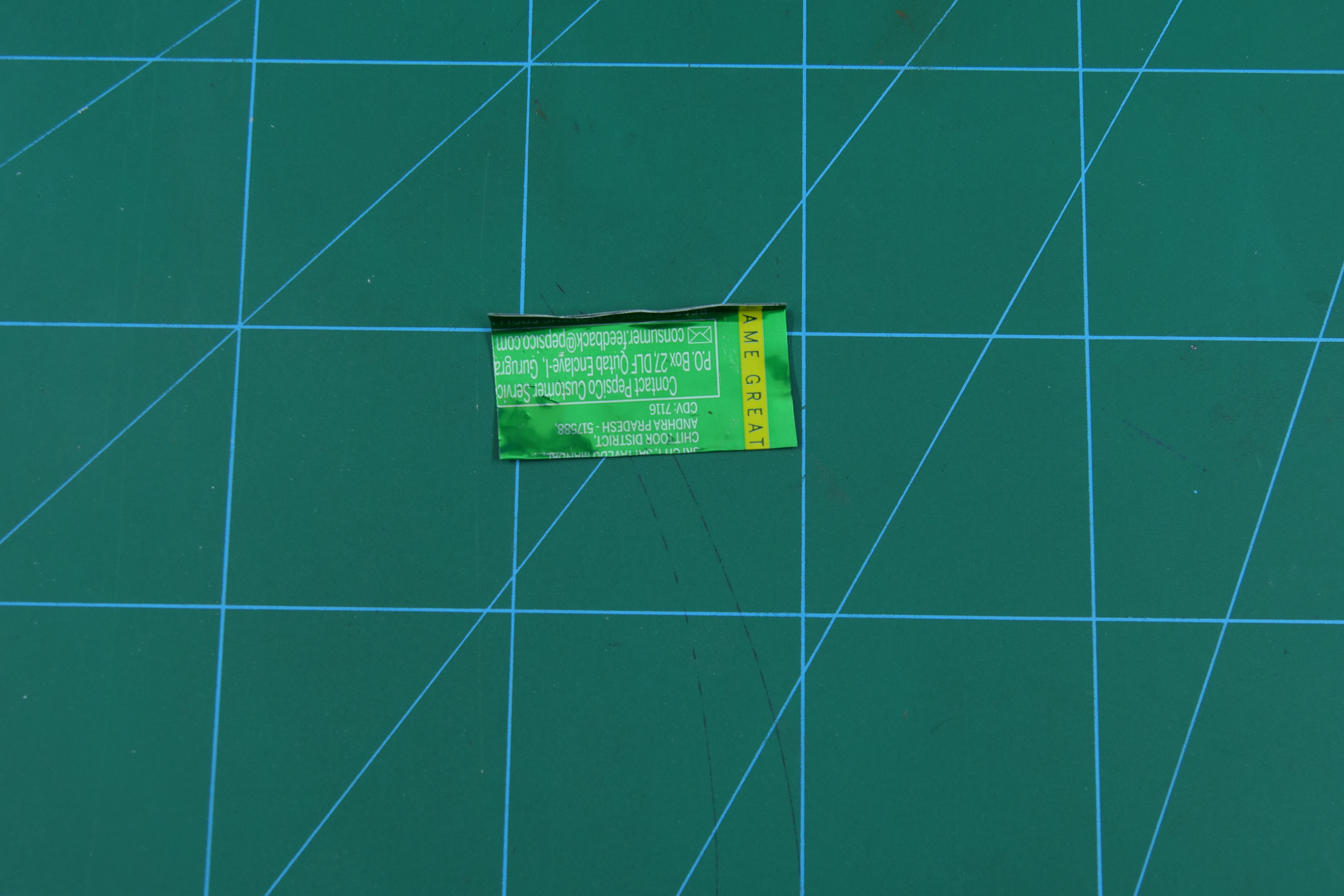

Thus, we will take a small piece of metal.

Take the micro servo and attach a double-sided horn onto the free head.

Fix the metal piece onto the servo horn using Hot Glue.

Now fix this below the DC Motor using Double-sided tape. Make sure that the metal piece remains into the water.

Thus, our assembly is finally complete.

Circuit Diagram


Make the connection as shown in the given figure.

Servo Motor- S1 Channel

DC Motor- M1 Motor Channel

Code

Script the following code in PictoBlox and upload it to evive.

Working


The fan connected to the DC Motor is used for the movement of the boat in the forward direction. The servo is used so that the boat can turn in left or right direction.

We will be controlling the boat using the Gamepad feature of Dabble.

  • Start key – Start the motor
  • Select – Stop the motor
  • Up key – Move the boat forward
  • Left – Turn Left
  • Right – Turn Right

Conclusion

With this, your DIY Smartphone-controlled electric boat is set to sail through the waters to new places!
