Make a Silicone Mold From Common Household Materials in Your Kitchen in 1 Hour

Taking off from this BRILLIANT 'ible https://www.instructables.com/id/How-To-Make-Your-Own-Sugru-Substitute/ I have started making silicone molds on the cheap and thought I would share. This is incredibly simple and fast and can be used for a ton of casting ideas...

Here is the podcast I did on it:


The basic instructions are below....

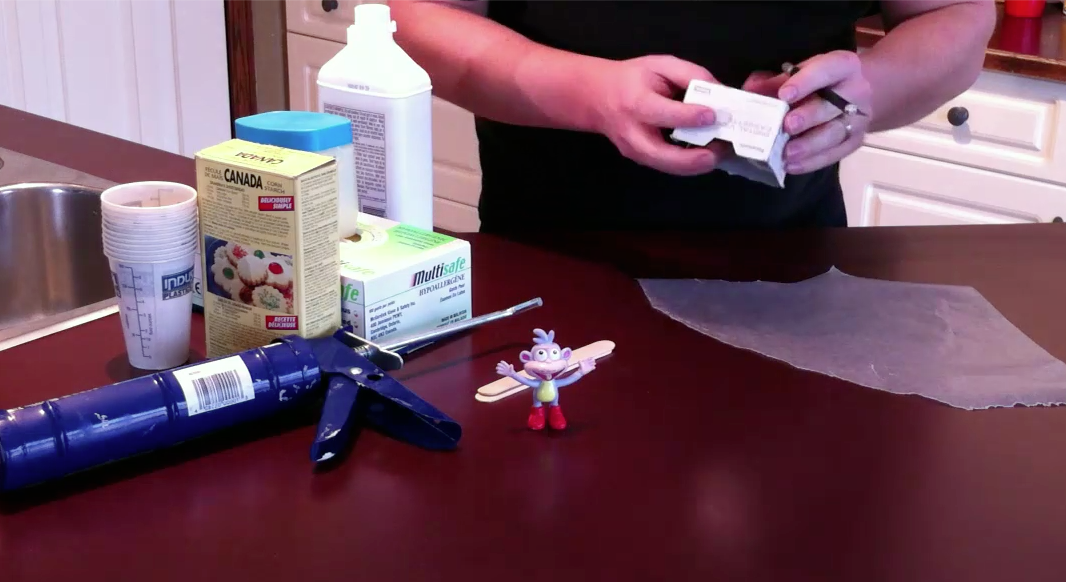

You will need:

• SIlicone Calking (the stuff that stinks like vinegar or acetic acid) I have a calking gun but you can get smaller tubes of it at the hardware store
• Mineral Spirits (this is just paint thinner but somewhat less toxic than the rest. NOTE: you can use white gas or camp stove fuel but be CAREFUL if you do use that. The advantage of white gas is that it will cure the mold faster and the mold will not smell like mineral spirits after)
• Corn Starch
• Vaseline
• Latex gloves (or what ever kind you like)
• mixing sticks
• Drill
• Bent nail
• Something to cast or mold
• Small box
• Mixing cups
• Wax paper
• Play dough

• To prep the item for the mold cover it with Vaseline (if it is a bit goopey use a blow dryer to melt the Vaseline and smooth things out).
•
• Next cut the bottom of the box out and place it on a piece of wax paper
• Get some play dough and fill the bottom of the box with a layer thick enough to cover half the figurine (don't put the figurine in yet this is just setting up the base

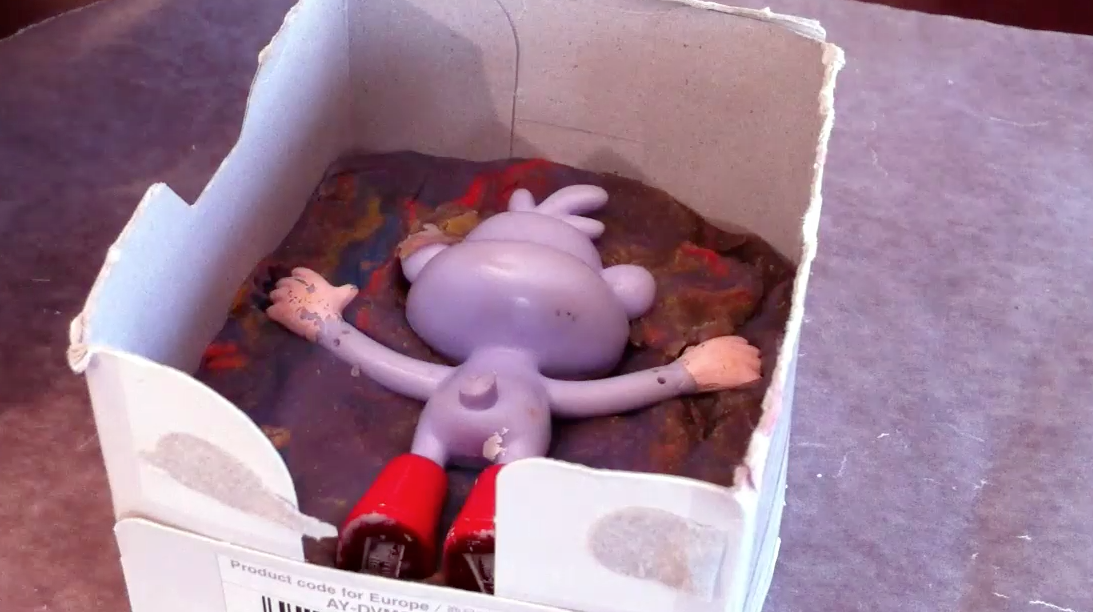

• Press the figurine into the dough and make sure to cover 1/2 of the figure
• Vaseline the dough and the figure (if it is a bit goopey use a blow dryer to melt the Vaseline and smooth things out).

This is where the coolness happens...

• Mix a 50/50 mixture of Silicone Calk and Corn starch in a cup
• Add some mineral spirits (or for those pyros out there white gas). You need about 25% of the volume of the 50/50 mix of silicone and corn starch
• Mix with your handy dandy bent nail you chucked into the drill!
• Add more mineral spirits if you need to to get the goop to flow
• Pour into the top of the mold base you made in the last step
• Get on to the next step before 5 min is up!!

• Pour the mixture into the mold base and level it out
• Place mold under oven hood (running) to gas off and not fumagate your house

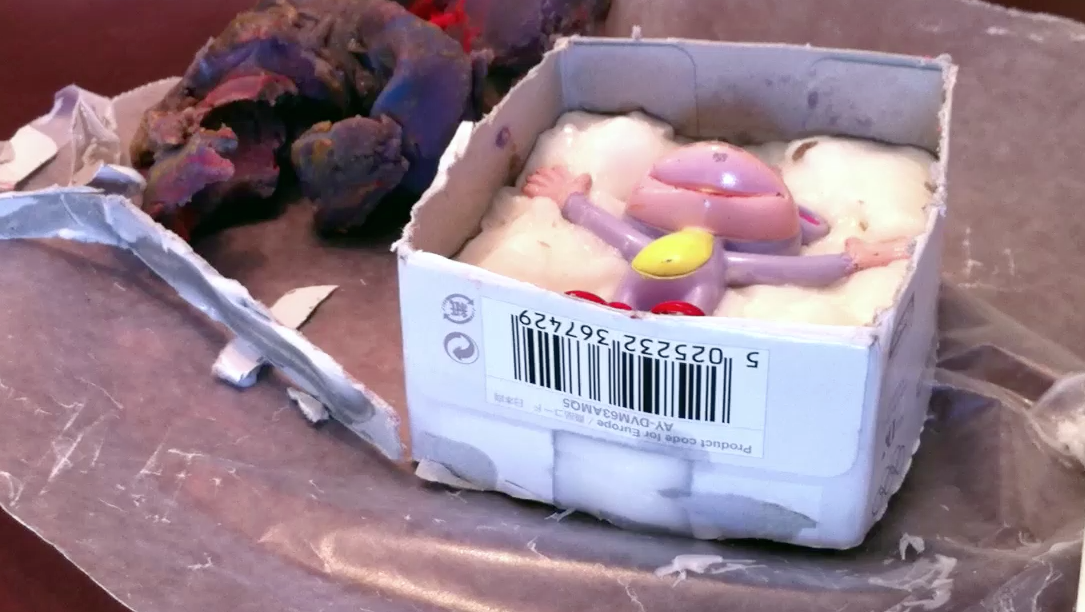

• The mold half should set in about 5-15 minutes

• Flip over the mold and peel out the play dough
• Cover with another coat of Vaseline (make sure to get all the silicone that has set up)
• Mix another cup of the Oogoo
• Pour
• Smooth
• Let set...

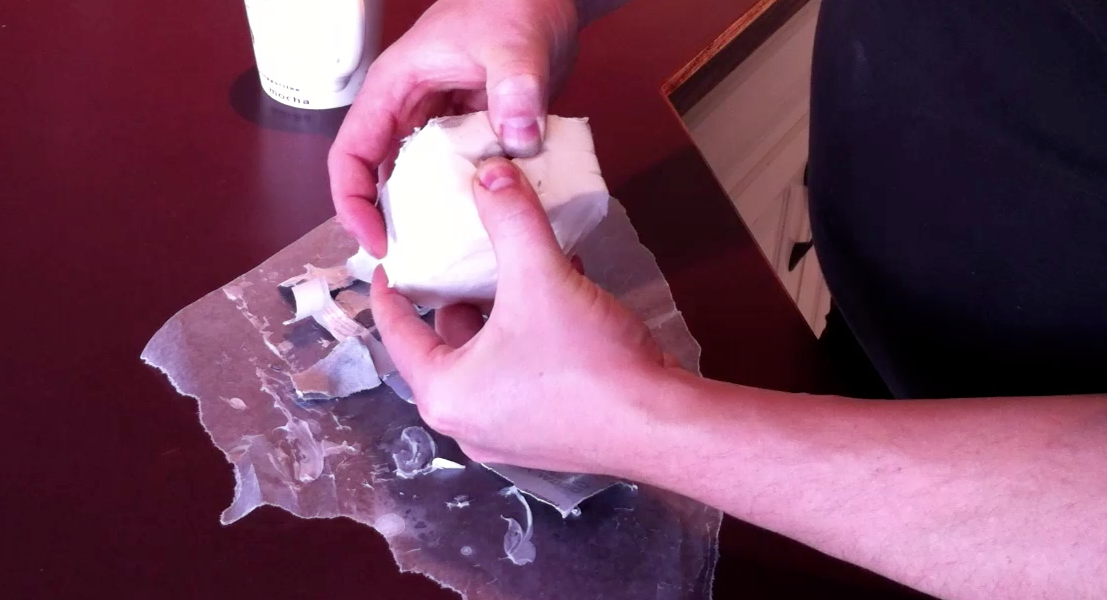

Let this sit for about an hour to set up fully under the oven hood. We can now peel the bad boy apart.

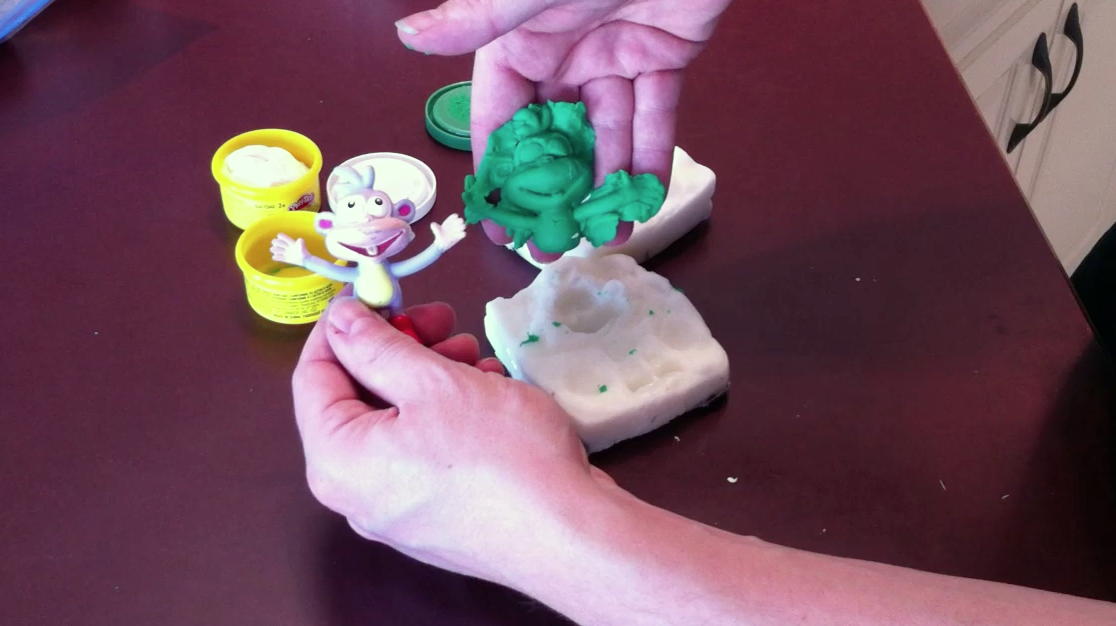

Test the mold with some play dough by pressing it into the mold and seeing what comes out

Keep in mind the mold will stink like mineral spirits for about a week so let it gas off out side or in your shop. Otherwise use white gas it is much more dangerous (i.e. flammable) but makes a quicker curing mold that does not stink as much.

The mold will shrink about 10-15% after cure FYI

HAVE FUN and make sure to watch the video to clear any confusion up. There are more videos like this at http://MechanicalMashup.tv or join our facebook fan page at http://Facebook.com/MechanicalMashup
