What is up everybody, In this quick instructable I will show you how I made this wrist crossbow from leftover materials I had in my shop. Hope you enjoy it.

- I had some old hinge springs laying in my shop, so I decided to use them due to their insane strength.

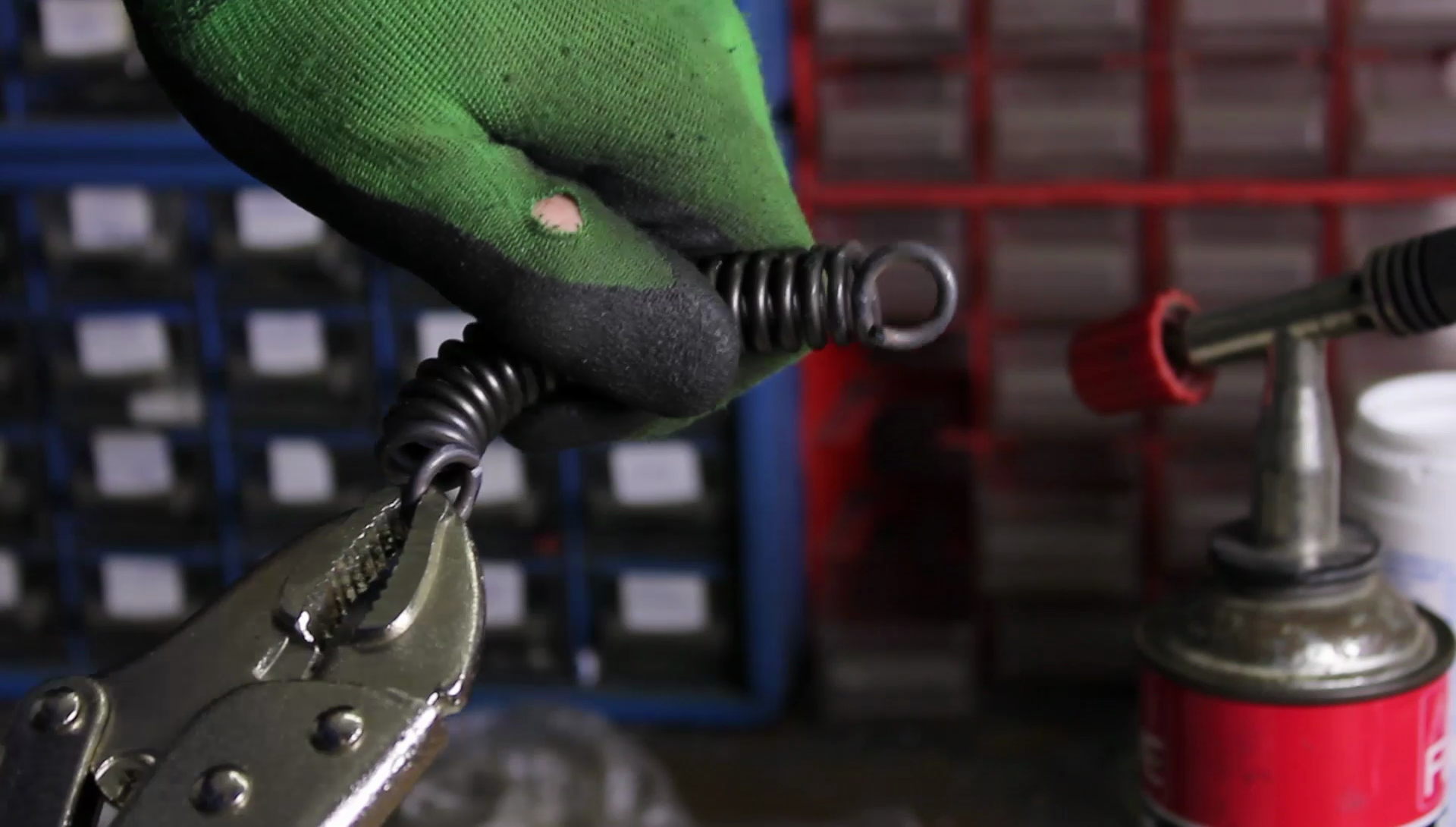

- To secure it to the body I heat it up with my torch and quickly bend one end so we can later attach it to the base with the screw.

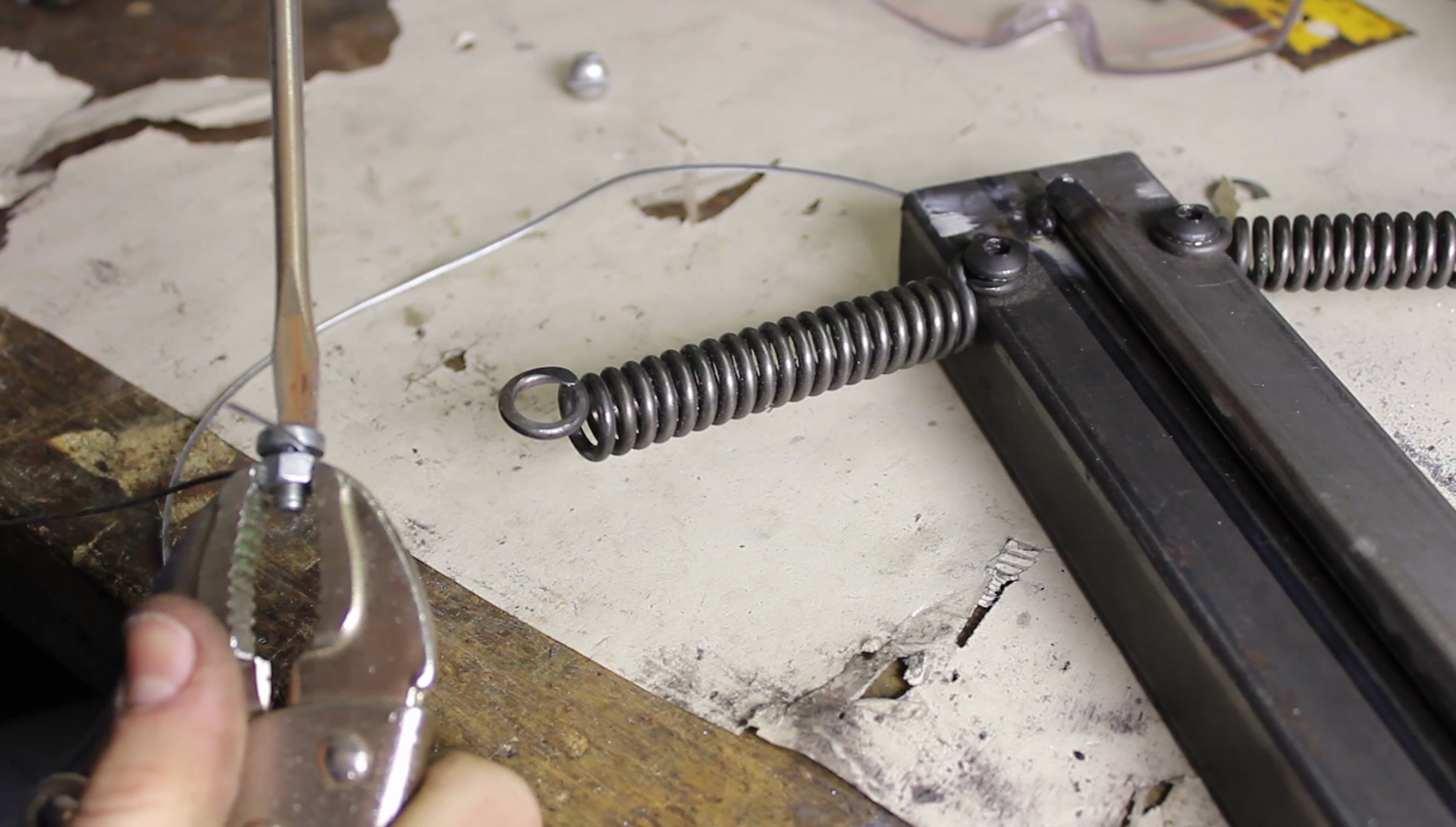

- I drilled two holes and secure the springs with a M6 screw and a nut at the bottom.

- Then I cut a piece of a 8mm pipe and cut a long groove along the pipe with angle grinder. Do this step slowly and accurately because that will be our guide for the steel rope.

- After that I cut a small rectangle out of the base with a dremel for the trigger mechanism.

- There a lots of different trigger mechanisms on the internet so use one that you think is the easiest to make.

- To trigger the mechanism I used a tiny steel bicycle rope which is attached to the aluminum pipe. If you want to trigger it simply pull the rope or bend your wrist.

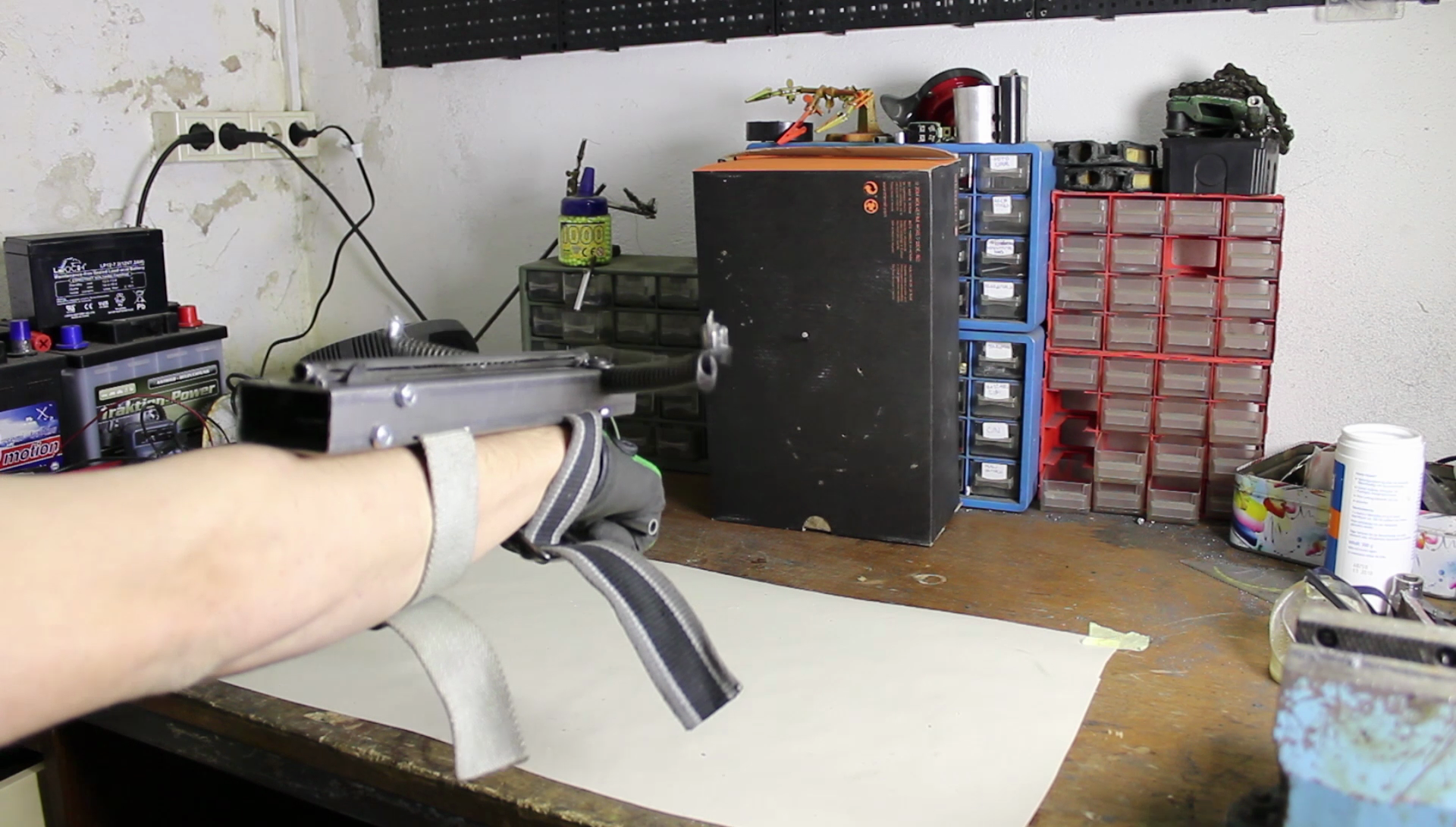

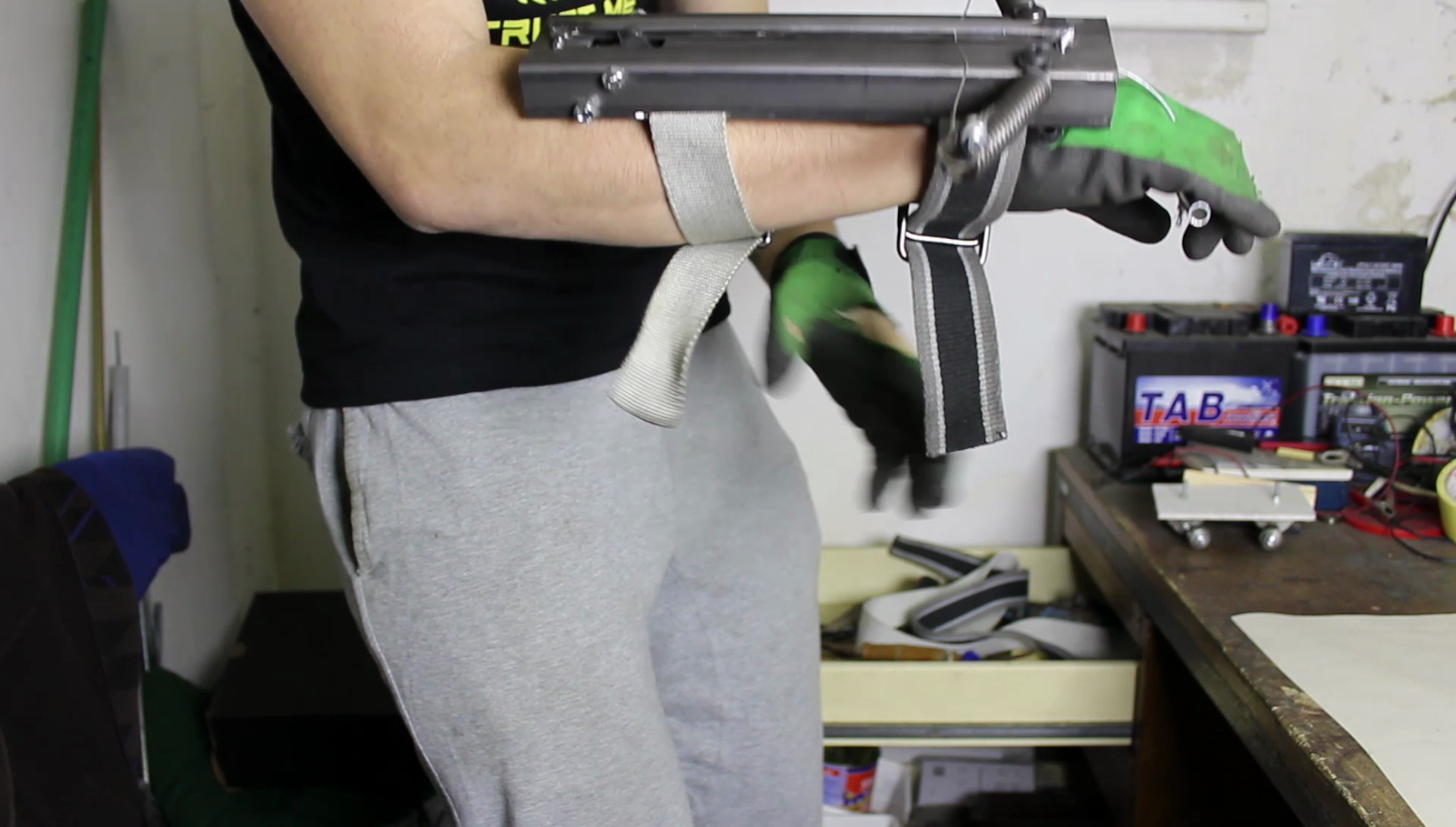

- On the bottom I made 2 small grooves for the belts so I can secure the crossbow to the wrist.

- For the darts I used some nails but these are useful only for a small distance.

- Spring are powerful enough to shoot even further but for that I recommend you to make a proper dart with center of gravity at tip of the dart.

I hope you like that instructable, please leave some comments if you have any suggestion how would you improve/change it.
