Make a Wooden Game Cube

by 7-Factories in Living > Toys & Games

9886 Views, 11 Favorites, 0 Comments

Make a Wooden Game Cube


Great for playing chess, cards, Monopoly with Grandma, etc... It's not quite the same as Nintendo's GameCube, but it will cost you a lot less, and if you wanted to, you could even have dinner for two on it.

Downloads

Gather Materials


As seen in the picture, I used a pair of metal snips, an electric drill, small-holed metal squares (for the corners), a box of screws, and large wooden panels for the sides.

Make Pyramids


Draw an X on the squares. Then cut out one of the triangles using the snips.

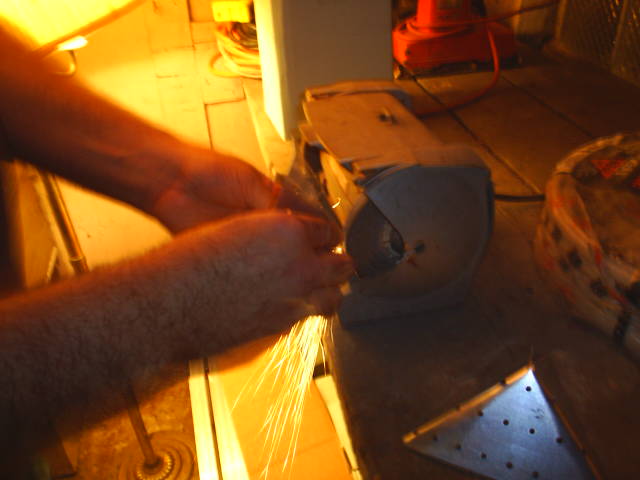

These metal pieces will be sharp after you cut them. I recommend using something to dull the edges, like a grinder. A grinder will also make some fun sparks. Dan demonstrates grinding and sparking in the picture.

I used the edge of a table to bend the pyramids into shape, a hammer may be needed if your metal is too thick to bend with your hand.

Check out the video to see some sparks in the dark.

Downloads

Build the Box

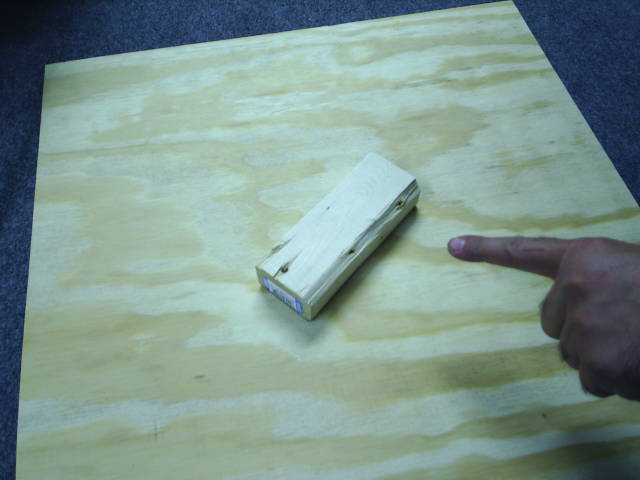

Before building the box, we added supports using small pieces of 2x4. Basically, one goes on each end of the square. Then the sides all screw into them, instead of each other. If you look at the picture below where Dan is pointing at the support, just imagine him pushing that 2x4 to the edge, screwing it down. Then doing the same on each edge. The other panels then screw into the 2x4s.

Box + Pyramids


Dan will point you through this: You'll need some screws. Dan shows you one in the picture. Screw the pyramids onto the box corners. Voila! You have a game cube.

Play a Game


Find an opponent of similar skill and intelligence to challenge. Needless to say, I lost this match, but the war will wage on.
