Make a Vibrobot
![main1.jpg](/proxy/?url=https://content.instructables.com/FIC/4LTH/GO5IHRN6/FIC4LTHGO5IHRN6.jpg&filename=main1.jpg)
A vibrobot is perhaps one of the quickest and easiest bots that you can build. In almost no time you can make a fun little bot that makes its ways to and fro across the floor. It is so easy, in fact, that it wouldn't be hard to make a few at once. And then, you can have your own mini private army of vibrobots to do your bidding (assuming that your bidding is to have a bunch of tiny little bots moving randomly to and fro).
Go Get Stuff
![1A.jpg](/proxy/?url=https://content.instructables.com/FFZ/V1JY/GO5IG9VP/FFZV1JYGO5IG9VP.jpg&filename=1A.jpg)
You will need
- 3VDC Micro-Vibration Motor
- CR2032 Coin Cell Battery Holder
- CR2032 Lithium Coin Cell Battery
- Toothbrush
(Please note that some of the links on this page contain affiliate links. This does not change the cost of the item for you. I reinvest whatever proceeds I receive into making new projects.)
Strip Wires
![2A.jpg](/proxy/?url=https://content.instructables.com/FOF/69YV/GO4ZU8YK/FOF69YVGO4ZU8YK.jpg&filename=2A.jpg)
![2B.jpg](/proxy/?url=https://content.instructables.com/F02/3L63/GO5IHRMS/F023L63GO5IHRMS.jpg&filename=2B.jpg)
Trim the wire leads of the vibrating motor shorter. Strip away a bit of the protective jacket to expose the copper wires.
Solder
![3A.jpg](/proxy/?url=https://content.instructables.com/FYO/Y1DZ/GO5IHRMU/FYOY1DZGO5IHRMU.jpg&filename=3A.jpg)
![3B.jpg](/proxy/?url=https://content.instructables.com/FCW/WFNV/GO4ZU8YL/FCWWFNVGO4ZU8YL.jpg&filename=3B.jpg)

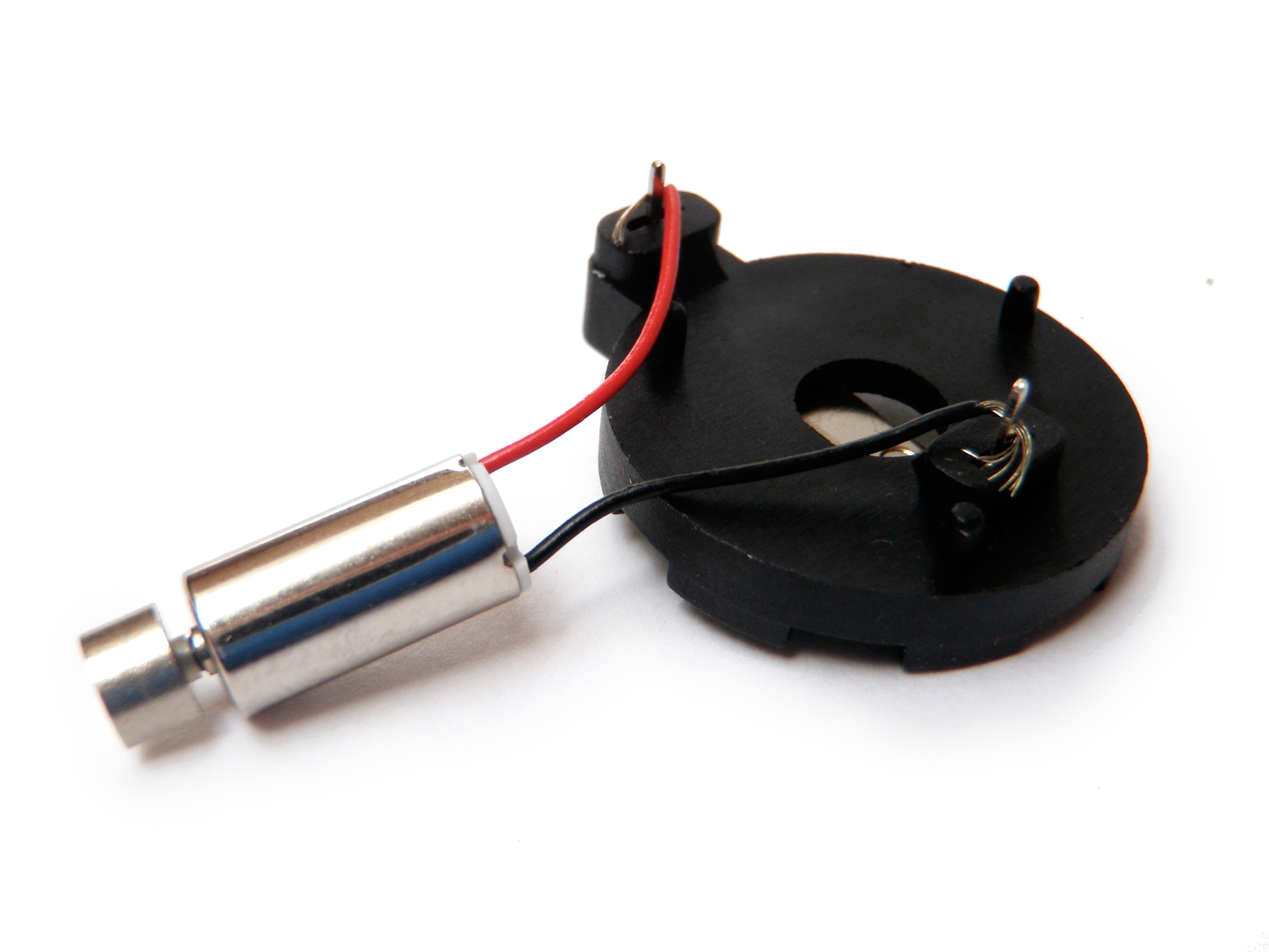

Solder the red wire of the 2032 battery holder to the positive pin of the battery holder.
Solder the black wire to the ground (minus) pin of the battery holder.
Cut
![4A.jpg](/proxy/?url=https://content.instructables.com/FWL/Q4N1/GO5IG9VR/FWLQ4N1GO5IG9VR.jpg&filename=4A.jpg)
![4B.jpg](/proxy/?url=https://content.instructables.com/F3Z/2TC6/GO5IHRMY/F3Z2TC6GO5IHRMY.jpg&filename=4B.jpg)
Use your diagonal cutters to cut the toothbrush head from the toothbrush handle.
Hot Glue
![5A.jpg](/proxy/?url=https://content.instructables.com/FSI/QGA6/GO5IHRMZ/FSIQGA6GO5IHRMZ.jpg&filename=5A.jpg)
![5B.jpg](/proxy/?url=https://content.instructables.com/FNS/ZH9R/GO5IG9VT/FNSZH9RGO5IG9VT.jpg&filename=5B.jpg)
![5C.jpg](/proxy/?url=https://content.instructables.com/FNO/5KVF/GO4ZU8YN/FNO5KVFGO4ZU8YN.jpg&filename=5C.jpg)
![5D.jpg](/proxy/?url=https://content.instructables.com/FVS/K03M/GO5IG9VU/FVSK03MGO5IG9VU.jpg&filename=5D.jpg)

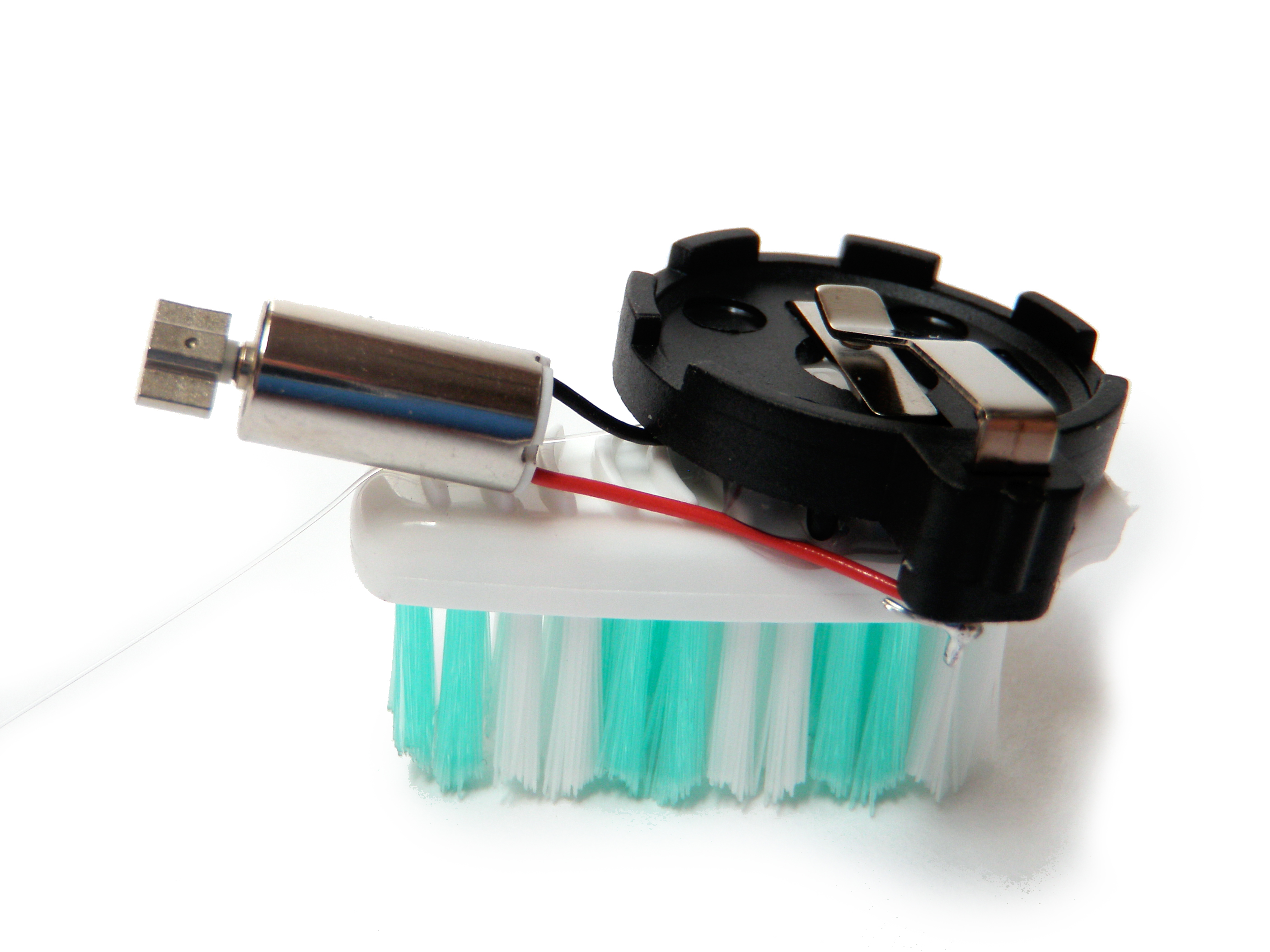

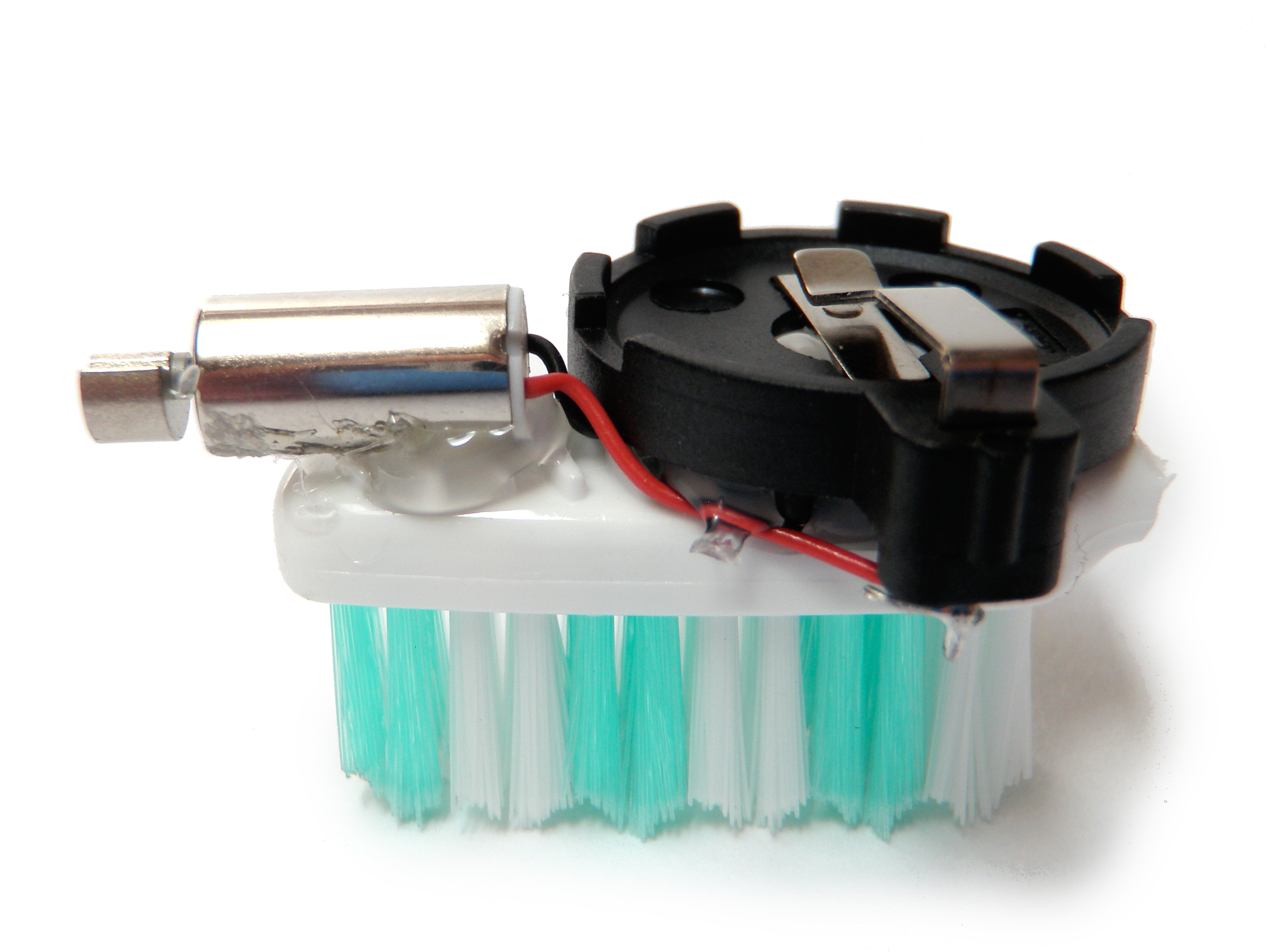

Hot glue the motor and battery holder to the flat plastic part of the the toothbrush head.
Power!
![6A.jpg](/proxy/?url=https://content.instructables.com/FSA/TR9L/GOZIQJII/FSATR9LGOZIQJII.jpg&filename=6A.jpg)
Insert the 2032 battery and watch it go.
