Make a Rechargeable Dual Voltage Power Supply for Electronic Projects

Mod a 9V rechargeable battery to give you +3.6V, Ground and -3.6V.

You will appreciate this idea if you ever had to clobber together a bunch of AAs or AAAs to get a project working.

This instructable was meant to be part of a larger project, but I decided to submit this part alone to the 9V battery group.

You need to start with a 9V rechargeable battery (actually 8.4V but in a 9V package).

Check out my other Instructables:
MAKE A HIGH VOLTAGE SUPPLY IN 5 MINUTES
Hack The Spy Ear and Learn to Reverse Engineer a Circuit
Super Easy E-mail Encryption Using Gmail, Firefox and Windows
Make a Voltage Controlled Resistor and Use It
Make a Ball Mill in 5 Minutes
SODA CAN HYDROGEN GENERATOR

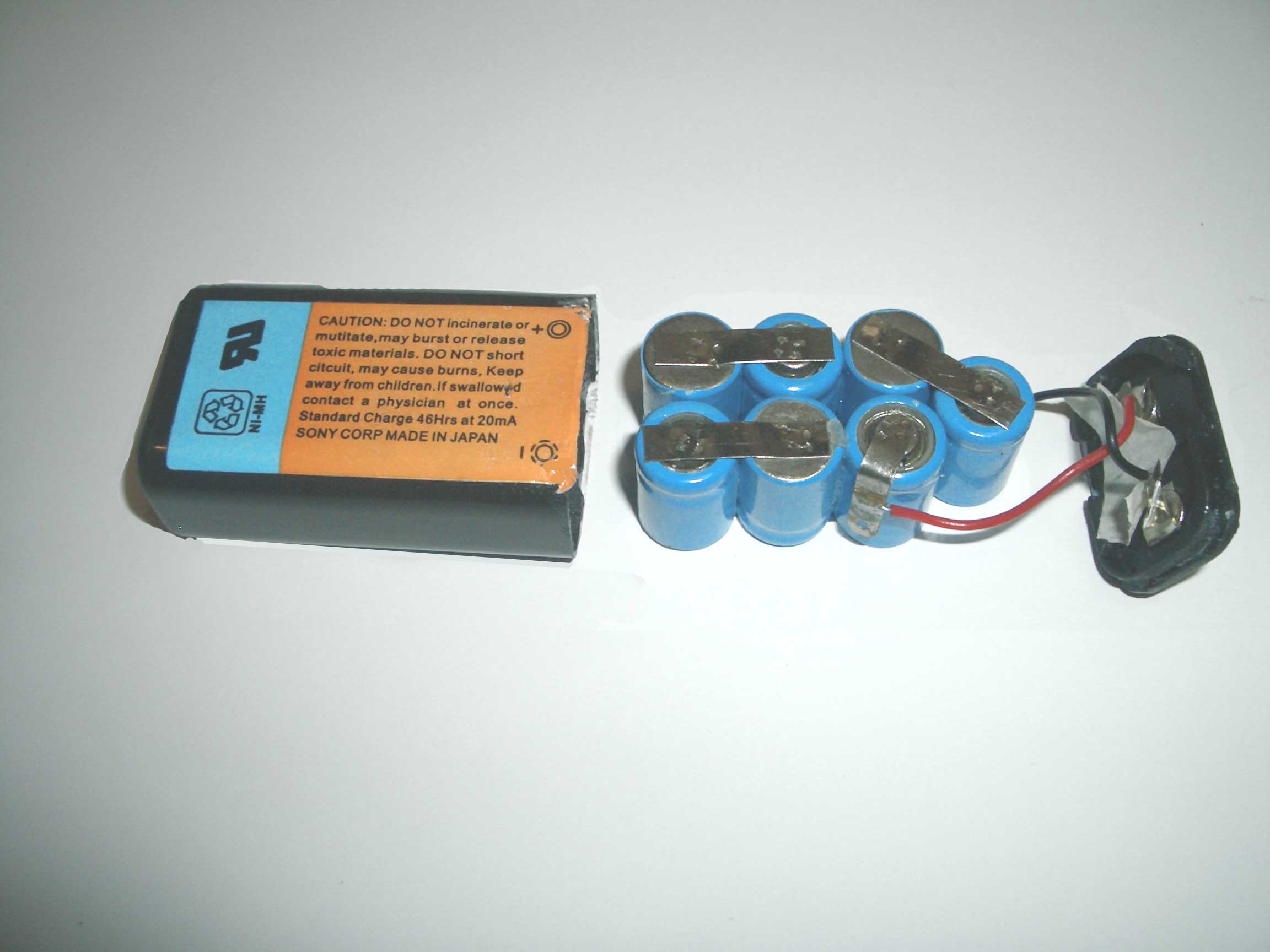

Take a long nose plier and gently apply pressure at the top seam. The case will crack open revealing a surprising inside.

There are seven 1.2V NiMH batteries soldered in series.

To make the power supply even you need to get rid of one or add one.

I ripped off the one near the top. Don't try to unsolder it because these batteries are welded together and the batteries might explode if heated too much (so wear goggles).

Ok, so know you have a 7.2V battery, big deal!

...and you can't even recharge it because the charger delivers 9V and might explode the batteries.

Ok so what to do?

Well, replace the missing battery with an LED. An LED always maintain a voltage drop of around 1.2V (depending on what type you use). So you made a battery "prosthesis".

Make sure that your LED is pointed in the right direction when you solder it (LEDs only conduct one way).

Solder a wire on the first battery (red +) that will be the +3.6V of your power supply.
Solder a wire between the 3rd and 4th battery, that will be ground.
Solder a wire where you soldered the positive leg of the LED and that will be the -3.6V supply.

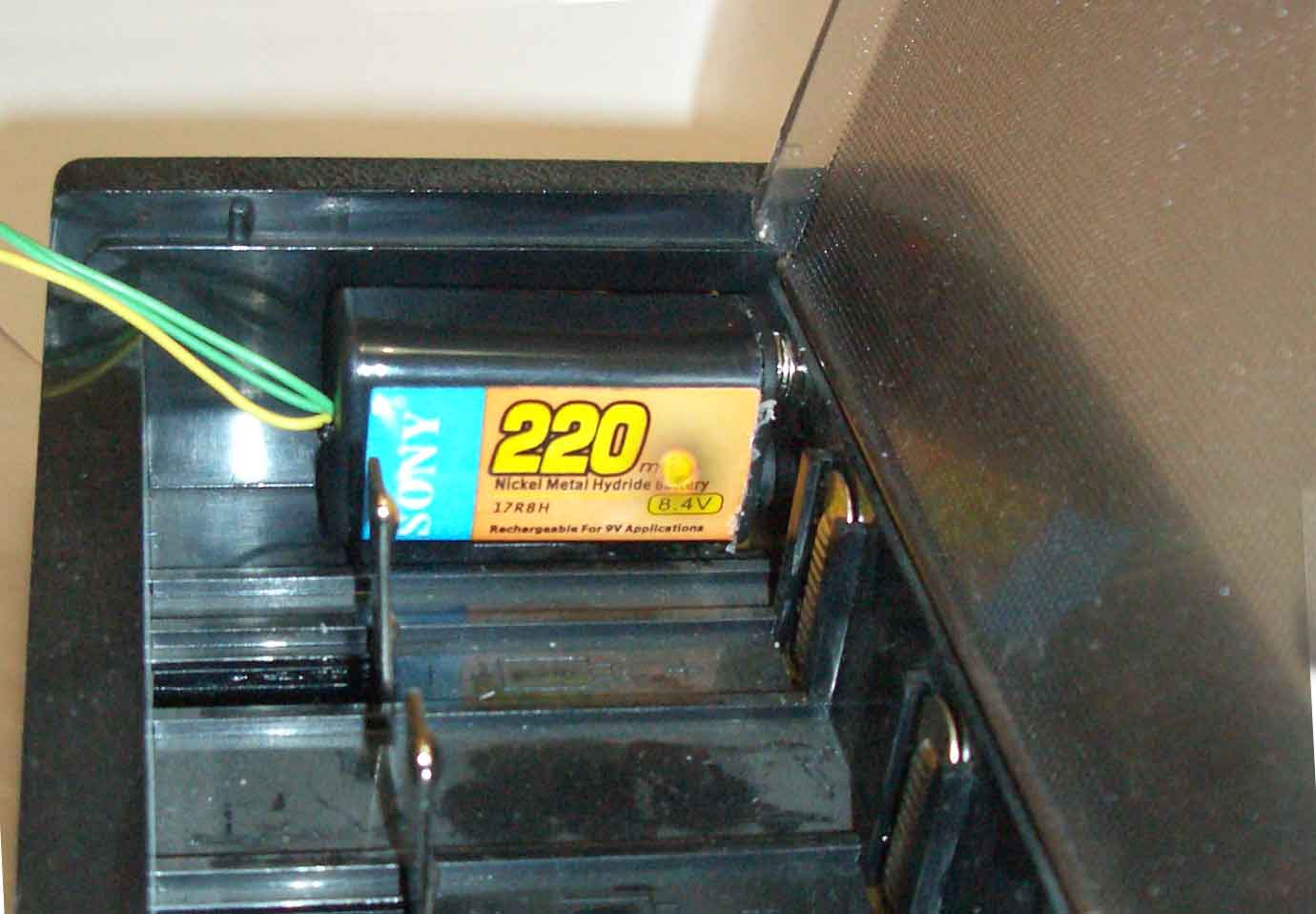

Look at the pretty light when your battery is charging.

It is possible to recharge the battery while connected to your project. However make sure you have big capacitors between the voltage rails to absorb the charger's pulses.

Do not recharge the battery when your project is connected to your body. (coming soon on another instructable).

It is a hazard to be electrically connected to a device that is plugged into the power main.'''

You can put back the assembly in the original 9V package. I made a hole for the LED and a hole in the back for the wires.
