Make a Powerful Rechargable Flashlight Out of a Used Battery (earth Day Part II)

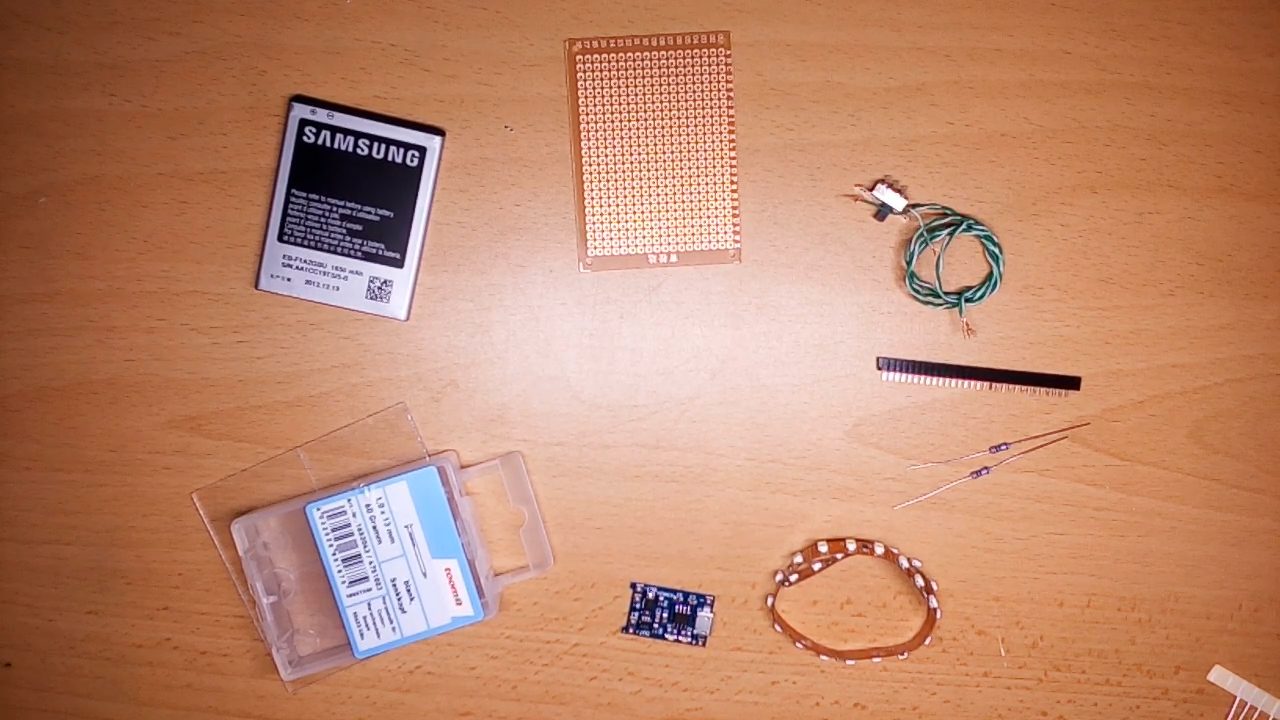

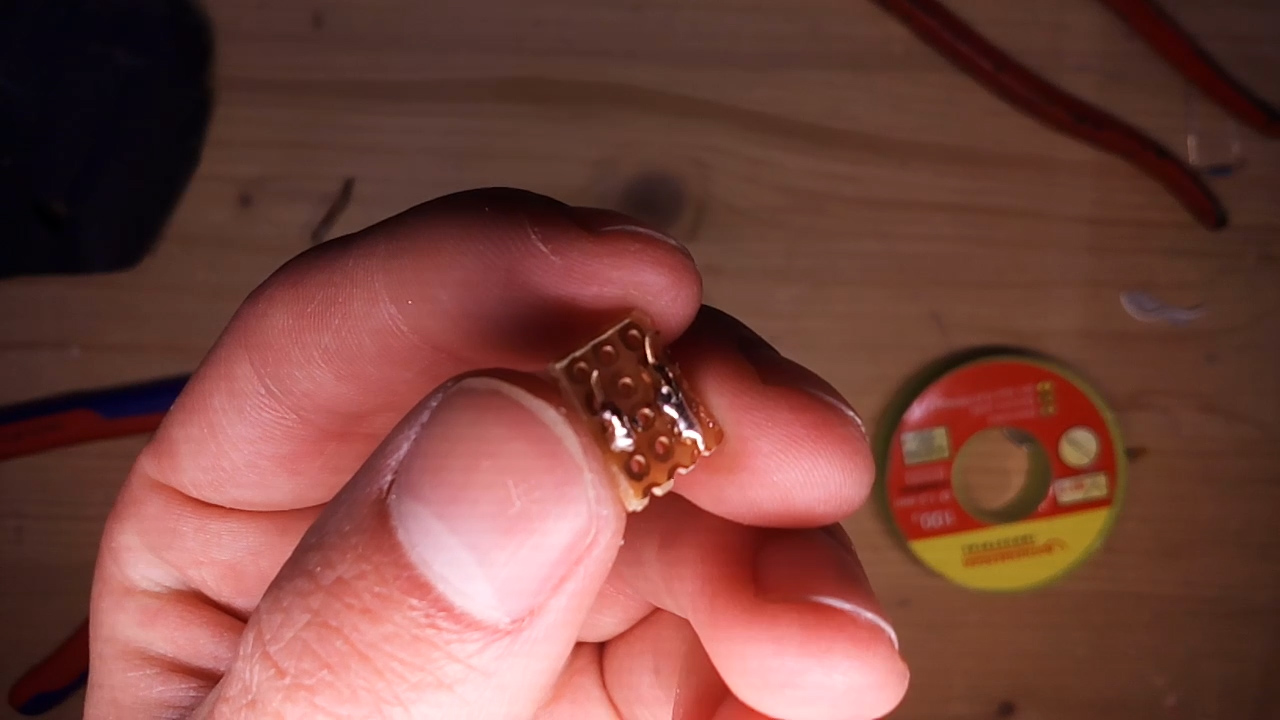

You can use the arduino slots to make two battery pins. Simply rip two metal pieces out and bend them as shown in the pictures. After this you carefully solder them onto a small piece of circuit board so that they have the right distance to fit the pins on your battery. Don't use too much tin, otherwise it will stiffen the pins and therefore make them likely to break.

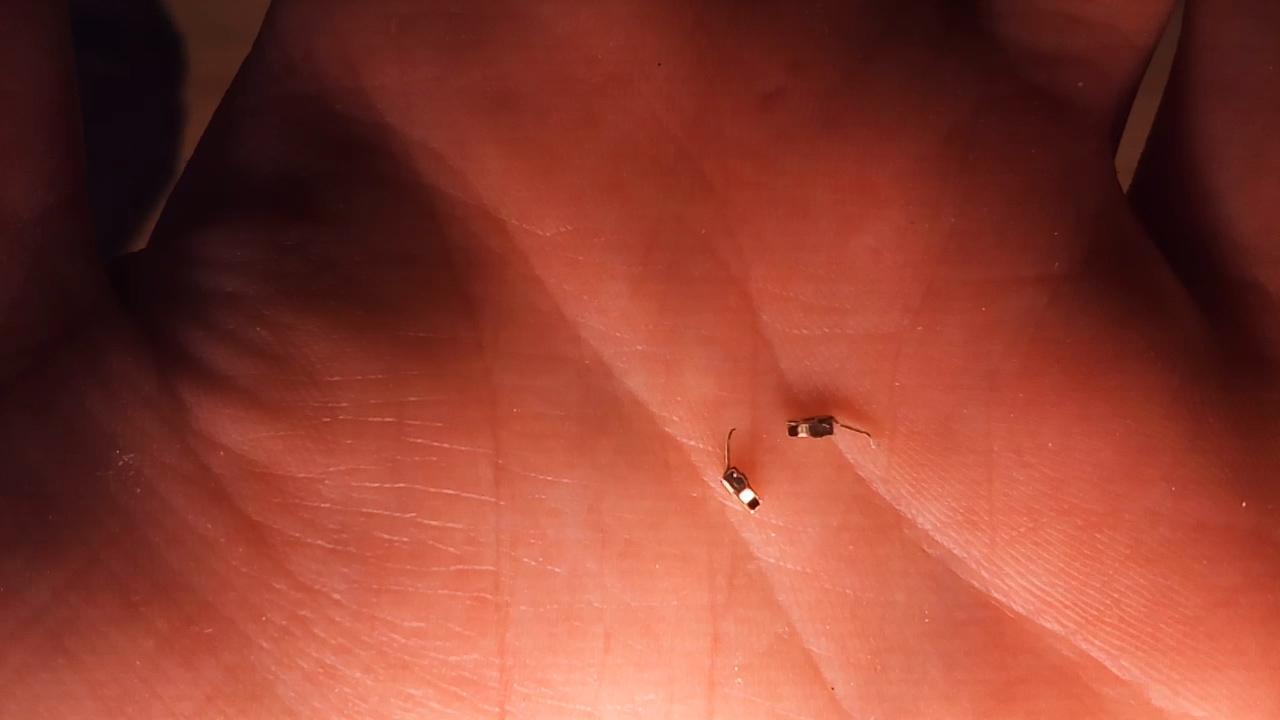

The first thing you need to do is get your SMD LED's. You can purchase them separately but the cheaper way is buying a piece of LED strip and cutting the LED's out of it. That's what I did.

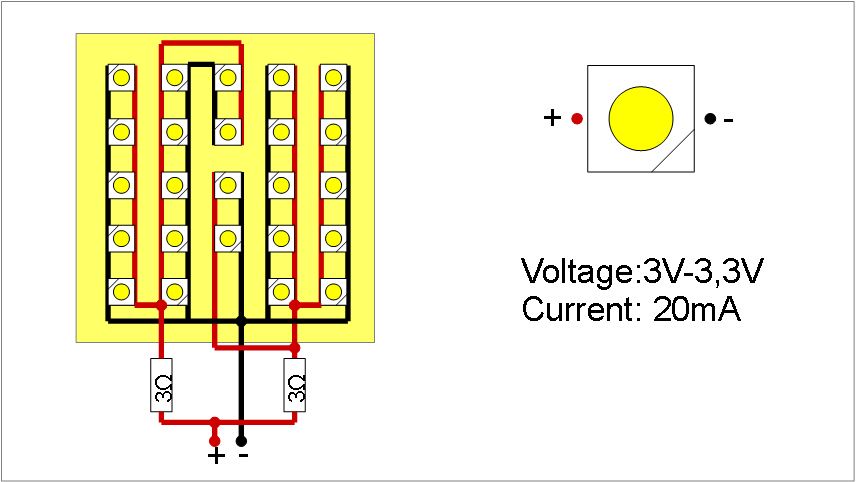

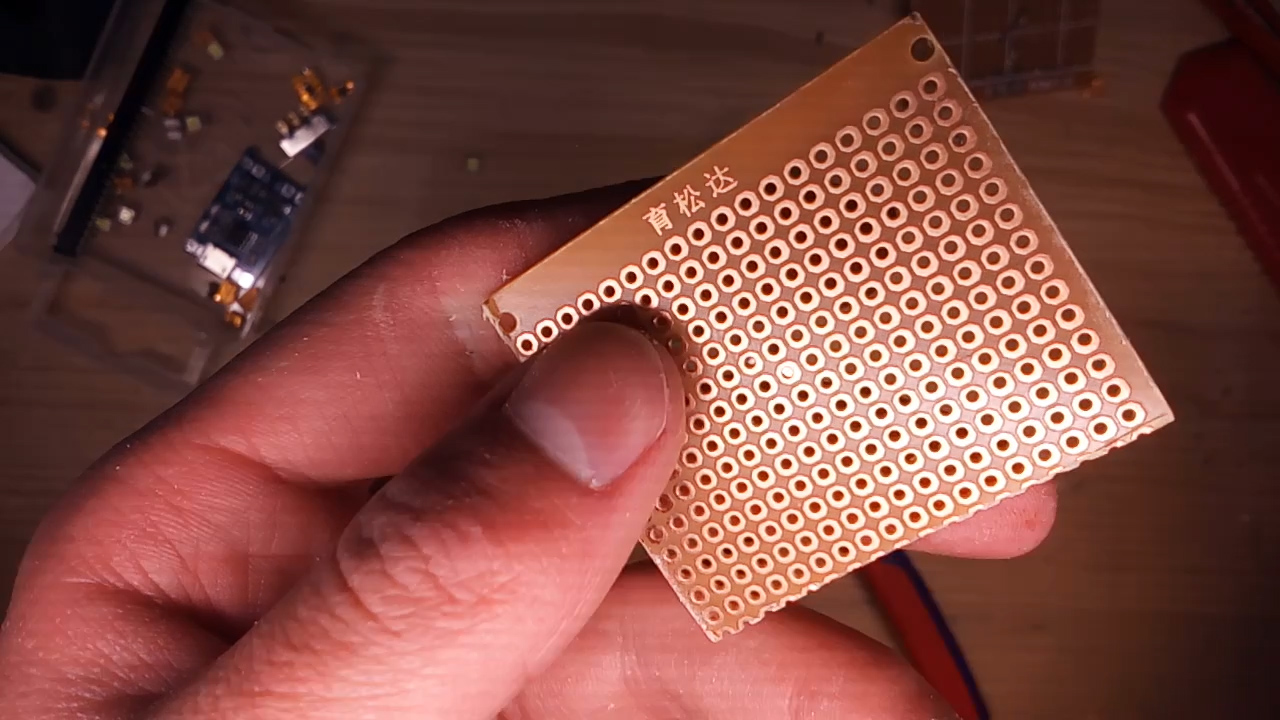

When you have all 24 chips, cut your circuit board to the right size and solder the LED's onto it. I will go with a grid of 5X5 LED's with one missing in the bottom row. They are going to be separated into two groups of 12 LED's in parallel. Each of the groups is connected to the power source through a 3 Ohm resistor.

It is a good idea to pre tin the soldering spots before applying the LED's. Carefully push them down while melting the tin underneath from the sides. As I did not have stripped circuit board for this project I used some garden wire to create negative and positive rails and connected the chip's to it.

When you are finished soldering test the panel using a bench power supply or a few AA batteries. When I first attached it to a power source only half of the LED's where working. It turned out that I had caused two short circuits while soldering and three of the LED's were not working at all (I should probably have tested them before). After I replaced the broken chips and repaired everything it finally worked.

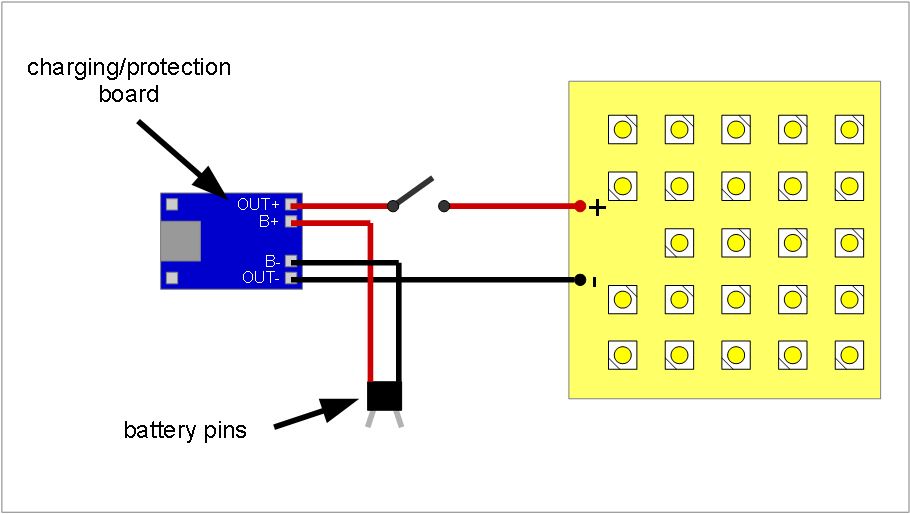

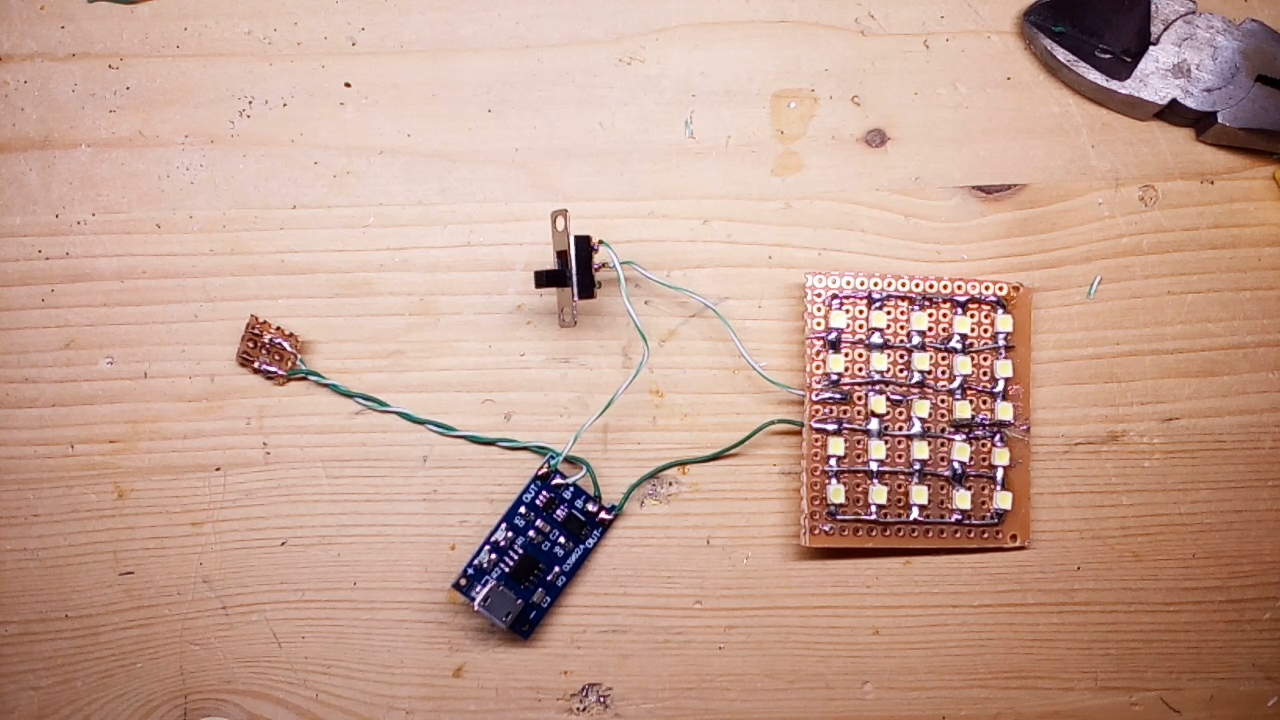

Attach wires to all of your components and solder them together. The schematic shows you how to do it right.

I used an old nail container for the housing. Those things are awesome for small electronic projects, that's why I always keep them. Your container should fit your battery as well as the other components. Use a drill to make holes for the switch and the charging port.

When you think that you found a good way to arrange everything, hot glue the parts in place.

Cut a piece of plastic to the size of the container and make a small hole for the battery pins. Insert it and secure it with hot glue. The only thing that should fit between it and the cover is your battery. Cut out a few more small plastic pieces and use them as spacers so that the battery wont wiggle around.

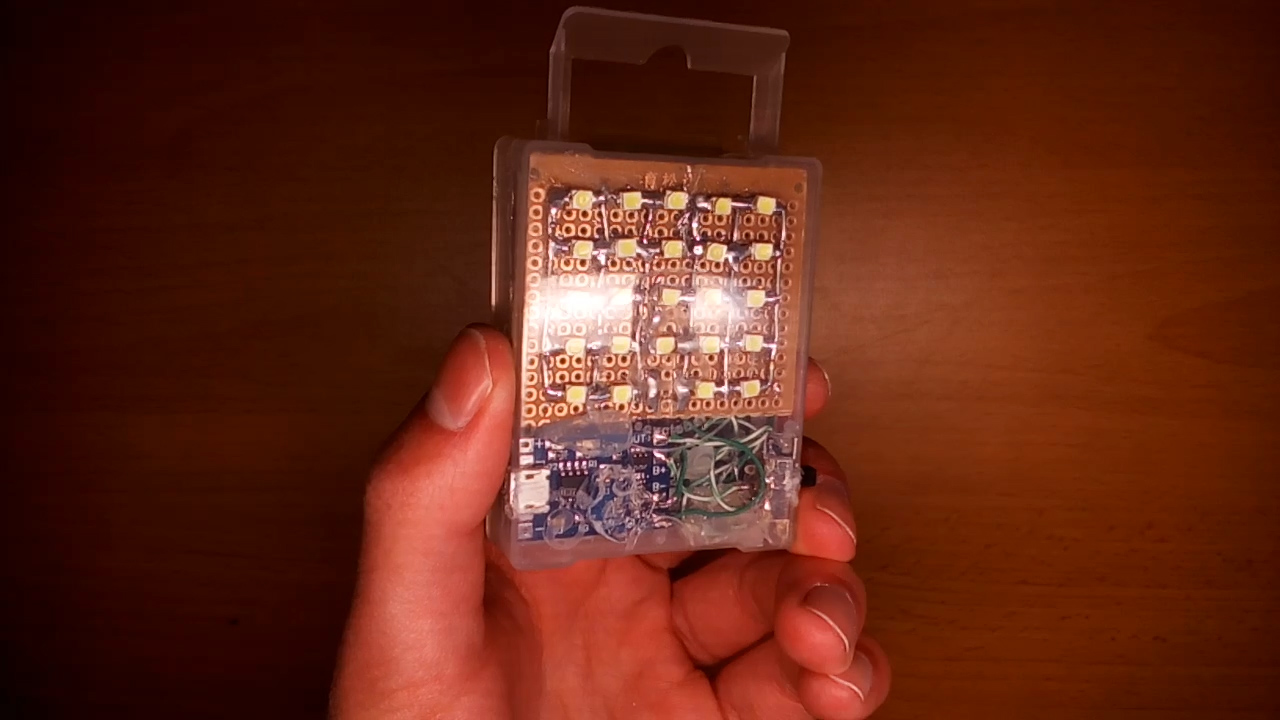

The final thing you need to do is insert the battery, close the box and flip the switch. You just turned a seemingly useless old battery into a really helpful little flashlight. You can not really see it in the photos but this small gadget is really bright and if you attach a magnet to the back of it it turns into a great working light for your car. In case the battery is empty another feature comes in handy, it is rechargable. Simply plug your charger in and you are good to go.

I hope this ible was as helpful to you as this little light is to me and that you found another purpose for your old lithium ion batteries. If you didn't already you might consider reading or watching my previous project and maybe you still want to see my current video.
