Make a Music Reactive RBG Light Box/ #smartcreativity

Hello friends, today I gonna show you to how to make a Music Reactive LED light box. So enjoy in this cool and creative DIY project.

So, I hope you guys will like this.. All information, code and instructable given in this tutorial. So, let's get started..... Watch below video to make this project easily in which I explained each and every process or you can also read full tutorial here.

Watch below video to make this project easily in which I explained each and every process or you can also read full tutorial here.
-> For more information-https://smartcreativityofficial.blogspot.com

Watch video full screen here - Click here

-> How to make -To make this project first we have to arrange required component which in given below or also in this tutorial.
1. Circuit playground express (micro-controller)

2. A thick cardboard sheet

3. Two dead LED bulb

4. USB cable

After arranging these components we have to make this.

So, let's see step by step....

Take two dead LED bulb. We need two LED bulb upper white cover. So we will unmount the bulb cover from LED.

Now we will cut a square sized sheet from the thick cardboard paper. Cut a circle in the square sheet as shown in below image. So on make one more same sheet.

Then we will arrange the bulb cover in the hole of this sheet as shown in below image.

Mount the bulb cover on it tightly

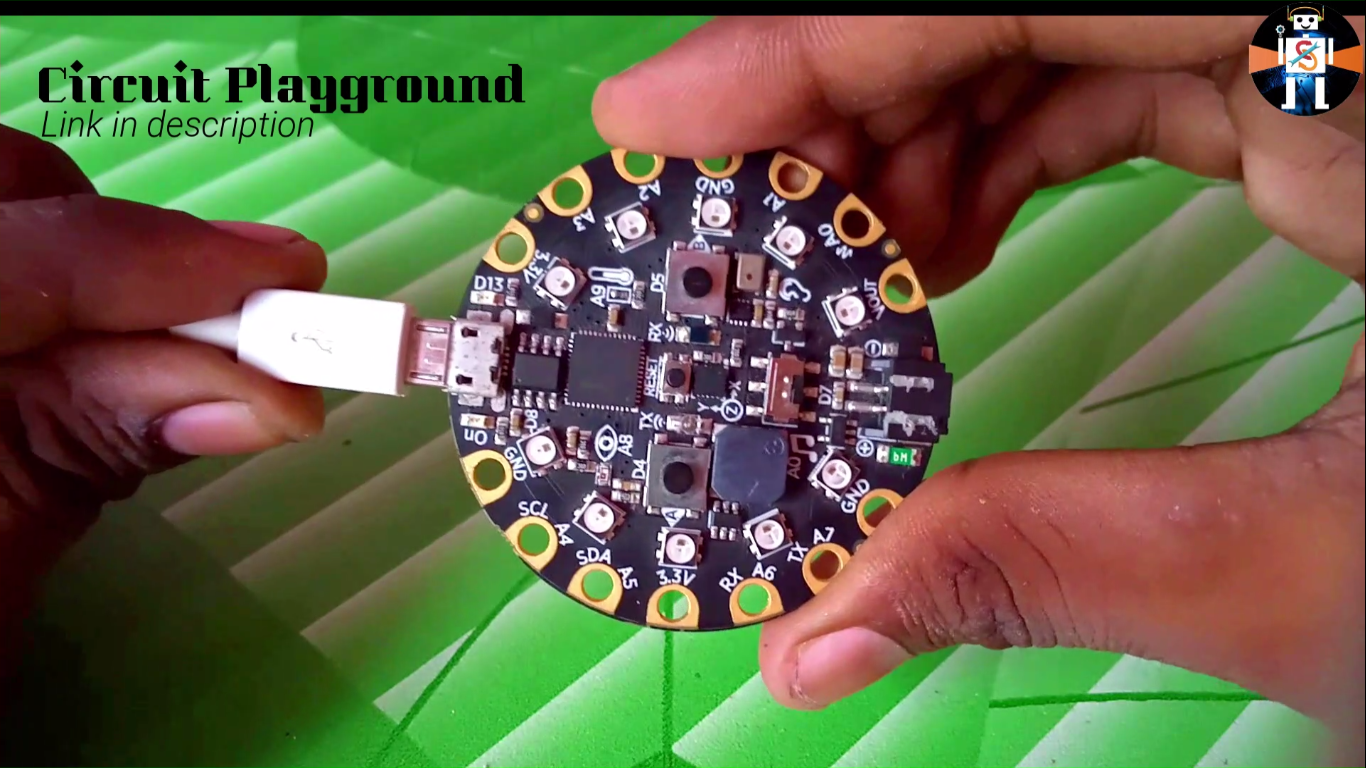

After doing this take 2 circuit Playground board and attach cable in both one by one.

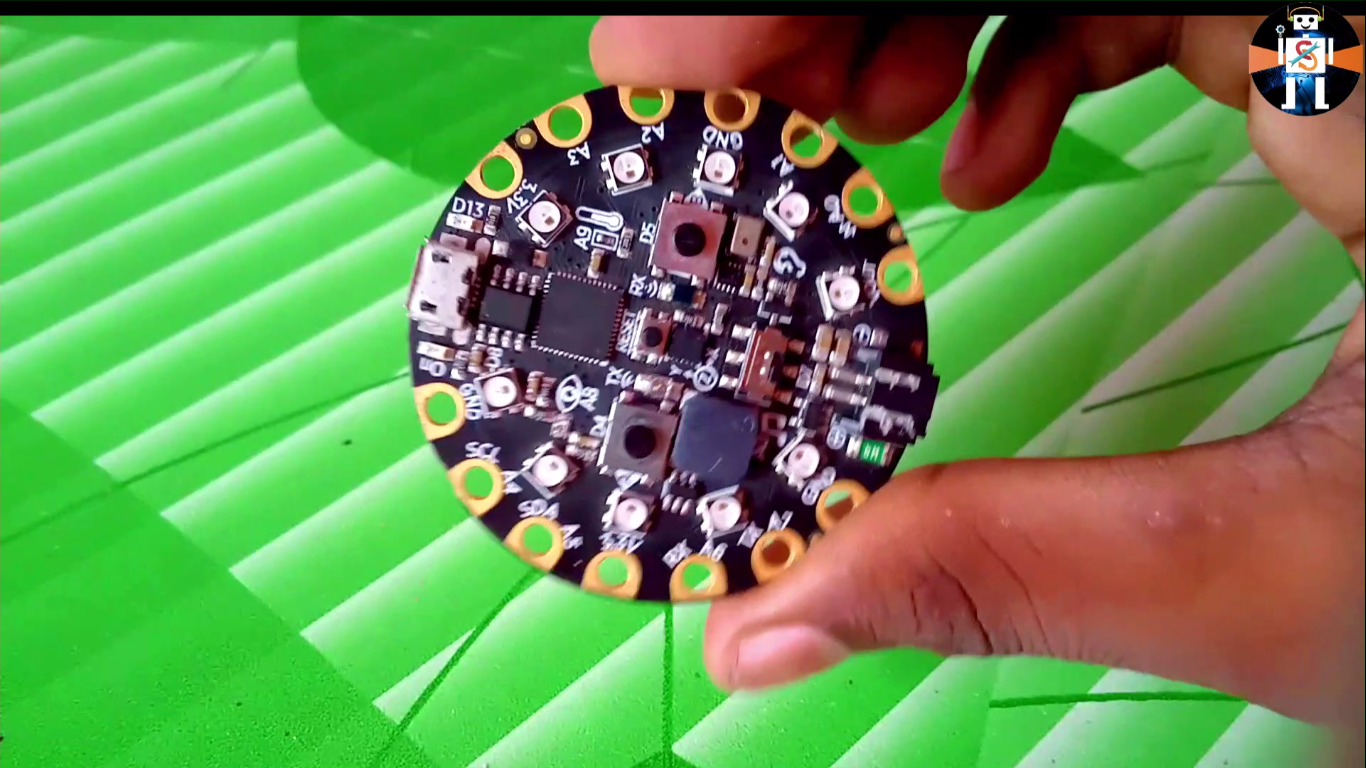

-> About circuit playground-

It is a new type of microcontroller that we are using. This microcontroller belong to adafruit. In this microcontroller there are 10 multi-colored led, temperature sensor, light sensor, sound sensor and different more are already fitted. And to make code in circuit playground is also very easy due to it's drag and drop programming. You can also code it in JavaScript.

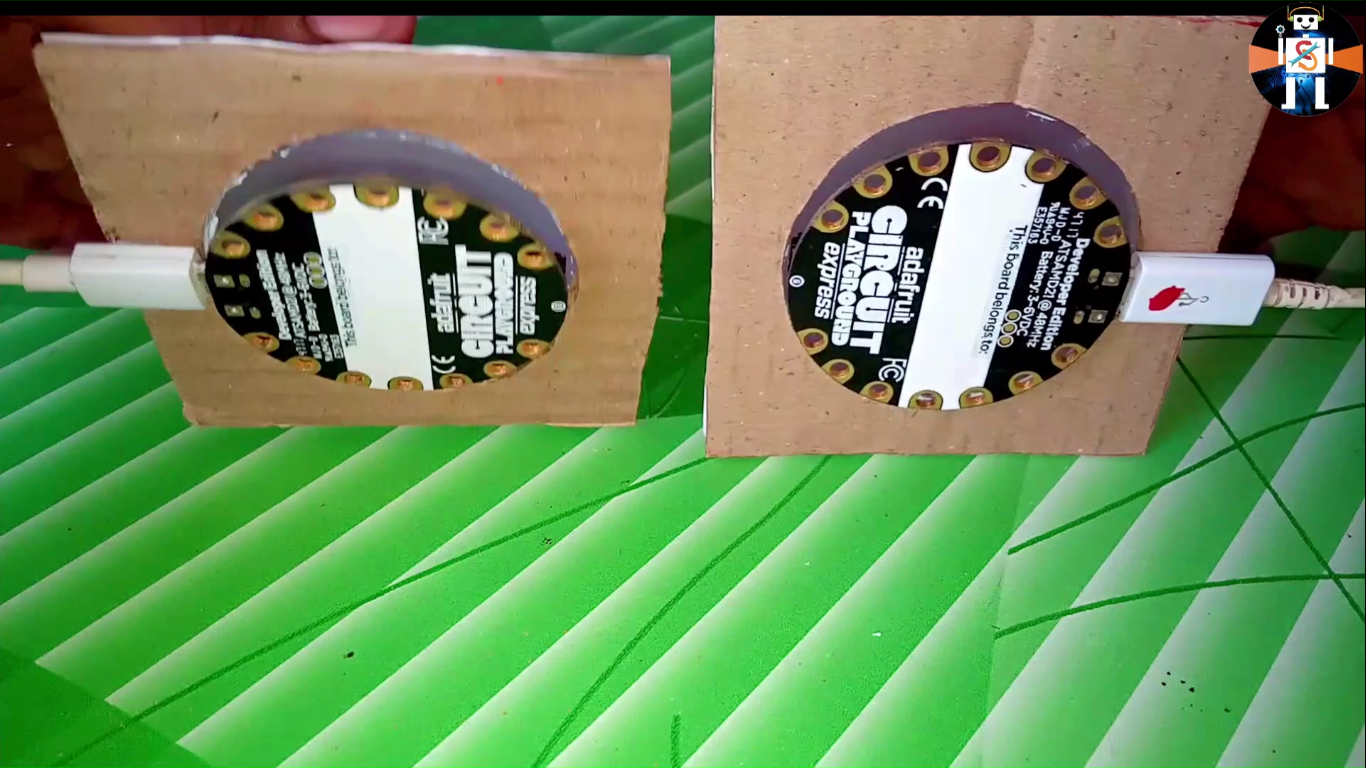

Now mount a double sided tape on the mouth of cable connector and attach it with sheet as shown in below image. Attach the circuit playground in the middle of the sheet tightly

Now the whole parts arranged successfully and now we have to just upload the code in it.

Code file is already given in this tutorial. Or you can also paste below code in the JavaScript section of make code editor.

-> Code -

input.onLoudSound(function () {
light.setBrightness(148)

music.setVolume(50)

music.siren.loop()

light.setBrightness(152)

light.setAll(0x00ff00)

pause(500)

light.setAll(0x0000ff)

pause(1000)

light.setAll(0x00ffff)

pause(500)

light.setAll(0xff0080)

pause(2000)

light.setAll(0xffff00)

pause(1000)

light.setAll(0xff9da5)

pause(500)

light.setAll(0xff0000)

pause(2000)

light.setAll(0x7f00ff)

light.showAnimation(light.rainbowAnimation, 2400)

pause(500)

light.showRing( `green black black black red red black black black green` )

pause(500)

light.showRing( `green black black blue red red blue green black black` ) pause(500) light.showRing( `black black green blue red red blue green black black` )

pause(500) light.showRing( `black green pink blue red red blue pink green black` )

pause(500) light.showRing( `yellow green pink blue red red blue pink green yellow` ) light.showAnimation(light.colorWipeAnimation, 500)

pause(500) light.showAnimation(light.rainbowAnimation, 2000) }) forever(function () {

})

-> How to upload code-

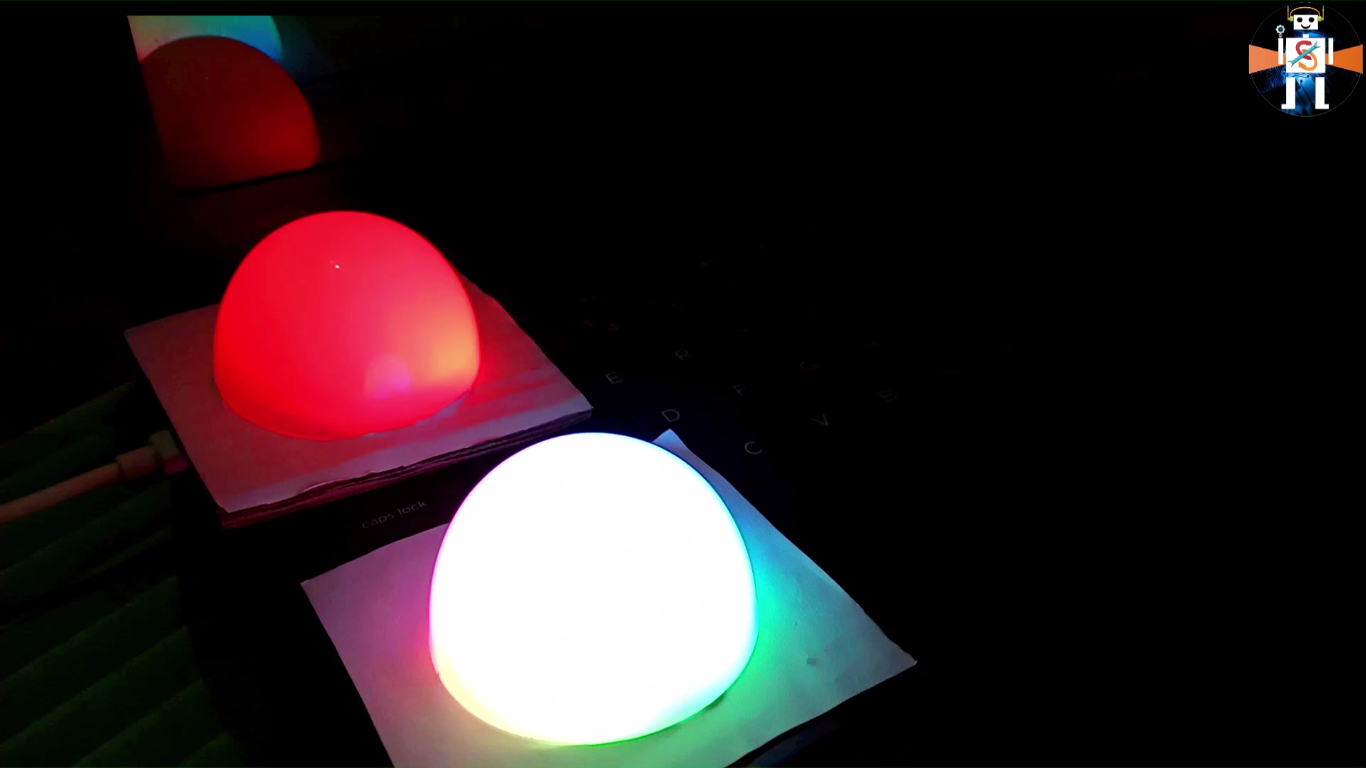

Press reset button two times continue then upload the code in circuit playground. After that our Music Reactive light box is fully ready and ready to test. Let's power it and test it now...

See the video tutorial on first part in which you can see the testing of this project.

See the video tutorial on first part in which you can see the testing of this project.
