Make a Handy Razor Blade Scraper From a Scrap of Wood
by Senseless in Workshop > Tools
9873 Views, 15 Favorites, 0 Comments
Make a Handy Razor Blade Scraper From a Scrap of Wood
This is a good use for a broken hammer handle or other scrap of hard wood if you find yourself in need of a scraper using a standard box cutting razor blade.
Find a Scrap of Hardwood
I save everything it's an OCD thing so I have a few buckets of scups pieces from doing my oak floors that I was thinking of someday turning into a miniature set of building blocks like the ones my dad made me when I was a kid,
Broken tool handles get saved to if they're Hickory or something because if worse comes to worse I can whittle a new end and reuse it in a pinch so I tend to have lots of scraps laying around the shop in buckets and boxes or piled on the floor depending on how tunnel visioned I became on the last project but I can see where it is likely people might not have a scrap of hardwood and if they want to try it with a piece of pine please do so and post the results here if you want. My only reason for using a hardwood was that if you're scraping something and hit a nail or something bringing you to an abrupt halt the softer wood might split by the razor being pushed deeper like a wedge.
Broken tool handles get saved to if they're Hickory or something because if worse comes to worse I can whittle a new end and reuse it in a pinch so I tend to have lots of scraps laying around the shop in buckets and boxes or piled on the floor depending on how tunnel visioned I became on the last project but I can see where it is likely people might not have a scrap of hardwood and if they want to try it with a piece of pine please do so and post the results here if you want. My only reason for using a hardwood was that if you're scraping something and hit a nail or something bringing you to an abrupt halt the softer wood might split by the razor being pushed deeper like a wedge.
Basic Tools
A coping saw is the most important tool you'll need with a very thin blade. The cut needs to be narrow enough to hold the blade at least a bit by itself and I found my power band saw, hack saw and various other saws just cut too wide of a groove.
You need a hammer and something to use as a light weight anvil like a scrap of 6 by 6, or a concrete floor and since I have one and I'm lazy I used a belt sander to shape the wood, but this could be done with a saw, you just need a long taper at the blade holding side to allow you to hold the finished tool between 15 and 30 degrees to whatever you happen to be scraping.
You need some razors like from a box cutter and a glass of water.
You need a hammer and something to use as a light weight anvil like a scrap of 6 by 6, or a concrete floor and since I have one and I'm lazy I used a belt sander to shape the wood, but this could be done with a saw, you just need a long taper at the blade holding side to allow you to hold the finished tool between 15 and 30 degrees to whatever you happen to be scraping.
You need some razors like from a box cutter and a glass of water.
Basic Method
Basically you want to rough in a long slope at one end leaving a quarter inch or so flat the vertex. It helps to have this strip fairly in line with the handle since you'll later use a coping saw to make about between a three eights and a half inch deep cut to hold the blade and for it to feel comfortable in your hand while using it.
I just used a marker through it in free hand, then ground the blade end with the belt sander and at the same time smoothed up the edges of the handle.
Once you have it in the correct shape you need to lightly but firmly hammer this end of the handle. You're trying to compress the wood fibers so it will take a firm hit but don't get the sledge out and shatter the wood.
Next you use the coping saw to cut about a 3/8 of an inch deep cut through the center of the blunt nose of your now pointed handle.
Next dip it in water for a minute or so and the compressed wood fibers will expand and get a firm grip on the blade.
When it becomes loose form the wood drying out just dip it again but typically it will hold a bade snug for months in my experience.
In the following video I only let it soak for a few seconds but was able to spear a block of wood with the tool and then scrape some paint from a piece of glass I had.
I must admit some failure, in the vid I wanted to do it in under two minutes and reality made that almost four but still, it would take me long to find my keys to drive to the store to buy a tool such as this if the need ever arose...
I just used a marker through it in free hand, then ground the blade end with the belt sander and at the same time smoothed up the edges of the handle.
Once you have it in the correct shape you need to lightly but firmly hammer this end of the handle. You're trying to compress the wood fibers so it will take a firm hit but don't get the sledge out and shatter the wood.
Next you use the coping saw to cut about a 3/8 of an inch deep cut through the center of the blunt nose of your now pointed handle.
Next dip it in water for a minute or so and the compressed wood fibers will expand and get a firm grip on the blade.
When it becomes loose form the wood drying out just dip it again but typically it will hold a bade snug for months in my experience.
In the following video I only let it soak for a few seconds but was able to spear a block of wood with the tool and then scrape some paint from a piece of glass I had.
I must admit some failure, in the vid I wanted to do it in under two minutes and reality made that almost four but still, it would take me long to find my keys to drive to the store to buy a tool such as this if the need ever arose...

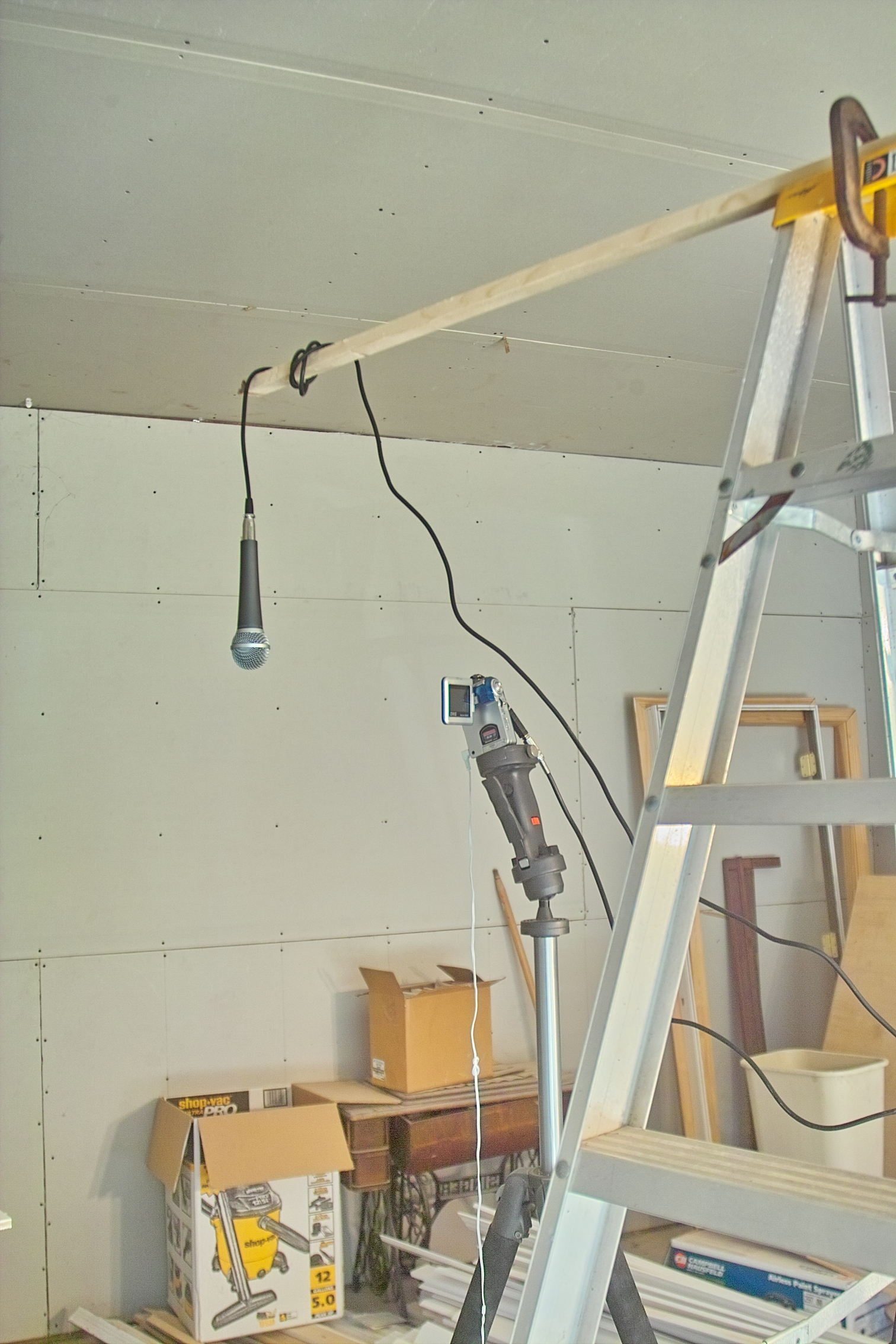

The Vid
Hey seriously I tried to cut this down as short as I could but I didn't want to edit out the start to finishing of it for fear some would say it was simply Magic.
(Or super Glue!)
PS I tried fixing the sound a bit and cut it down to four minutes but it's still a bit rough...
(Or super Glue!)
PS I tried fixing the sound a bit and cut it down to four minutes but it's still a bit rough...
