Hello friends, in this tutorial I will show you to how to make a dancing robot at home without 3D printer and without Arduino. This robot is able to dance, auto balancing, music producing and walking. And the design of Robot is also looking so cool....

These are the required components in which I am using circuit playground, servo motor, jumper wire, servo attacher, cardboard paper and a plastic cylindrical box.

we will use plastic box to make the head part of robot and we also put all wires and micro-controller in it.

I make two holes in the bottom part of box to attach the servo motor. Attach both servo tightly in the hole and then adjust servo wire.

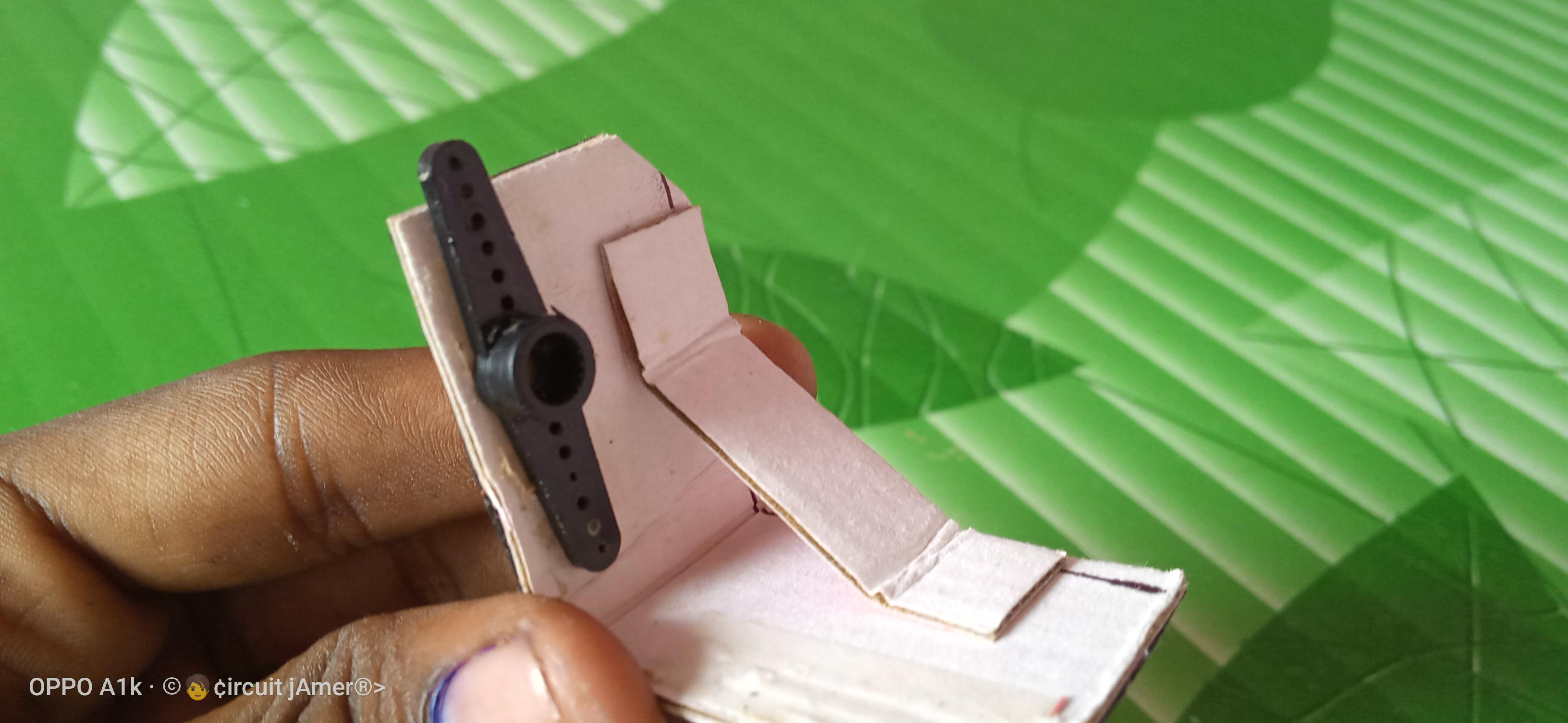

After attaching the servo motor we have to make a Leg design of robot. We will use a thick cardboard paper to make this. We will cut two small piece of cardboard and make a simple leg design as shown in image.

After making leg design we will set a servo attacher to the leg to connect the servo with his leg as shown in below image.

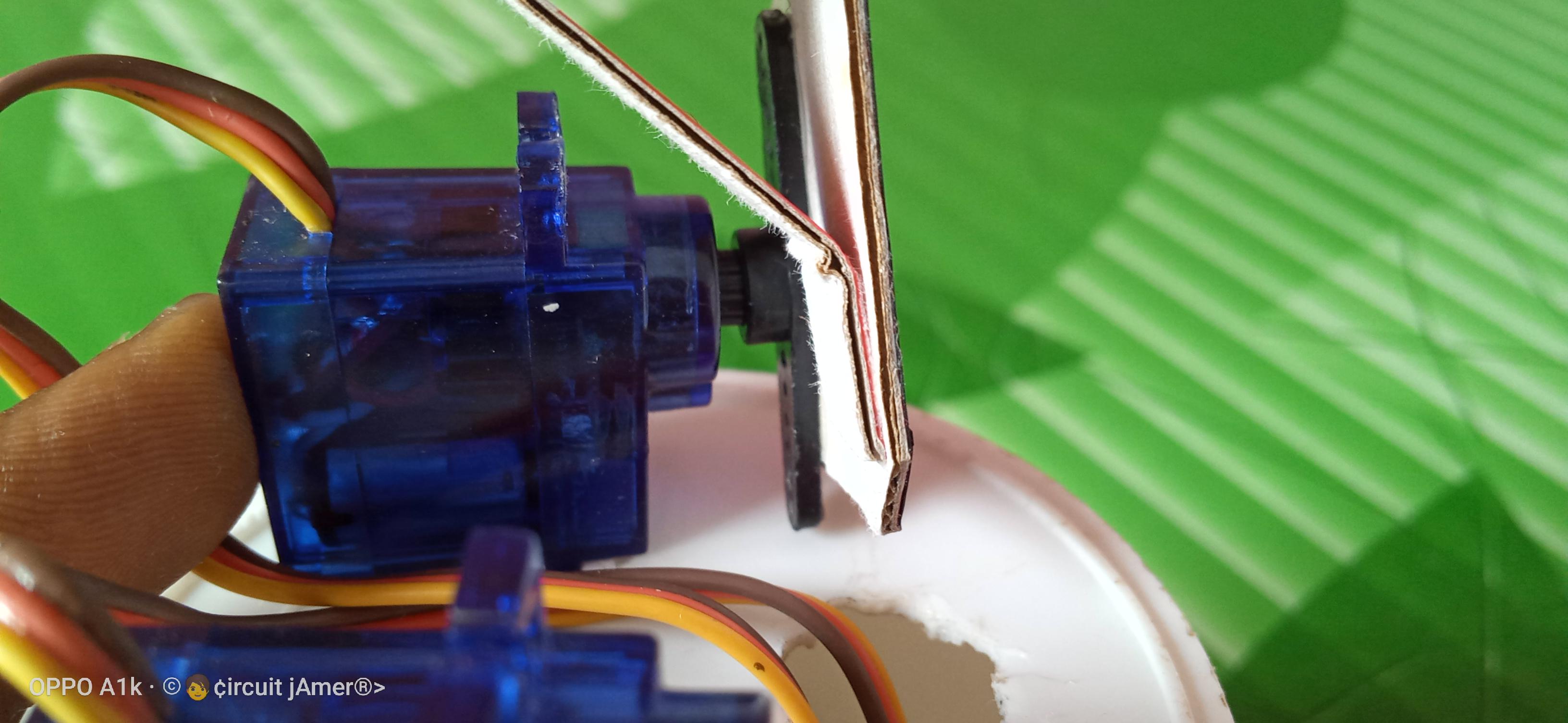

Now attach the Leg to the servo motor one by one. Attach both leg tightly to make a good body. See below image to do this.

We can also use 4 servo motor in place of these two. Because if we will use 4 servo we can add many other movements in this robot. In two servo motor robot we can only programmed it for walking, simple dancing and some activity like moon walking, vibrating like etc.
So, connect all parts correctly as shown in image.

Now we have to connect jumper wires with servo motor. See below image to connect jumper wires with servo. Connect all wires with its matching color.

After connecting all wires and attaching all parts our Robot body is ready. Let's jump to our next and important step to how to connect with micro-controller.

Before connecting the jumper with micro-controller first take a look on Circuit playground express. Because circuit playground express is a new type of micro-controller and totally different from Arduino so we should have to know some about circuit playground.

This is our micro-controller circuit playground express. In this micro-controller there are many sensors, 3 function-able buttons, 10 multicolored LED and many input and output pins. Many features is available in this micro controller so I am using this in my projects.

After looking about this let's connect the jumper wires with circuit playground express.

Connect wires as- Yellow jumper - PinA1, Red jumper - Pin3.3v(i) Black jumper - Pin gnd(gnd) Blue jumper - Pin3.3v(ii) White Jumper - Pin gnd(ii) Green jumper - PinA2

fter connecting all wires and Jumper, adjust all wire and put all jumper and micro-controller in the box. Put all thing very carefully as no one wire should have to disconnect. That's it............
So our cute and DIY amazing dancing robot is ready.

input.onLoudSound(function () {

for (let i = 0; i < 4; i++) { if (input.soundLevel() >= 130) { for (let i = 0; i < 4; i++) { pins.A1.servoWrite(155) pins.A2.servoWrite(25) pause(500) pins.A1.servoWrite(130) pins.A2.servoWrite(50) pause(500) } pins.A1.servoWrite(130) pins.A2.servoWrite(50) } light.showAnimation(light.rainbowAnimation, 500) pins.A1.servoWrite(130) pins.A2.servoWrite(50) for (let i = 0; i < 6; i++) { pause(200) pins.A1.servoWrite(170) pause(100) pins.A2.servoWrite(10) pause(200) pins.A1.servoWrite(130) pause(100) pins.A2.servoWrite(50) pause(200) } pins.A1.servoWrite(130) pins.A2.servoWrite(50) for (let i = 0; i < 6; i++) { pause(200) pins.A2.servoWrite(10) pause(200) pins.A1.servoWrite(170) pause(100) pins.A2.servoWrite(50) pause(200) pins.A1.servoWrite(130) pause(100) } pins.A1.servoWrite(130) pins.A2.servoWrite(50) for (let i = 0; i < 4; i++) { pause(100) pins.A1.servoWrite(180) pause(100) pins.A1.servoWrite(130) pause(200) } for (let i = 0; i < 4; i++) { pause(100) pins.A2.servoWrite(80) pause(100) pins.A2.servoWrite(50) pause(200) } pins.A1.servoWrite(130) pins.A2.servoWrite(50) } }) pins.A1.servoWrite(130) pins.A2.servoWrite(50) forever(function () { light.setBrightness(255) light.showAnimation(light.rainbowAnimation, 2000) pause(2000) light.showAnimation(light.runningLightsAnimation, 500) pause(2500) light.showAnimation(light.colorWipeAnimation, 2000) pause(2500) }) forever(function () { music.playMelody("C5 B A G F E D C ", 120) music.playMelody("C D E F G A B C5 ", 120) music.playMelody("E B C5 A B G A F ", 120) music.playMelody("C5 A B G A F G E ", 120) })

So, I hope that you all enjoy in this project and also like this.
