Make a Connector Body
by garagemonkeysan in Circuits > Soldering
2526 Views, 23 Favorites, 0 Comments
Make a Connector Body
![ConnectorBody001.jpg](/proxy/?url=https://content.instructables.com/FP0/5DQ7/FS8O2SLZ/FP05DQ7FS8O2SLZ.jpg&filename=ConnectorBody001.jpg)
![ConnectorBody002.jpg](/proxy/?url=https://content.instructables.com/FJT/X25I/FS8O2SLY/FJTX25IFS8O2SLY.jpg&filename=ConnectorBody002.jpg)
![ConnectorBody003.jpg](/proxy/?url=https://content.instructables.com/FZ2/2ELV/FS8O2SLW/FZ22ELVFS8O2SLW.jpg&filename=ConnectorBody003.jpg)
![ConnectorBody004.jpg](/proxy/?url=https://content.instructables.com/FBS/75LC/FS8O2SLV/FBS75LCFS8O2SLV.jpg&filename=ConnectorBody004.jpg)
![ConnectorBody005.jpg](/proxy/?url=https://content.instructables.com/FB2/2PWC/FS8O2SLU/FB22PWCFS8O2SLU.jpg&filename=ConnectorBody005.jpg)
![ConnectorBody006.jpg](/proxy/?url=https://content.instructables.com/FRB/T7ID/FS8O2SLT/FRBT7IDFS8O2SLT.jpg&filename=ConnectorBody006.jpg)
![ConnectorBody007.jpg](/proxy/?url=https://content.instructables.com/FLJ/8YLA/FS8O2SLS/FLJ8YLAFS8O2SLS.jpg&filename=ConnectorBody007.jpg)
![ConnectorBody008.jpg](/proxy/?url=https://content.instructables.com/FG8/ARO3/FS8O2SLR/FG8ARO3FS8O2SLR.jpg&filename=ConnectorBody008.jpg)
![ConnectorBody009.jpg](/proxy/?url=https://content.instructables.com/FJH/HGG2/FS8O2SLQ/FJHHGG2FS8O2SLQ.jpg&filename=ConnectorBody009.jpg)
![ConnectorBody010.jpg](/proxy/?url=https://content.instructables.com/FSO/WSCS/FS8O2SLP/FSOWSCSFS8O2SLP.jpg&filename=ConnectorBody010.jpg)
![ConnectorBody011.jpg](/proxy/?url=https://content.instructables.com/F8A/ZL5R/FS8O2SLX/F8AZL5RFS8O2SLX.jpg&filename=ConnectorBody011.jpg)

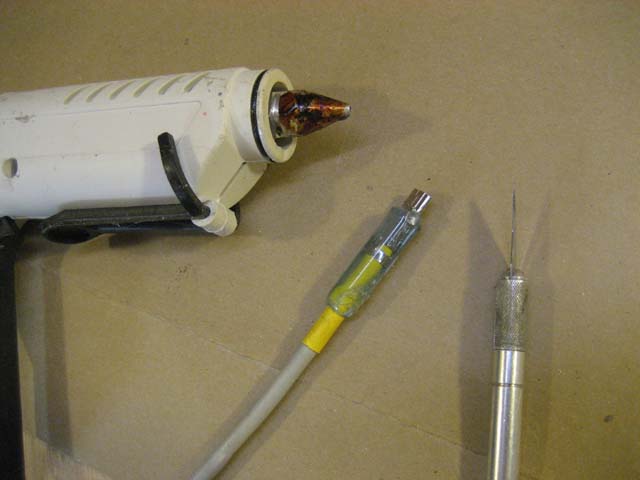

Here is a quick way to make a connector body.

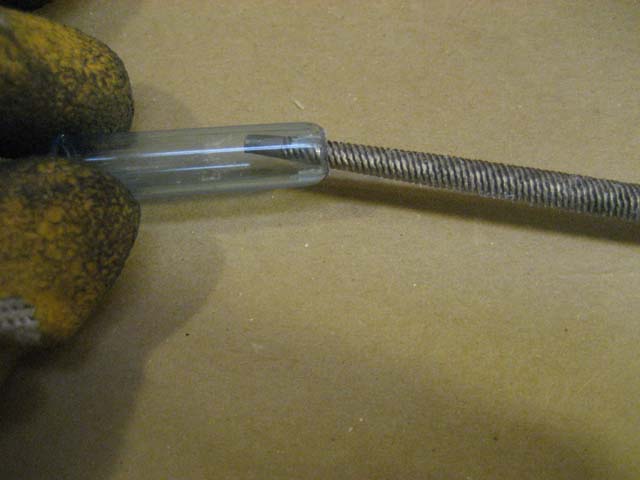

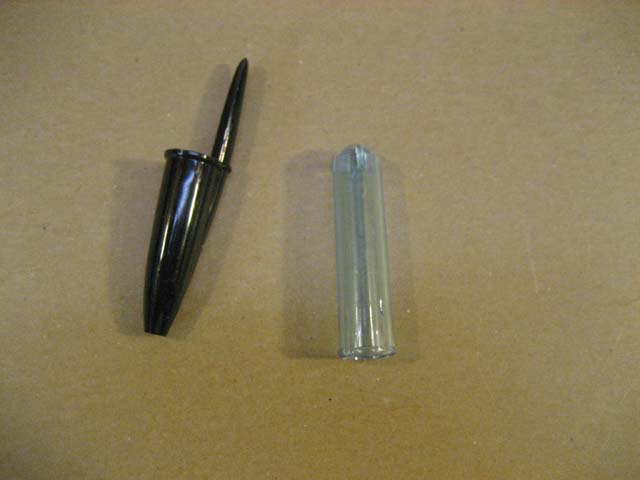

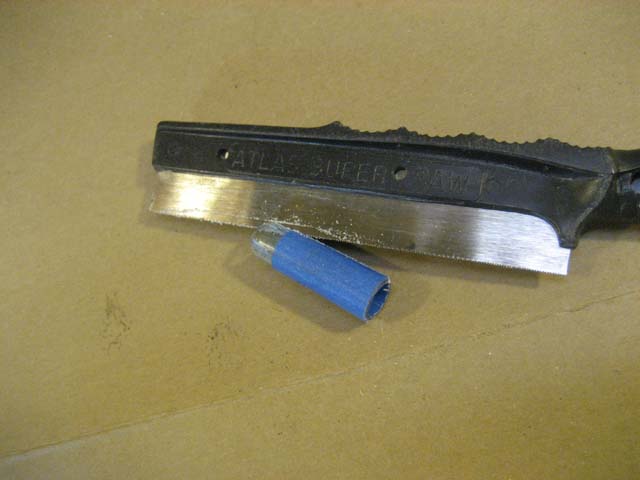

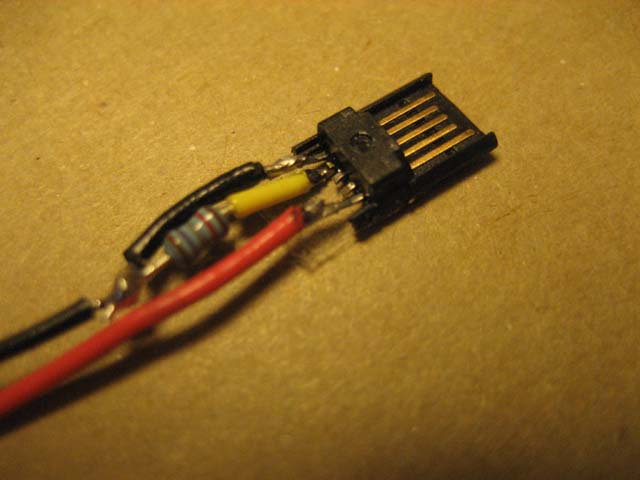

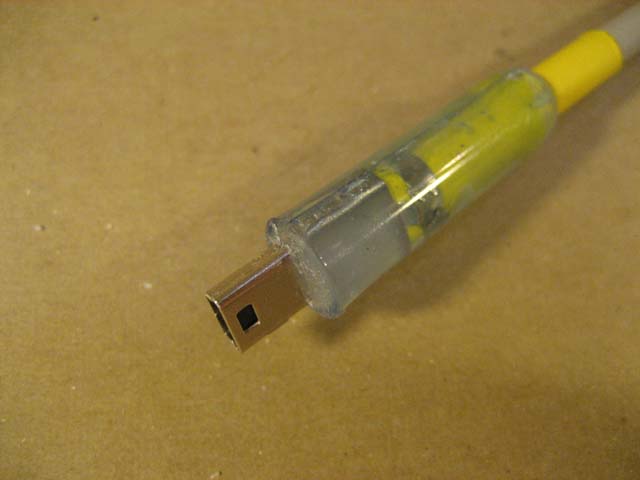

Use a pen cap and saw it in half. Then fill both halves with hot glue and enclose them around the connector. Makes a great connector body that helps keep the strain away from the solder joints.
This technique can also be used for a cable splice. Use a pen body instead of a cap.
