Make a Cheap Spot Welder

How to diy a cheap spot welder

Part list:

01. 12V Relay Module External Trigger Delay Switch Time Adjustable

https://www.banggood.com/External-Trigger-Delay-Sw...

02. Button Switch

https://www.banggood.com/3A-250V-Off-on-Non-lockin...

03. 0.15x8mm Nickel Plated Steel Sheet Strap Tape Strip For Battery Spot Welding

https://www.banggood.com/0_15X8X200mm-Nickel-Plate...

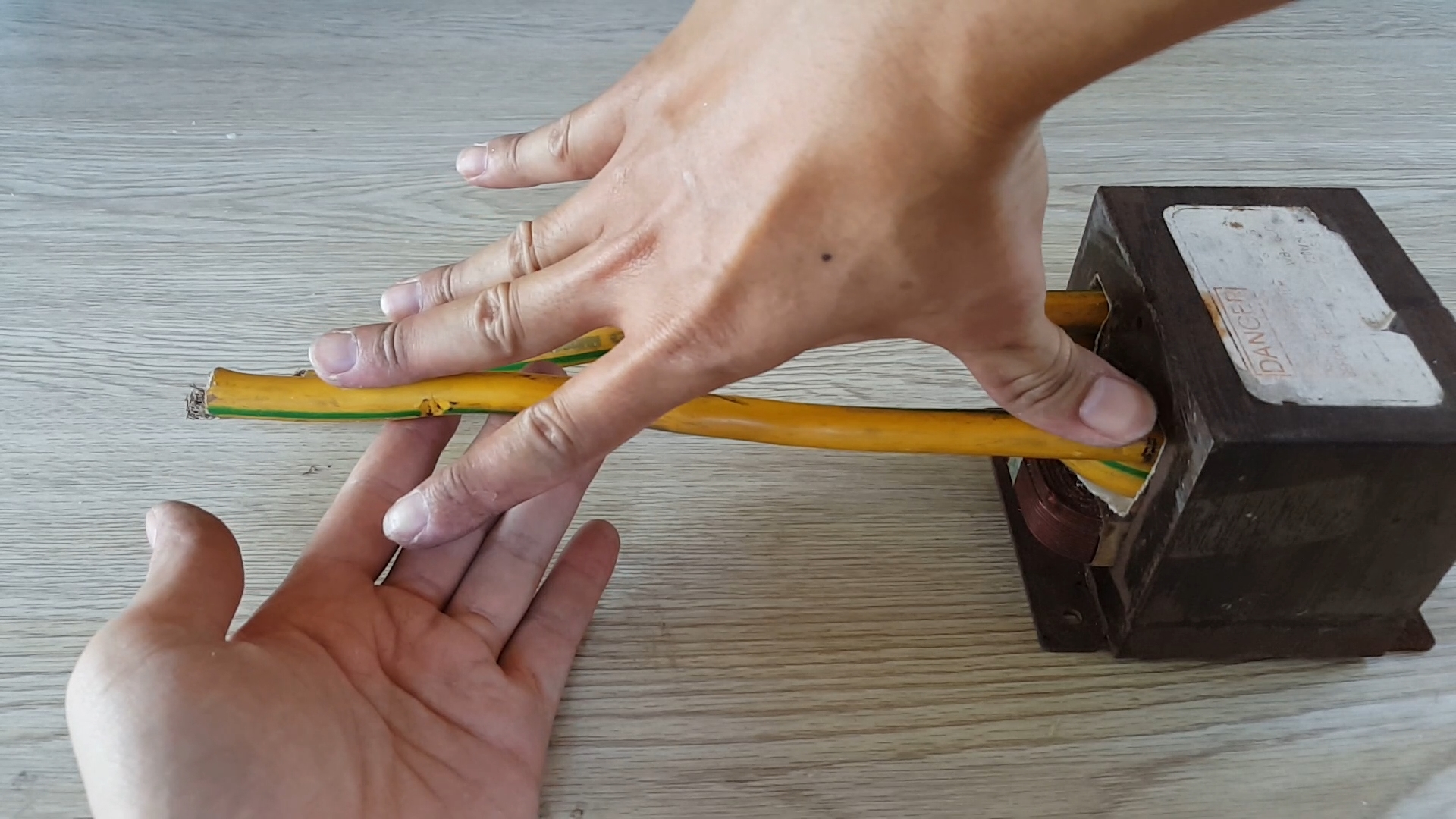

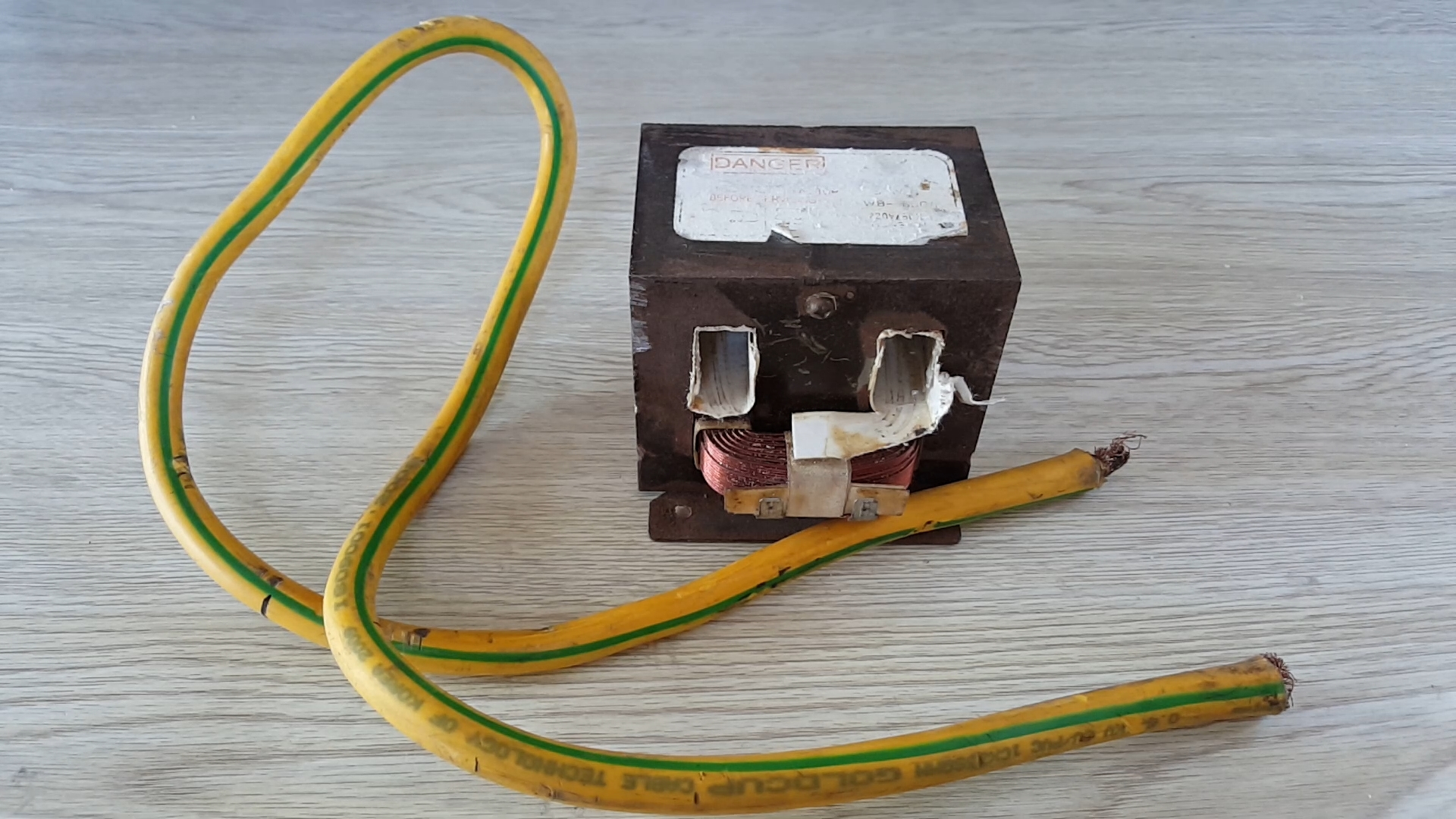

I use the 70mm cable from old generator you can use other types welding cable. I recommend using a 35mm or more cable

I use old ATX psu for the box

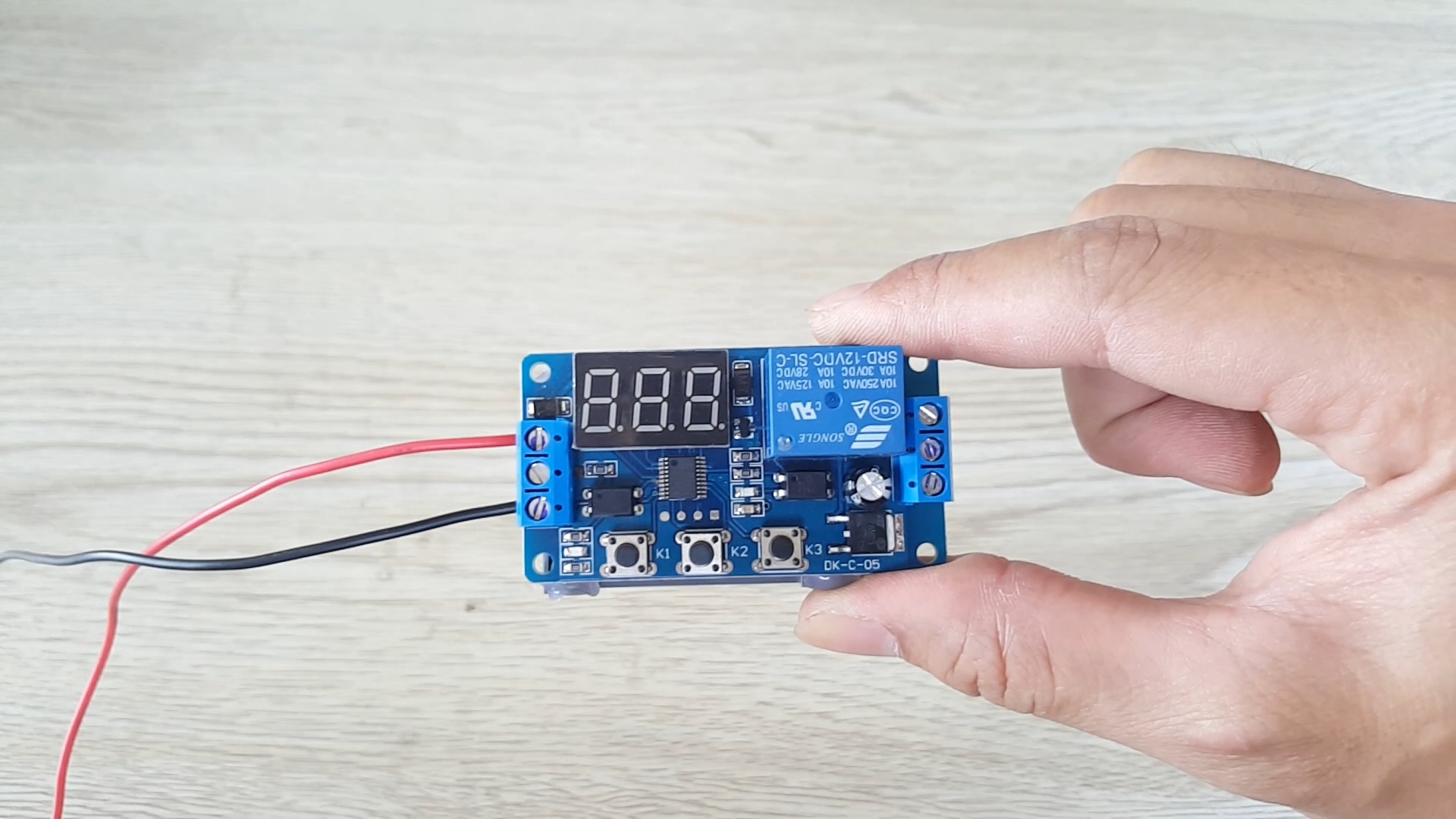

01. Timer

You try to use other types but there is a note that you should select the timer can set the value is 0.1s. Because if your transformer is of great value long time can burn nickel.

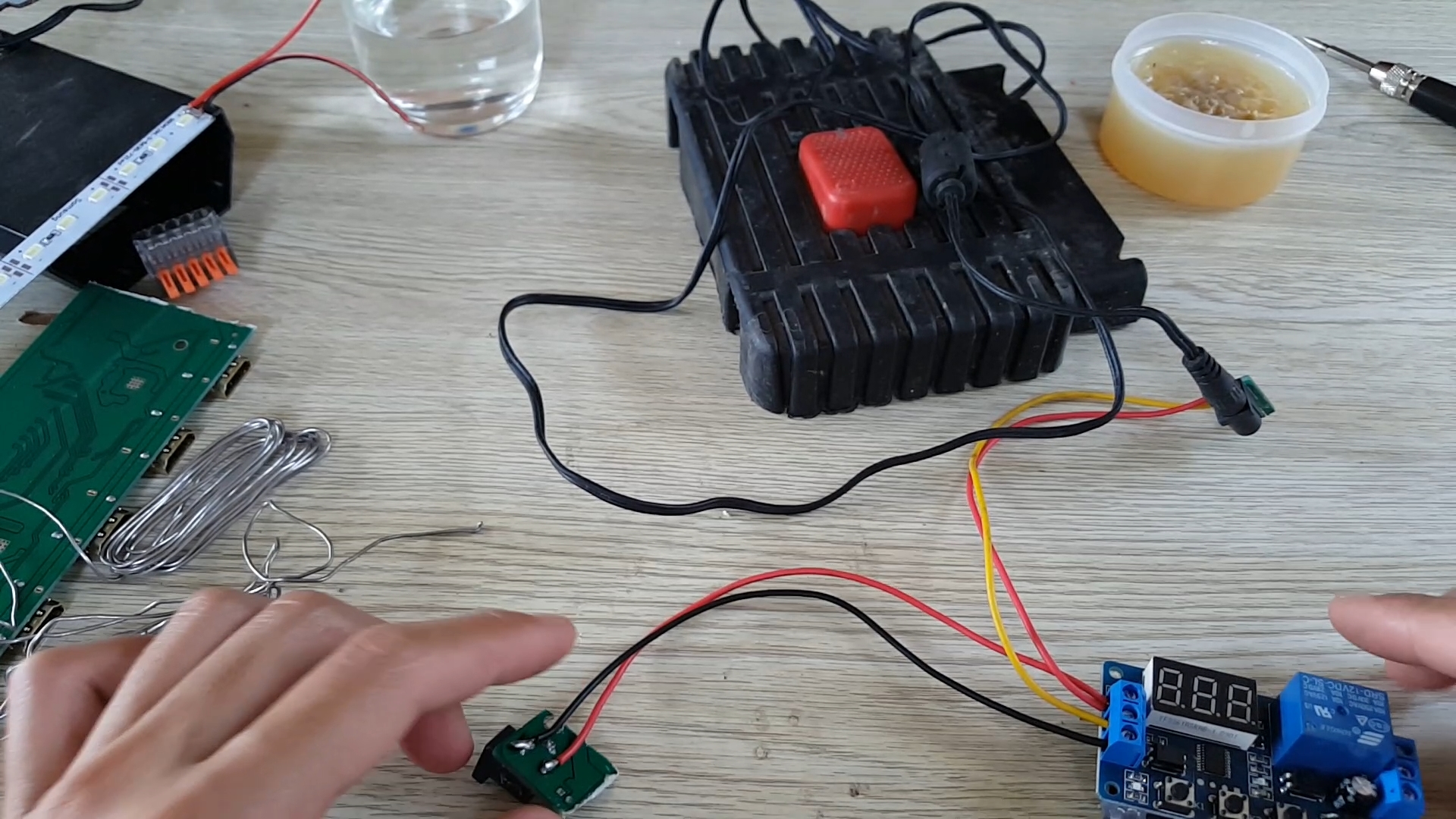

02. Switch

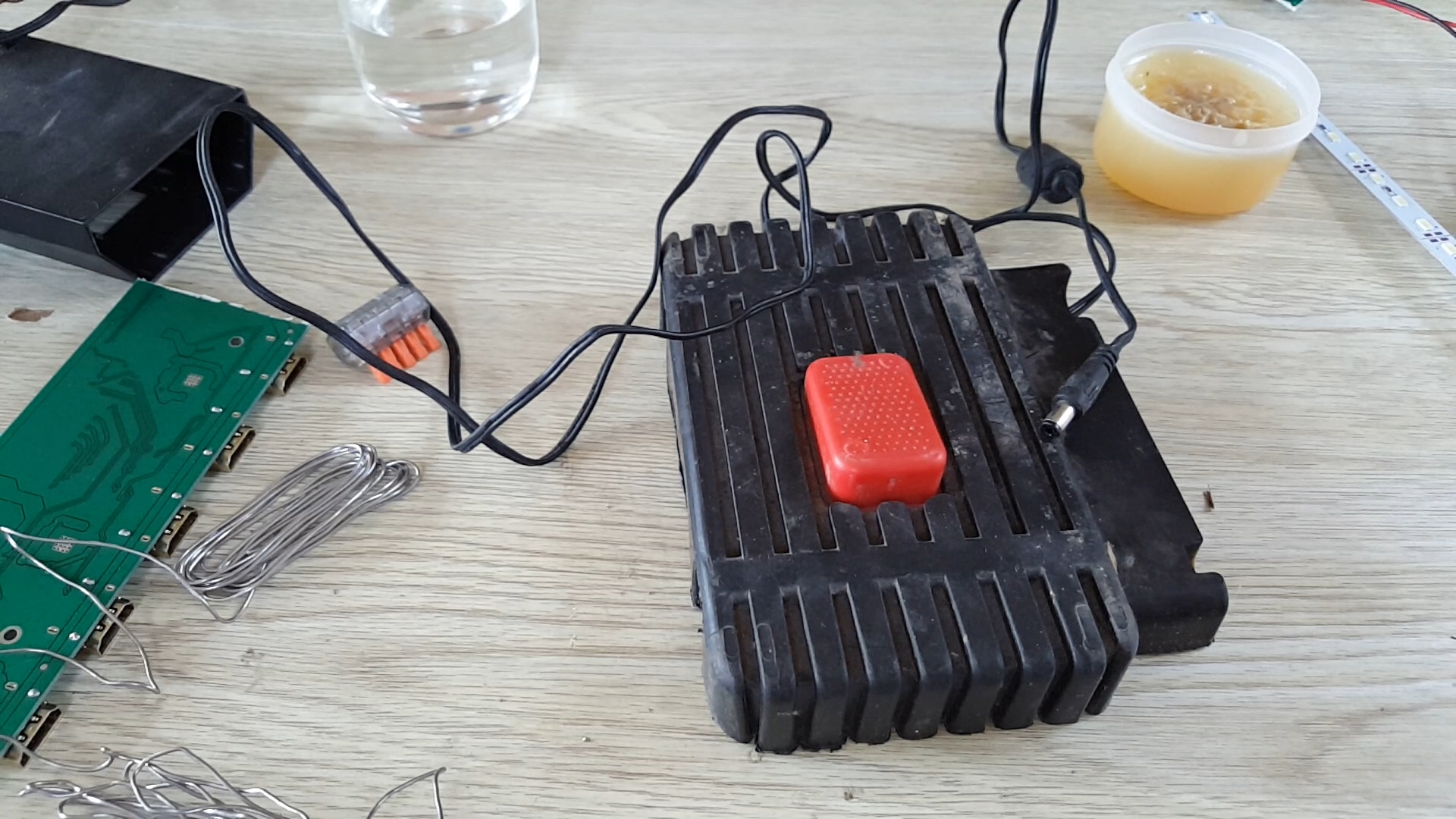

I use a foot pedal from old motor bike. You can use a button as step 1.

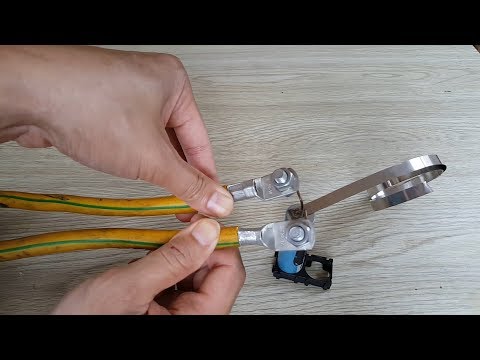

03. Welding Needle

I use a needle of electrical soldering iron gun. There are many options for you

I designed the module to avoid the wires.

Thanks for watching my friends. See you on next project
