Make a Camera Slider by Makeblock
by Makeblock Robotics in Circuits > Robots
12340 Views, 127 Favorites, 0 Comments
Make a Camera Slider by Makeblock
Have you ever imagined that you can also DIY your own camera slider? Yes, you saw it right! You just need several beams, a stepper motor, a MegaPi to build the main part, then a synchronous belt, and now your camera slider is done. As you see, the camera is fixed on the camera slider to take photos of the scene in front of it. Wow, it is so cool, isn't it? learn more
Openlab Selected - DIY Your Own Camera Slider
Notice:6*AA battery is suitable for mobile phone shooting. For professional camera, 2500mAh Dry Battery will be highly recommended.

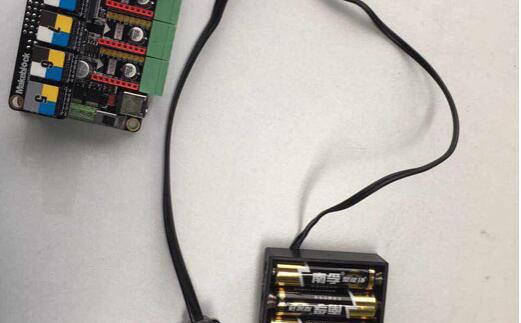

Prepare a MegaPi (including Motor Driver), Batteries and a Button Module First.
(all materials are from Makeblock)

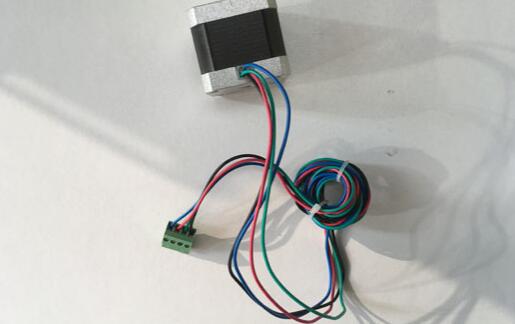

Prepare a 42BYG Stepper Motor With a 3.96-4P Green Plug.
(all materials are from Makeblock)
Connect 42BYG Stepper Motor, Batteries and Button Module to MegaPi.
(all materials are from Makeblock)

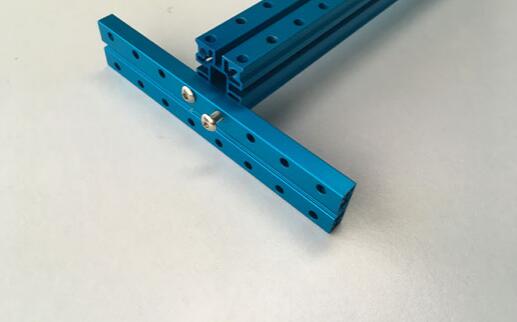

Build the Main Structure. Stabilize Slider Beam2424 -752-Blue and Beam0824-128-Blue As Below.
(all materials are from Makeblock)
Stabilize the Other Sides As Below.
(all materials are from Makeblock)

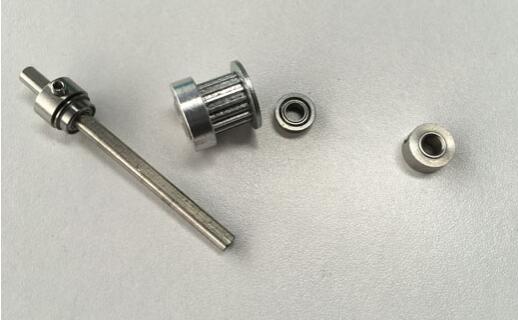

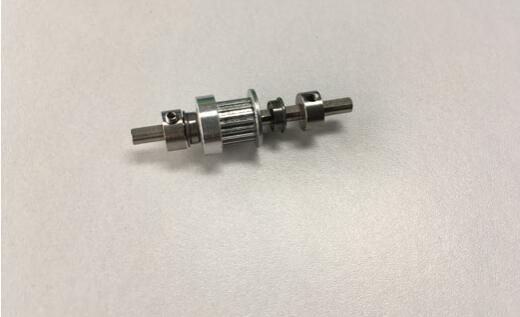

Prepare All the Materials and Put Them Together to Make a Shaft.
(all materials are from Makeblock)

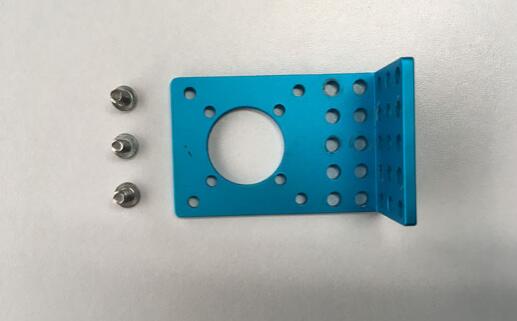

Prepare Screws and 42BYG Stepper Motor Bracket B-Blue
(all materials are from Makeblock)
Fix the Bracket on Slider Beam2424 -752-Blue
(all materials are from Makeblock)
Fix the Bracket on Slider Beam2424 -752-Blue.
(all materials are from Makeblock)

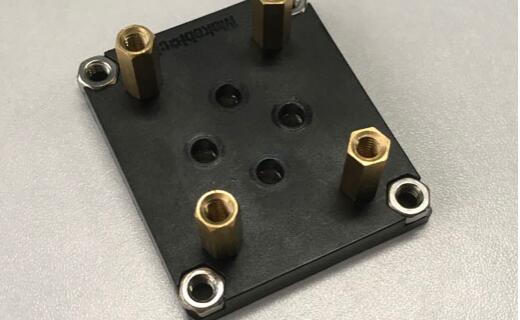

Prepare a Slider Plate and 4 Wheels. Firstly Install Four Copper Cylinders on the Plate, Then Install the Wheels on It.
(all materials are from Makeblock)
After That, Fix the Slider Plate on Slider Beam2424 -752-Blue.
(all materials are from Makeblock)
Prepare a Timing Belt (2m), Open-end.
(all materials are from Makeblock)
Then Prepare Two Belt Connectors and Connect Them Together.
(all materials are from Makeblock)
Stabilize the Belt by the Connectors, and Fix the Connectors on Slider Plate.
(all materials are from Makeblock)
Prepare a Plate With Four Copper Cylinders, and Fix It on Slider Plate
(all materials are from Makeblock)
Install a Camera Platform on a Quick Release Plate, Then Stabilize the Plate As Below.
(all materials are from Makeblock)
Finish
