Hi, my name is Jesse Stevens and I am in 10th grade. I heard about Fusion 360 Generative Design with its topology optimization from my brother and I wanted to use this tool for my bridge project. I was thinking about putting the bridge on Salem pond in Utah. I wanted to replace the bridge with the bridge I designed with Generative Design.
Supplies
- Fusion 360
- Fusion 360s Generative Design
Learn How to Use Generative Design
![Screen Shot 2023-07-01 at 11.54.46 AM.png](/proxy/?url=https://content.instructables.com/F00/1AWL/LJK0KM21/F001AWLLJK0KM21.png&filename=Screen Shot 2023-07-01 at 11.54.46 AM.png)
First and foremost, I have to learn How to Use Generative Design. So I used this instruction in Autodesk and went through the steps.
Create Your Bridge
![Screen Shot 2023-06-07 at 8.42.21 PM.png](/proxy/?url=https://content.instructables.com/FUL/EB7X/LJEASHQ6/FULEB7XLJEASHQ6.png&filename=Screen Shot 2023-06-07 at 8.42.21 PM.png)
![Screen Shot 2023-06-07 at 8.42.01 PM.png](/proxy/?url=https://content.instructables.com/F7U/PIHZ/LJEASIAN/F7UPIHZLJEASIAN.png&filename=Screen Shot 2023-06-07 at 8.42.01 PM.png)

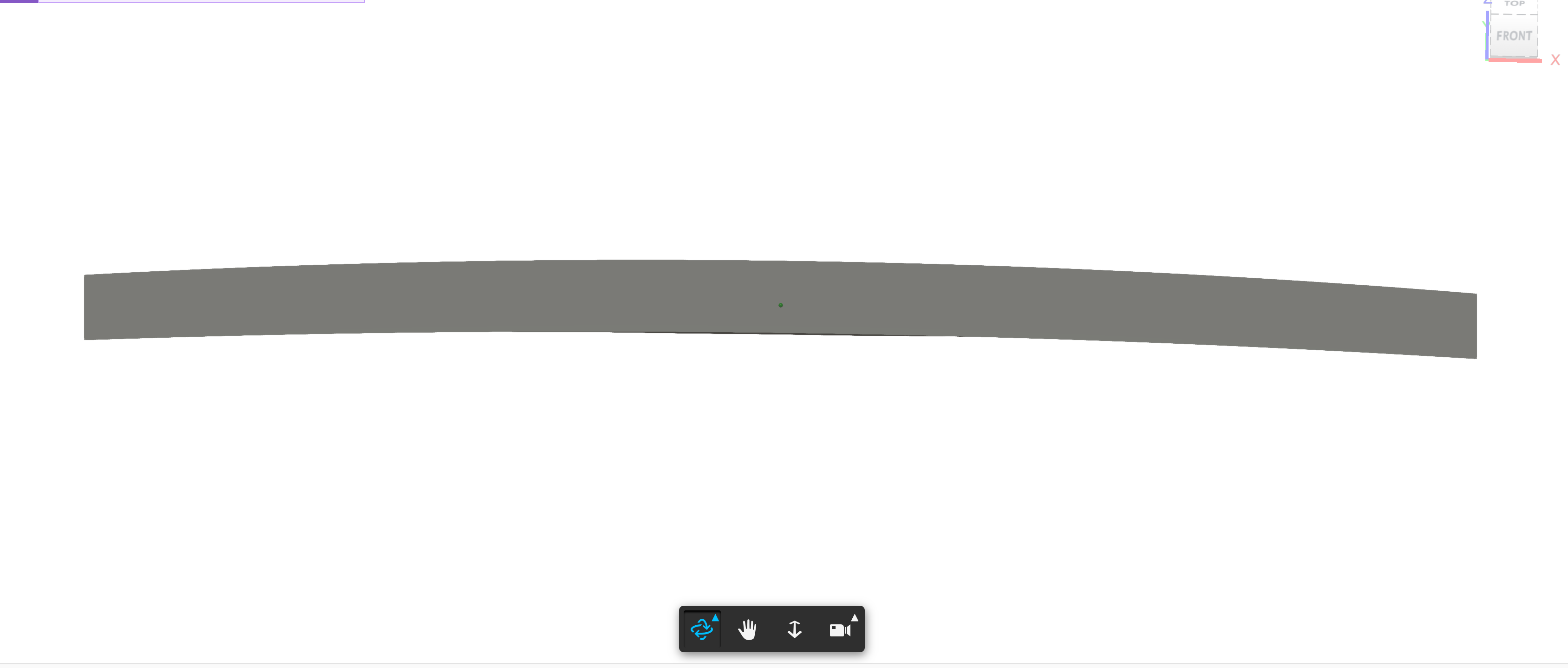

I sketched out the dimensions, and I applied the constraints as needed. Then I extruded the bridge.
Move Into Generative Design
![Screen Shot 2023-06-07 at 8.29.26 PM.png](/proxy/?url=https://content.instructables.com/FWR/FP9U/LJEASII2/FWRFP9ULJEASII2.png&filename=Screen Shot 2023-06-07 at 8.29.26 PM.png)
With the knowledge of how this works I am now ready, I then went into Generative Design. In Generative Design you have to pick which geometry is preserved and which is an obstacle geometry. I preserved the bridge and then I made the platforms at the end an obstacle geometry. Then I locked in place the two ends of the bridge. I did this so they wouldn't change in the Generative Design process. I also could specify the load it would carry. I specified the bridge to hold 500 lbs.
Press the Generative Design Button
I then could let the generative design run. The way Generative Design works is that it designs multiple out comes with your specifications. After it was done I can pick out what I thought looks good.
Try Try Agin
![Screen Shot 2023-06-08 at 9.16.35 AM.png](/proxy/?url=https://content.instructables.com/FWC/DXZQ/LJEASJK9/FWCDXZQLJEASJK9.png&filename=Screen Shot 2023-06-08 at 9.16.35 AM.png)
![Screen Shot 2023-06-08 at 8.59.54 AM.png](/proxy/?url=https://content.instructables.com/F5D/LB95/LJEASJKF/F5DLB95LJEASJKF.png&filename=Screen Shot 2023-06-08 at 8.59.54 AM.png)
![Screen Shot 2023-06-07 at 8.46.50 PM.png](/proxy/?url=https://content.instructables.com/FDW/98AX/LJEASJKI/FDW98AXLJEASJKI.png&filename=Screen Shot 2023-06-07 at 8.46.50 PM.png)
![Screen Shot 2023-06-08 at 9.16.17 AM.png](/proxy/?url=https://content.instructables.com/FYL/WXRT/LJEASJK8/FYLWXRTLJEASJK8.png&filename=Screen Shot 2023-06-08 at 9.16.17 AM.png)
![Screen Shot 2023-06-08 at 7.52.18 AM.png](/proxy/?url=https://content.instructables.com/FSL/K3II/LJEASJKM/FSLK3IILJEASJKM.png&filename=Screen Shot 2023-06-08 at 7.52.18 AM.png)
![Screen Shot 2023-06-07 at 8.50.15 PM.png](/proxy/?url=https://content.instructables.com/F31/K26U/LJEASJKJ/F31K26ULJEASJKJ.png&filename=Screen Shot 2023-06-07 at 8.50.15 PM.png)
![Screen Shot 2023-06-08 at 9.04.24 AM.png](/proxy/?url=https://content.instructables.com/FHG/35QE/LJEASJK7/FHG35QELJEASJK7.png&filename=Screen Shot 2023-06-08 at 9.04.24 AM.png)
![Screen Shot 2023-06-08 at 8.27.04 AM.png](/proxy/?url=https://content.instructables.com/F2C/1VVW/LJEASJKN/F2C1VVWLJEASJKN.png&filename=Screen Shot 2023-06-08 at 8.27.04 AM.png)
The first run ended and I couldn't find a good bridge to use. I tried again and again. Using different modifications to the parameters in generative design. I made the bridge thicker so it could carry more weight. It still didn't work, so I tried a flat bridge. I failed again. With no thought to how to fix this, I tried again with my original design hoping this time it would succeed.
Generative Design
![Screen Shot 2023-06-07 at 3.33.48 PM.png](/proxy/?url=https://content.instructables.com/F5U/DUCT/LJEASKMI/F5UDUCTLJEASKMI.png&filename=Screen Shot 2023-06-07 at 3.33.48 PM.png)
![Screen Shot 2023-06-07 at 1.27.53 PM.png](/proxy/?url=https://content.instructables.com/FRW/W48E/LJEASKPC/FRWW48ELJEASKPC.png&filename=Screen Shot 2023-06-07 at 1.27.53 PM.png)

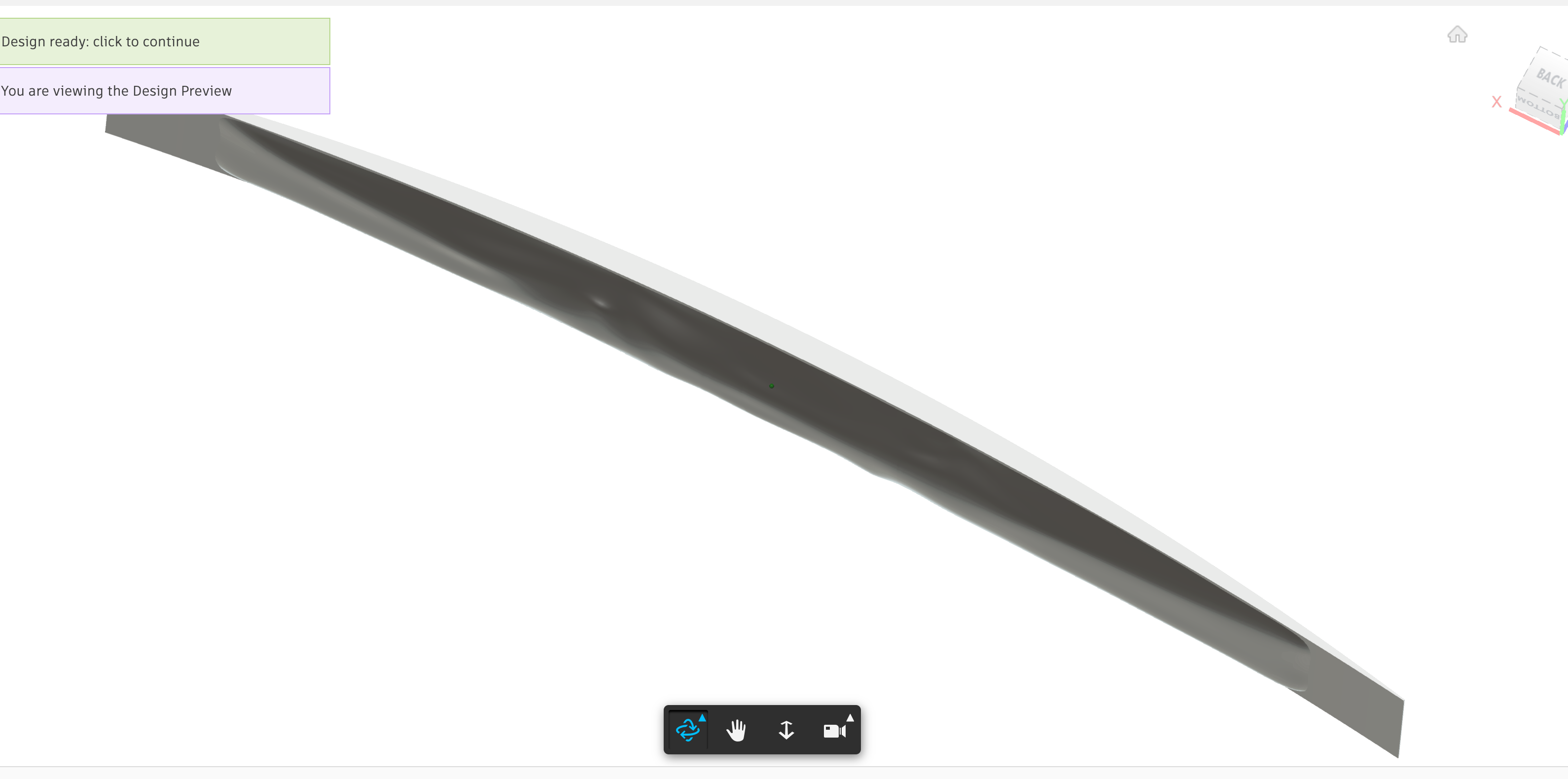

I finally succeeded! And I picked and took two bridges that were the best. I am still not sure why when I went back to the original design it worked. I could have changed something I didn't realize, or maybe the algorithms was just showing me different designs each time. Either way its time to choose the bridge that suits my needs.
Choose Your Design
![Screen Shot 2023-06-07 at 1.27.53 PM.png](/proxy/?url=https://content.instructables.com/F3B/MISD/LJEASKKW/F3BMISDLJEASKKW.png&filename=Screen Shot 2023-06-07 at 1.27.53 PM.png)
And then I chose the final design that would be my bridge.
Downloads
3D Print
![IMG_20230706_080856372.jpg](/proxy/?url=https://content.instructables.com/FXW/L7YK/LJR5R8B4/FXWL7YKLJR5R8B4.jpg&filename=IMG_20230706_080856372.jpg)
Now just 3D print it and your finished!
