Make a 5MM Led Toggle on Off Button

I've made a 5mm led with resistor pre built in. You can prepare a led like i have did or use a breadboard and resistor seperately if you want (that was too messy for me so i made my own)

Raspberry pi (any with header pins except pico)

5MM Led

Resistor suitable for your LED (if you havent made it built in or purchased it with pre built in the led)

A touch sensor

Female to female jumper cable for the sensor

First of all get 2 jumper cables (one end must be female). Cut the other end from the near of it so they dont have length differences. Strip the 2 jumper cables equally and determine the + and - Leg of your pin. Calculate the resistance value (formula is Resistance = Voltage / Current). Cut the + Leg so that when the resistor is soldered, it doesnt effect the length of the leg. Solder it, let cool down the LED. Get one of the jumper cable and solder to the end of the resistor and the other jumper cable to the other leg. Use a third hand stand for easier soldering or get help from someone you know.

After soldering, add individual heat shrink tubes to both of the legs for insulation and a main insulation after the leg insulation is completed. Connect the + Jumper cable to GPIO17 and - To GND

Connect your led with your accurate resistor, + pin to GPIO17 - pin to GND

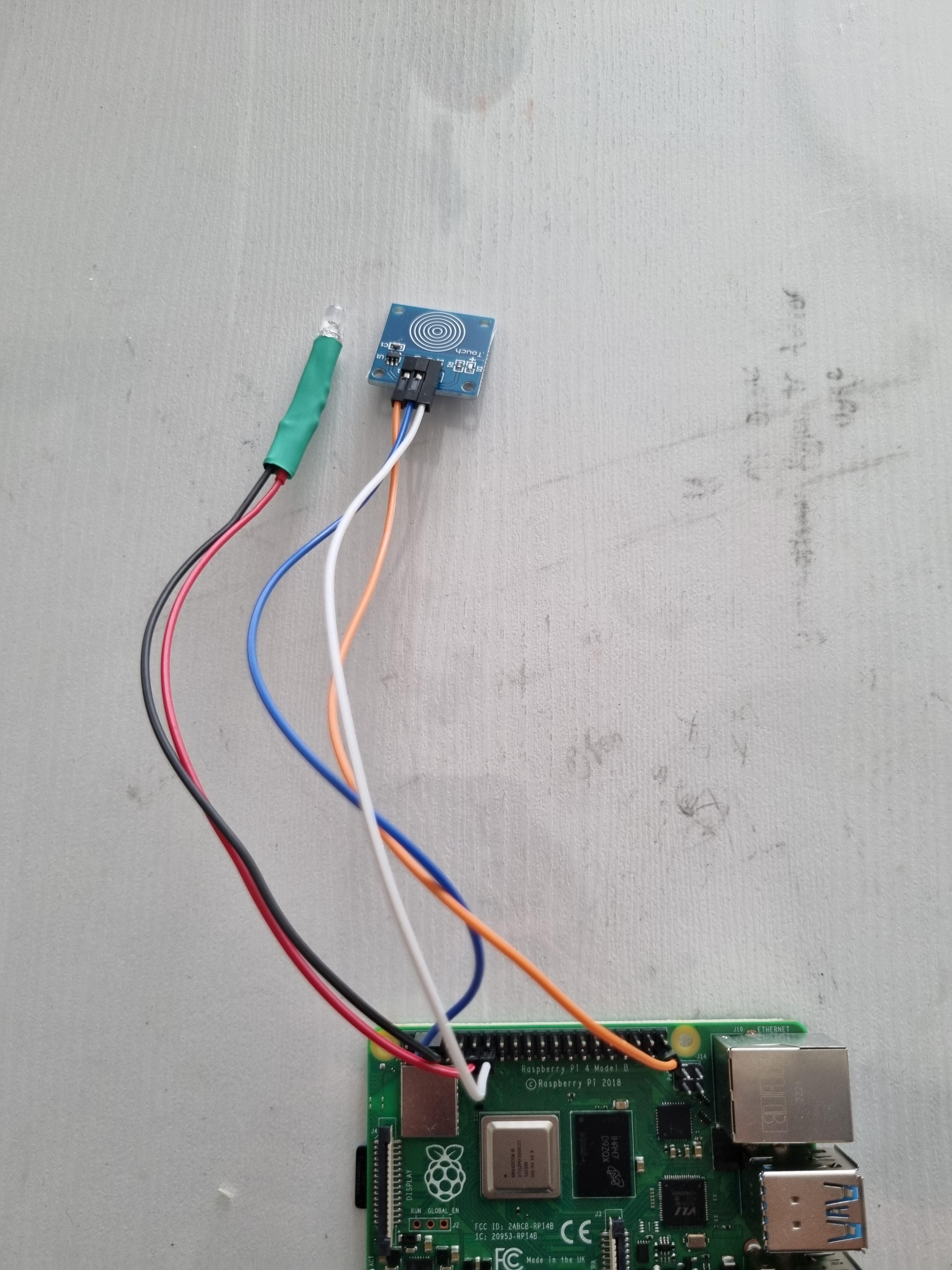

Connect GND to GND VCC to 5V and IO to GPIO27

Install Python3 on your Pi using

sudo apt-get install python3

Install Python IDLE on your Pi using

sudo apt-get install idle3

Open IDLE and click New File

import RPi.GPIO as GPIO
import time

# Set the GPIO mode and the pin numbers for the touch sensor and LED
GPIO.setmode(GPIO.BCM)
touch_pin = 27
led_pin = 17

# Setup the touch sensor pin as input and the LED pin as output
GPIO.setup(touch_pin, GPIO.IN)
GPIO.setup(led_pin, GPIO.OUT)

# Variable to keep track of the LED state (True for ON, False for OFF)
led_state = False

try:
    while True:
        if GPIO.input(touch_pin) == GPIO.HIGH:
            led_state = not led_state  # Toggle the LED state
            GPIO.output(led_pin, led_state)  # Turn on/off the LED based on the state
            if led_state:
                print("Light: ON")
            else:
                print("Light: OFF")
            time.sleep(0.5)  # Debounce delay to avoid multiple toggles on a single touch
        else:
            # Optional: You can include an LED OFF statement here if desired.
            pass
except KeyboardInterrupt:
    print("\nExiting...")
finally:
    GPIO.cleanup()

Save it as lightbutton.py in Desktop

Open terminal and run the 2 commands

cd Desktop
sudo python3 lightbutton.py

Press the touch sensor and the light will enable, press it again and it will disable.

Ask your questions if you got some! (:
