Make Your Own Photovoltaic Off-Grid System

In this project I will show you how I combined a 100W solar panel, a 12V 100Ah battery, a solar charge controller, an inverter and many complementary components to reconstruct the electrical wiring inside my garage and create a photovoltaic off-grid system. Let's get started!

The video gives you all the information you need to create your own photovoltaic off-grid system. During the next steps though I will present you additional information to make the project easier to replicate.

Here you can find a parts list with example sellers (affiliate links).

Home Improvement Store:

NYM-J wire, JY(St)Y wire, LS-FL wire, wire clips, M16 installation conduit, junction boxes, light switch, sockets, wago terminals

Aliexpress:

100W Solar Panel: https://s.click.aliexpress.com/e/_d7AkESi

Solar wire + MC4 connectors: https://s.click.aliexpress.com/e/_dUiTfAm

https://s.click.aliexpress.com/e/_d8jDlp8

Solar Charge Controller: https://s.click.aliexpress.com/e/_dSgI5AQ

12V 100Ah Battery: https://s.click.aliexpress.com/e/_dZXneZs

Inverter: https://s.click.aliexpress.com/e/_d70jwtC

Reed switch: https://s.click.aliexpress.com/e/_dSNZyKS

Amazon.de:

100W Solar Panel: http://amzn.to/2rK1YXd

Solar wire + MC4 connectors: http://amzn.to/2soYg7p

Solar Charge Controller: http://amzn.to/2soVeA5

12V 100Ah Battery: http://amzn.to/2tBrTS3

Battery terminals: http://amzn.to/2sozvbp

Inverter: http://amzn.to/2tBqQSo

Reed switch: http://amzn.to/2tBxdVL

LED strip: http://amzn.to/2soZy2d

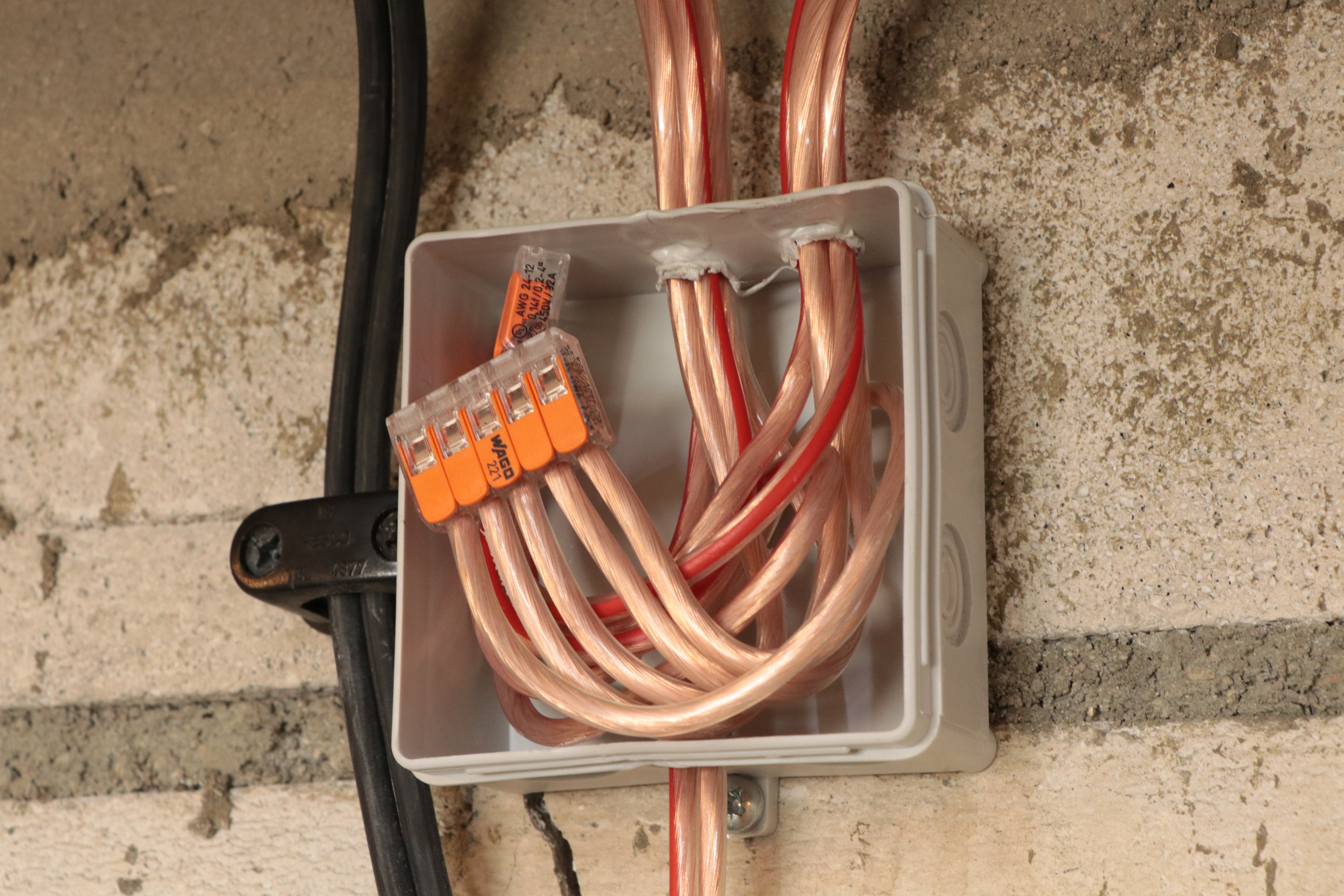

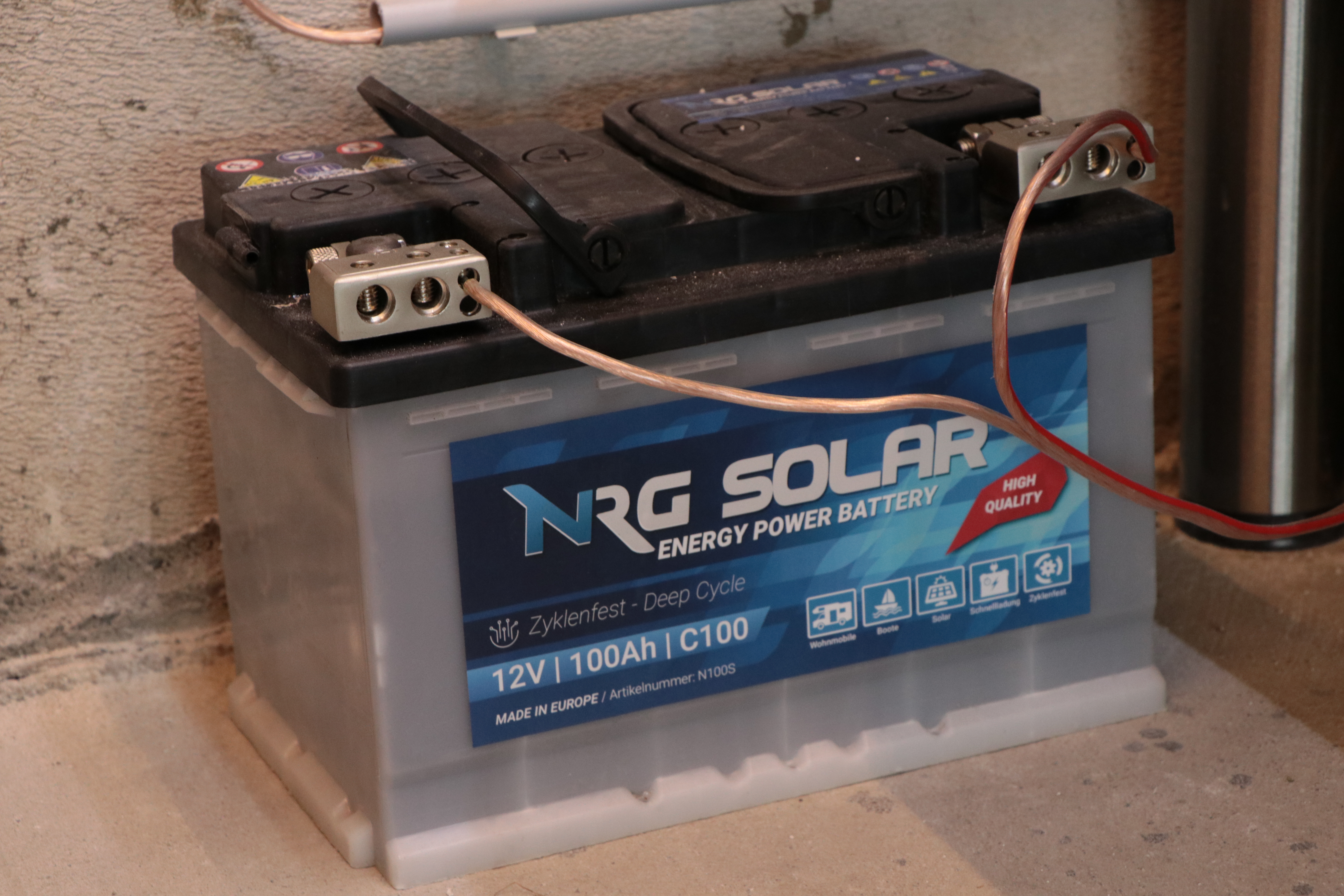

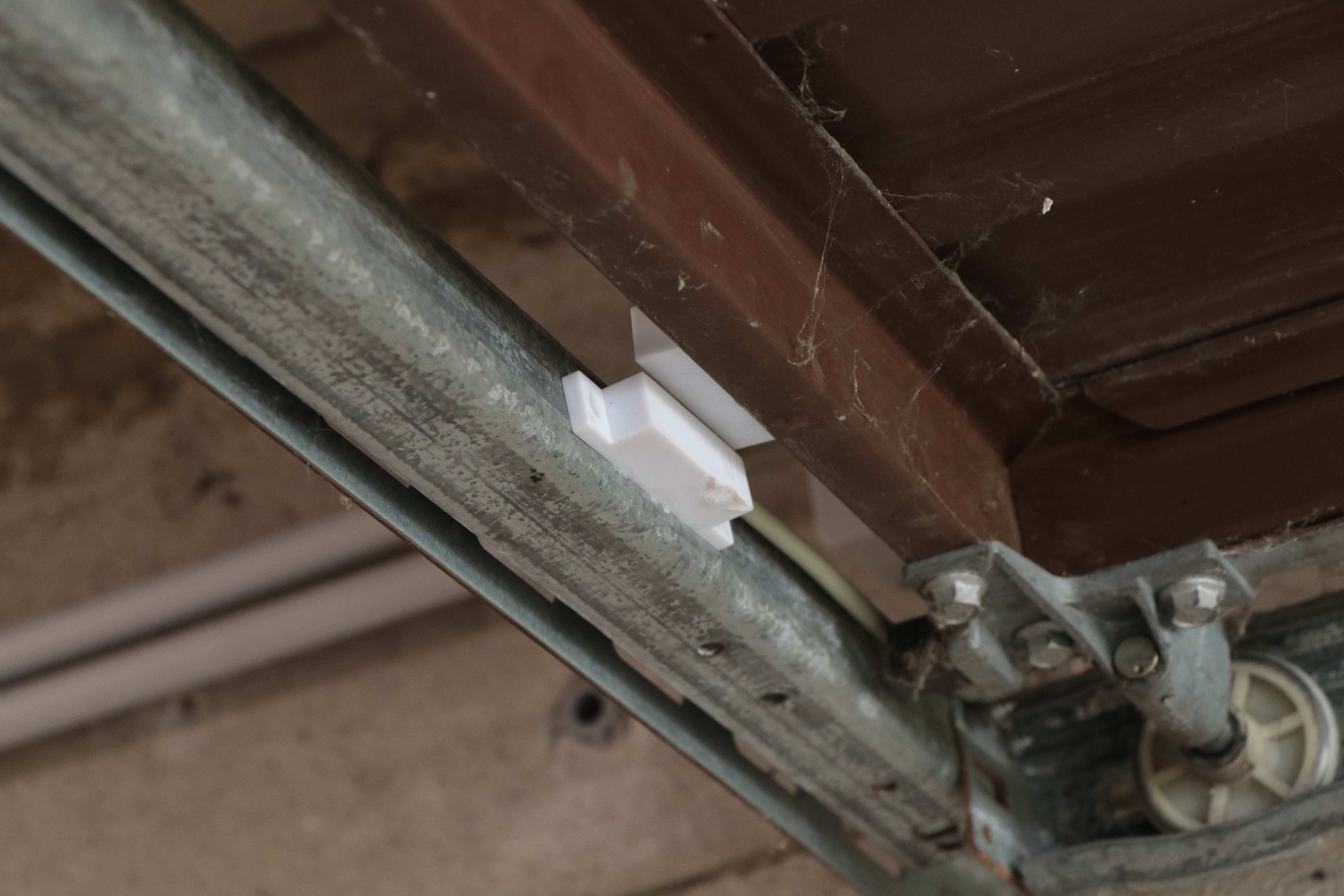

Here you can find the wiring plan along with reference pictures of my setup. Feel free to recreate my wiring but be careful when working with the inverter output since it can create 230V AC. And if something like this is your first electrical wiring project then it is always a good idea to get some help from a professional because a faulty wiring can lead to a fire hazard and other problems.

You did it! You just created your own photovoltaic off-grid system!
