Make Your Own Music Reactive LED Lights to Enhance Your Music Experience.
by Xtropie in Circuits > Electronics
492 Views, 2 Favorites, 0 Comments
Make Your Own Music Reactive LED Lights to Enhance Your Music Experience.
![Instructable.png](/proxy/?url=https://content.instructables.com/FJA/HIKY/LBDNUODQ/FJAHIKYLBDNUODQ.png&filename=Instructable.png)
In this video, I will show you how I program a WS2812B addressable led through ESP8266uC and successfully make music-reactive led lights to enhance our music-listening experience.
Watch the Video!
![Make your own music reactive LED lights to enhance your music experience](/proxy/?url=https://content.instructables.com/FU5/ANVJ/LBDZ5IP3/FU5ANVJLBDZ5IP3.jpg&filename=Make your own music reactive LED lights to enhance your music experience)
Make sure to watch the video. It will give you pretty much all the information you need. During the next steps though, I will present you some additional information.
Build the Circuit!

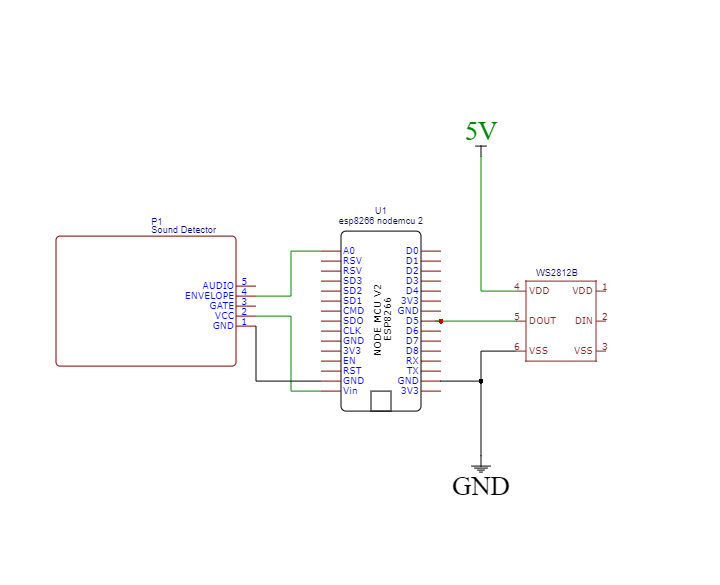

![Schematic_WS2812B.png](/proxy/?url=https://content.instructables.com/F0H/URS0/LBDNUNUS/F0HURS0LBDNUNUS.png&filename=Schematic_WS2812B.png)
Here you can find the schematic of the project along with pictures. Use them as a reference when building your own.
Downloads
Success!
![Image.png](/proxy/?url=https://content.instructables.com/F9Z/8940/LBDNUOFL/F9Z8940LBDNUOFL.png&filename=Image.png)
You did it! You just make Your Own Music Reactive LED.
