Make Smartphone Stand With Plastic Flexible Pipe.
![20191112224021.JPG](/proxy/?url=https://content.instructables.com/FR7/I0V0/K2V2AB7D/FR7I0V0K2V2AB7D.jpg&filename=20191112224021.JPG)

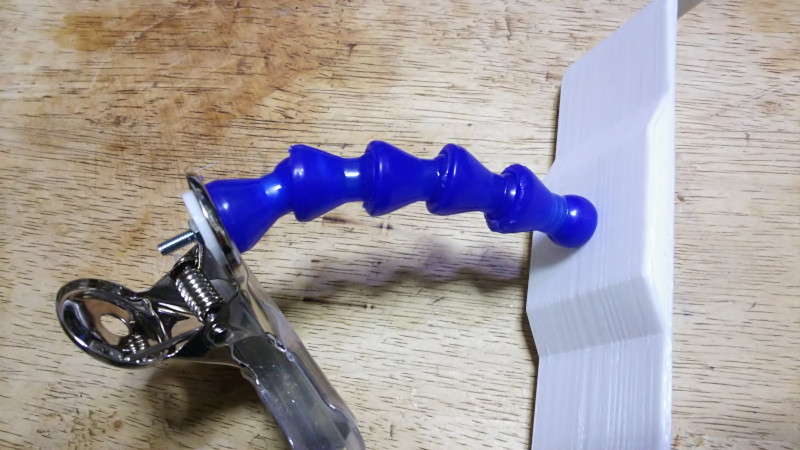

Smartphone mounter stand by Bulldog clip, Flexible Pipe and 3D Printer part.
Items for Making.
![Plastic Flexible Adjustable Pipe.jpg](/proxy/?url=https://content.instructables.com/F4F/T4YI/K2V2AB52/F4FT4YIK2V2AB52.jpg&filename=Plastic Flexible Adjustable Pipe.jpg)
![M8 phillips flat countersunk head screw.jpg](/proxy/?url=https://content.instructables.com/FET/6WSY/K2V2AB1W/FET6WSYK2V2AB1W.jpg&filename=M8 phillips flat countersunk head screw.jpg)
![Plastic Gauge Contour Profile Copy Gauge Duplicator.jpg](/proxy/?url=https://content.instructables.com/F47/HS66/K2V2AB1Z/F47HS66K2V2AB1Z.jpg&filename=Plastic Gauge Contour Profile Copy Gauge Duplicator.jpg)
![M8 Screw Tap.jpg](/proxy/?url=https://content.instructables.com/FW1/TDIC/K2V2AB1X/FW1TDICK2V2AB1X.jpg&filename=M8 Screw Tap.jpg)
![Document Scanner.jpg](/proxy/?url=https://content.instructables.com/FP0/7Z17/K2V2AB1V/FP07Z17K2V2AB1V.jpg&filename=Document Scanner.jpg)
![TEVO Tarantula.jpg](/proxy/?url=https://content.instructables.com/F0V/SSOS/K2V2AB53/F0VSSOSK2V2AB53.jpg&filename=TEVO Tarantula.jpg)
![Bulldog Clip.jpg](/proxy/?url=https://content.instructables.com/F6A/MSCH/K2V2AB54/F6AMSCHK2V2AB54.jpg&filename=Bulldog Clip.jpg)

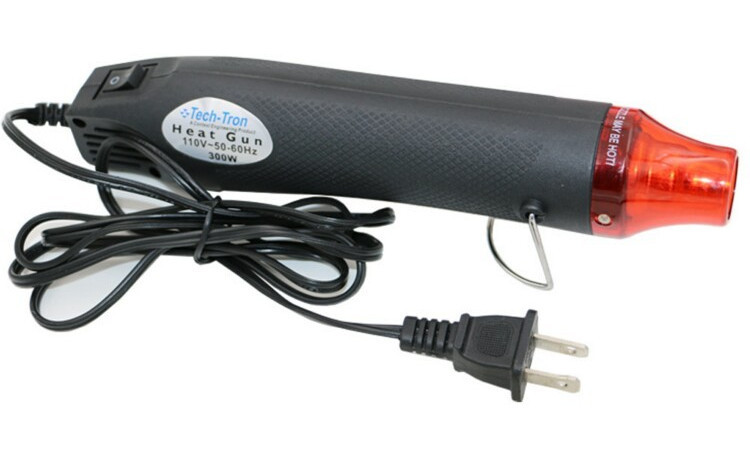

![Hot Air Gun.jpg](/proxy/?url=https://content.instructables.com/FAA/5AHN/K2V2ABHT/FAA5AHNK2V2ABHT.jpg&filename=Hot Air Gun.jpg)
Plastic Flexible Adjustable Pipe http://s.click.aliexpress.com/e/k5Bpoe8u
M8 phillips flat countersunk head screw http://s.click.aliexpress.com/e/k2FGHIz2
Plastic Gauge Contour Profile Copy Gauge Duplicator http://s.click.aliexpress.com/e/4L6p9GSG

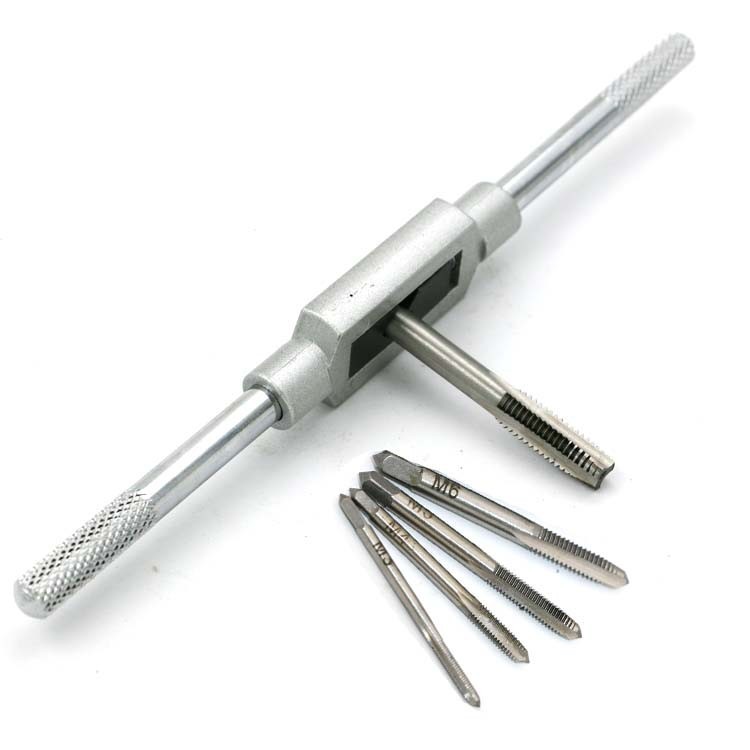

M8 Screw Tap http://s.click.aliexpress.com/e/dusdbAjO
Document Scanner http://s.click.aliexpress.com/e/FXQdp60u
3D Printer TEVO Tarantula http://s.click.aliexpress.com/e/2MIztiBW

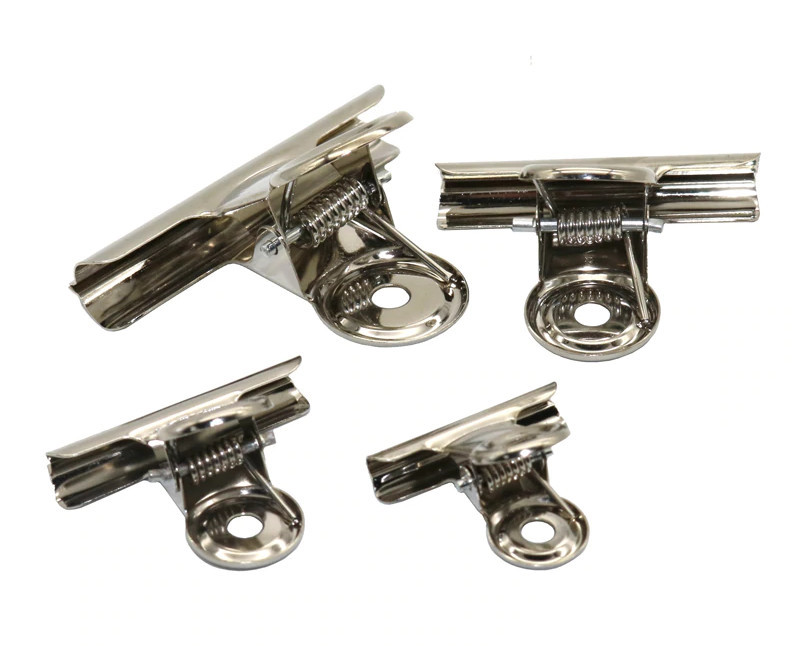

Bulldog Clip http://s.click.aliexpress.com/e/KHTAgUVS
Hot Air Gun http://s.click.aliexpress.com/e/ELkIpjMy
Get the Shape of Smartphone.
![20191025-163736-0-.jpg](/proxy/?url=https://content.instructables.com/FTN/838Q/K2V2AB7H/FTN838QK2V2AB7H.jpg&filename=20191025-163736-0-.jpg)
Adjust the gauge to smartphone and scann it with document scanner.
You will get photo llike this.
Make 3D Data for Printer.
I use Blender to make 3D data for 3D printer.
Blender Background.
![blen_smapho_01.jpg](/proxy/?url=https://content.instructables.com/FTS/E2S2/K2V2ABTU/FTSE2S2K2V2ABTU.jpg&filename=blen_smapho_01.jpg)
Import scanned smartphone shape into blender as Background.
Add Bezier Curve.
![blen_smapho_02.jpg](/proxy/?url=https://content.instructables.com/FCO/0TIN/K2V2ABTV/FCO0TINK2V2ABTV.jpg&filename=blen_smapho_02.jpg)
Trace smartphone shape with bezier curve.
Screw Hole.
![blen_smapho_03.jpg](/proxy/?url=https://content.instructables.com/F25/42J8/K2V2ABTT/F2542J8K2V2ABTT.jpg&filename=blen_smapho_03.jpg)

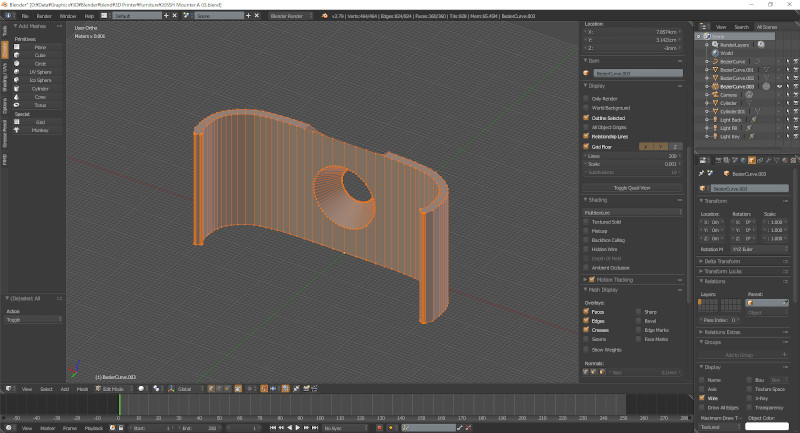

Make hole for M8 countersunk head screw bolt.
A Part of Flexible Pipe.
![Hot Air Gun.jpg](/proxy/?url=https://content.instructables.com/FGU/F2V6/K2V2ACDY/FGUF2V6K2V2ACDY.jpg&filename=Hot Air Gun.jpg)
![20191108142737.JPG](/proxy/?url=https://content.instructables.com/FRT/13ZR/K2V2AB7I/FRT13ZRK2V2AB7I.jpg&filename=20191108142737.JPG)
You can segment a part of flexible pipe by heating it with hot air gun.
Tap.
![M8 Screw Tap.jpg](/proxy/?url=https://content.instructables.com/FNW/O717/K2V2ACI4/FNWO717K2V2ACI4.jpg&filename=M8 Screw Tap.jpg)
![20191108142737.JPG](/proxy/?url=https://content.instructables.com/FPR/ND4Q/K2V2ACIT/FPRND4QK2V2ACIT.jpg&filename=20191108142737.JPG)

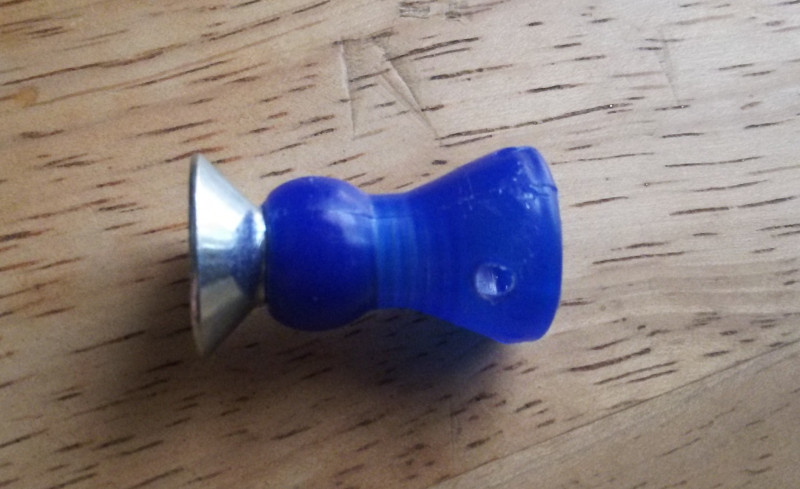

Tap and make a M8 screw hole on a part of flexible pipe by screw tap.
Assemble.
![20191108223235.JPG](/proxy/?url=https://content.instructables.com/FJV/Z4PN/K2V2AB7T/FJVZ4PNK2V2AB7T.jpg&filename=20191108223235.JPG)
![20191113134438.JPG](/proxy/?url=https://content.instructables.com/FPK/ZPC9/K2WL3C8J/FPKZPC9K2WL3C8J.jpg&filename=20191113134438.JPG)
![20191113134255.JPG](/proxy/?url=https://content.instructables.com/FGV/0QZT/K2WL3C8K/FGV0QZTK2WL3C8K.jpg&filename=20191113134255.JPG)

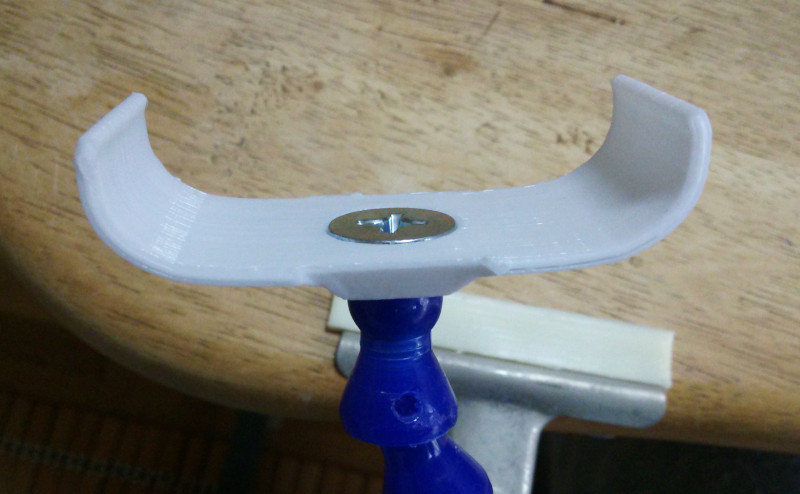

Assemble the parts.
