Make Pvc Pipe Cage - Pvc Projects

In this tutorial I am going to make PVC pipe cage by using pvc pipes of the length of 1 inches which is a normal pvc pipe for water supply but can be use in a lot of projects , making pvc cage by using pvc pipe is simple and easy project.

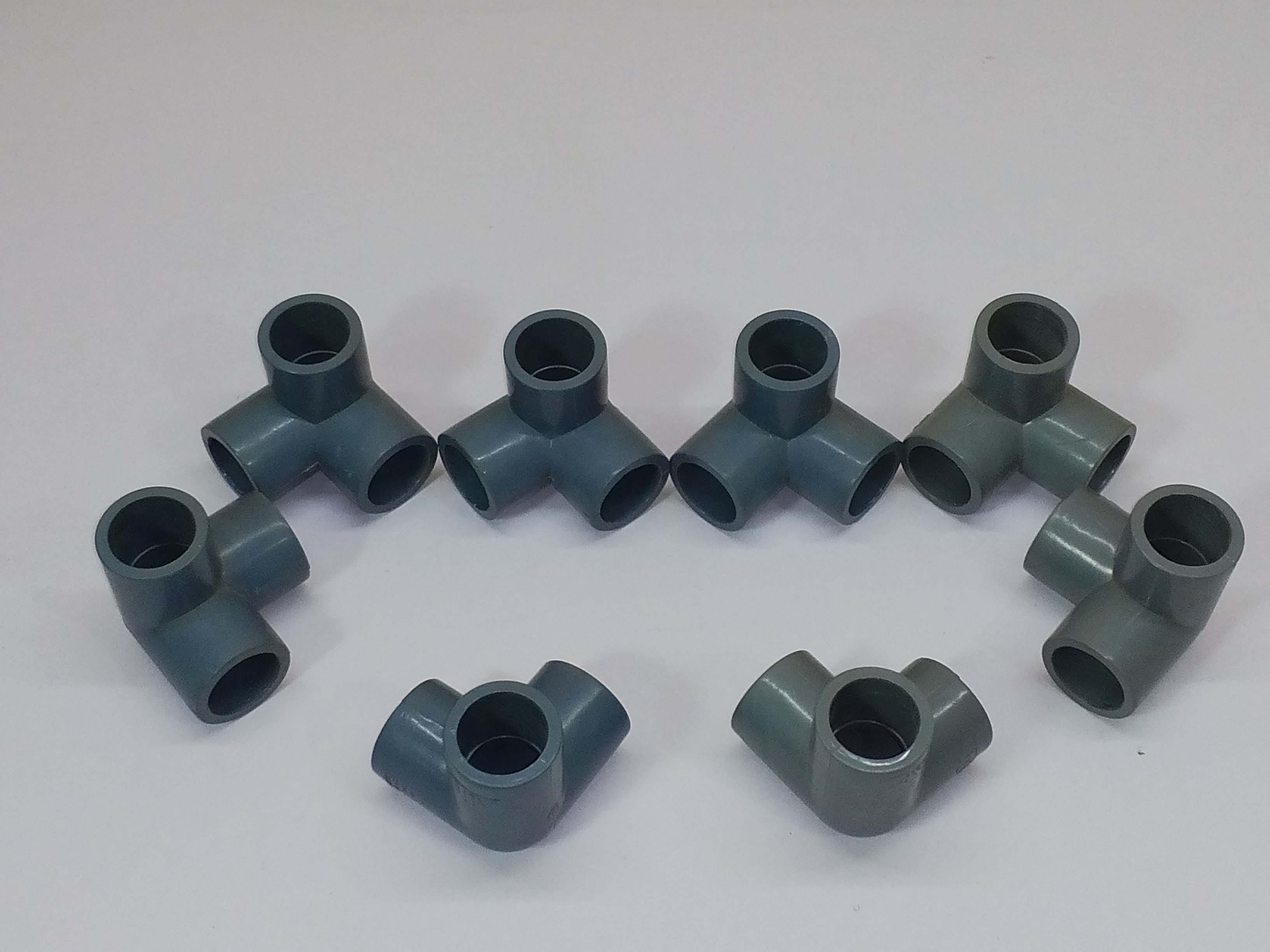

3 way elbow x 8

Pvc pipes 12 inches length x 16

Net wire according to size

Cable Ties

Elbow x 4

Door Knob

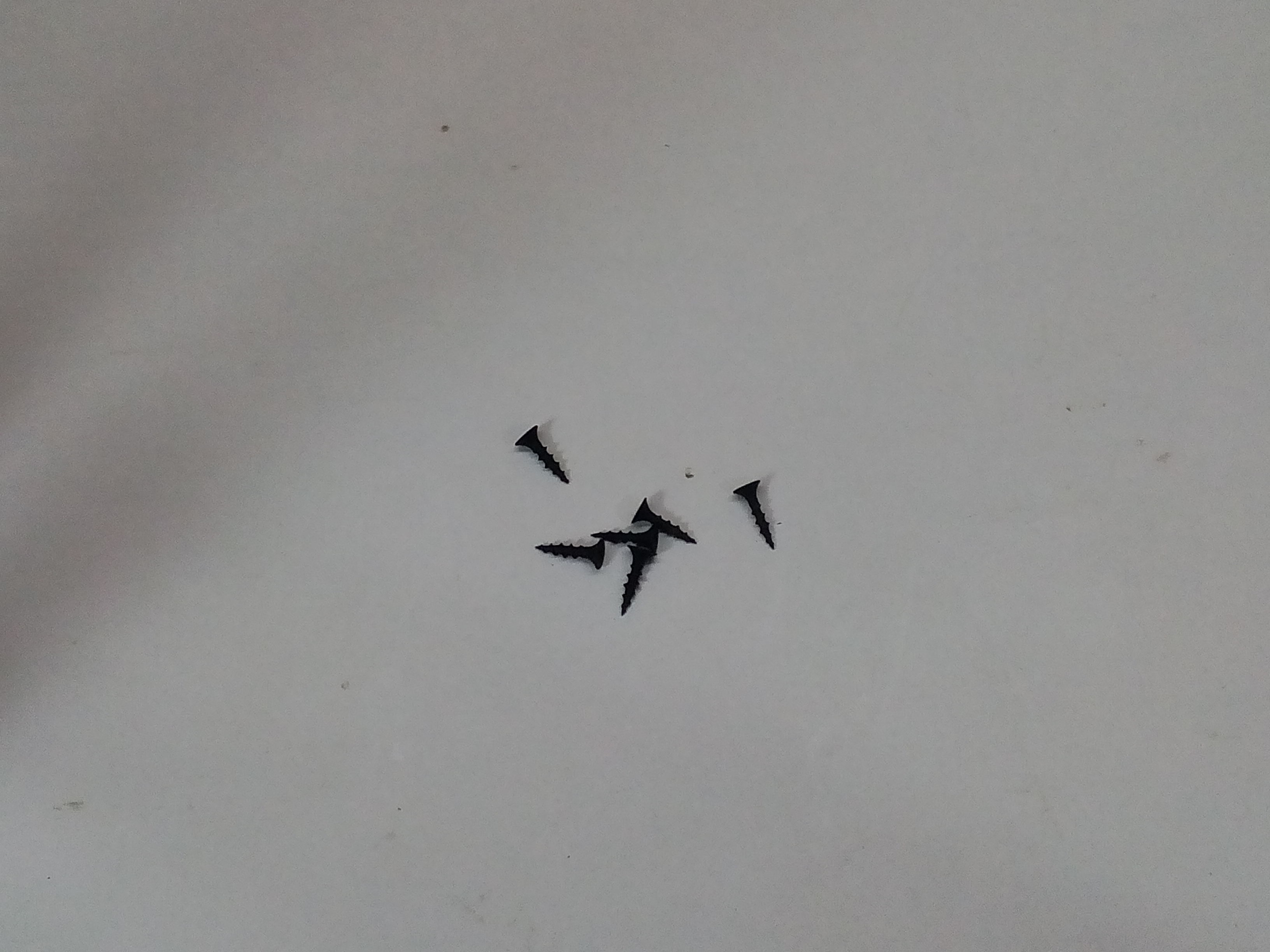

1 inches screws x 24

Door hinge

Door lock

16"x16" plyboard

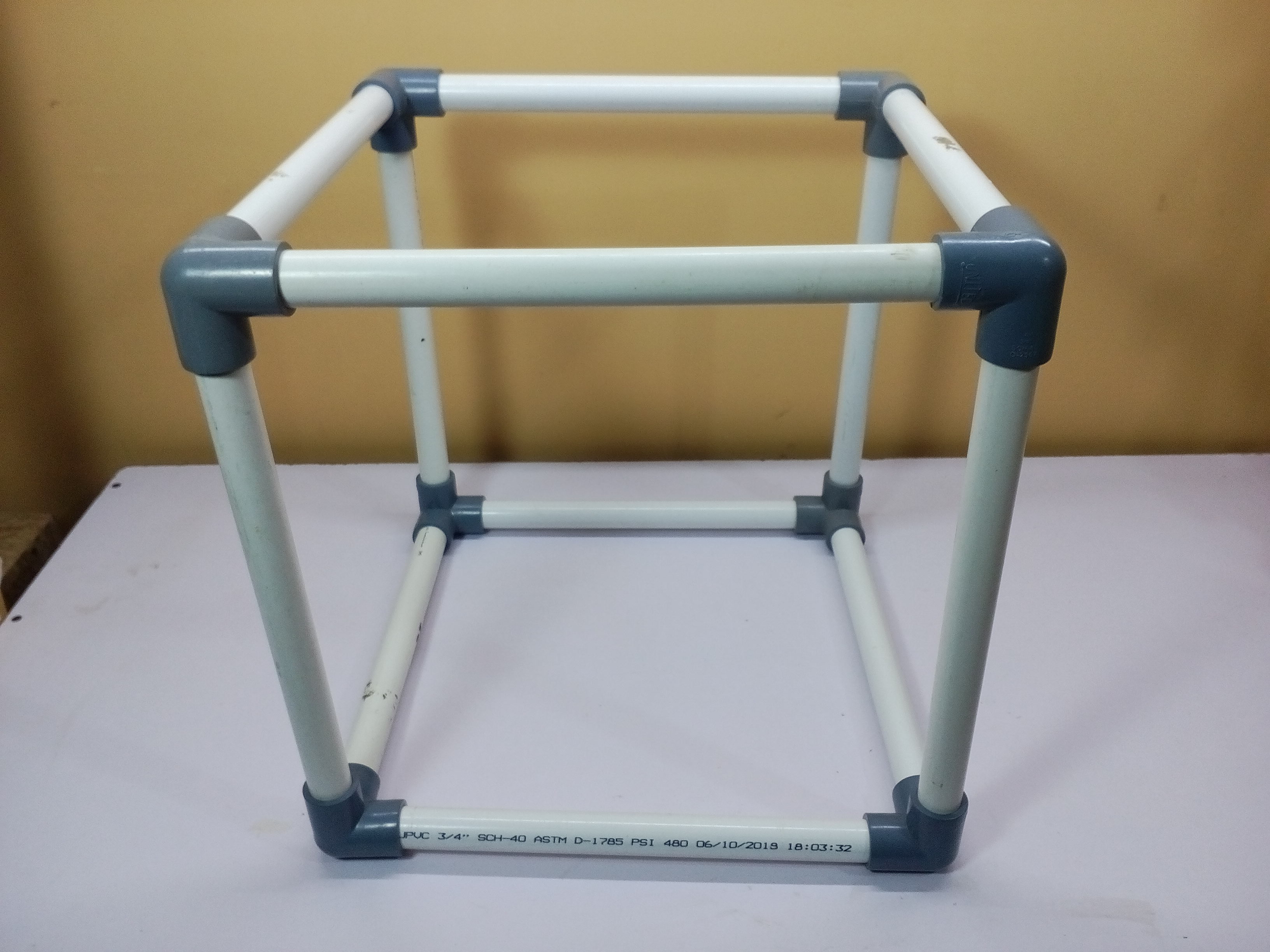

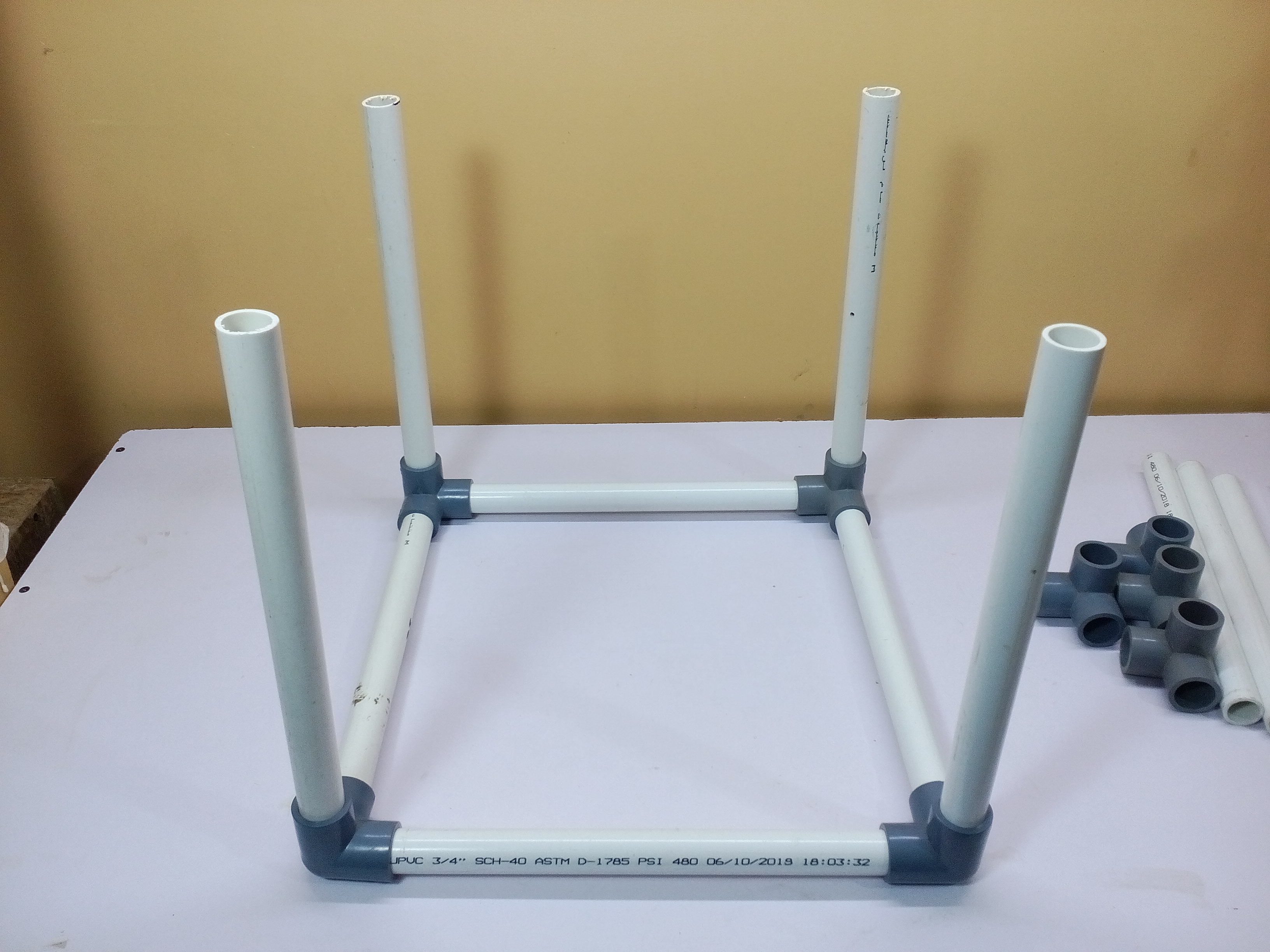

Join all the pvc pipes to 3 way elbows making a square shape

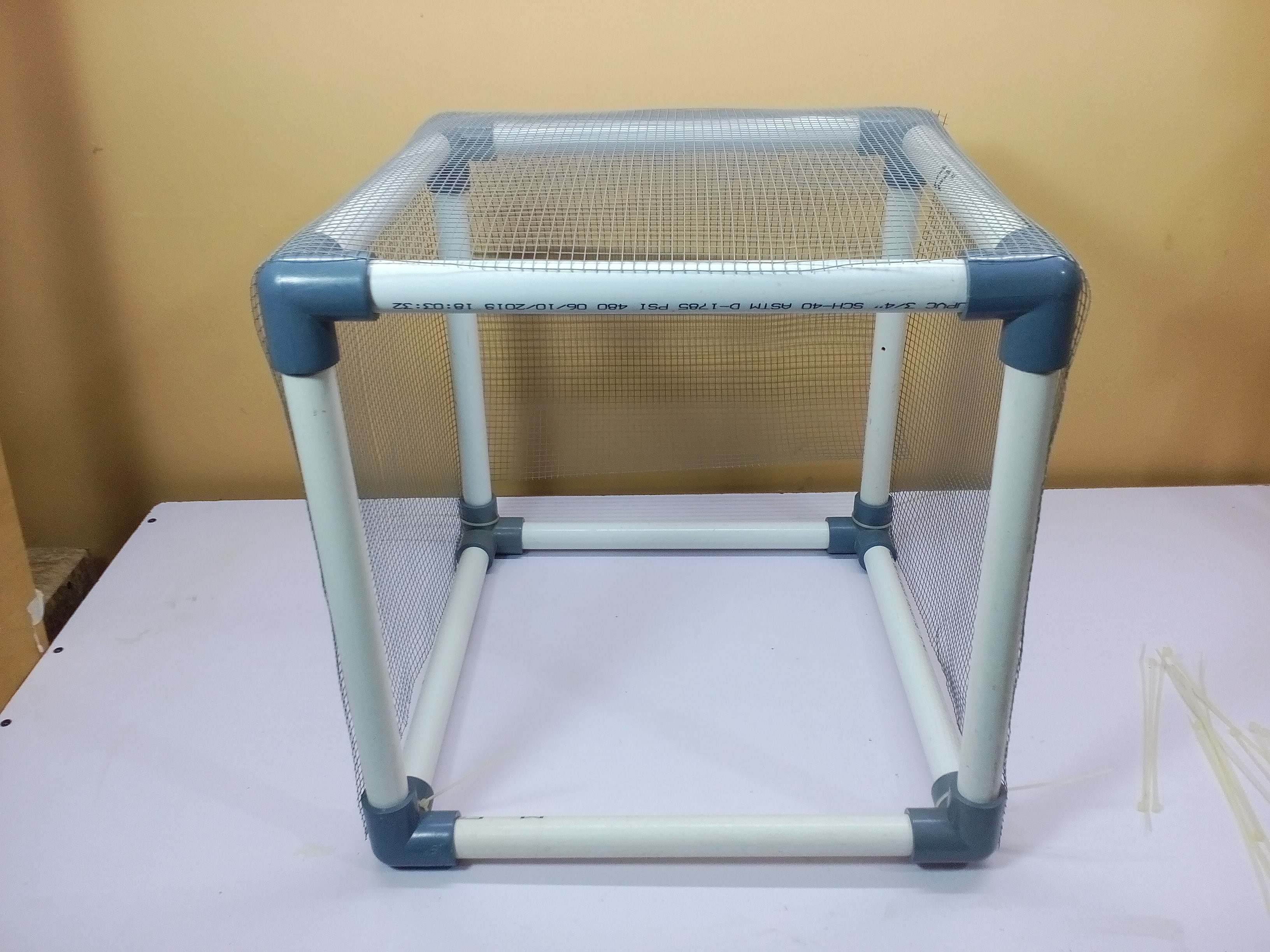

put meal net over the structure , it will be easy if it is cut by it's size to form on all it's 4 sides covering in one piece.

Tighten the net on all it's sides by pvc so it stays strongly and doesn't move from the structure.

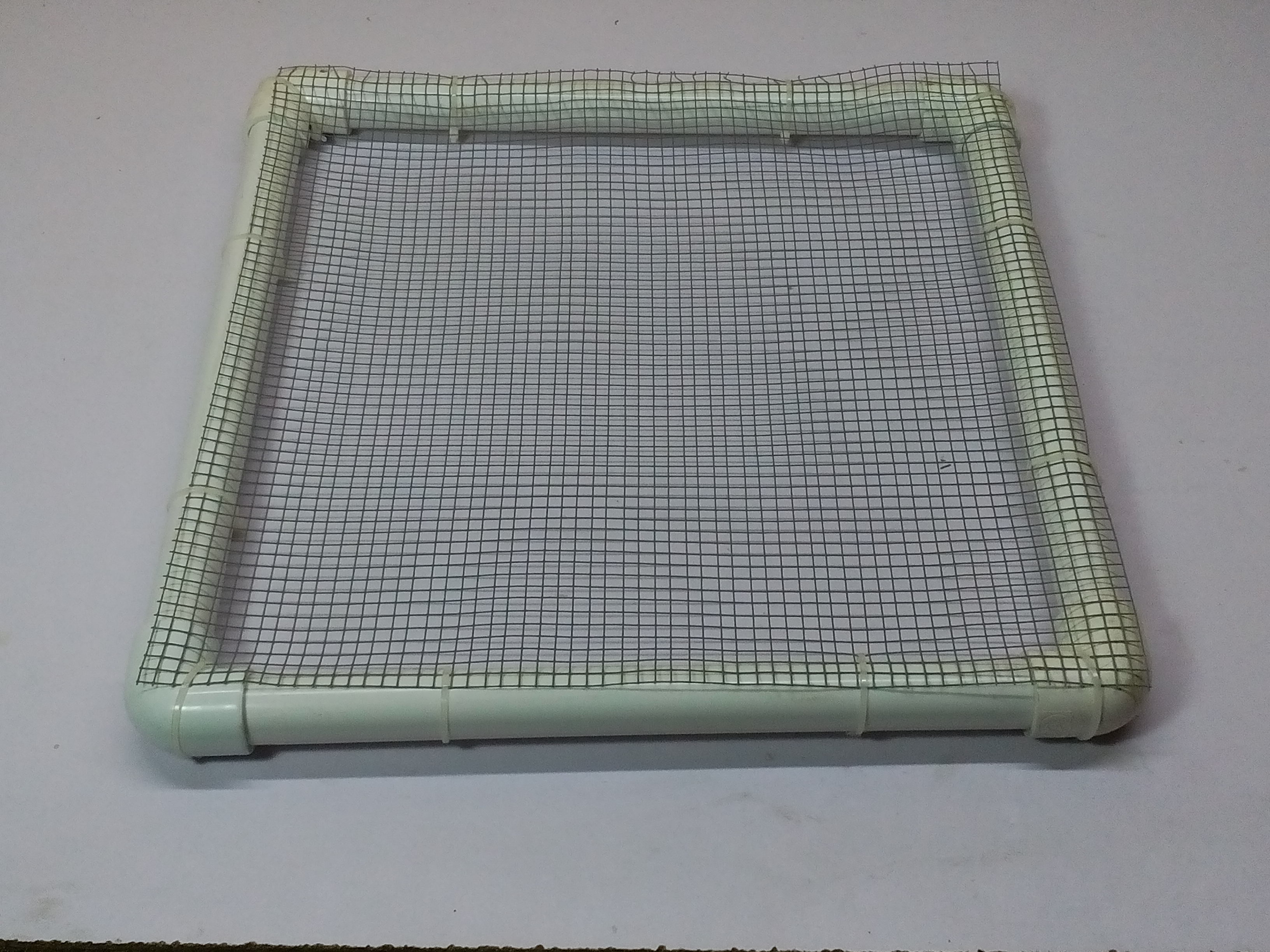

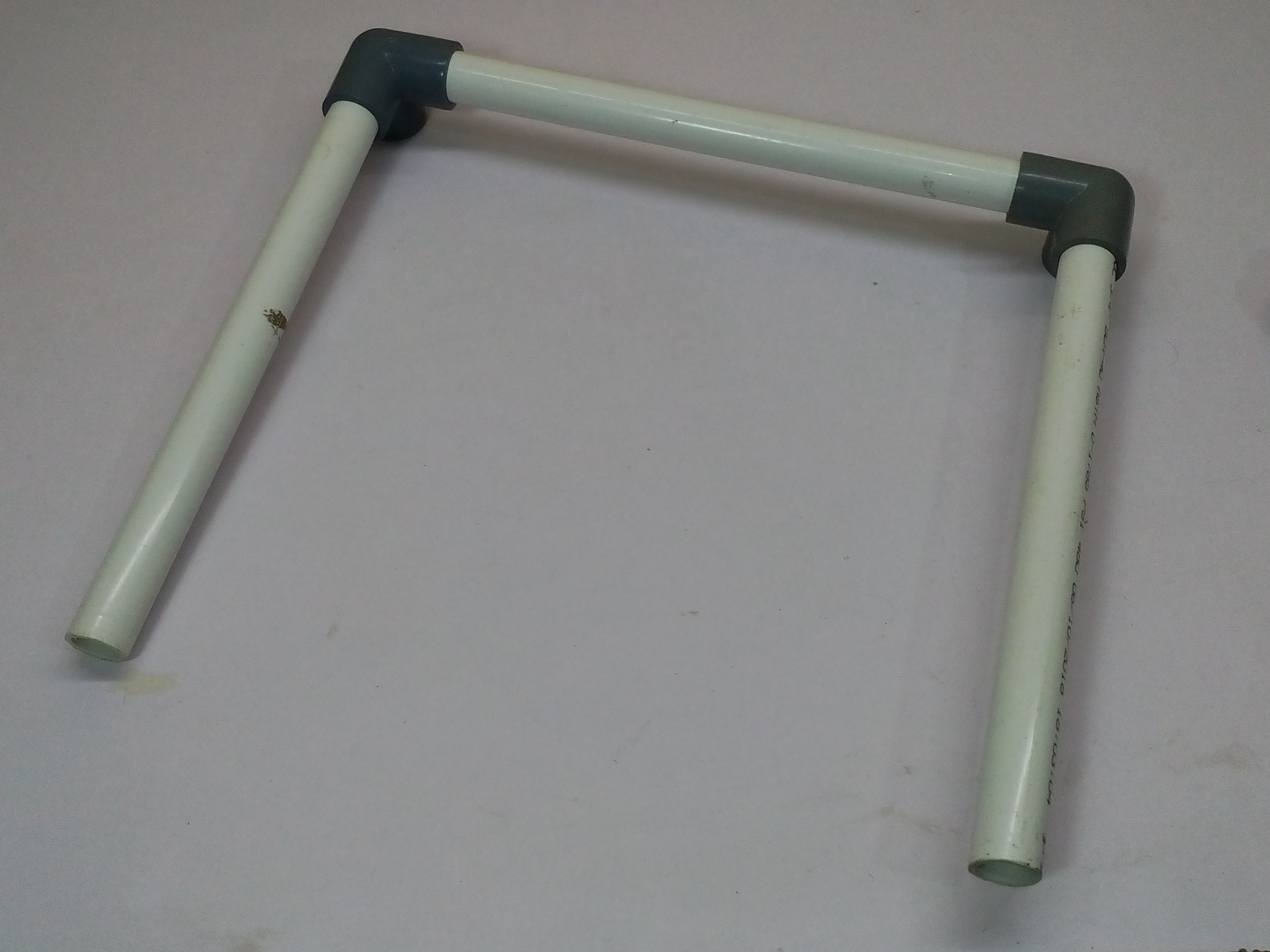

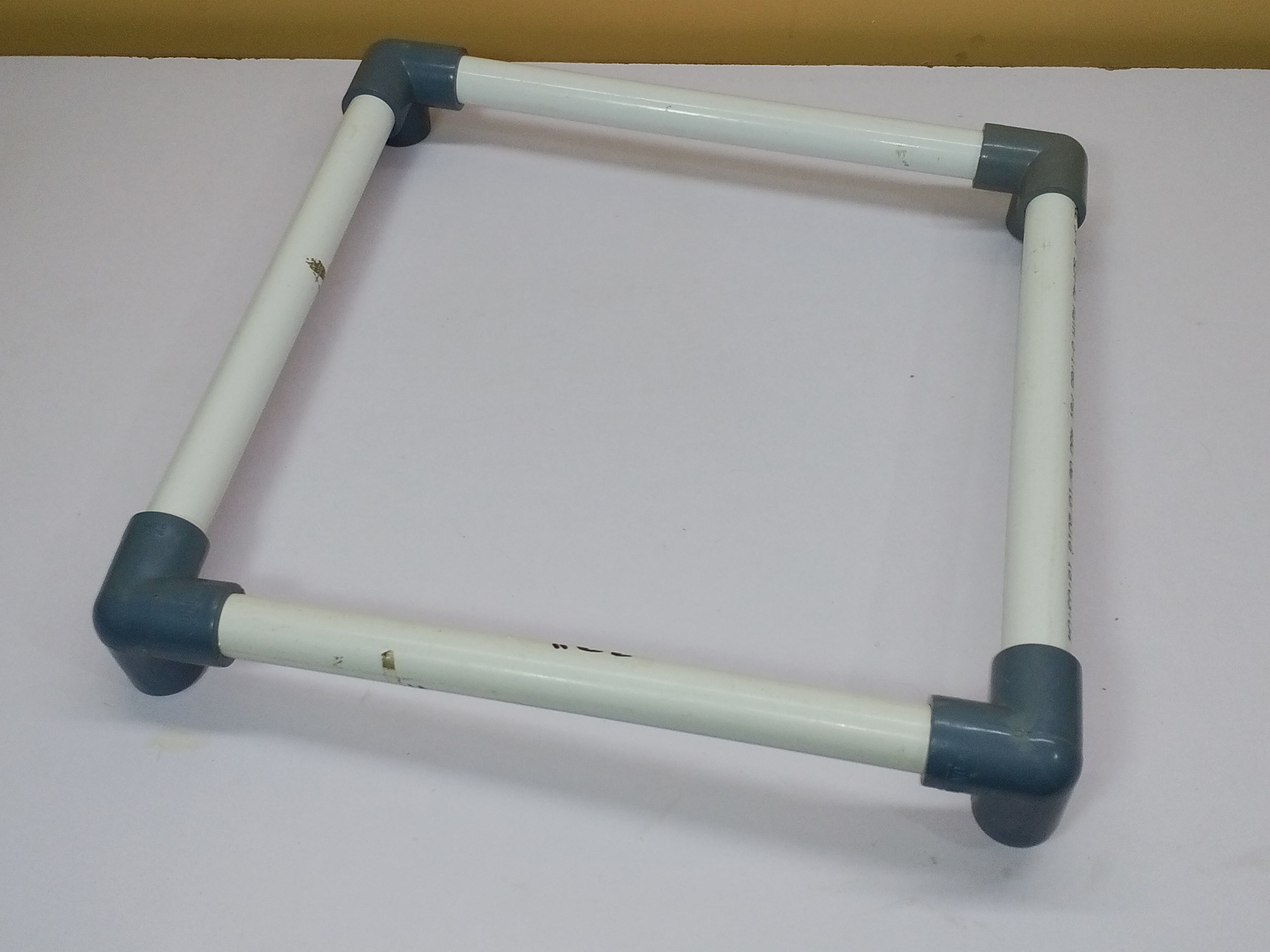

Take 4 elbows and make a square shape ,put the net over it and tighten it with the cable ties.

Put the door hinge on the door and structure and tighten it with the screws ,make hole for door knob and set it up , place the door lock and put it on with screws.

Place the plyboard on the bottom side which we didn't cover by net , tighten it with the screws on the bottom structure of the cage.

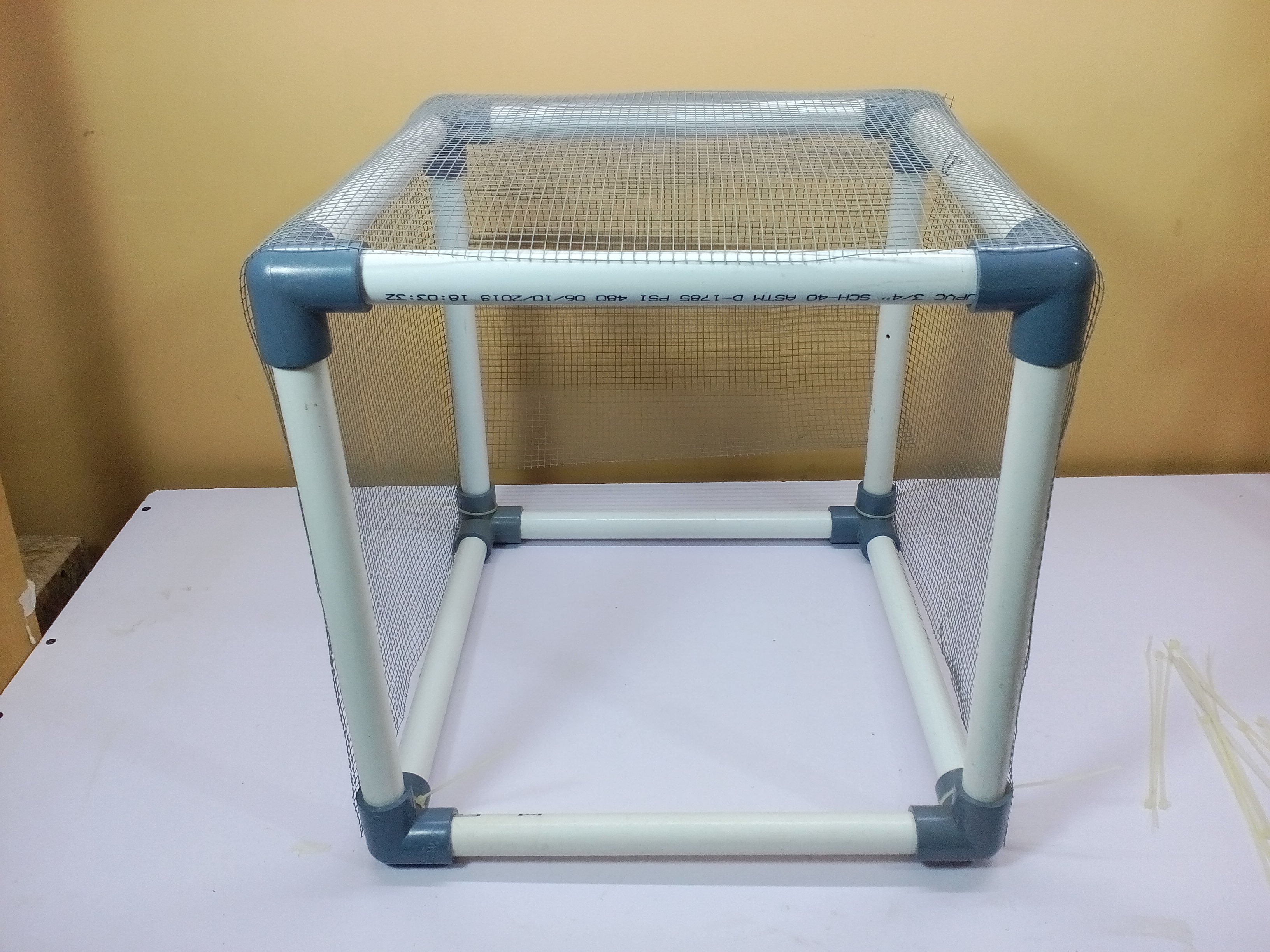

The cage is ready for bird,rabbit,cat etc
