Make Motion Activated Camera From Old Webcam
by Mrfatjonable in Circuits > Sensors
4502 Views, 47 Favorites, 0 Comments
Make Motion Activated Camera From Old Webcam
![auto capture.JPG](/proxy/?url=https://content.instructables.com/F2Q/PMQM/HW4OJG2O/F2QPMQMHW4OJG2O.jpg&filename=auto capture.JPG)
Hi there. Have you ever asked yourself how to make Motion Activated Camera without motion sensor,buying electronics,or spending hours soldering , well this is your chance.
The easiest way to make it..
Webcam
![photo.JPG](/proxy/?url=https://content.instructables.com/F3O/CJOZ/HW4OKE5G/F3OCJOZHW4OKE5G.jpg&filename=photo.JPG)

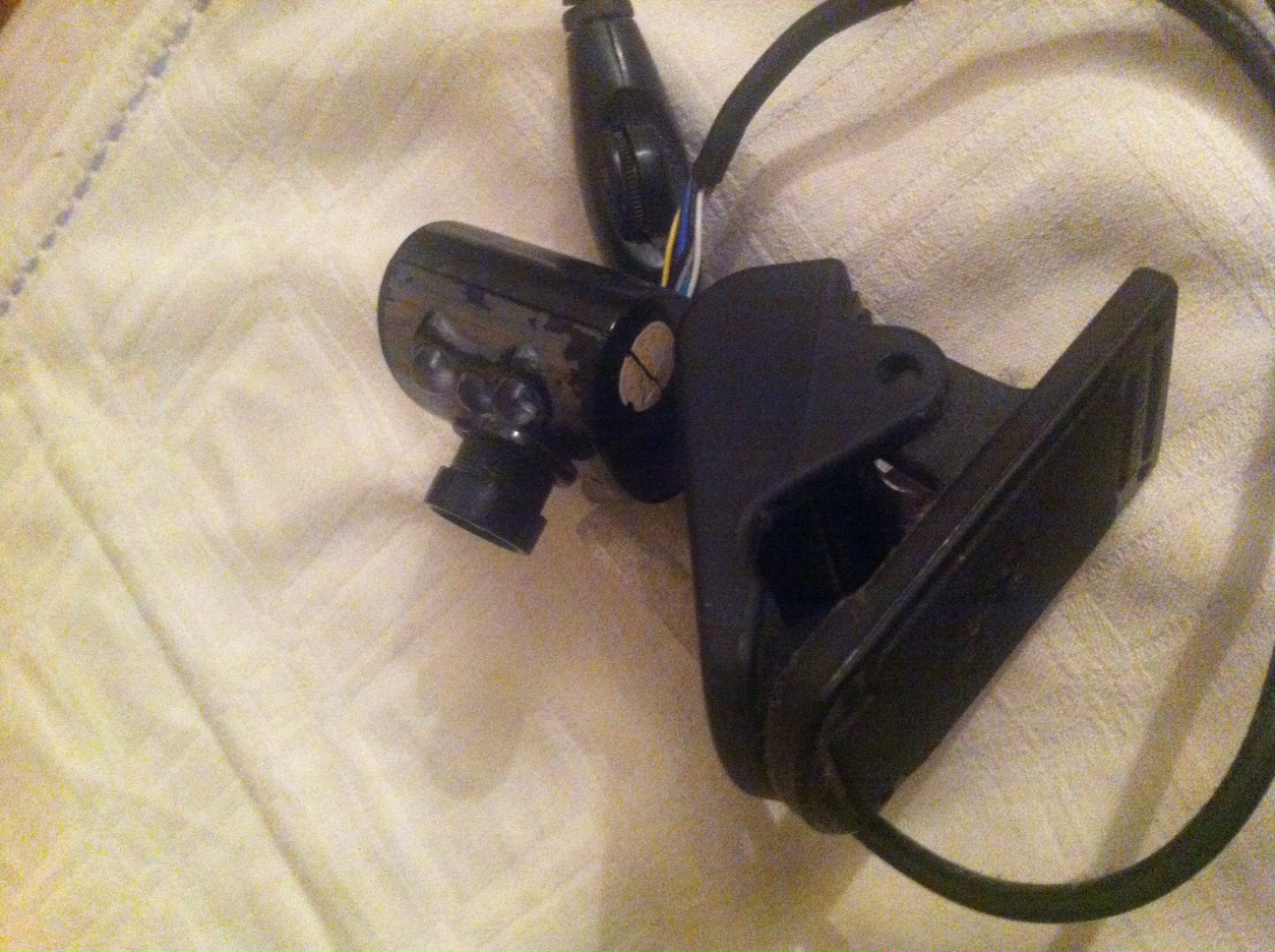

Probably most of us have old,unusable webcam so it's time to make it our spy or our "guardian angle"
Dorgem
![dorgem icon.JPG](/proxy/?url=https://content.instructables.com/FC7/G998/HW4OJFZ1/FC7G998HW4OJFZ1.jpg&filename=dorgem icon.JPG)
You just have to download the app from the link and run it.
After it's installed open it up.
http://dorgem.sourceforge.net/ or
http://prdownloads.sourceforge.net/dorgem/dorgem210.exe direct download link
Folder
![1.JPG](/proxy/?url=https://content.instructables.com/F9H/5VI8/HW4OK9H2/F9H5VI8HW4OK9H2.jpg&filename=1.JPG)

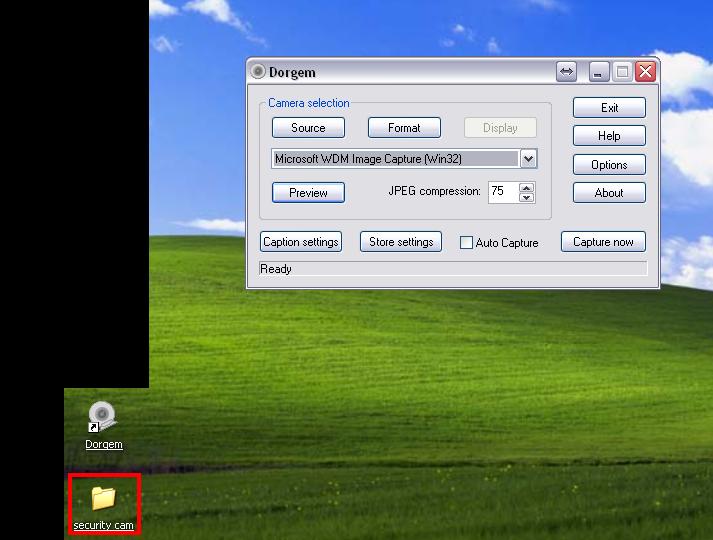

Create a New Folder anywhere you want and name it as you wish.
I named mine security cam.
Chose Your Camera
![2.JPG](/proxy/?url=https://content.instructables.com/F75/BTKV/HW4OK9HP/F75BTKVHW4OK9HP.jpg&filename=2.JPG)

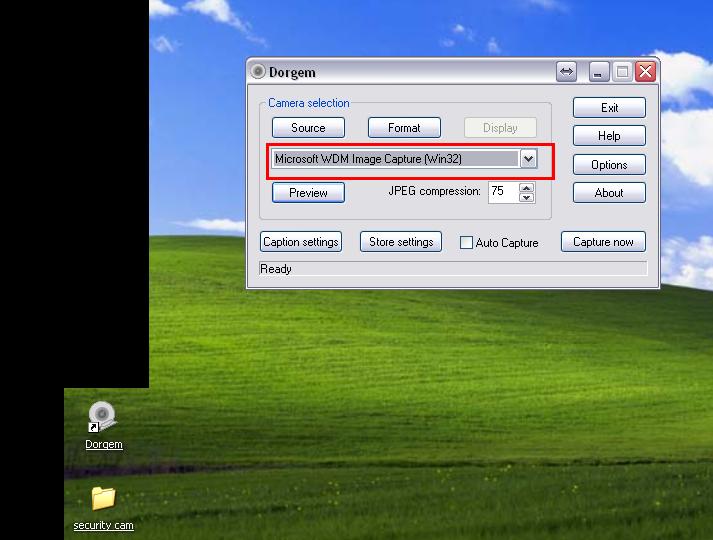

Select your webcam. Make sure it's connected properly.
Video Scource
![3.JPG](/proxy/?url=https://content.instructables.com/FIO/5BN1/HW4OK9HS/FIO5BN1HW4OK9HS.jpg&filename=3.JPG)

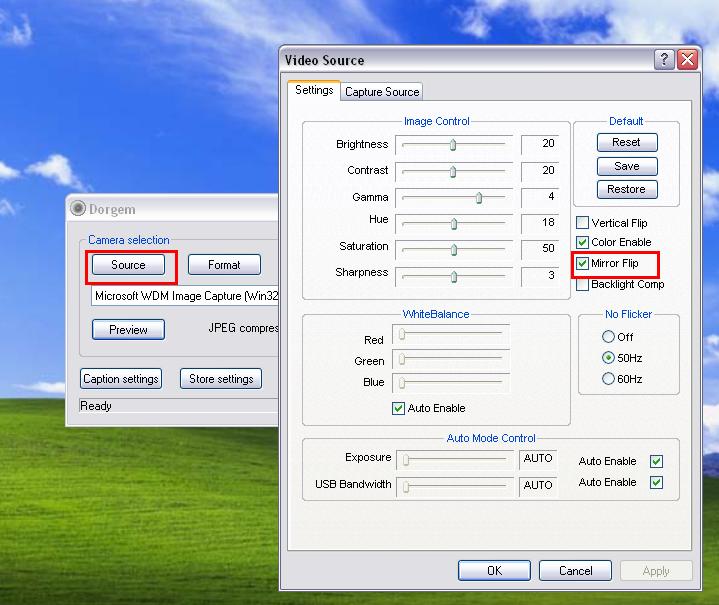

If you want to change your camera setting such as Brightness,Contrast... Just click Source than Video Source window will open
Than I suggest you to mark " Mirror Flip"
This will make camera take real pictures not mirrored

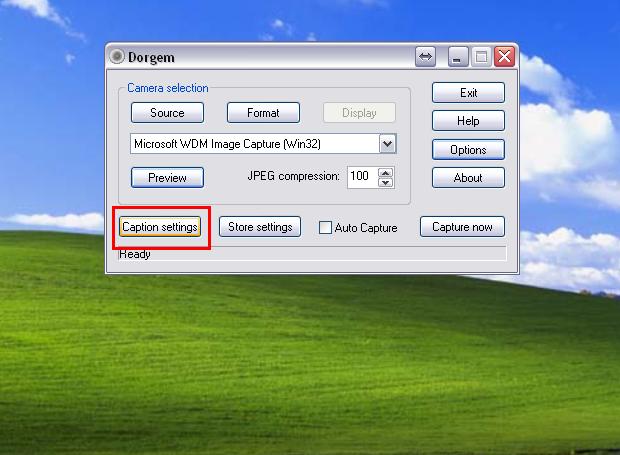

Caption Settings
![4.JPG](/proxy/?url=https://content.instructables.com/FLF/5QID/HW4OK9HT/FLF5QIDHW4OK9HT.jpg&filename=4.JPG)
![5.JPG](/proxy/?url=https://content.instructables.com/FLY/FQMZ/HW4OK9LH/FLYFQMZHW4OK9LH.jpg&filename=5.JPG)
![6.JPG](/proxy/?url=https://content.instructables.com/FW4/R7SJ/HW4OK9M3/FW4R7SJHW4OK9M3.jpg&filename=6.JPG)
Click Caption Setting -> Add -> Text -> OK
Than type any name you want
After done that
Type the box named Text:
I named mine Camera %G%g
This is the name that pictures taken from cam are going to have it.
%G%g is to save it in form of data.
After done that click OK

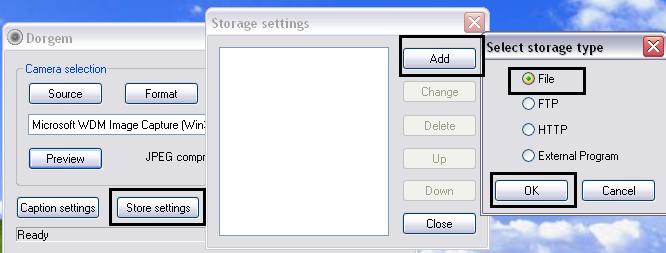

Store Setting
![store setting.JPG](/proxy/?url=https://content.instructables.com/FSX/ZKVA/HW4OK9SN/FSXZKVAHW4OK9SN.jpg&filename=store setting.JPG)
![store setting 2.JPG](/proxy/?url=https://content.instructables.com/FH9/EHC4/HW4OK9WL/FH9EHC4HW4OK9WL.jpg&filename=store setting 2.JPG)
![store setting 3.JPG](/proxy/?url=https://content.instructables.com/FUX/Z6X0/HW4OK9WM/FUXZ6X0HW4OK9WM.jpg&filename=store setting 3.JPG)
![store setting 4.JPG](/proxy/?url=https://content.instructables.com/FSQ/5JRD/HW4OK9Z8/FSQ5JRDHW4OK9Z8.jpg&filename=store setting 4.JPG)

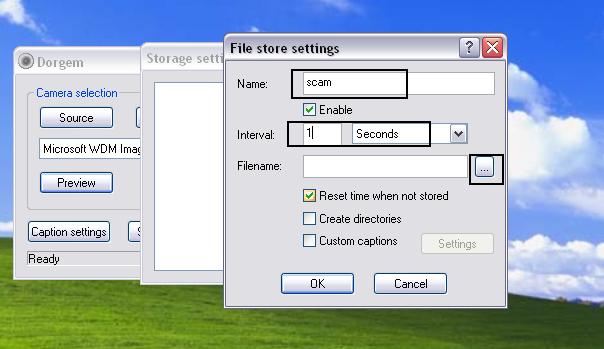

Click Store setting -> Add -> mark File -> OK
Than in File Store Settings type the box named Name:
I called "scam"
After you done that click "Interval"
And this will tell your cam how often it will take pictures after a motion is detected.
In the File name box choose the folder created before in step 3.
Than type File name:
Again scam %G%g and than click save
Options
![options.JPG](/proxy/?url=https://content.instructables.com/F6C/9JXP/HW4OK9QL/F6C9JXPHW4OK9QL.jpg&filename=options.JPG)

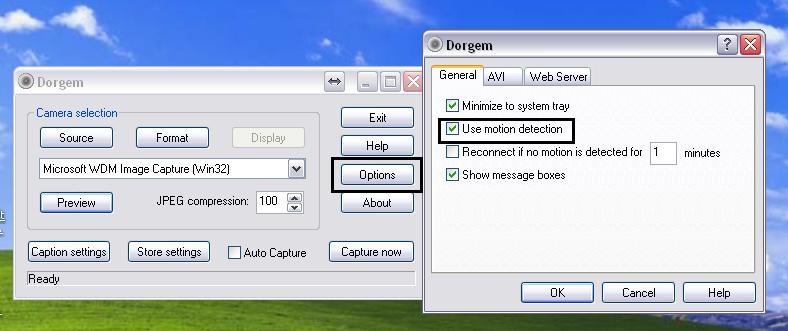

Click options than mark " use motion detection"
Video Format
![video format.JPG](/proxy/?url=https://content.instructables.com/FNW/MK7K/HW4OK9Z9/FNWMK7KHW4OK9Z9.jpg&filename=video format.JPG)

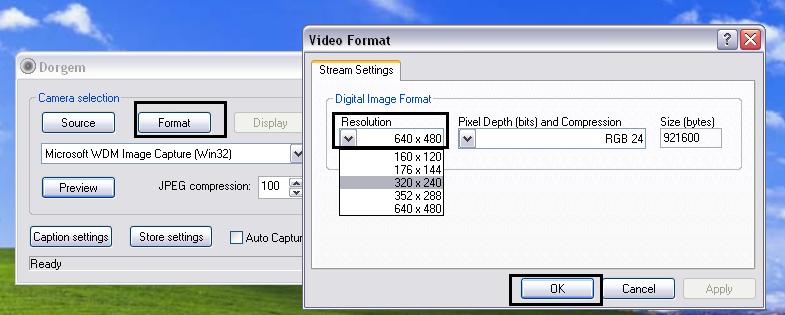

In this step you can choose your webcam resolution
Higher resolution,better picture quality,and more kbytes
To do that click Format -> Resolution

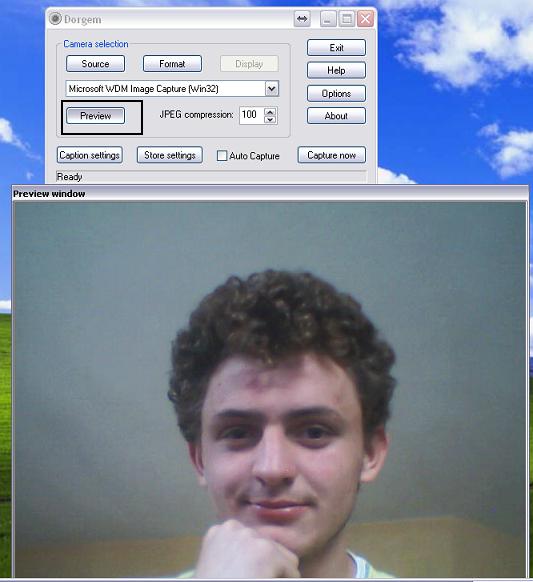

Preview Window
![preview.JPG](/proxy/?url=https://content.instructables.com/FSX/WFAX/HW4OK9SM/FSXWFAXHW4OK9SM.jpg&filename=preview.JPG)
If you want to see what cam sees click " Preview"
AVI
![avi.JPG](/proxy/?url=https://content.instructables.com/FT1/E68B/HW4OK9O0/FT1E68BHW4OK9O0.jpg&filename=avi.JPG)

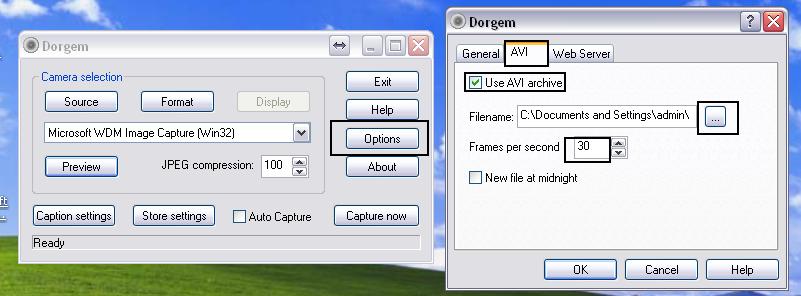

If you want to record a video when motion is detected
Click Options-> AVI -> Use AVI Archive
Than select folder and choose Frames Per Second (fps)
Fps are how many times camera is going to take a picture in each second
I chosen 30fps to have more detailed video
Final Step; Auto Capture
![auto capture.JPG](/proxy/?url=https://content.instructables.com/F3T/MQ30/HW4OK9NE/F3TMQ30HW4OK9NE.jpg&filename=auto capture.JPG)
Position Webcam in the object or anything you want to protect or anything else
Than mark Auto Capture
Right now your Motion Detection Camera is activated
Hope you enjoyed that...
Result
![scam 20140609175759.jpg](/proxy/?url=https://content.instructables.com/FRA/OWGW/HW7Q8NK0/FRAOWGWHW7Q8NK0.jpg&filename=scam 20140609175759.jpg)
![scam 20140609175810.jpg](/proxy/?url=https://content.instructables.com/F6F/13HN/HW7Q8NNN/F6F13HNHW7Q8NNN.jpg&filename=scam 20140609175810.jpg)
![scam 20140609175808.jpg](/proxy/?url=https://content.instructables.com/FOE/9NIH/HW7Q8NNA/FOE9NIHHW7Q8NNA.jpg&filename=scam 20140609175808.jpg)
![scam 20140609175811.jpg](/proxy/?url=https://content.instructables.com/FFN/0FCK/HW7Q8NEO/FFN0FCKHW7Q8NEO.jpg&filename=scam 20140609175811.jpg)
![scam 20140608193410.jpg](/proxy/?url=https://content.instructables.com/FNH/JQQA/HW7Q8NH9/FNHJQQAHW7Q8NH9.jpg&filename=scam 20140608193410.jpg)
![scam 20140608193409.jpg](/proxy/?url=https://content.instructables.com/FFJ/O19N/HW7Q8NGW/FFJO19NHW7Q8NGW.jpg&filename=scam 20140608193409.jpg)
![scam 20140608193408.jpg](/proxy/?url=https://content.instructables.com/FGM/5B8X/HW7Q8NES/FGM5B8XHW7Q8NES.jpg&filename=scam 20140608193408.jpg)
![scam 20140609175518.jpg](/proxy/?url=https://content.instructables.com/F2N/6F8E/HW7Q8NHF/F2N6F8EHW7Q8NHF.jpg&filename=scam 20140609175518.jpg)
Some Auto Captured pictures
