Make MP3 Player Portable Boom Tube
This instructable shows you how to use the MakeMP3 player kit, velleman amp, and an old blank CD case to make a little portable radio.
Its using a theme I came up with for the Y.A.I.A.
Its using a theme I came up with for the Y.A.I.A.
Parts
Parts:
-MakeMP3 Player kit.
-Velleman Amp K8066
-RadioShack 1/8" Panel Mount Jack: 274-249
-RadioShack 4AA Holder: 270-383
-RadioShack 9v Snap Connector: 270-324
-RadioShack Mini Toggle: 275-624
-Film canister or other tube like thingamajig
-Zip tie
-6 nuts/bolts
-Speaker out of a computer speakers, preferably broken speakers no need to ruin a good set.
-5 momentary push button switches (N.O.)
Tools:
-Dremel
-Wire strippers
-Screw driver
-MakeMP3 Player kit.
-Velleman Amp K8066
-RadioShack 1/8" Panel Mount Jack: 274-249
-RadioShack 4AA Holder: 270-383
-RadioShack 9v Snap Connector: 270-324
-RadioShack Mini Toggle: 275-624
-Film canister or other tube like thingamajig
-Zip tie
-6 nuts/bolts
-Speaker out of a computer speakers, preferably broken speakers no need to ruin a good set.
-5 momentary push button switches (N.O.)
Tools:
-Dremel
-Wire strippers
-Screw driver
Speakers

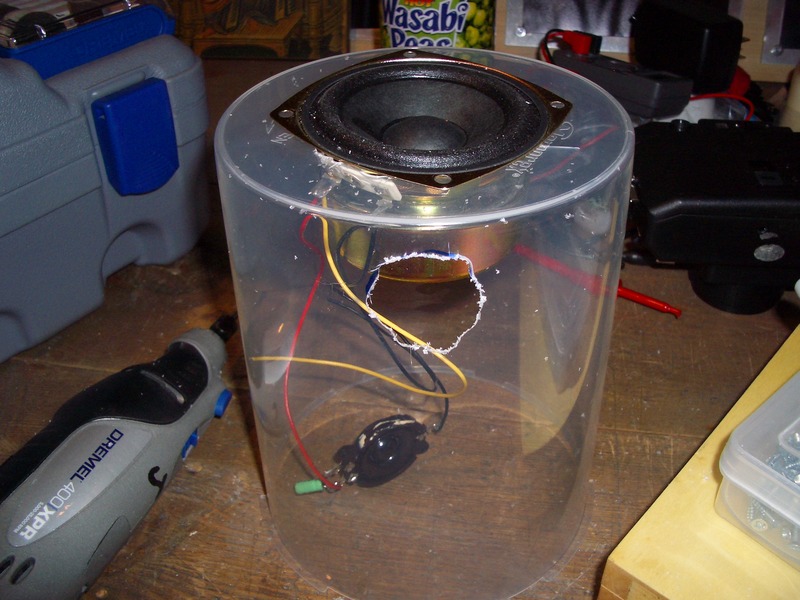

Remove your speaker from it's case. Mine had this little tweeter deal on it. So I cut two holes in the CDR case cover. One on top for the speaker and one on the side for the tweeter.
I attached my speakers with nuts and bolts.
I attached my speakers with nuts and bolts.
Cut the Base

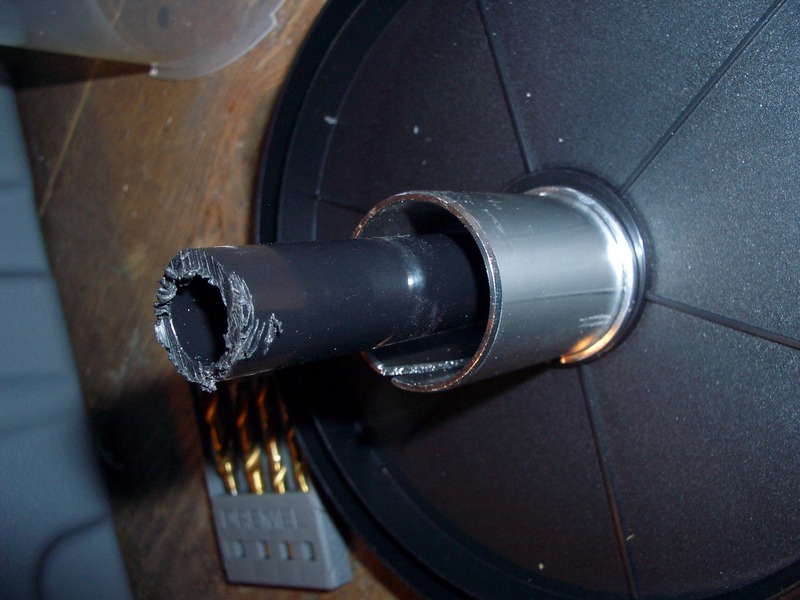

I cut the post off right above my support the make mp3 player.

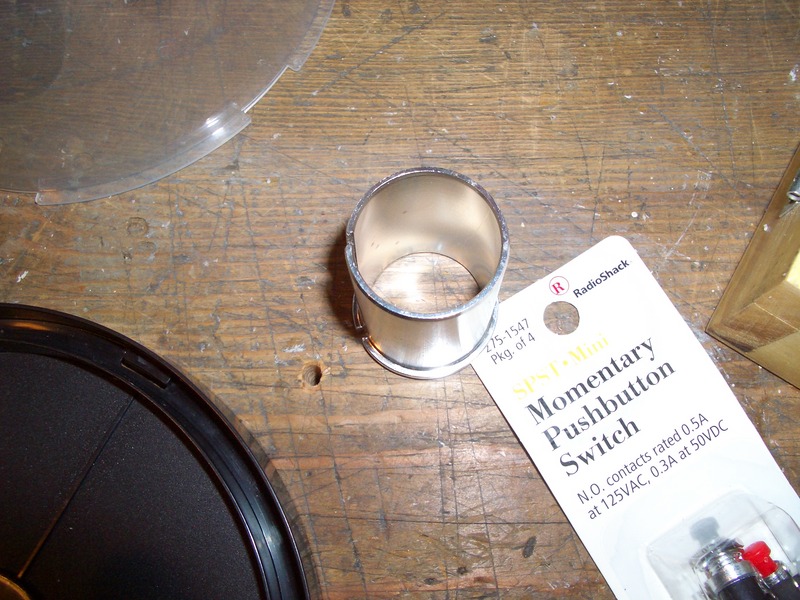

I used a 1-1/8" -> 1" threadless stem adapter as the pedestal, but you could us a film canister or any tube really.
I used a 1-1/8" -> 1" threadless stem adapter as the pedestal, but you could us a film canister or any tube really.
Drill
You will need 6 holes in the CDR cover case,
2 for the volume buttons
2 for the track selectors
1 for play/pause
1 power switch.
I would put them all on the upper half of the CDR case.
2 for the volume buttons
2 for the track selectors
1 for play/pause
1 power switch.
I would put them all on the upper half of the CDR case.
Solder
It's time to put together the MakeMP3 player kit.
Follow the instructions that come with it, its easy and the PDF is very helpful. I would plug it in to a solderless breadboard and make sure it works before going further.
Follow the instructions that come with it, its easy and the PDF is very helpful. I would plug it in to a solderless breadboard and make sure it works before going further.
Solder
Now its time to solder the Velleman Amp. Once again, could not be easier.
Hmmm I didn't take a pic of that 3w kit, here is the 7w kit.
Hmmm I didn't take a pic of that 3w kit, here is the 7w kit.
Drill Holes for the Amp And....
Drill holes in the bottom of the CDR case for mounting the amp and the AA battery holder.
Drill Holes for the MakeMP3...

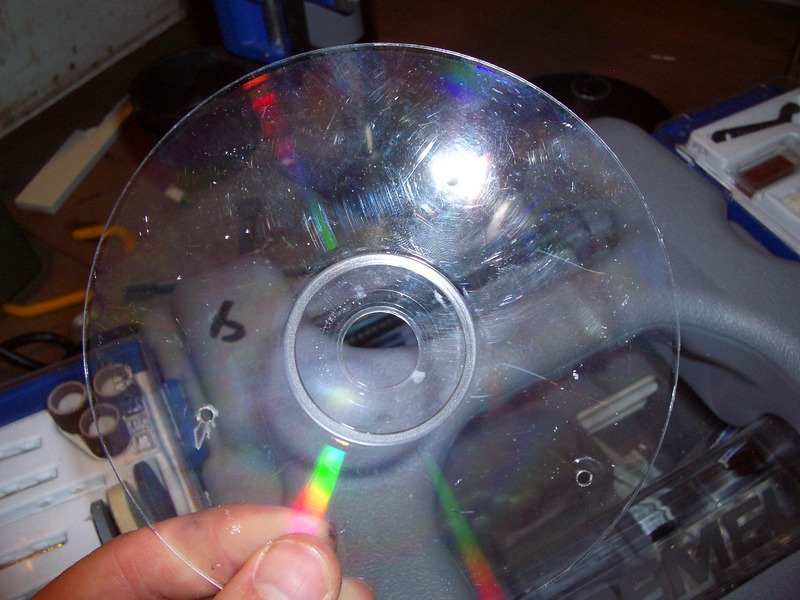

Drill holes in the CDR blank to use as the mount for the MakeMP3 kit.
Solder the Power Switch.
Solder the power switch, go from the 9v snap connector (on the AA battery holder) to the switch. From the switch go to the MakeMP3 player kit, and the amp.
Solder the Pushbutton Switches
Time to solder the pushbutton switches. The switches all share a common ground with the mp3 player. Cut long pieces
Hook the Mp3 Kit Up

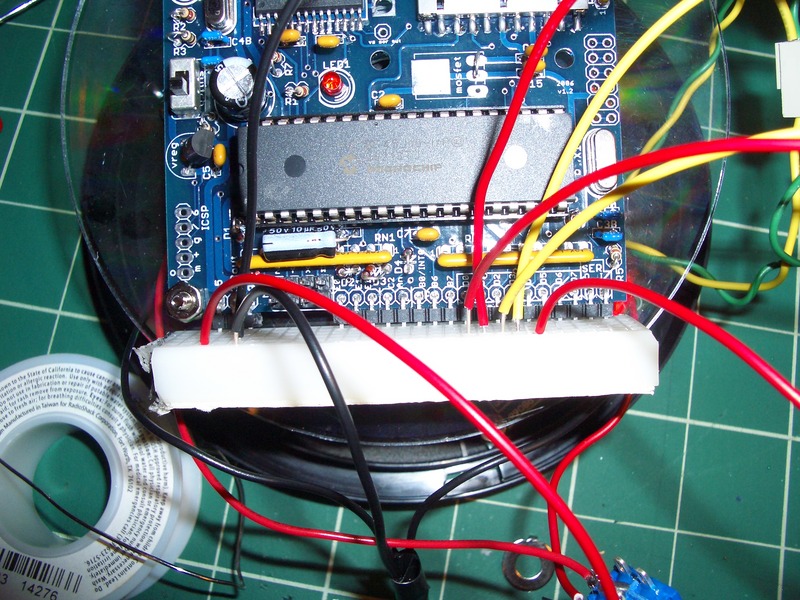

Hook the mp3 player kit up. I will probably take this apart again later, so I am using a solderless breadboard for this.
Look at the MP3 player kit for the pin outs.
Look at the MP3 player kit for the pin outs.
Close It Up
Time to close it up and rawk.
