Make LED Light With DCDC and 18650
by saharaupro in Circuits > LEDs
748 Views, 0 Favorites, 0 Comments
Make LED Light With DCDC and 18650
Make LED light with series connected 3 LEDs and step up DC-DC module powered by 18650.
Items List
0805 5% 1/8W SMD chip resistor 100R http://s.click.aliexpress.com/e/3D7BrvIu
MT3608 2A Max DC-DC Step Up Power Module http://s.click.aliexpress.com/e/lxyBOYdi
Double Conductive Copper Foil Tape http://s.click.aliexpress.com/e/Fl8fy0Xe
2:1 Transparent Clear Heat Shrink Tube http://s.click.aliexpress.com/e/t8KA09f2
3.7v 18650 Lithium Rechargeable Battery http://s.click.aliexpress.com/e/3vKcIN0c

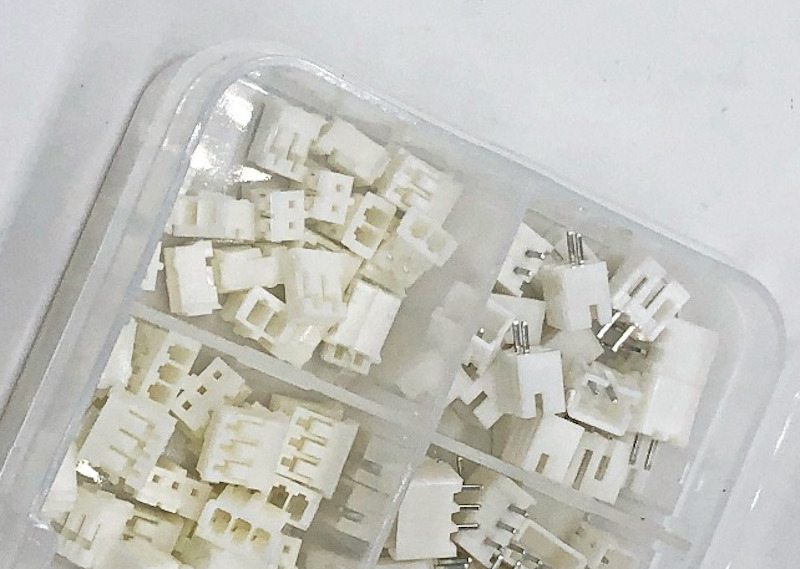

PH2.0 2p 3p 4 pin 2.0mm Pitch Terminal http://s.click.aliexpress.com/e/tgjXNoDi
Round Metal Grip Clips Silver Bulldog Clip http://s.click.aliexpress.com/e/lky6dbri
Heat Gun http://s.click.aliexpress.com/e/e3b7LZK0
Mini Slide Switch http://s.click.aliexpress.com/e/sqbK57iY
Appearance

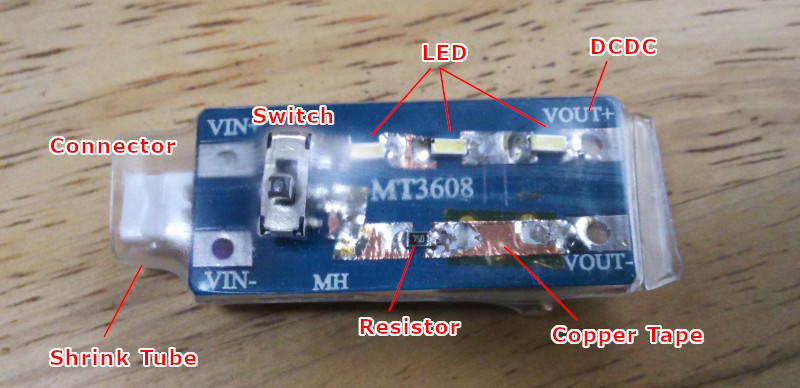

Series connected 3 LEDs, Switch and resistor with copper tape on DC-DC module.
1. Put a Copper Tape

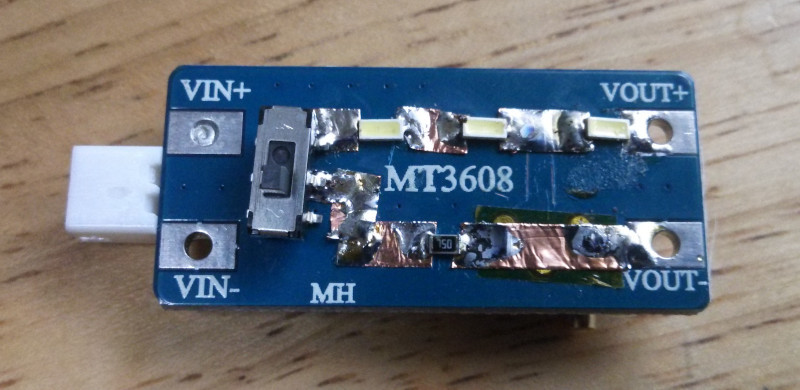

Put a copper tape on the DC-DC module.
Cut them and solder parts.
2. Cover With Shrinkable Tube

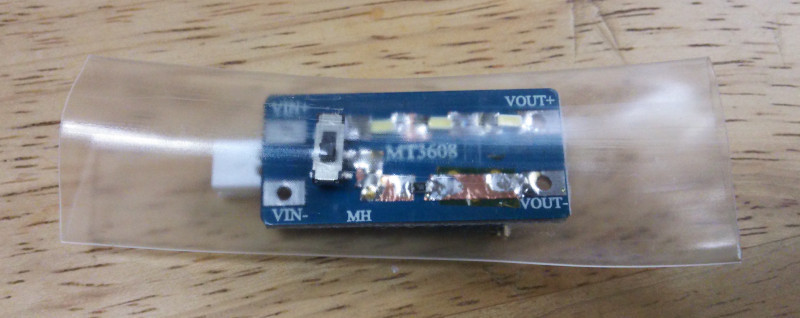

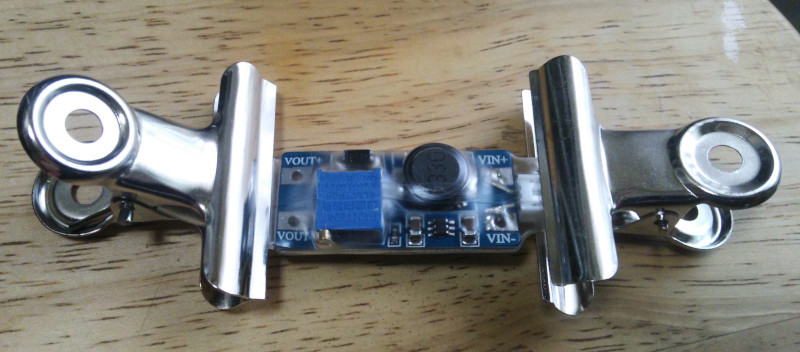

Cover module with shrinkable tube and clip with bulldog clips.
3. Done

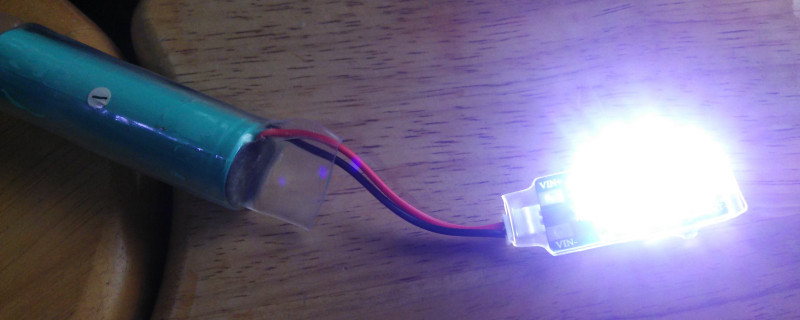

Cut tube then done.
