Make It! Pedestrian Bridge


I have made a Safe and Strong Pedestrian Bridge. This pedestrian bridge connects people of a residential site to a commercial site so they can focus on their basic needs and health without worrying abut traffic on the road.

My Bridge is safe because it's equipped with railings on it's sides, a shed on it's top so people don't get wet incase of rains and stay safe from sunburns, it has lights which turn "ON" automatically in evenings and my bridge has strong pillars on it's base.


Grade-8

Supplies

I have made it on Tinkercad.

I have used:-

  1. Black/White box(for road)
  2. Brick Tile Path(for sidewalks)
  3. Polygon and Circular pillars
  4. Flat, Rectangle box (as shed)
  5. Railings
  6. Stairs
  7. Street Lights
  8. DayLight sensor
  9. Solar Battery

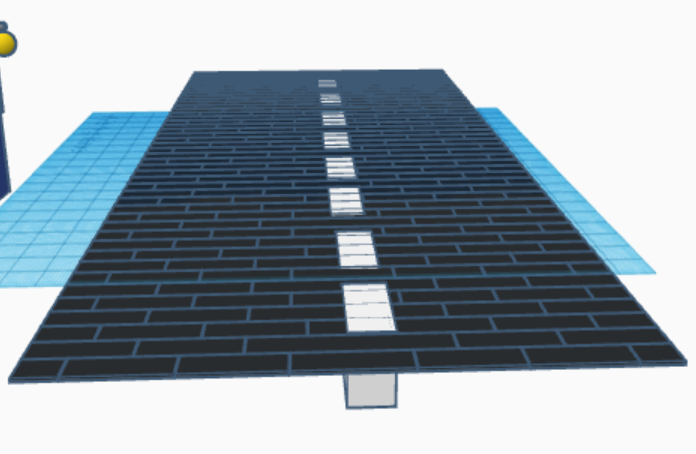

Building Road


Build Road using Black and White Boxes

Building Pillars and Stairs


Adding Lamps, Fire Hydrants, polygon pillars to support base and stairs

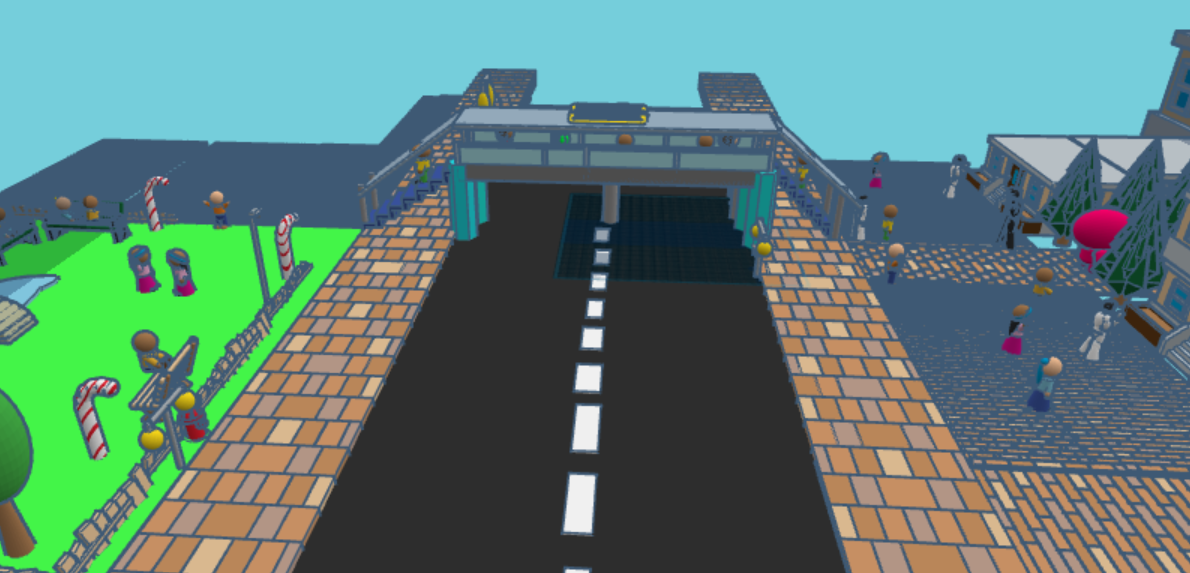

Masterpiece Is Ready


Building houses of people on one end and park on the other end. adding base on top of the pillars and adding railings on it, then putting pillars on edges of base to support the shed, adding 2 streetlights on the ends and 1 bulb in between, then putting one sensor and one solar cell on top of the base.

This is how I created my Pedestrian Bridge
