hii Creaters,
Do-decahedron means which geometry have 12 sides.
This Project is combination of three processes .
1 -- Laser cutting
2 -- Knitting with Cotton Thread
3 -- Electronics
Buy Supplies stated below for make this DIY project.
Let's go For making This Lamp.
Supplies
1>MDF board (400x 400 mm)
2>Cotton Thread
3>Needle for thread
4>5 Meters LED Strip any colors
5>12 v Adapter
Laser Cutting
![aahax v31.png](/proxy/?url=https://content.instructables.com/FSU/DQ4Q/K39BDOD5/FSUDQ4QK39BDOD5.png&filename=aahax v31.png)
![20190915_085855.jpg](/proxy/?url=https://content.instructables.com/FLA/RGEP/K39BDOE1/FLARGEPK39BDOE1.jpg&filename=20190915_085855.jpg)
In First step we cut MDF sheet in Pentagonal shape stated in image .

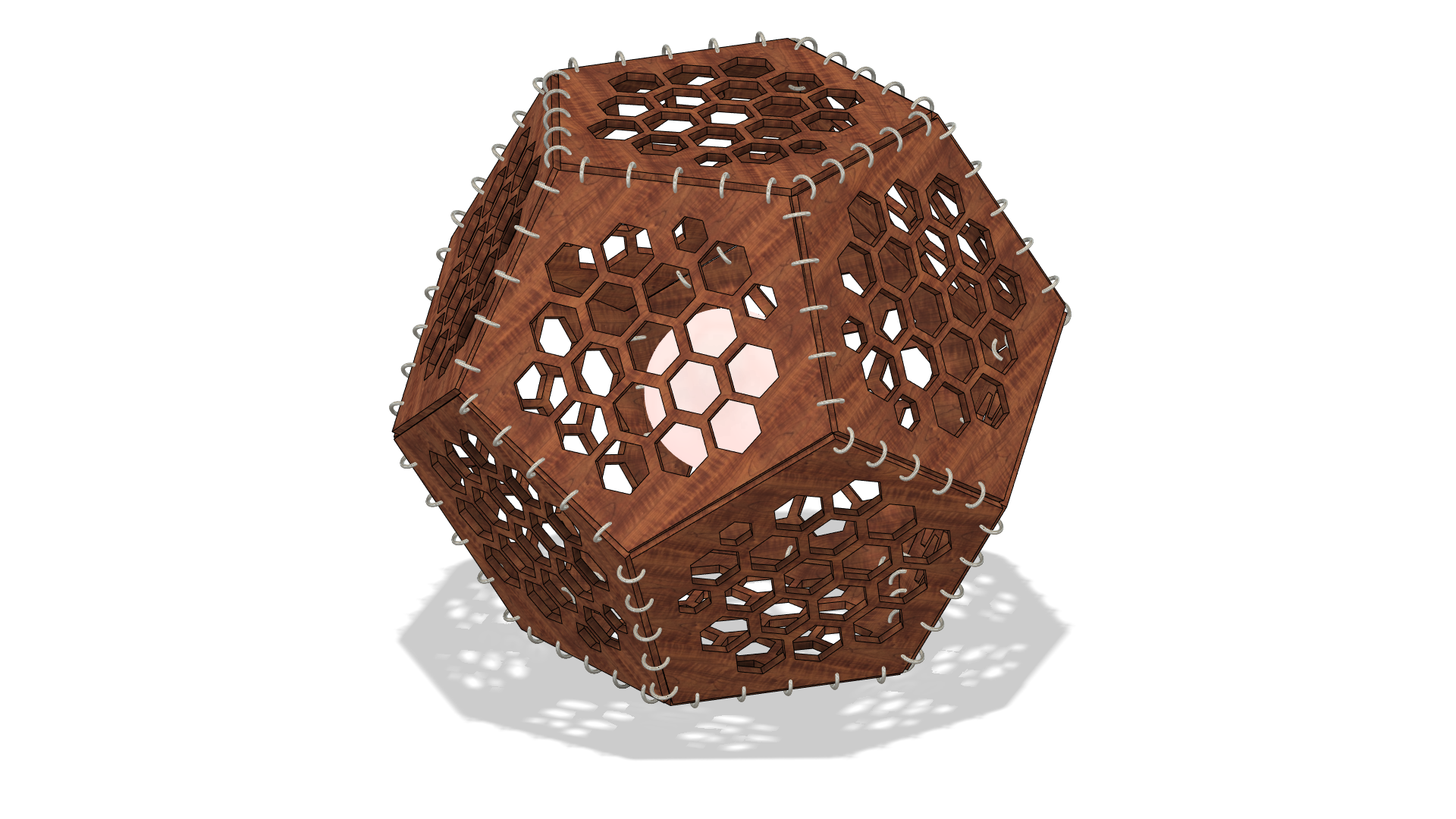

I am using Fusion360 for design this Pentagon shape for lamp.
I attach short video for how to make this Do-decahedron Lamp in Fusion360 .
Link : video link
Downloads
How to Assemble Using Thread
![20190915_090202.jpg](/proxy/?url=https://content.instructables.com/F9P/LEGP/K39BDOE2/F9PLEGPK39BDOE2.jpg&filename=20190915_090202.jpg)
![20190915_090207.jpg](/proxy/?url=https://content.instructables.com/FYM/XFEV/K39BDOE3/FYMXFEVK39BDOE3.jpg&filename=20190915_090207.jpg)

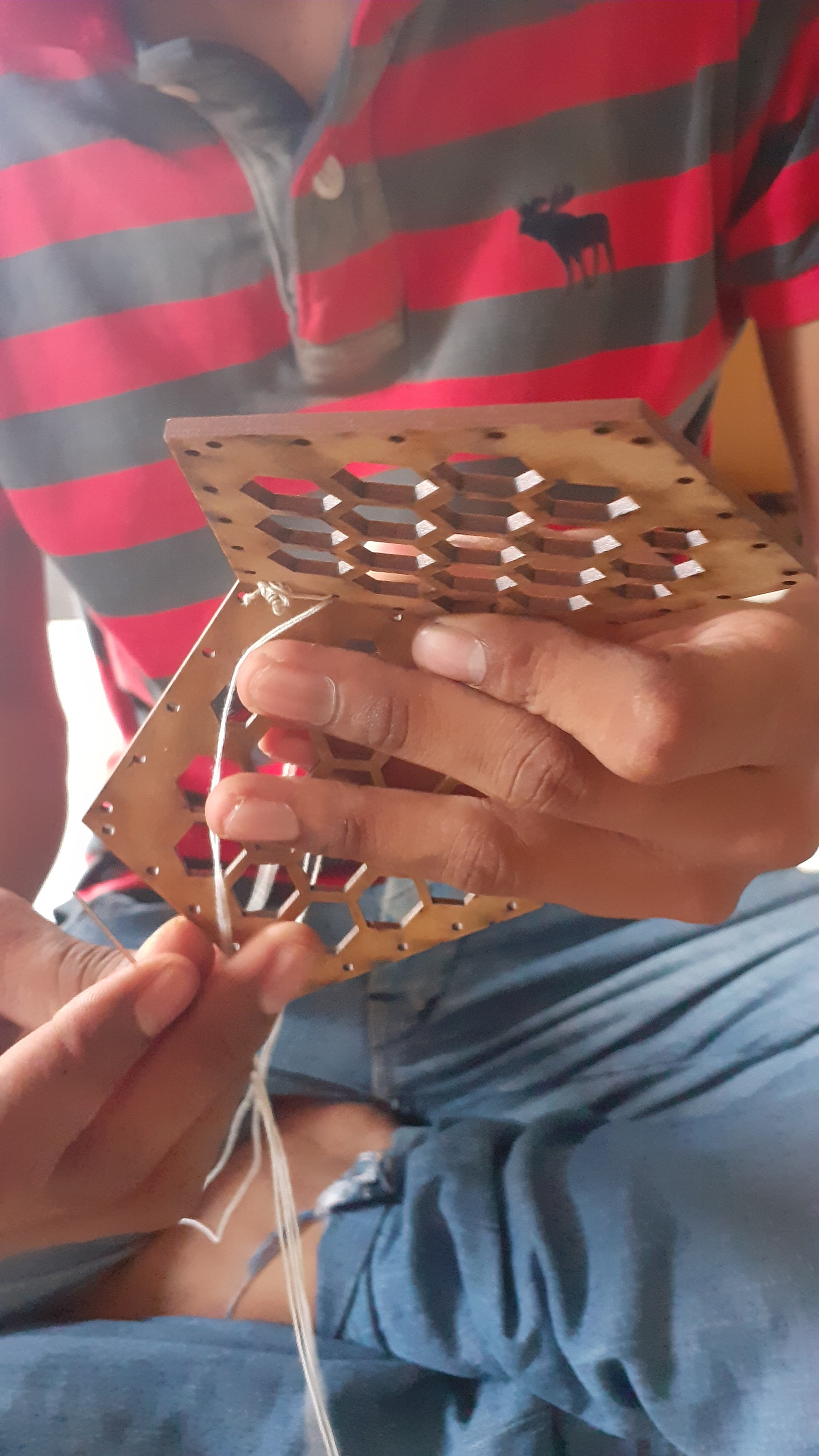

While design we make hole at circumference of Pentagon for Knitting with Thread.
1 -- Insert Thread into Needle Hole.
2 -- Start Knitting from any side of both pentagon.
3 -- Take two pentagon and Choose any one side for start Knitting.
4 -- When you Finish one side make Knot at end of the holes.
5 -- Repeat this procedure for all 5 side of 1 pentagon.
6 -- After This step you have 5 pentagon attach with 1 pentagon sides.(1 Middle and 5 at side).
Knitting Work Flow
![20190915_090502.jpg](/proxy/?url=https://content.instructables.com/FWD/OJMA/K39BDOE7/FWDOJMAK39BDOE7.jpg&filename=20190915_090502.jpg)
![20191124_095216.jpg](/proxy/?url=https://content.instructables.com/FPC/G8Y5/K39BDODA/FPCG8Y5K39BDODA.jpg&filename=20191124_095216.jpg)
7 -- After Knitting Two Pentagon from one side , Repeat this procedure for Same pentagon with another 4 pentagon.
8 -- After knitting 6 pentagon you have one pentagon knitting from all side in center and another 5 pentagon connect from all side of center pentagon.
9 -- Repeat this side by side knitting for another 5 pentagon for making Dodecahedron.
10 -- When you have 1 pentagon left you need to knit it from one side for working as lead (close or open Dodecahedron).
Finish Knitting
![20190915_093158.jpg](/proxy/?url=https://content.instructables.com/F9H/G10C/K39BDOE0/F9HG10CK39BDOE0.jpg&filename=20190915_093158.jpg)
![20191124_095225.jpg](/proxy/?url=https://content.instructables.com/F31/AIKN/K39BDODZ/F31AIKNK39BDODZ.jpg&filename=20191124_095225.jpg)
Use all side of pentagon for joining by Knitting and after joining 11 Pentagon you have 1 Side open in
Do-decahedron.
For making Lamp, We need to open it from one side for inserting LED strip.
Unwind LED Strip and test it with 12v adapter.
I have white LED strip , you will buy any color LED Strip or RGB LED strip for lightning.
Light It Up Using LED Strip
![20191124_100125.jpg](/proxy/?url=https://content.instructables.com/FDS/OXBA/K39BDOD3/FDSOXBAK39BDOD3.jpg&filename=20191124_100125.jpg)
![20191124_095648.jpg](/proxy/?url=https://content.instructables.com/FWP/HWUZ/K39BDOD0/FWPHWUZK39BDOD0.jpg&filename=20191124_095648.jpg)
![20191124_100034.jpg](/proxy/?url=https://content.instructables.com/F76/EM5A/K39BDOD1/F76EM5AK39BDOD1.jpg&filename=20191124_100034.jpg)
Attach Last Pentagon From One side Through Thread.
Fill Flexible LED Strip inside Do -decahedron.
Attach 12v Power adapter with LED Strip for light it up.
Use thread and Knit any 2 sides of open pentagon .
Now you have Do-decahedron lamp Ready for use in your home.
You will Hang it on wall ,make lamp stand for night lamp.
