Make Display Using a Beer Bottle at Maker's Asylum
by ganeshyadav97726 in Circuits > Arduino
440 Views, 2 Favorites, 0 Comments
Make Display Using a Beer Bottle at Maker's Asylum

Hi , this Idea of My Brain
So this comes from Make's asylum
we have too much beer bottle
So I had an idea to make a display using a beer bottle.
Goals:
- To Reuse beer bottle in a creative way
- And have fun
Material:
- Arduino
- Wire
- WS2811 LED
- 5v power supply (it lest 4 amp)
- Cardboard

Take all beer bottles and clean them
And dry it

Download this DXF file and laser cut this file

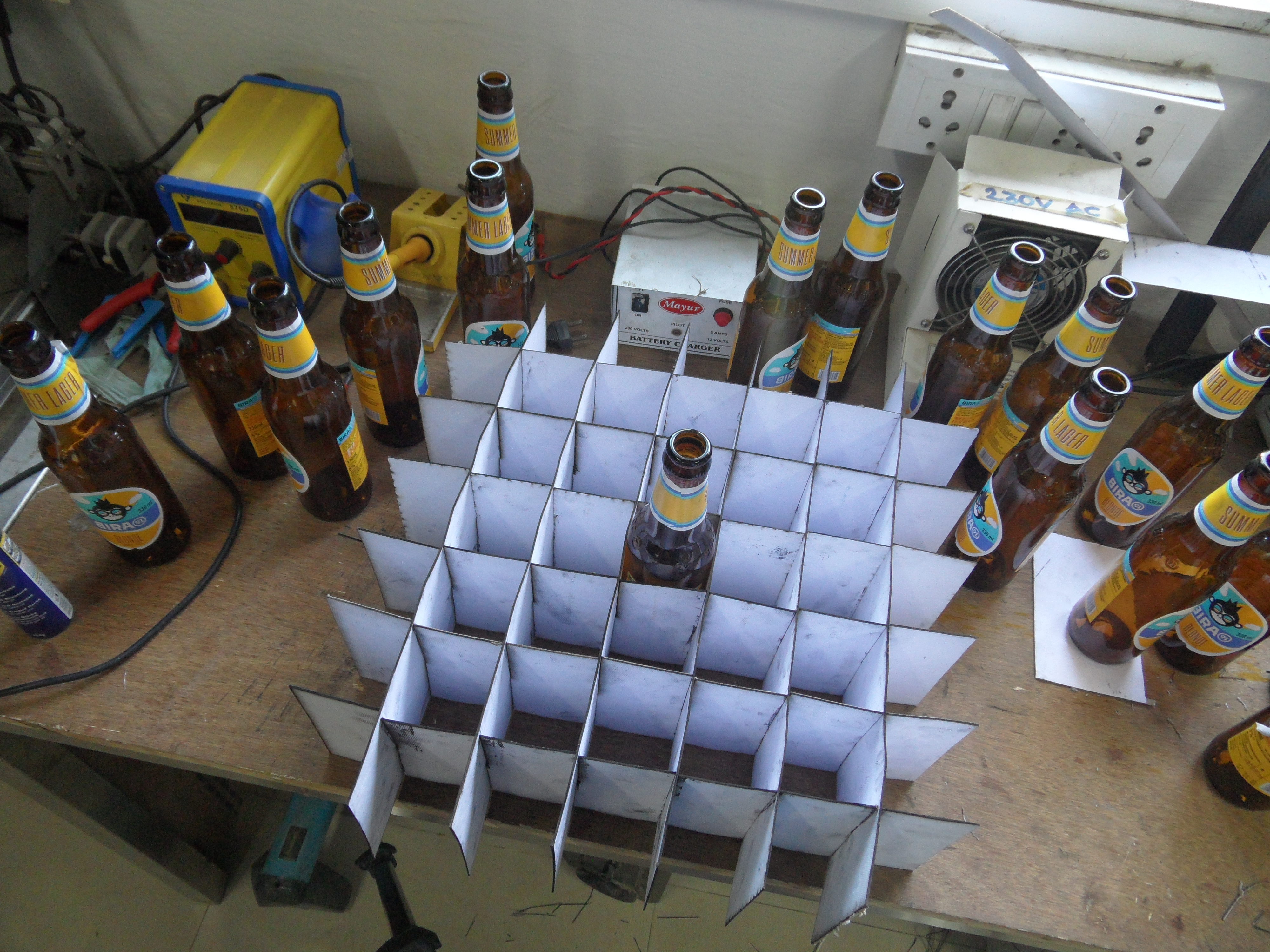

Then Assemble these parts
Downloads

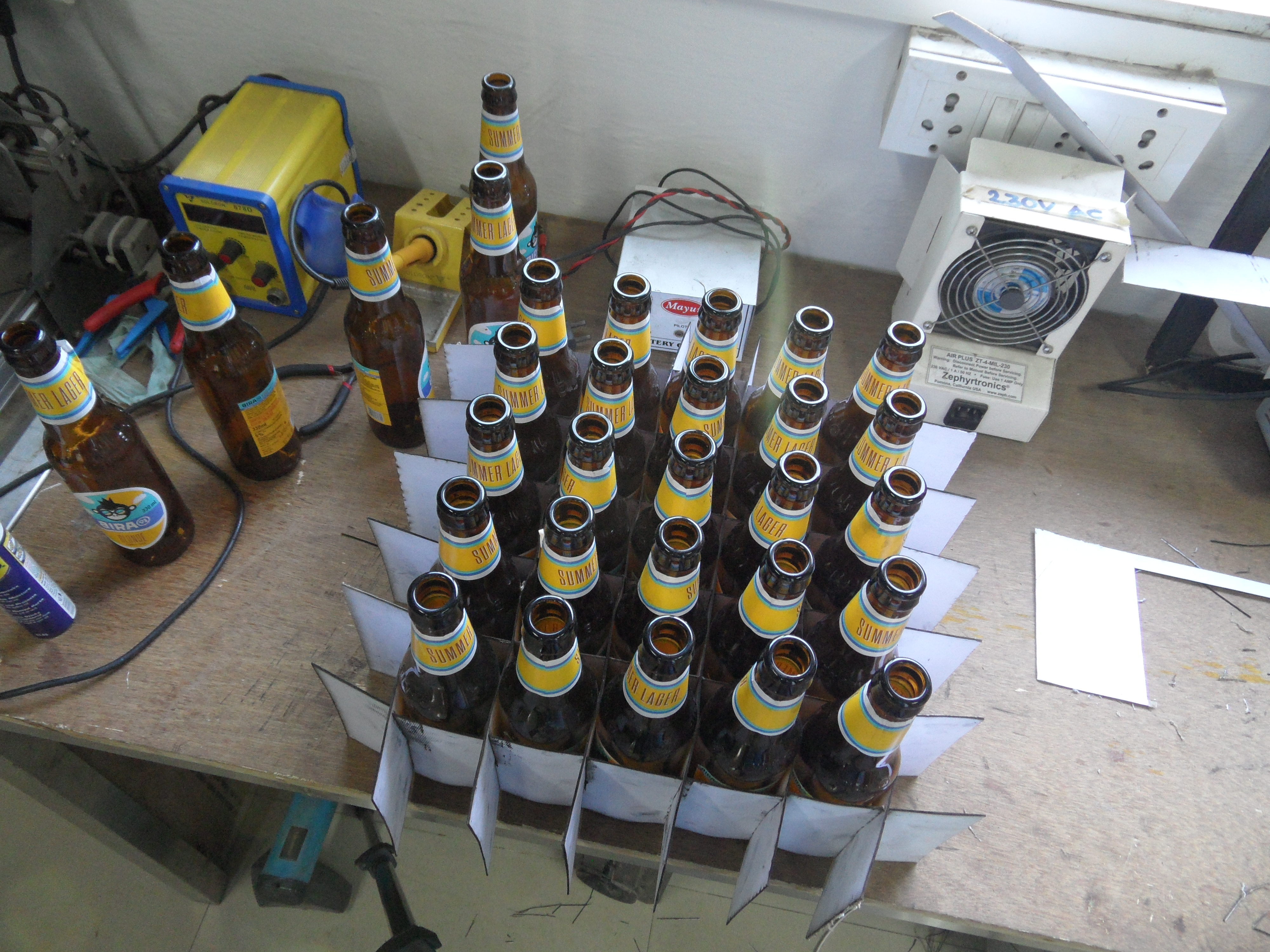

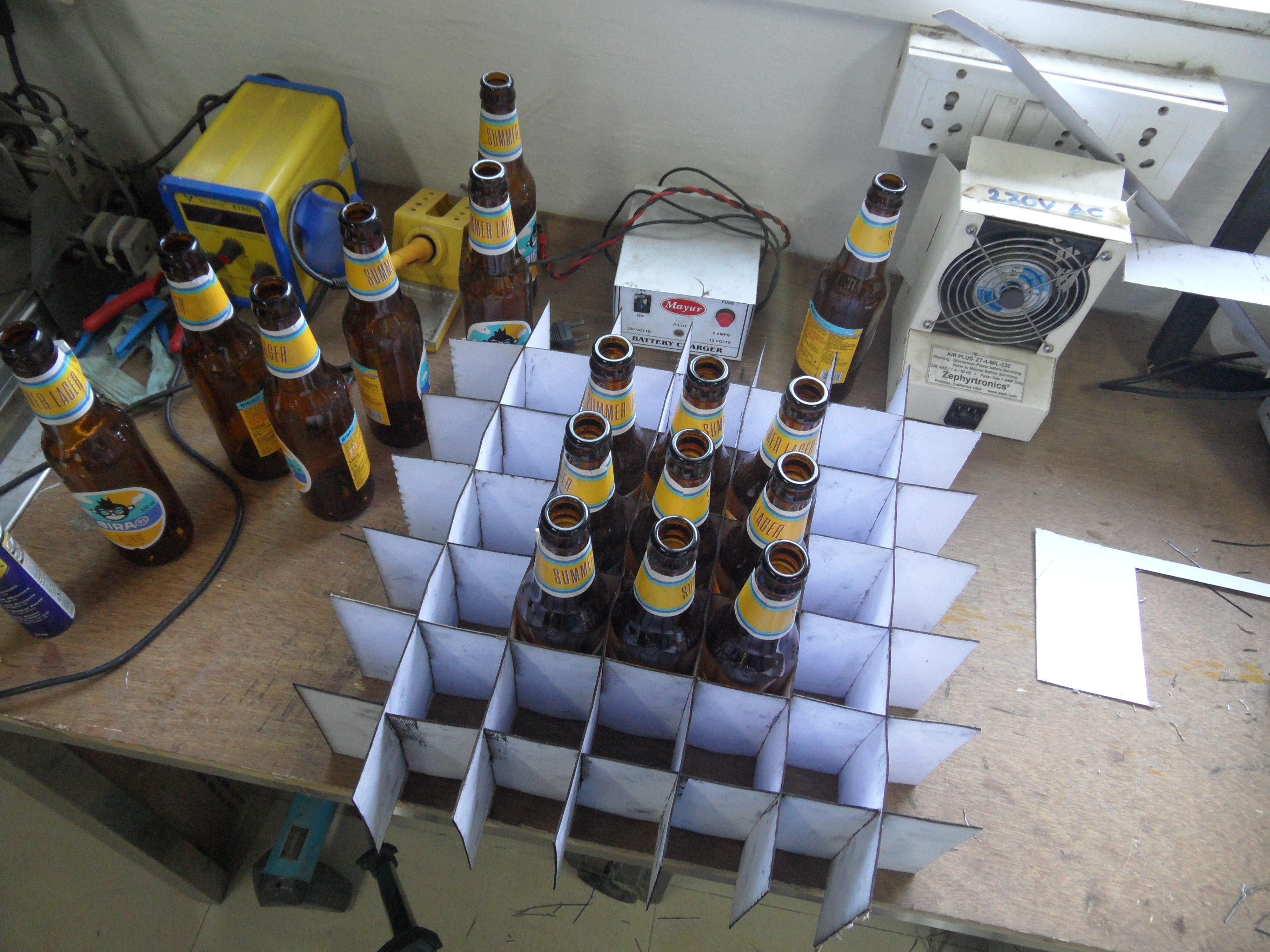

Take all the bottles and put in the slot
Then tape it

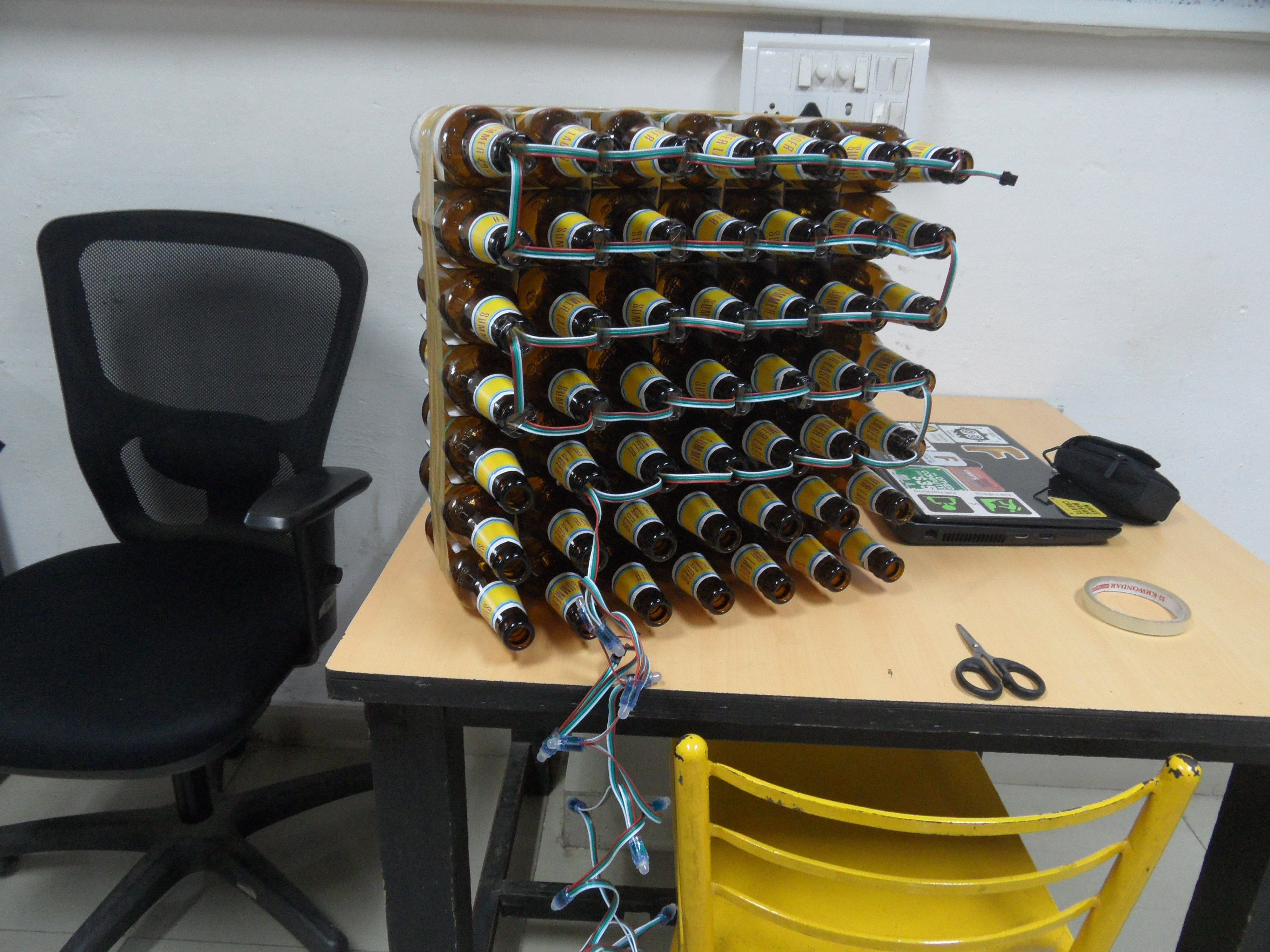

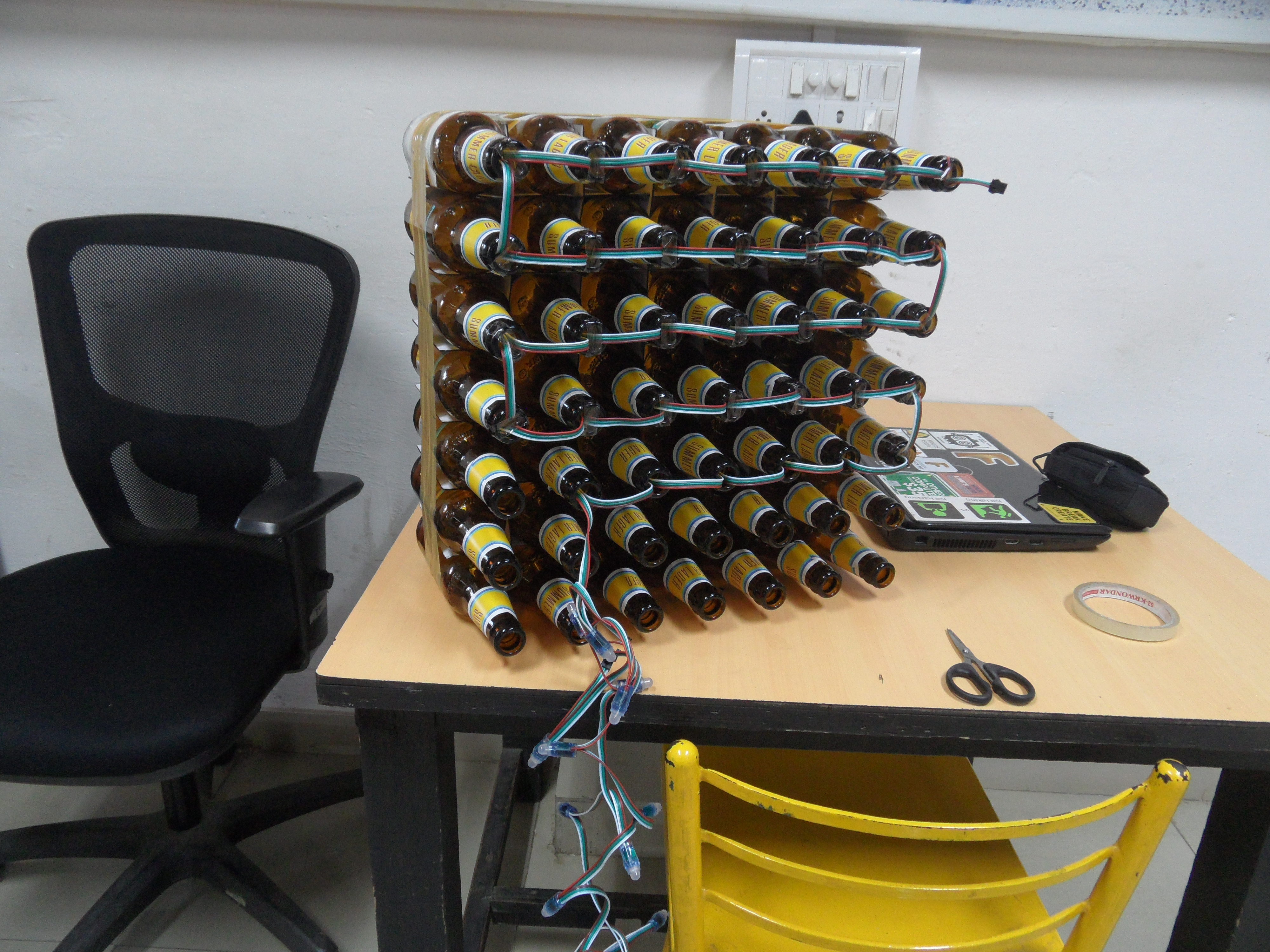

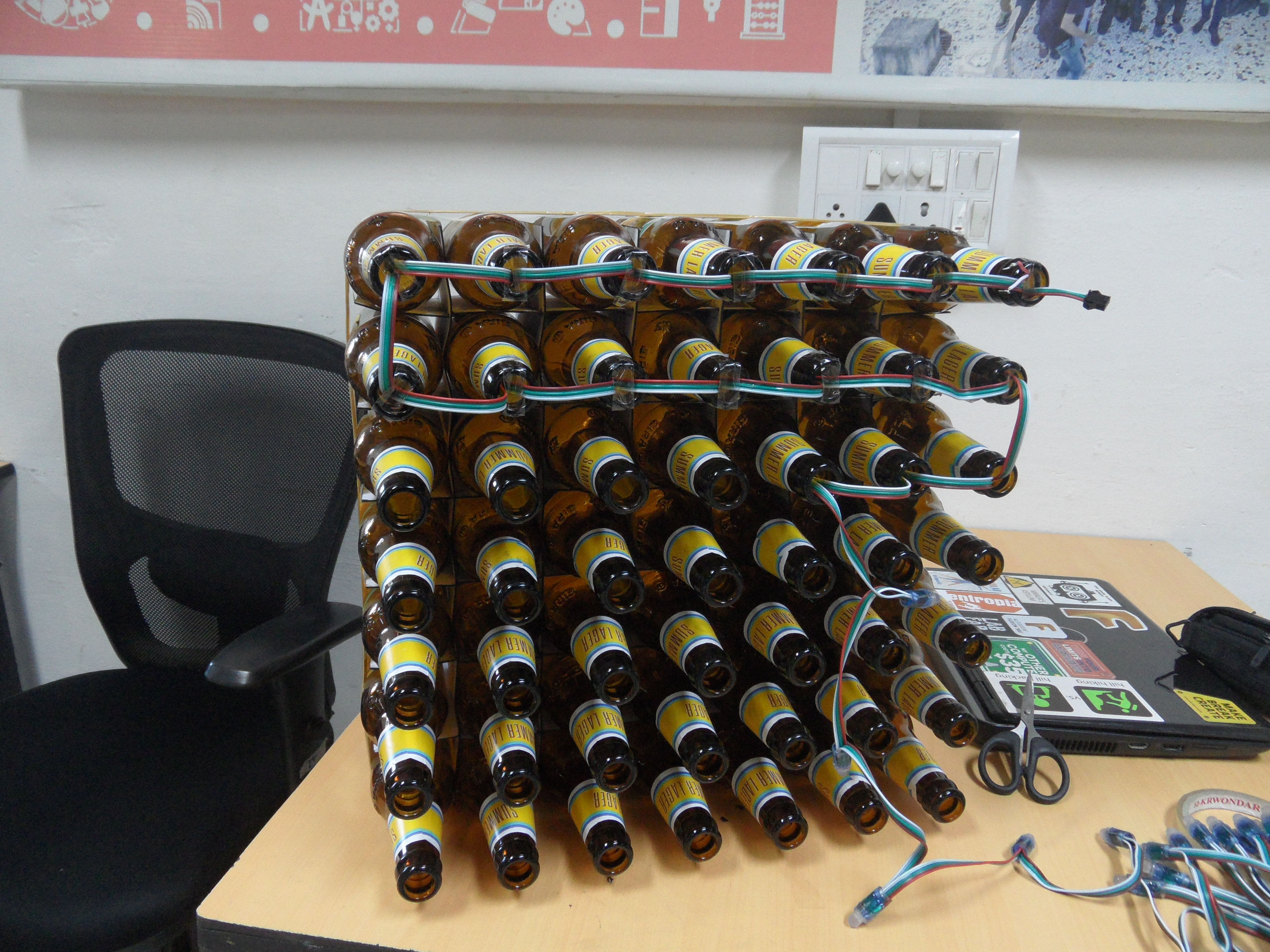

Take WS2811 LED strip and insert LED in each bottle

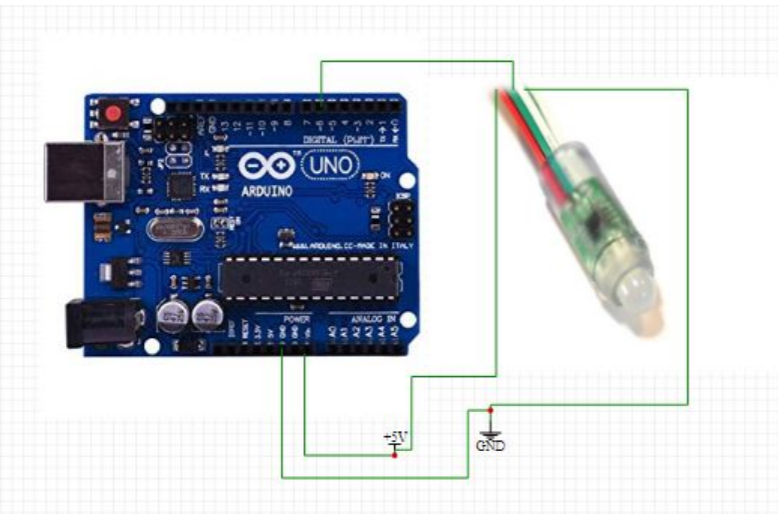

Take Arduino and three wires then connect three wire to LED then red wire to +5v pin and white wire to GND pin and green wire to D6 pin



1. https://drive.google.com/drive/folders/1J-6veQ5ko_...
2. https://drive.google.com/drive/folders/1w4cRBLnYH-...

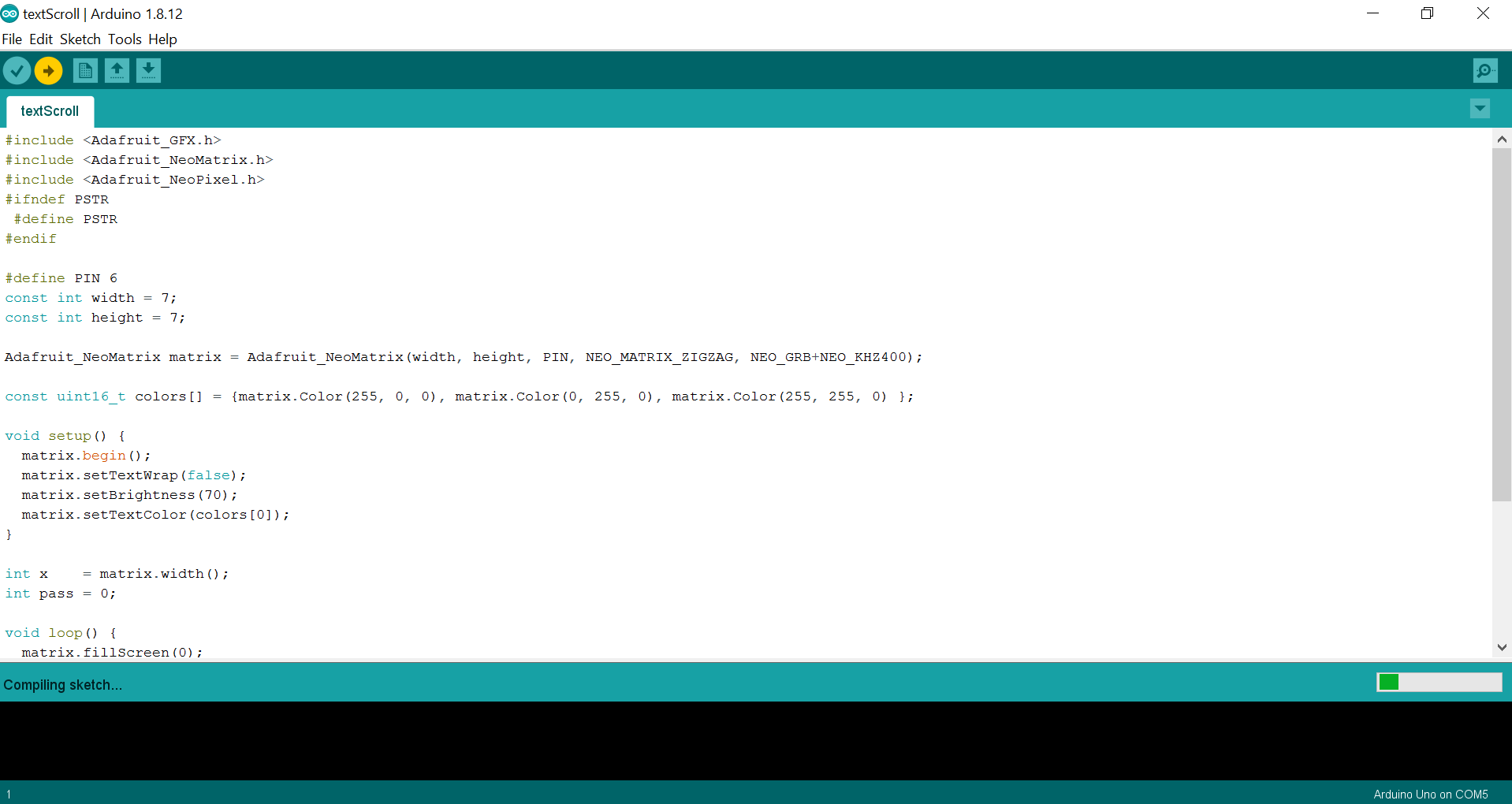

Download This code

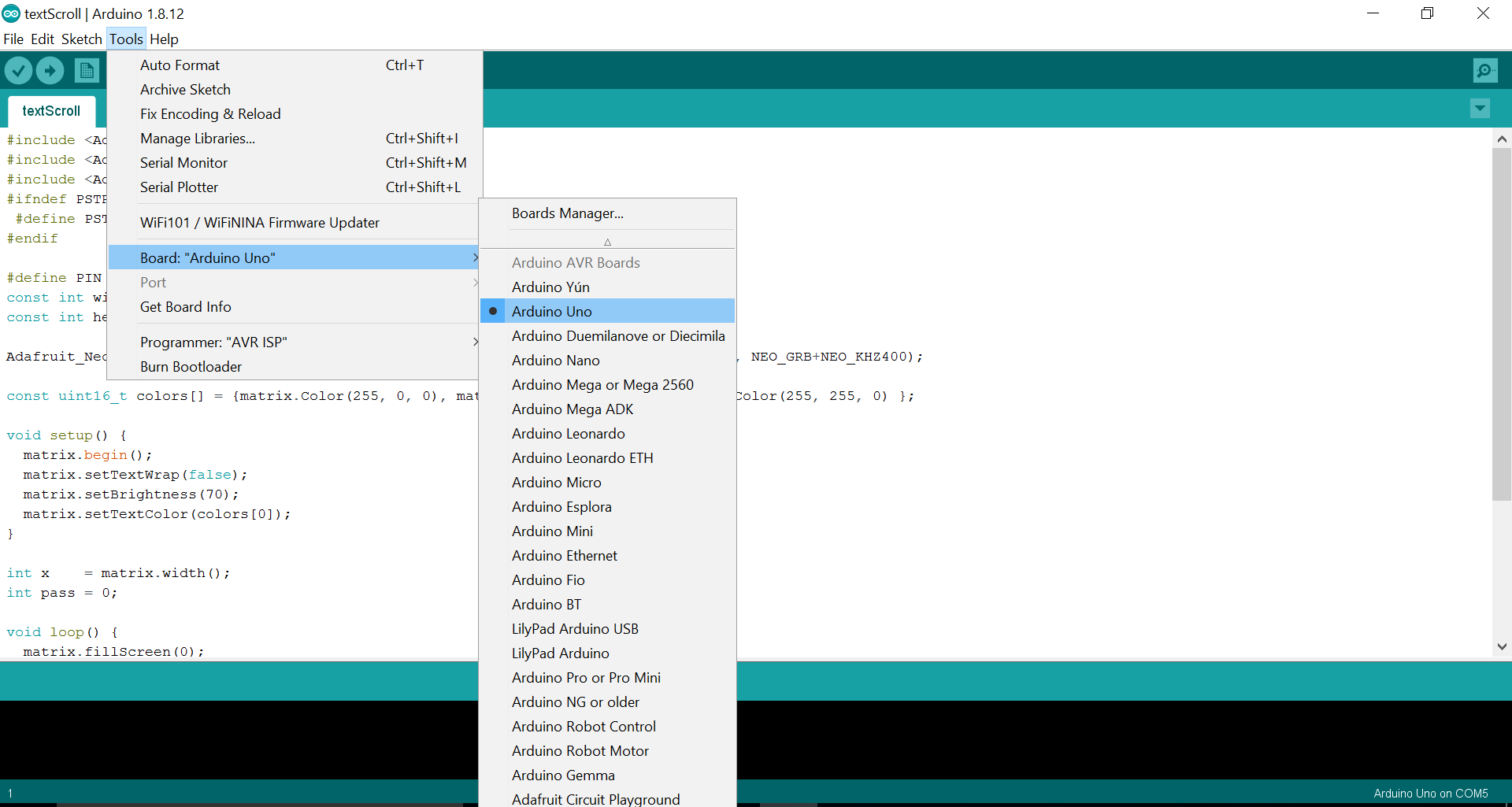

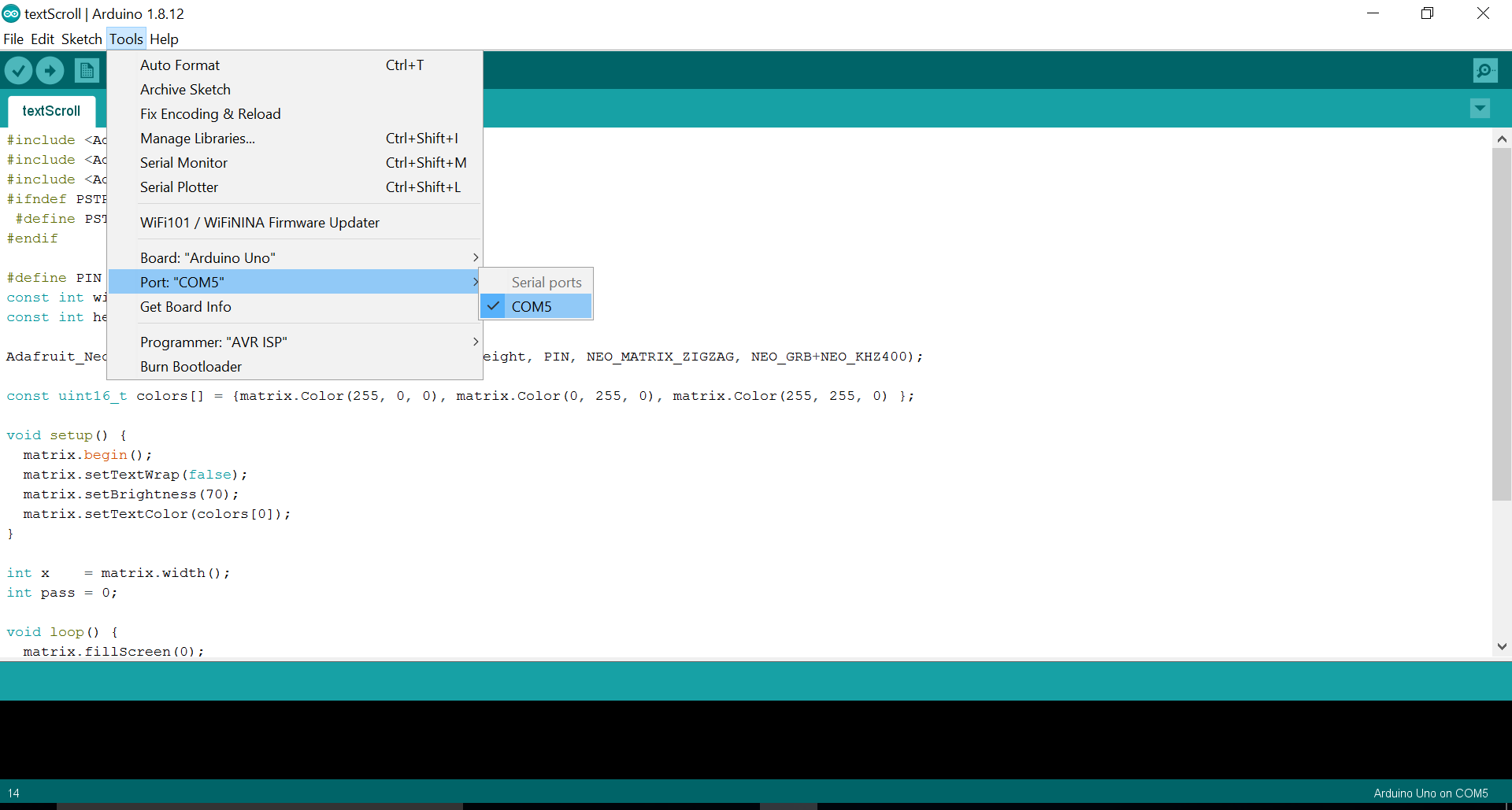

Then open this code in Arduino IDE and go to tool and select Arduino Uno Then Upload the code.
