Make a Walking Robotic Lego Cyborg! ... ROBOTIC LEGO CYBORG????

I know what you must be thinking...THIS IS MAD! Well, you're right, it is MAD. But this is not a lego man dressed as a robot...It is a ROBOTIC LEGO CYBORG!
I believe I am the first person to ever try doing this, yepee!
I will show you how make a robotic, remote controlled Lego man that walks around, and I bet that this is the second smallest robot of its kind in the world! And I also bet that this is the most craziest robot in the world!
To make this Instructable, you must need a TOMY ROBO-Q robot, and a Lego man.

Stuff That You Will Need:

You will need a robo q robot from TOMY and the transmitter, a lego man, a pen(optional), piece of card, scissors, small screwdriver, ruler, tape and a pair of hands!

Step 1

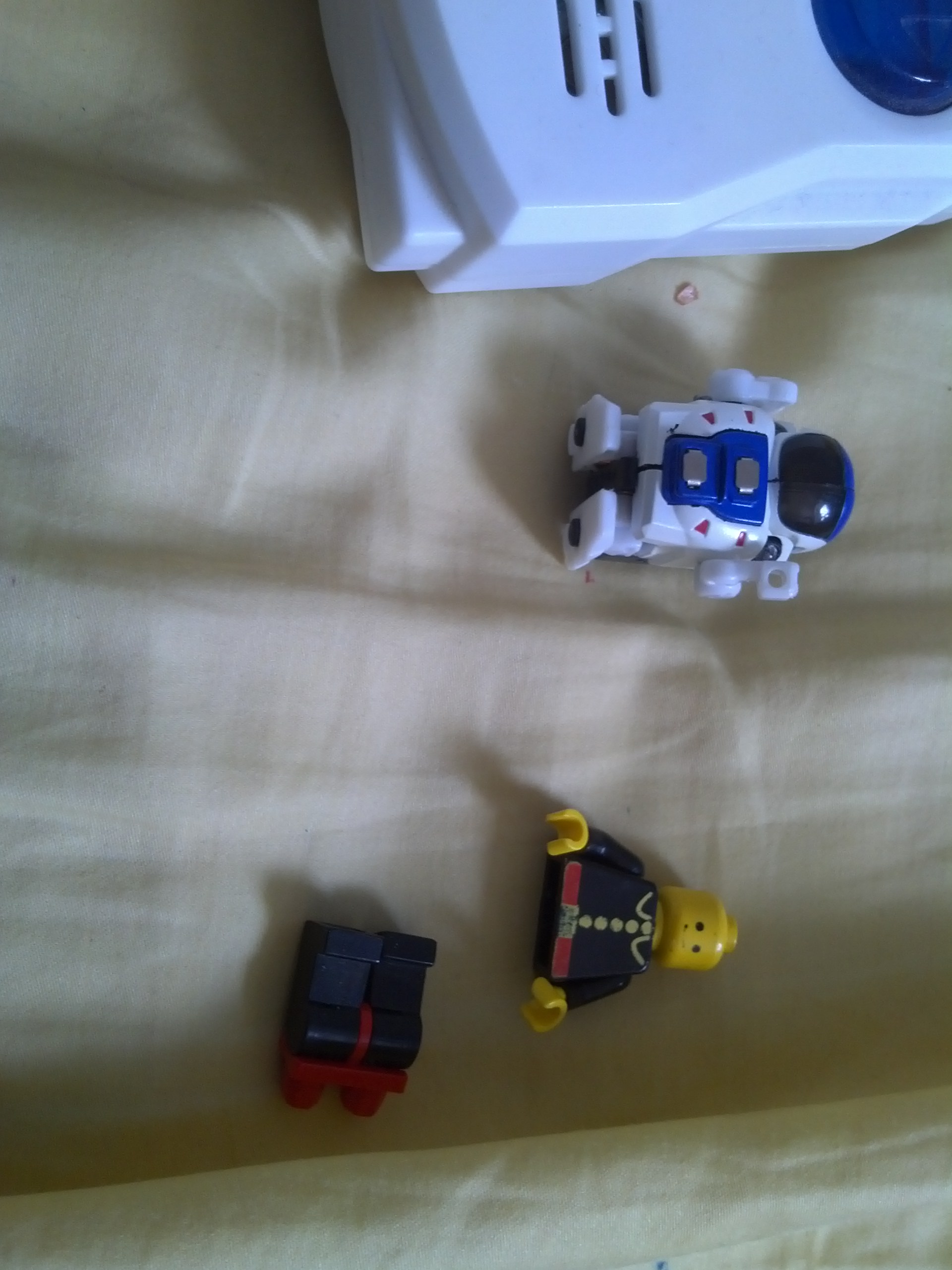

Take the leg off lego man...OUCH!

Step 2

Unscrew the screw off the side of robo q

Step 3

Gently remove the right outer shell...

Step 4

The the left outer shell...remember, BE CAREFUL! try not to damage any of the wiring.

Step 5

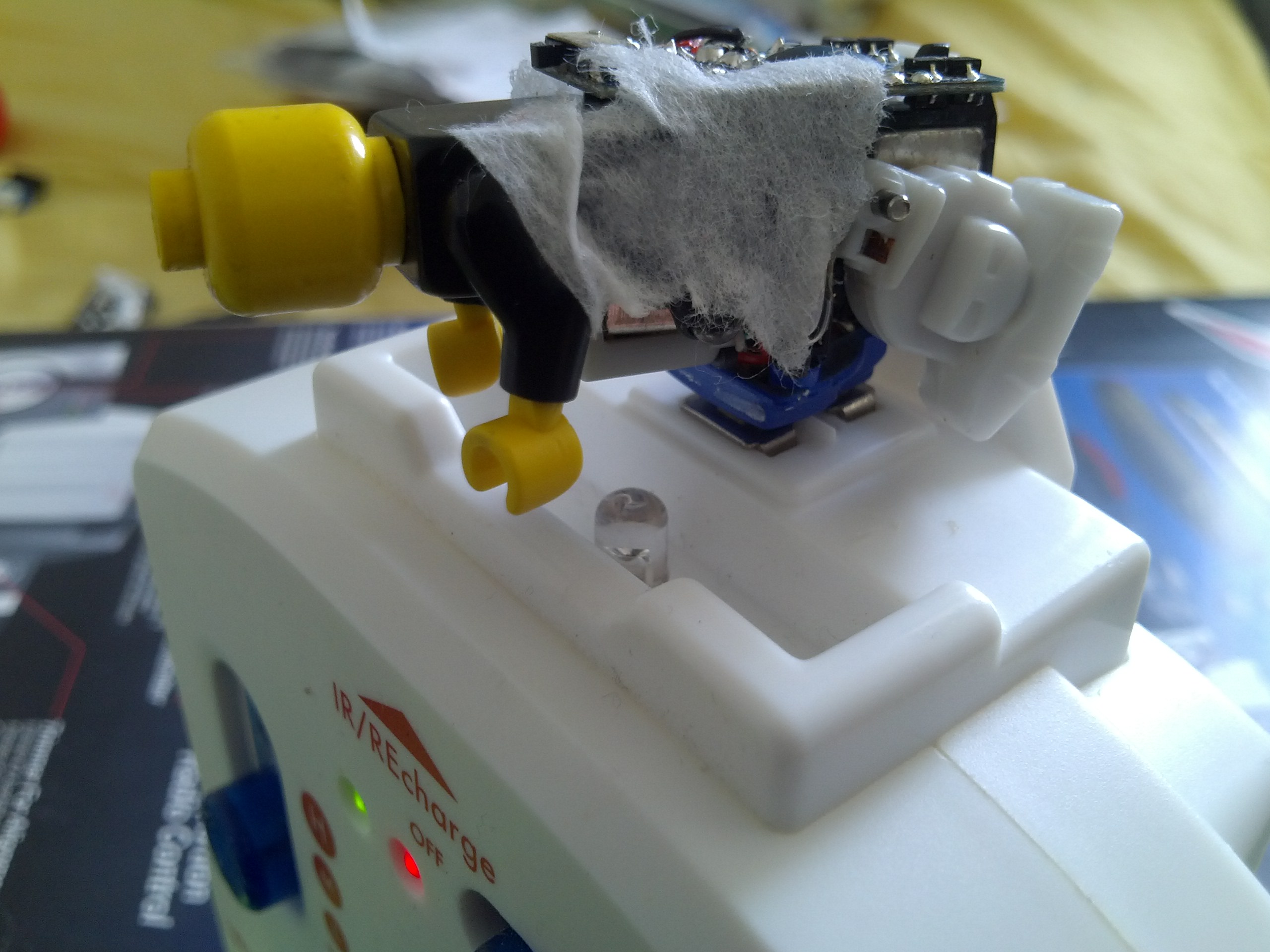

Tape the body of the lego man onto Robo q
As you can see, this does not effect charging at all!
When taping, try to avoid the sensors.

Step 6

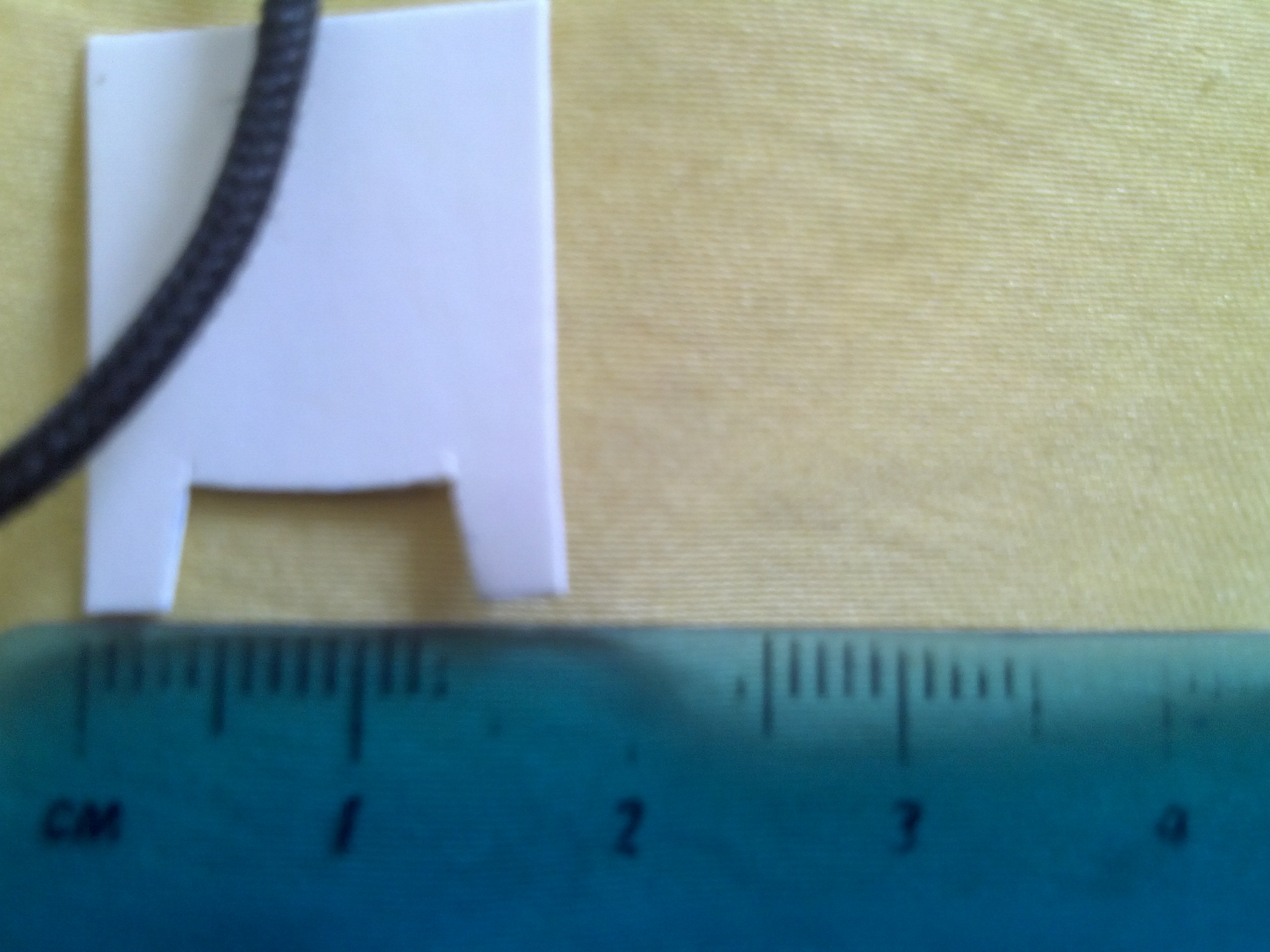

Using the card, cut this shape. Use the pen to draw it out first if you want.

Step 7

Cut another one...

Step 8

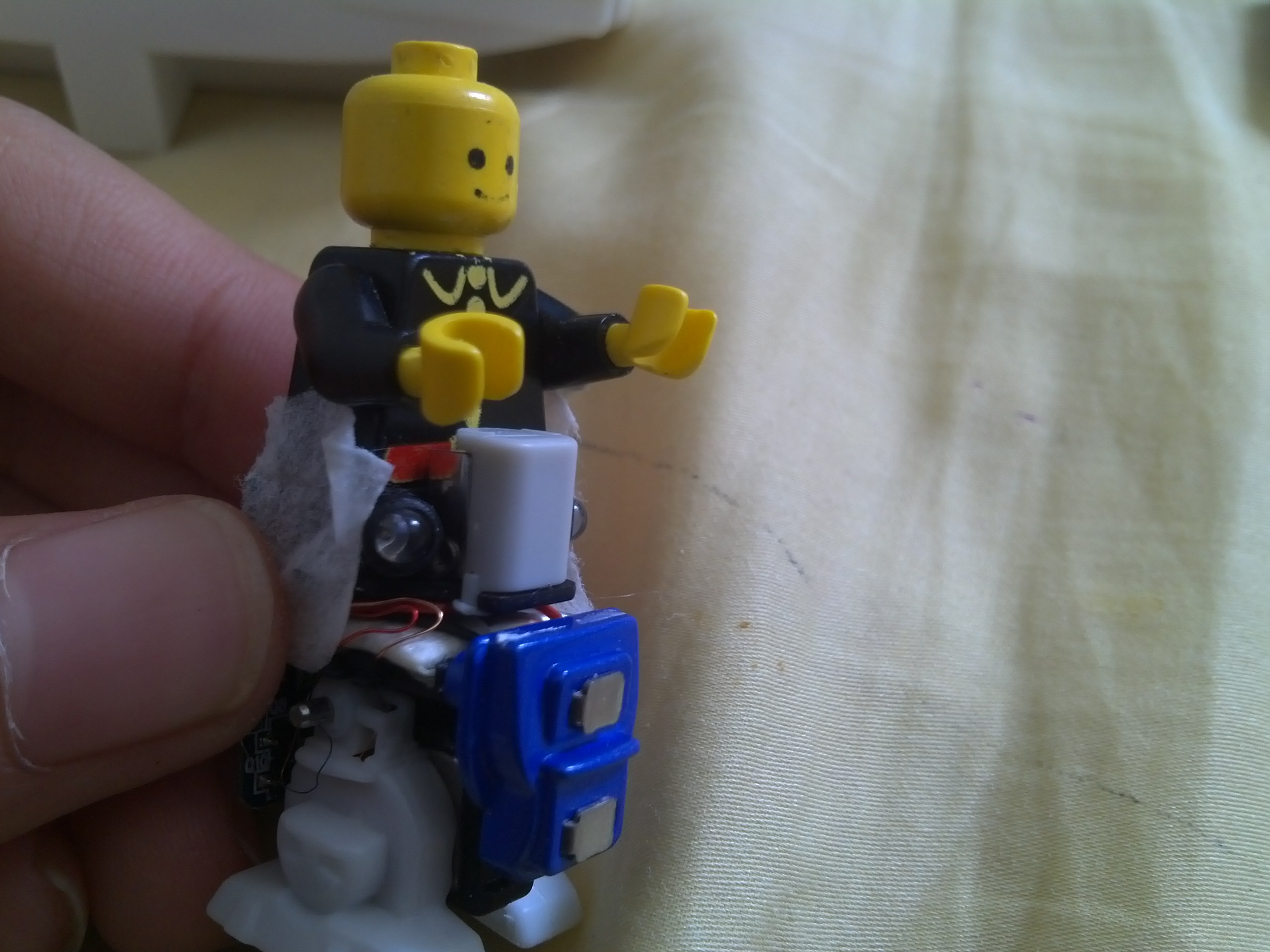

Tape them on the side of the robo lego man, make sure when taping avoid taping the sensors as well!
These pieces of cards will stop the legs of robo q going out of control.

You Are Done!

Congratulations! You have done well if you made this far!
Now just put your Robotic lego cyborg on a flat surface and play around!
