Make a Recycled EDC for Repairmen

What is an EDC? It's short for an Every Day Carry. It's the things that you'll need to handle repair jobs.

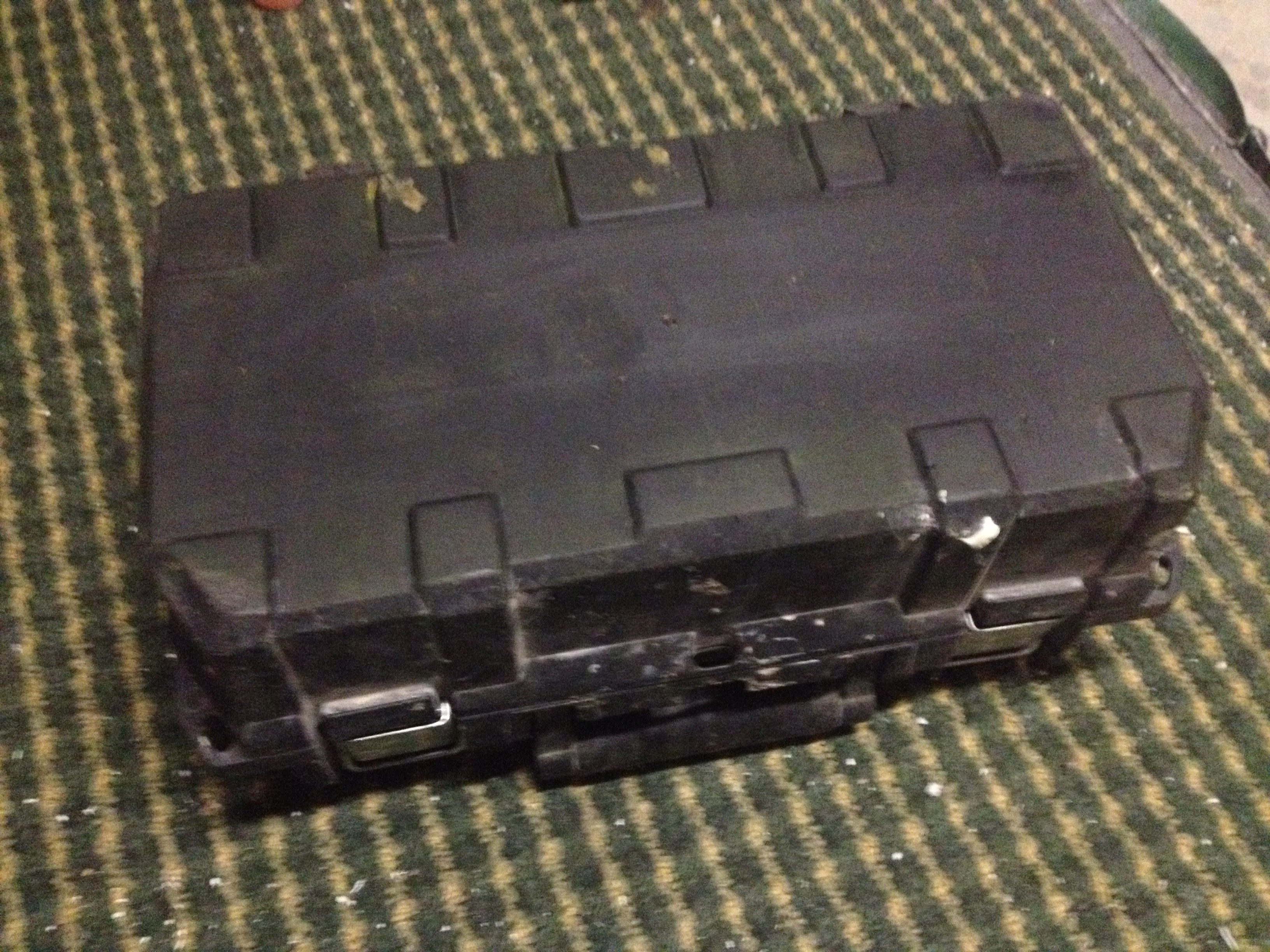

I like to recycle old tool cases for my EDCs. Sure I could buy a new box or bag but I have all these old tool cases that are really sturdy and should work fine. My old one is wearing out, the latches are falling off and the tools I keep in it are slowly outgrowing the case. I have an old angle grinder case that despite being an odd size, is extremely well built. It looks like it would work really well.

Materials

• An old tool case to convert. Preferably one with good latches.
• I needed something to divide up the space in mine. I used materials I had available like a piece of acrylic and a plastic tub.

Tools

• Paint thinner paper towels and sandpaper for removing old logos.
• A dremel for making dividers if you're going to use acrylic.
• A utility knife to cut through lighter plastic.
• A heat gun to shape plastic may be useful.

This case is heavier than my old one. It's pushing the limit of what I'd like to carry but my old case wouldn't hold my 12" channel locks or my multimeter. I'm hoping the extra space and having those tools readily available will pay off.

I'm a repairman. I walk into an apartment with a description of "My heat isn't working" and find out they meant the electric coil on their stovetop is cracked and isn't working. Okay, most days it's better than that but not usually much better. I can't haul all my tools around, there's too many. The other day I got a call that a window wouldn't close and I found out I had to fabricate a window rail out of wood. I needed a tablesaw, and I can't carry one of those with me.

So the point of the EDC is to have the tools I need to at least diagnose problems and if I'm really fortunate, fix them.

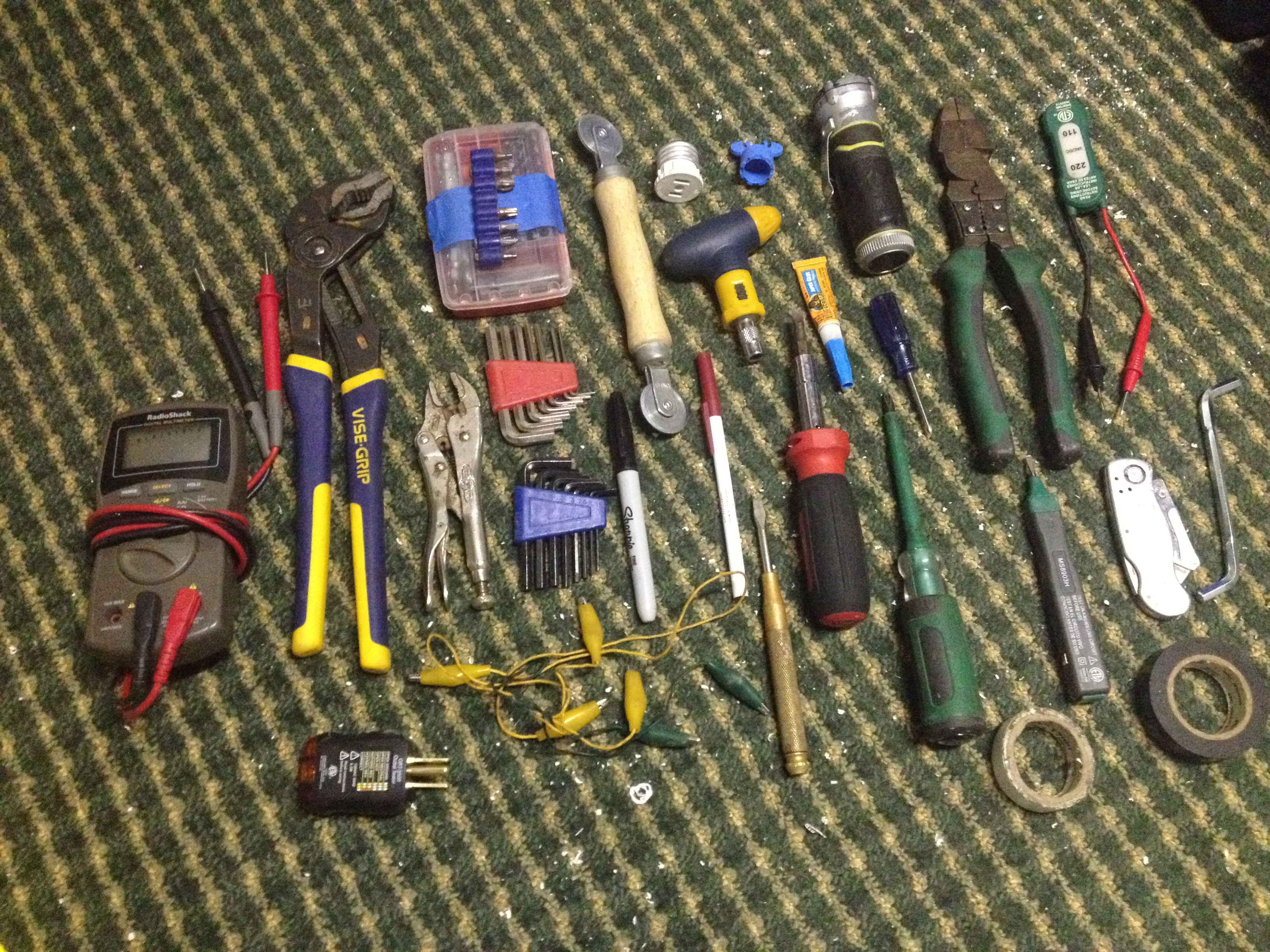

What do I carry? (in order of importance)

• Leatherman Wave (not in this picture because it stays in my pocket)
• 11 function screwdriver, mostly a life saver because of the nut driver functions
• Sharpie marker
• Utility knife
• Small flashlight
• Channel locks (I recommend the 12" Vice Grip locking pliers)
• Capacitive line tester (the little pen tester for non contact electric line testing)
• Garbage disposal wrench, (or equally sized allen wrench) I work on a lot of garbage disposals, YMMV
• Lineman's pliers, mine also include wire strippers which are also very useful
• Measuring tape (not pictured)
• Electrical tape
• Digital multimeter
• Dummy light as a back up when the multimeter blows a fuse (I should really stop doing that)
• Stubby screwdriver, mine has the advantage of multiple tips and it ratchets. It's important that a tool multitasks
• Small locking pliers for tight spaces and shut offs
• Various small format screwdrivers. The brass screwdriver has four progressively smaller screwdrivers in it and the blue Philips
• Allen wrench sets. I don't need these often, but they usually come in handy for shower handles
• Some cyanoacrylate glue
• Outlet tester (if you have the other testers, this is more of a convenience)
• Case of screwdriver tips
• Alligator clip jumpers (these are a bit wimpy, I need to make beefier ones)
• Screen tool
• Insulated screwdriver (the green one)
• I have a aerator wrench (the small blue thing) but i almost never use it.
• I also pack a bulb to plug converter in case I can't find a plug but so far haven't needed it.

I don't mind the logo on the case but a tool maker's logo on my cases has caused people to question what I was hauling around. My last case had a logo, but it was hard to see. This one is pretty obvious.

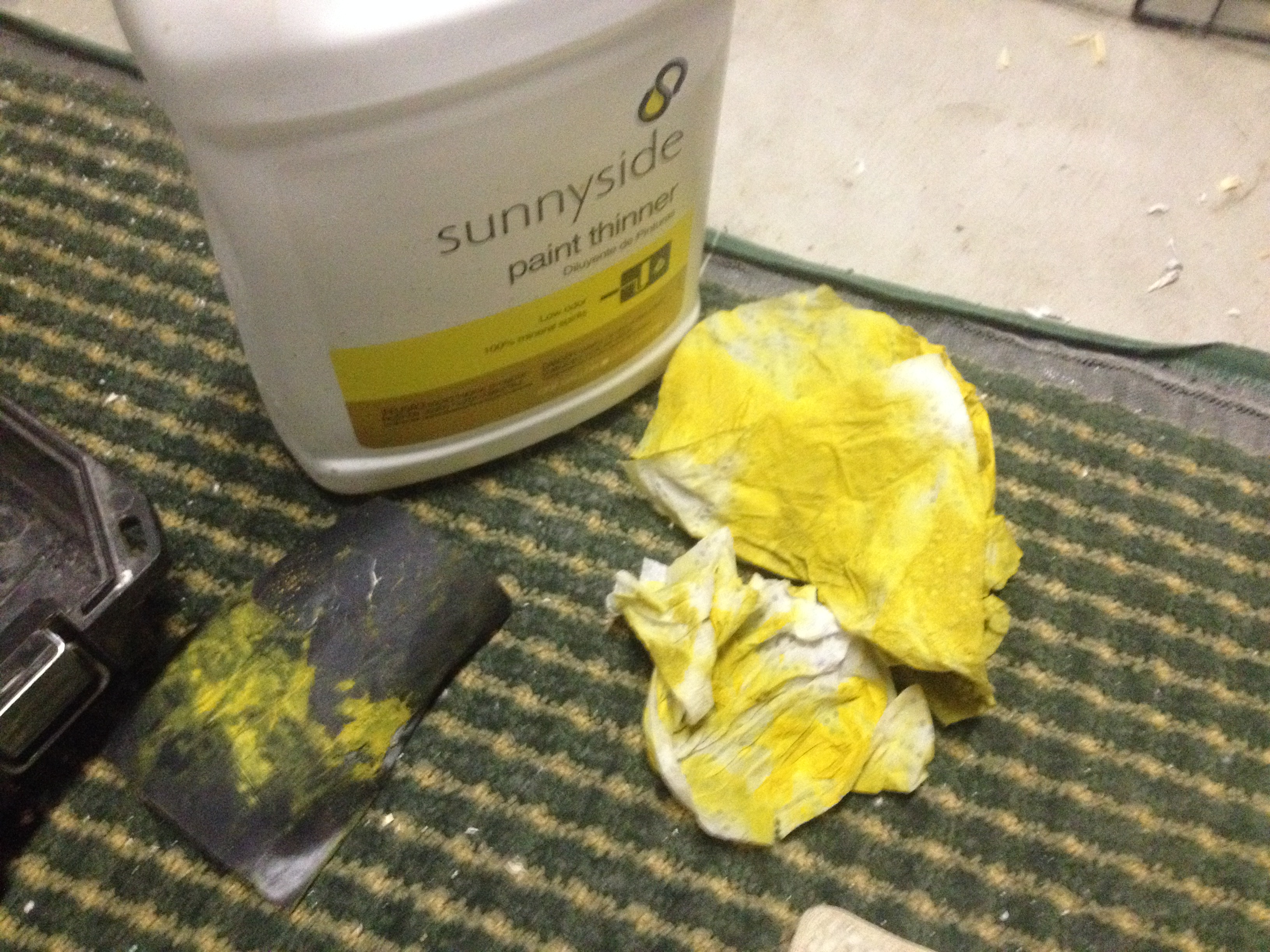

How can I get it off though? I started with some paint thinner. At first it didn't seem like it was making a difference. Then I tried some 220 grit sandpaper then rubbed with paper towel and paint thinner some more and started to make progress. It took five or six alternations of sandpaper and paint thinner but it came off nicely.

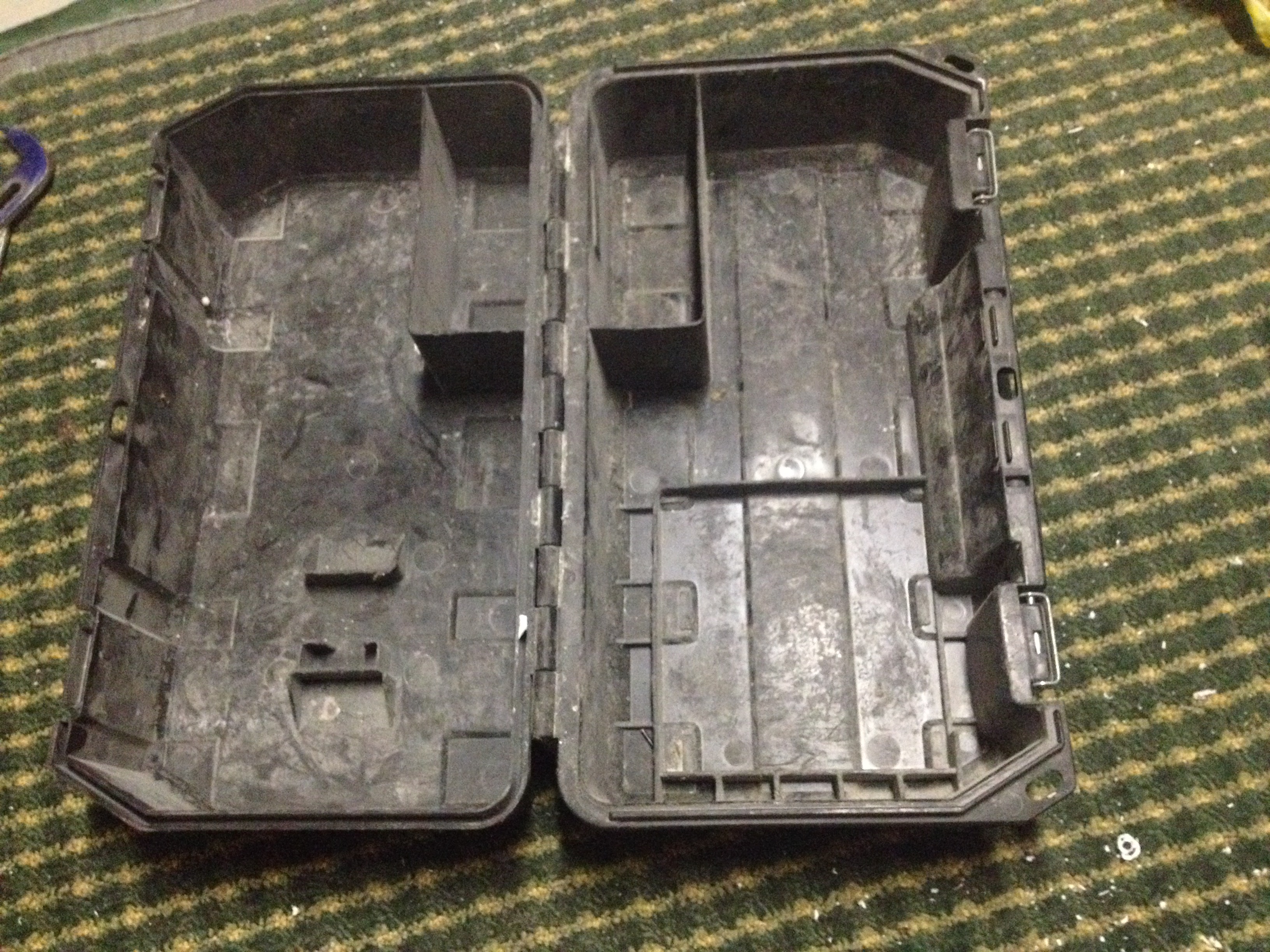

This case is really deep. It also has two small compartments that would be nice to use if things wouldn't fall out of them when I opened up the case.

In the past, I tend to set my case down and then open it like a briefcase. If I used this case like that, the upper lid is a lot of wasted space.

It would be great if I could contain items in the lid section of the case. At first I thought about using bungee cords to strap tools in, but there wasn't an easy way to do it. I also couldn't find my bungee cords.

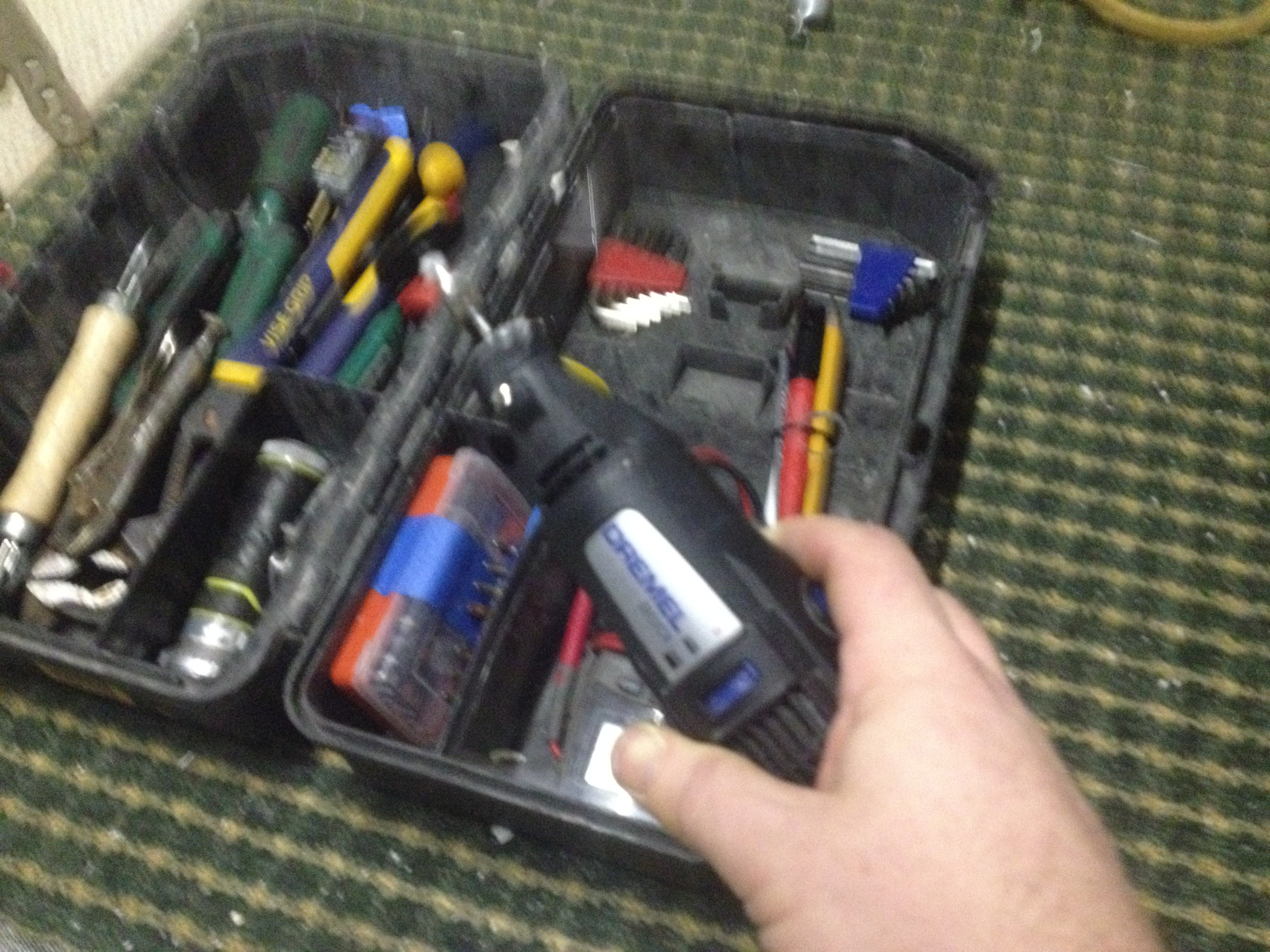

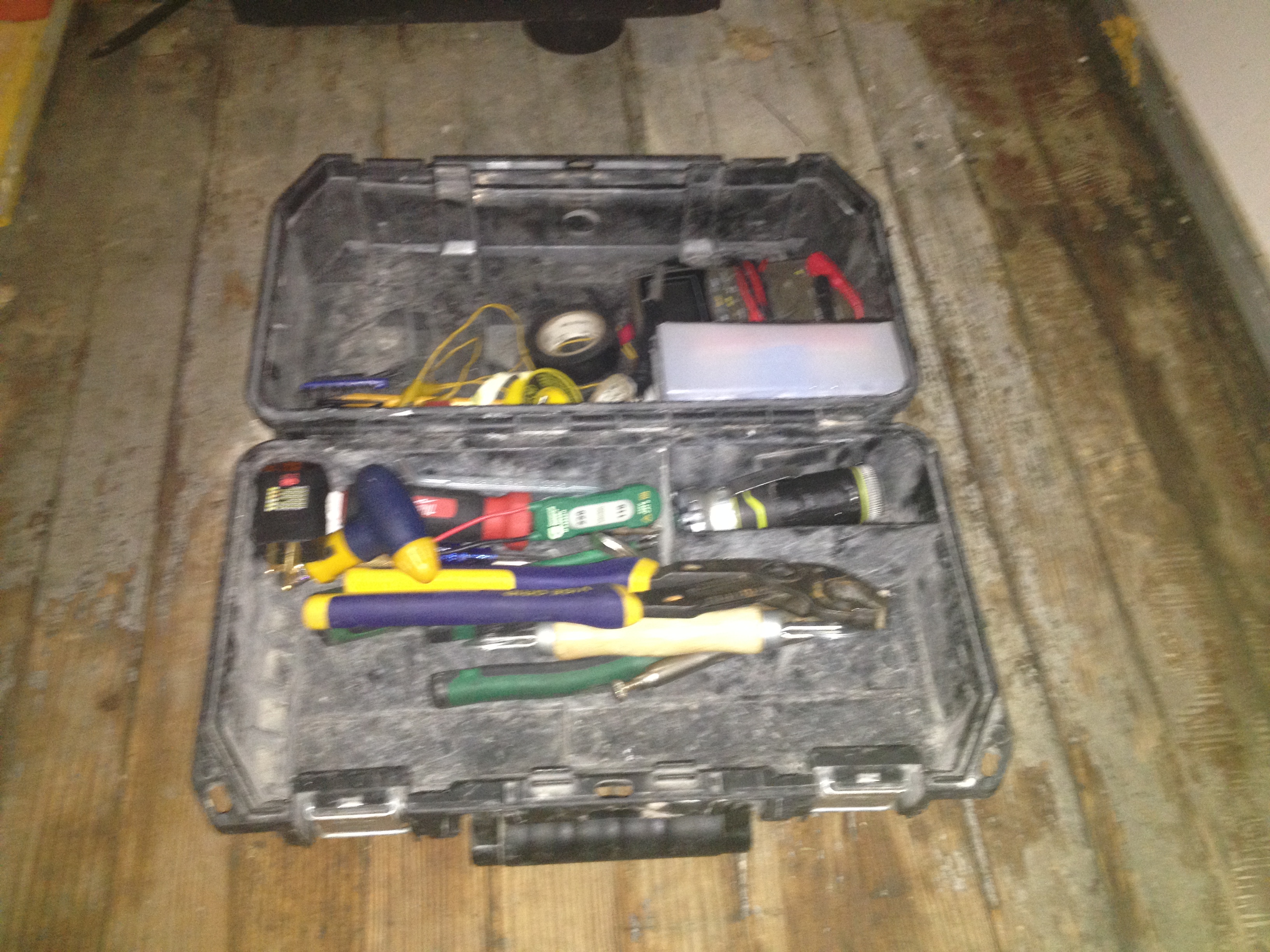

I did a dry fit and all my tools fit with room to spare, if I can use the upper part of the case.

I had a piece of thick acrylic left over from some fish tank work I was doing. Fortunately it was just big enough.

I used a sharpie marker to draw the edge of the case on to the film protecting the acrylic. Then I used a cut off wheel on my dremel to cut the sheet to size. I cleaned up the edges with sandpaper and then cut a finger sized hole in the top so I can pull the panel out. After that I removed the protective coatings.

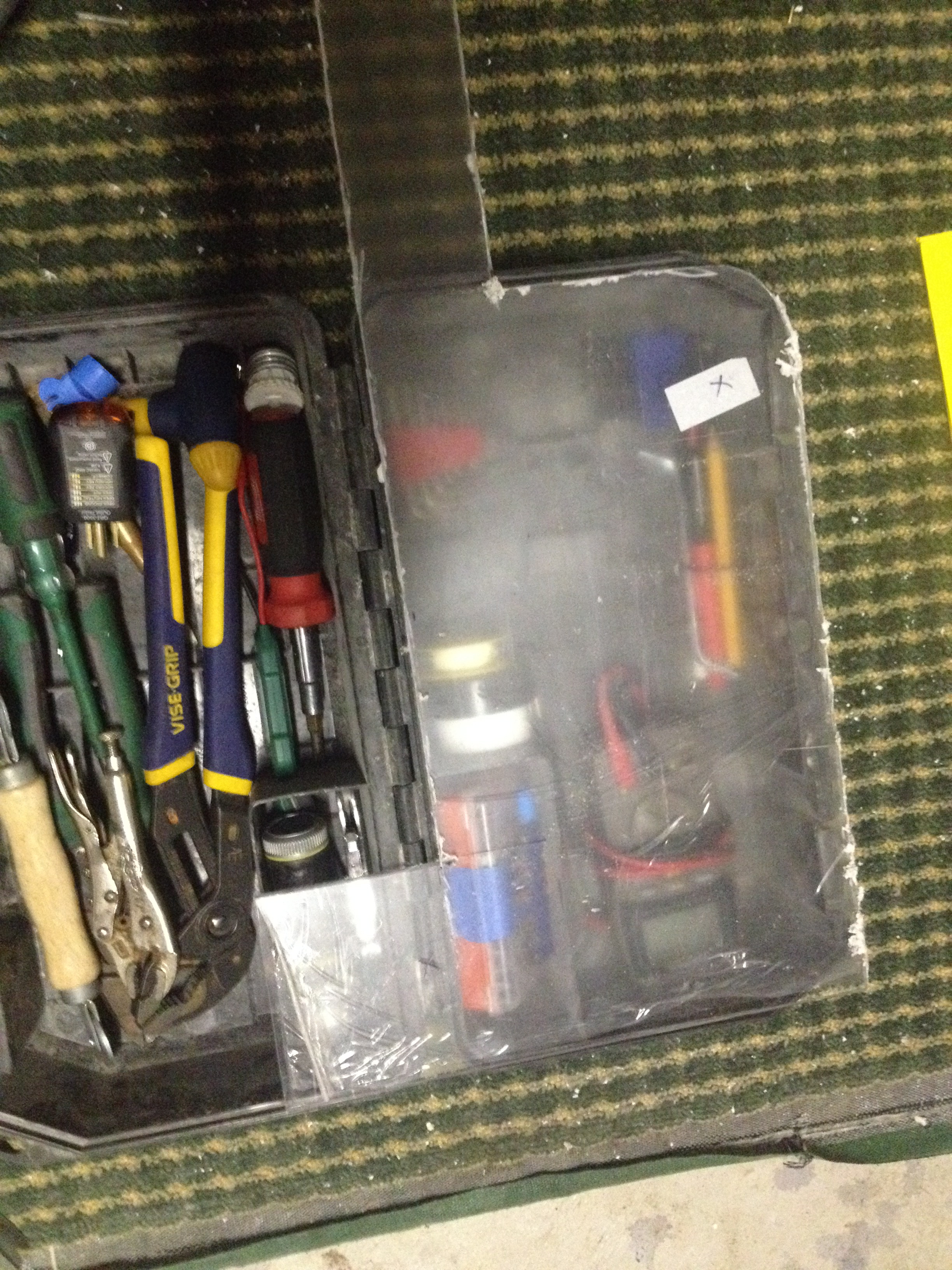

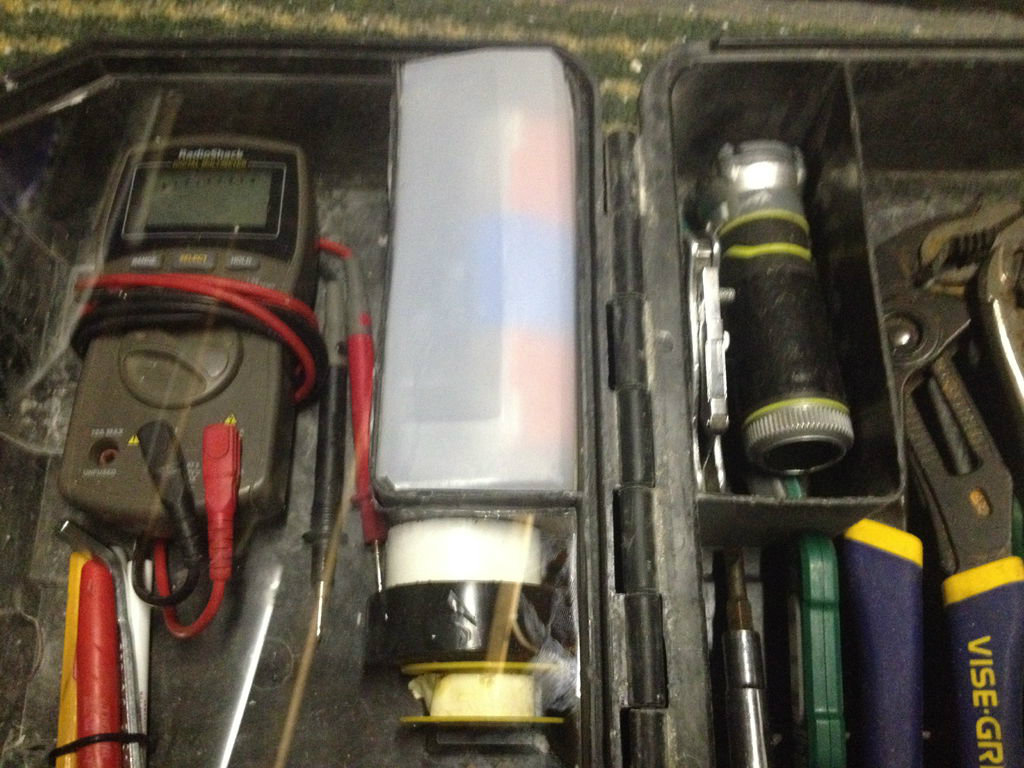

The divider is really transparent. It sits snug in the case, recessed just a bit. You can see it on the intro step and the next but it barely shows up on camera. That's nice for locating tools without removing the divider.

It still needs some way to lock it in. Yesterday on the job it stayed in place most of the day, but at one point popped out when I opened the case. It seems like a simple solution should be workable. A small ridge or two on the bottom and then some kind of latch at the top might work but I haven't settled on how to do it yet.

Acrylic wasn't going to work for this divider. This needed some kind of flap.

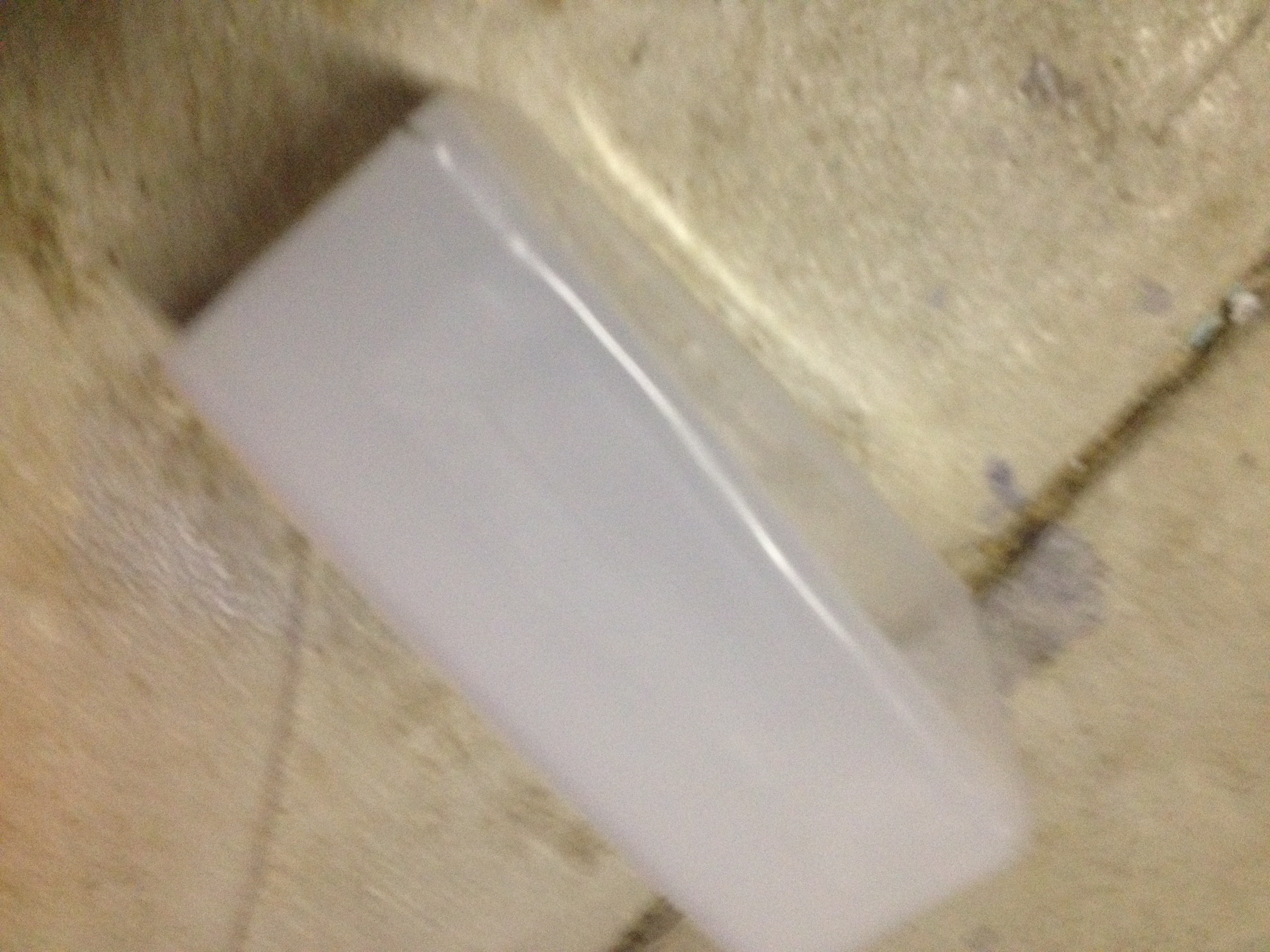

I got an old ice cream bucket, cut out the bottom and a side with a utility knife and then trimmed the piece to size, leaving extra material on the one end. Using a heat gun, I bent the plastic to meet the shape of the small chamber. Now I had a U shape that slid in place, but it would fall out when I opened and closed the case.

Using some cyanoacrylate glue, I applied a liberal layer to the side of the flap and glued it in place. I trimmed back the opposite flap a little to make it possible to open.

I used a piece of construction paper to make a stencil and some spray paint that I had in the basement to make my EDC label. It's a little silly. It's not like I'm going to forget that this is my EDC.

You might want to stencil your initials on it if you work with others. Tool boxes get jumbled sometimes even when people are honest.

I made my stencil by drawing an outline on my construction paper and then cut it out with my utility knife. Placed it over the case and sprayed.

The paint is not perfect, but I'm really fine with that. It gives the case a home made edgy look that I like. People can tell I repurposed something.

I'd like to have a slide in cell phone holder on the outside of the case. I don't have a suitable holder and I use a beefy protective case on my phone so I'm not sure how to have both.

I could clean up some of the tool ridges inside the case. I thought of using them as anchor points for something, but that didn't pan out. I'll leave them for now and think about it.

I'd still like some bungees to hold things in the upper part of the lid.
