Plumb a Garden Table With Running Water!

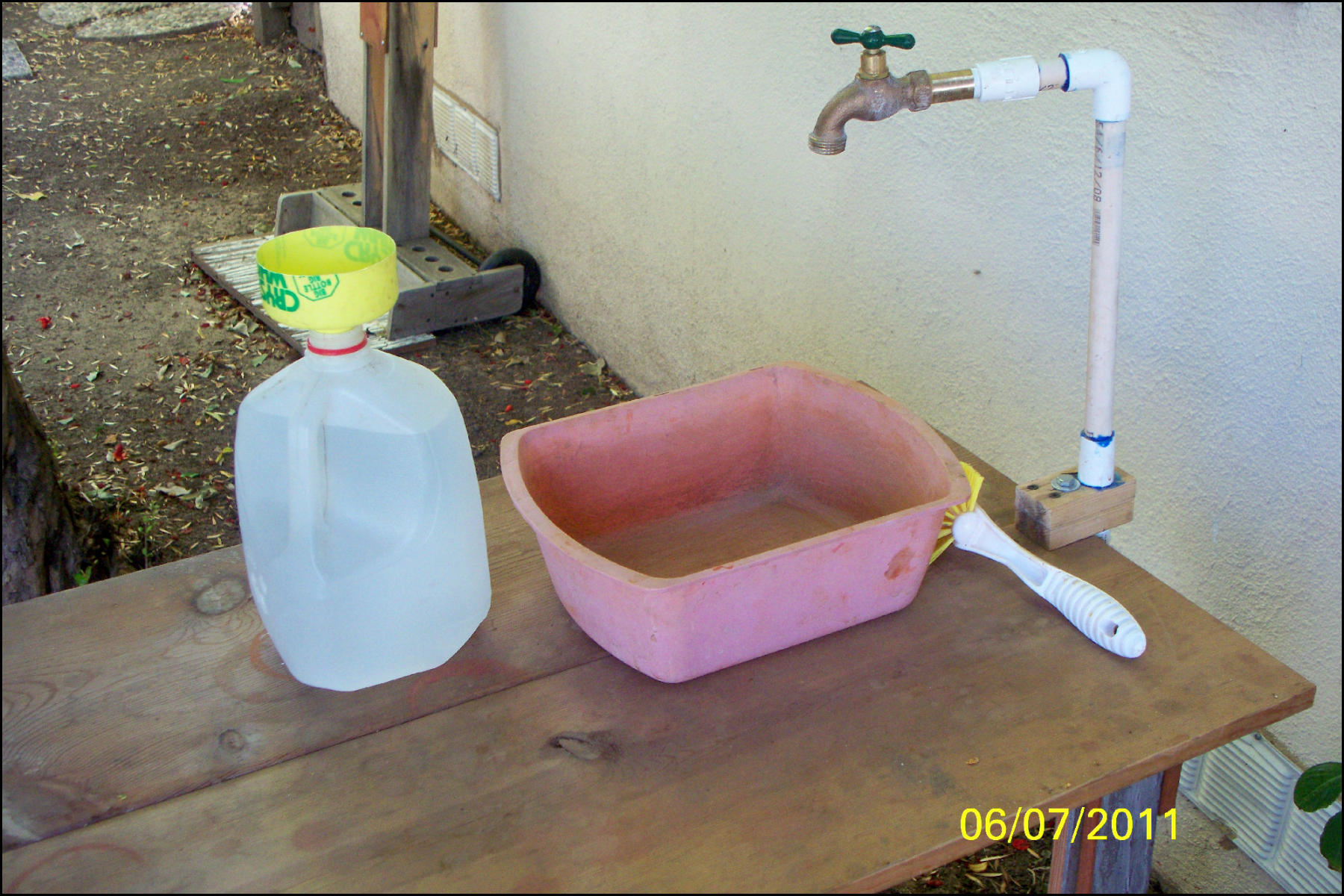

I wanted a table to use as a cleaning station for my concrete projects, but that would double in usage for other things: Cleaning vegetables from the garden, filling water containers, cleaning garden tools, potting plants, etc. Since it is an outside table, I could use recycled fence boards for most of the parts, and for the top I used two old 1 x 12inch pine boards I found. All I had to purchase was the faucet, the aerator, the hose splitter and a few pvc pieces.

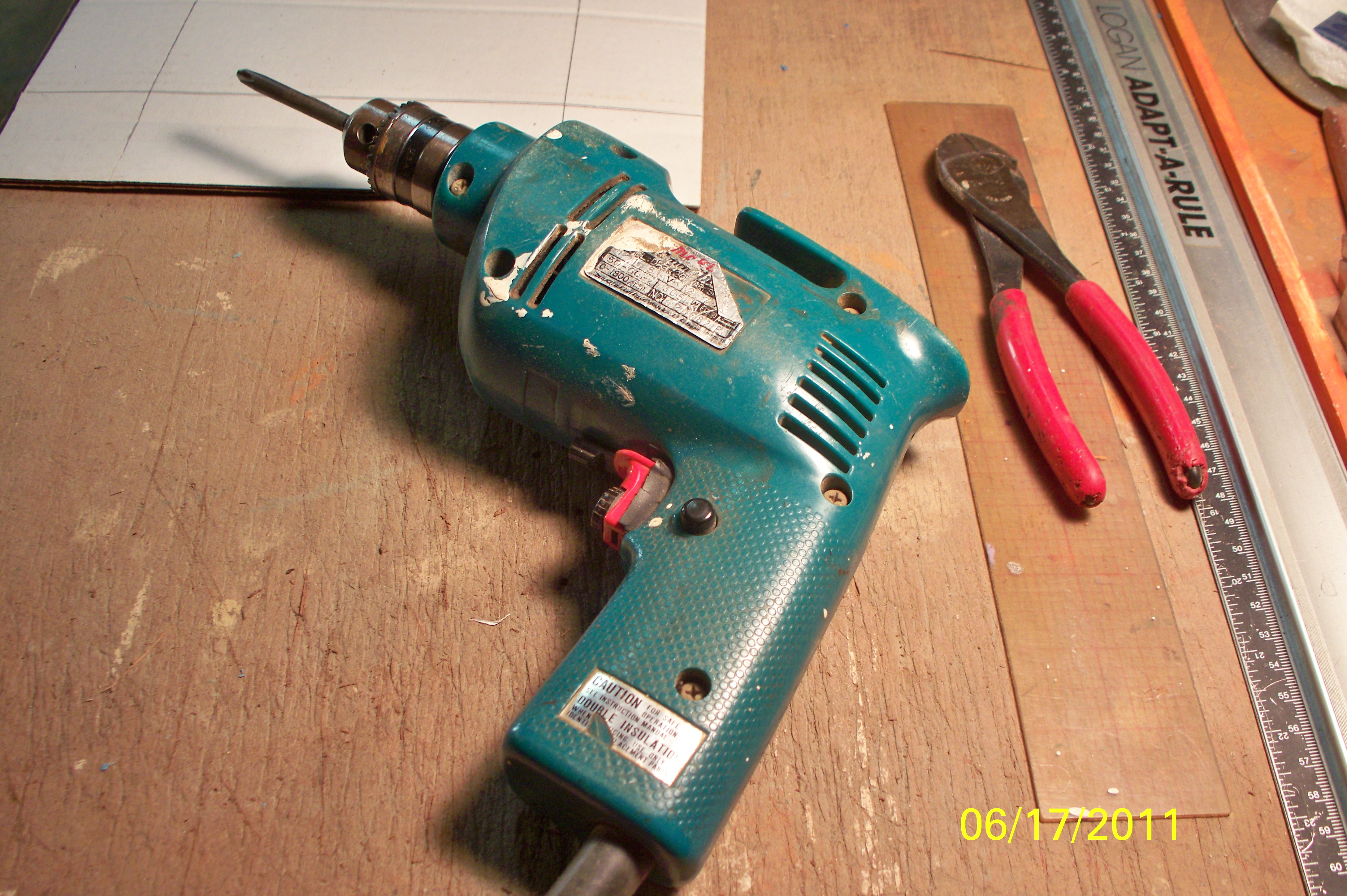

I like the concept of reusing or recycling materials, so it was an easy choice to get my boards from my stash of used fence boards. I've used 50 year old cedar boards, and even though they are greyed on the outside, when cut, they look like they just came from the mill! The usual wood working tools are used, table saw, drills, cut off saw, screwdrivers, etc. It's nice to have lots of power tools, but they are not required to make simple wood working projects.

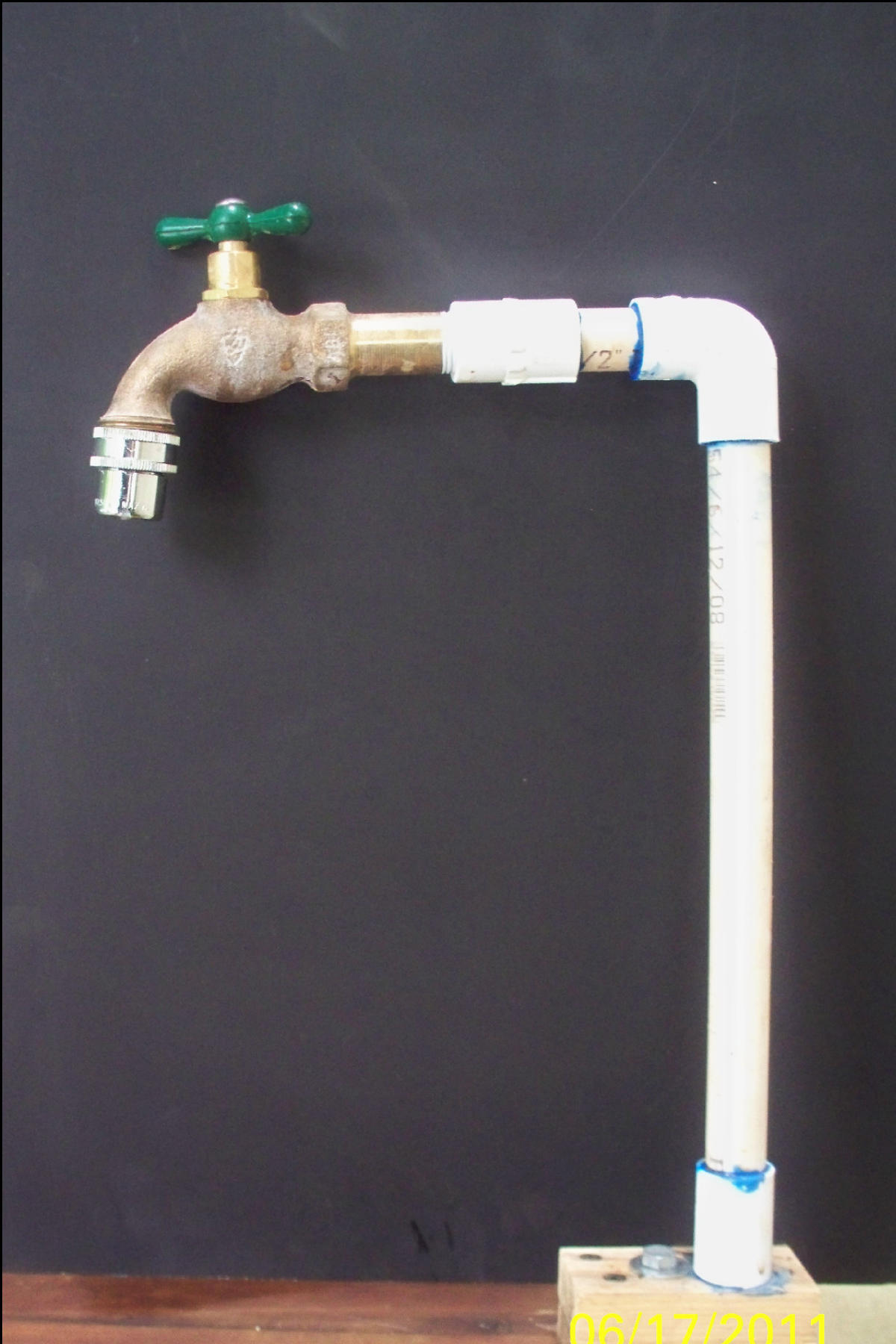

For the plumbing, I purchased a new faucet and aerator. For the pvc, I had most of that on hand, but did need to buy two hose bibb to pvc pipe pieces, and the hose splitter so that the table could be hooked up to my water source, but also allow me to use a hose for the garden and other plants I have.

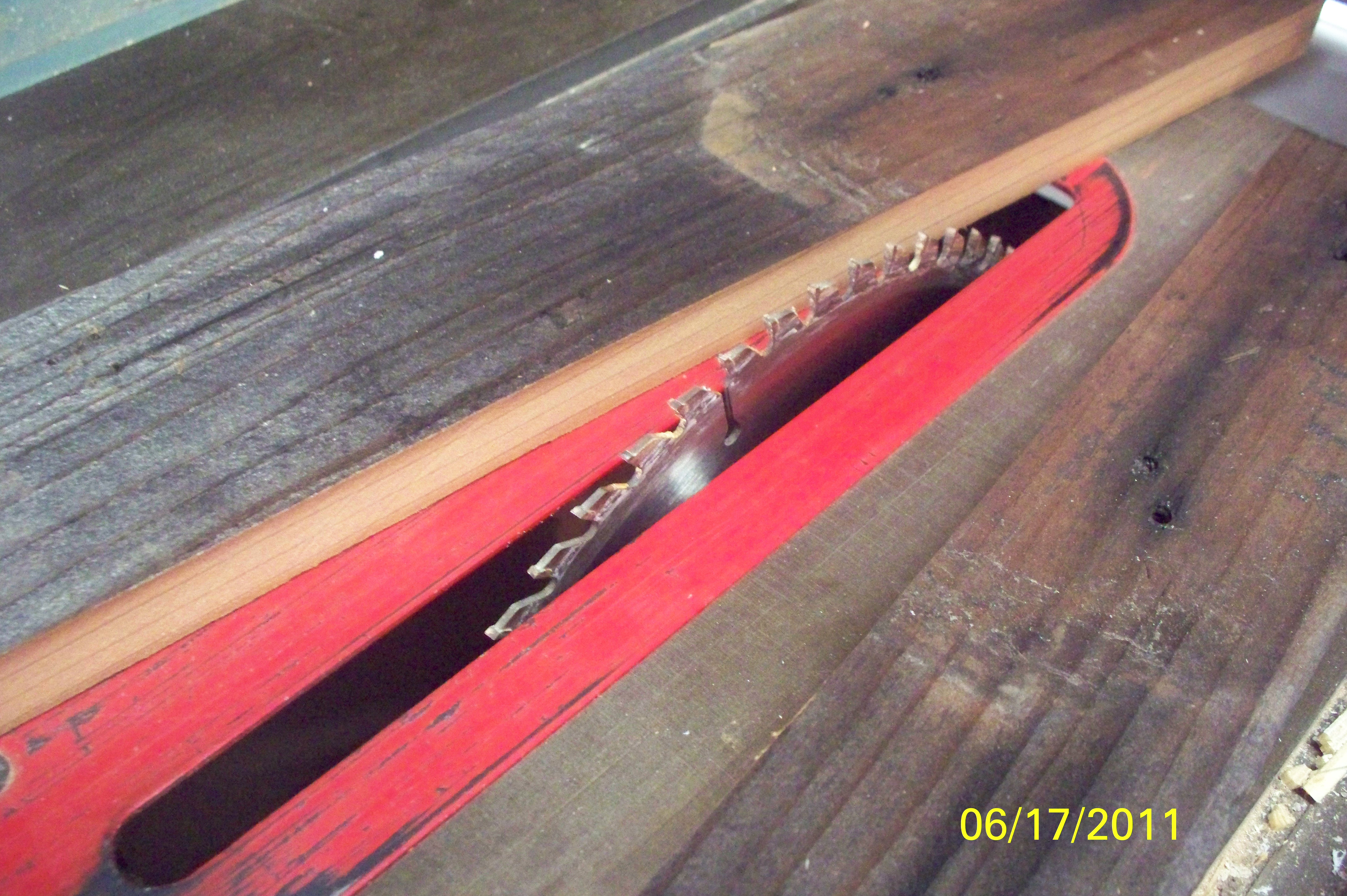

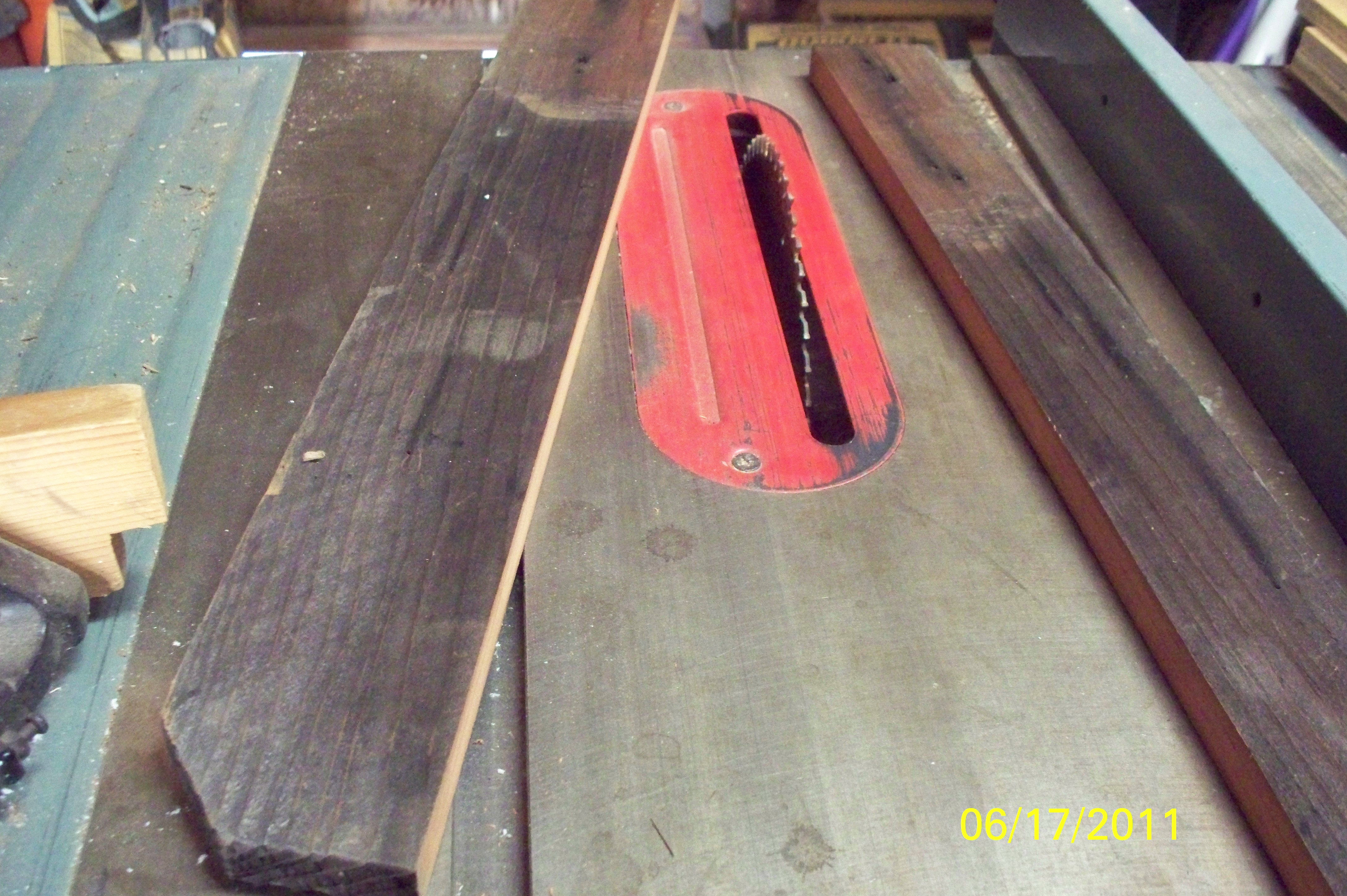

I wanted my table to be about 28 inches high. A little lower than standard bench height because I wanted to be able to use a basin on top to clean tools and vegetables in. So first step was to rip some fence boards to 2.5 inches. I cut enough boards so that I had 9 pieces for the legs. Legs are made by screwing 3 pieces together and leaving a 2.5 in gap at the top of each leg (in the center) to accomodate the two cross pieces shown. Two pieces are cut to serve as supports for the lower shelf. The shelf is made of fence boards cut to fit the space in between the legs.

1, Make legs: 3 pieces each, 2.5 x 28in. except center piece of leg which is 2.5 inches shorter, or 25.5 inches.
2. Insert 5.5in. x 18in. cross members at end of table, on the top of the legs.
3. Attach long top members, 2.5 x 35.5in., to top of the legs...these support the table top itself.

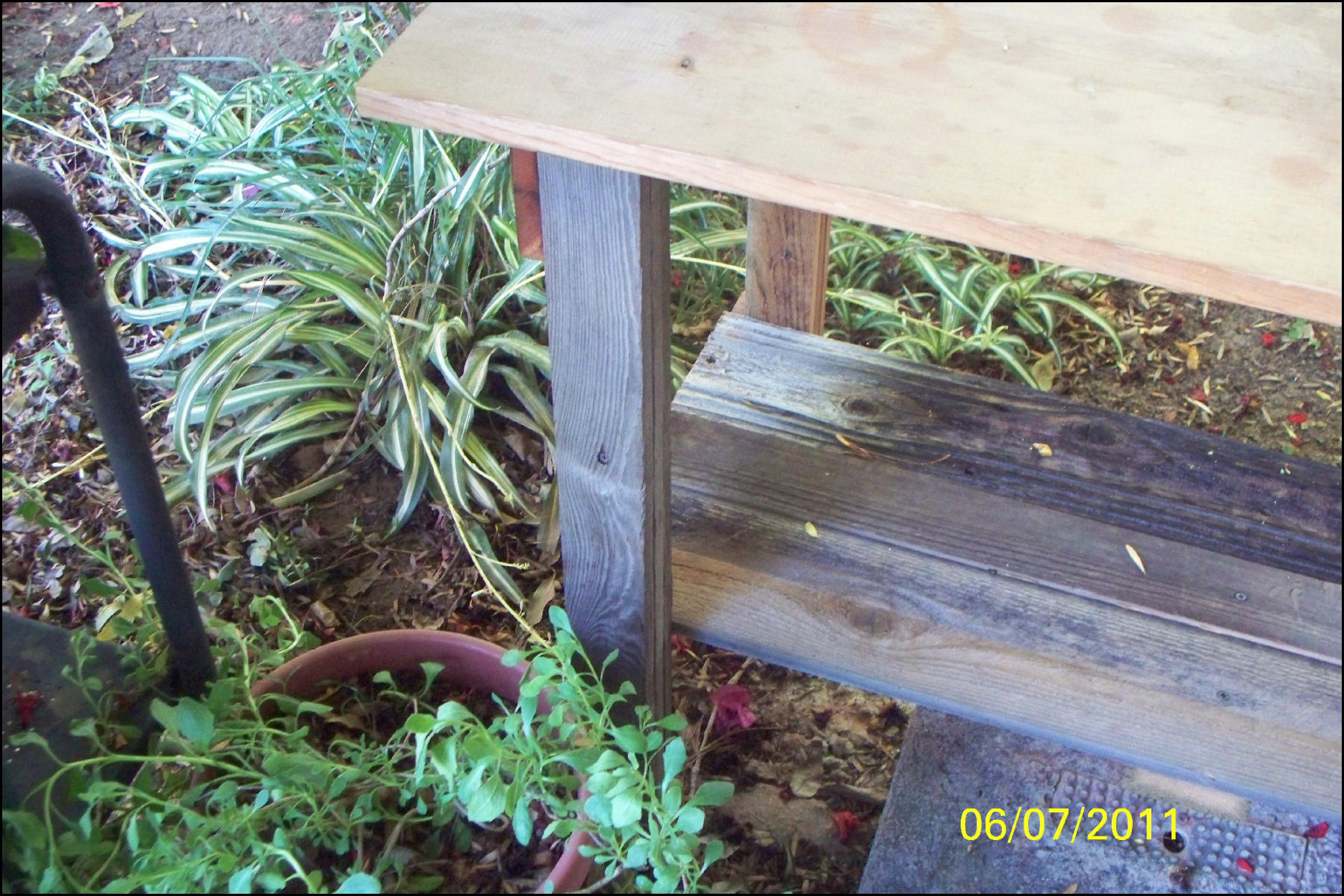

4. Screw on bottom cross members (2.5 x 18) to support bottom shelf.
5. Cut fence boards for bottom shelf. (37.5in.) One board may be ripped to insure fitting correctly. My board was 3inches wide.
6. Cut one piece of 2 x 4 to fit across bottom shelf members, in the center of the shelf. Attach to bottom of boards to help support loads placed on the shelf.
7. For the top, I used two pieces of 1 x 12 pine that I had obtained at a garage sale. Any piece of plywood, or even the fence boards themselves could be used. The length of these two pieces is 40 inches.
