Let's Make any smartphone or old cheap phone wireless charging compatible with this hack with just 4 magnets ! Absolutely free of cost to make with homemade things you have right now !

Smartphones are getting smarter in every aspect but the charging it with a cable still feels like the world is stone age ! so today we will take any old cheap phone into a wireless charging cellphone Just Place it on your desk and there it goes charging !

So lets get started !

Watch me Doing This Hack Here

https://youtu.be/yn_ip8QojTY

Get Your Hand Busy !

download (6).png
download (8).png
download (9).png
download (10).png
download (12).png
download (13).png

★☆★ Buy Parts from your online local store ★☆★
Buy Neodymium Magnets http://geni.us/bQRy0

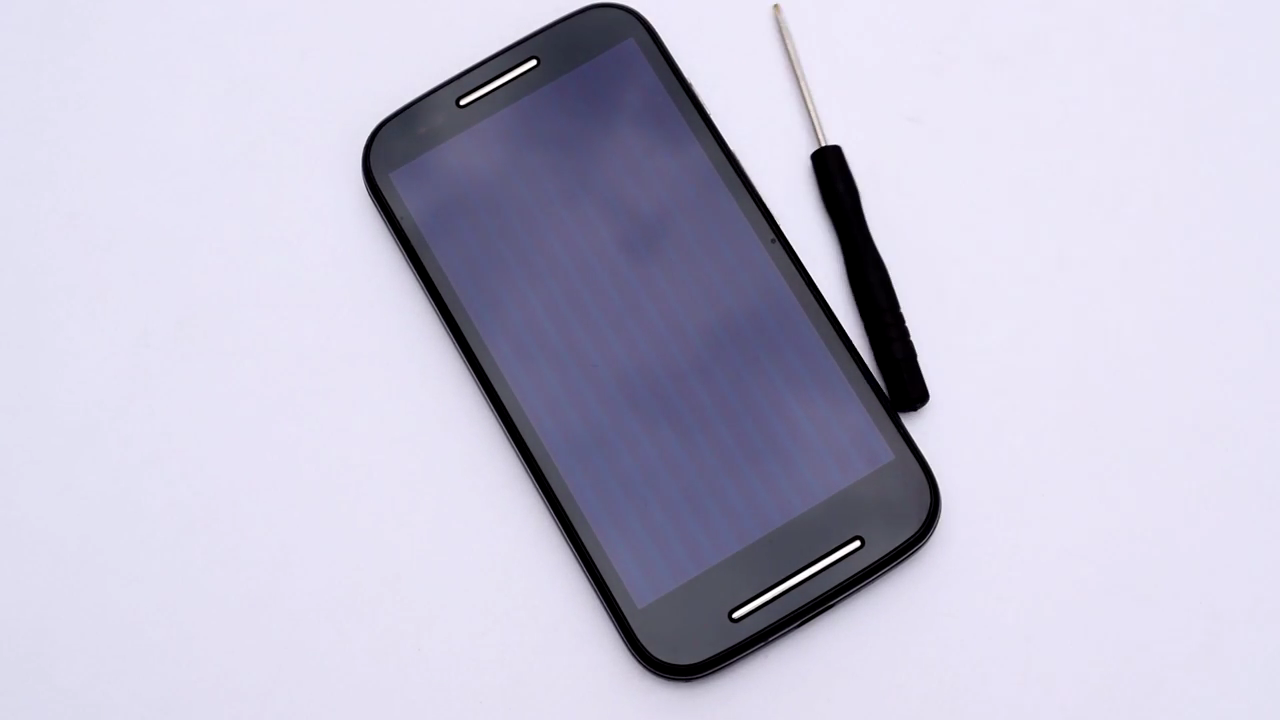

1. First, open your cellphone carefully

2. Safely remove the battery and other components

3. Then connect Your charger and identify the polarities of micro-usb port

4. Use the soldering iron with the smallest tip to solder red wire to positive and black wire to negative (This is Important Step )

5. Now confirm the connections are done properly with using multimeter

More Work to Do !

download (14).png
download (15).png
download (16).png
download (17).png
download (18).png
download (23).png
download (24).png
download (21).png
download (29).png

1. Take out the wires you just soldered

2. Fit your phone "Like a Boss !"

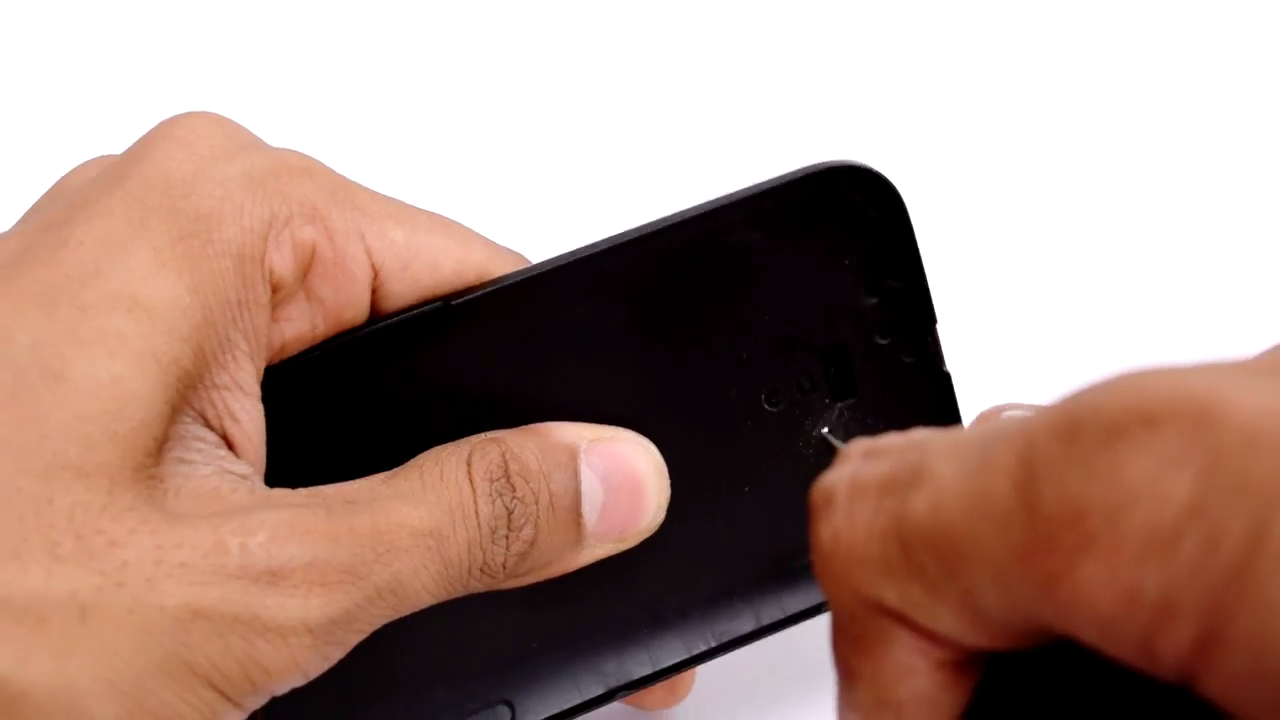

3. Mark two holes according to size of your magnets

4. Now drill a small hole on to the back panel of a phone ,with a dremel tool

5. scissors can be helpful to make hole larger

6. Solder Wires on to the magnet with diffrent poles But Don't put your soldering iron for too long otherwise magnets will be useless

7. Make sure magnets work good

8. You can almost make it as flat as your back panel

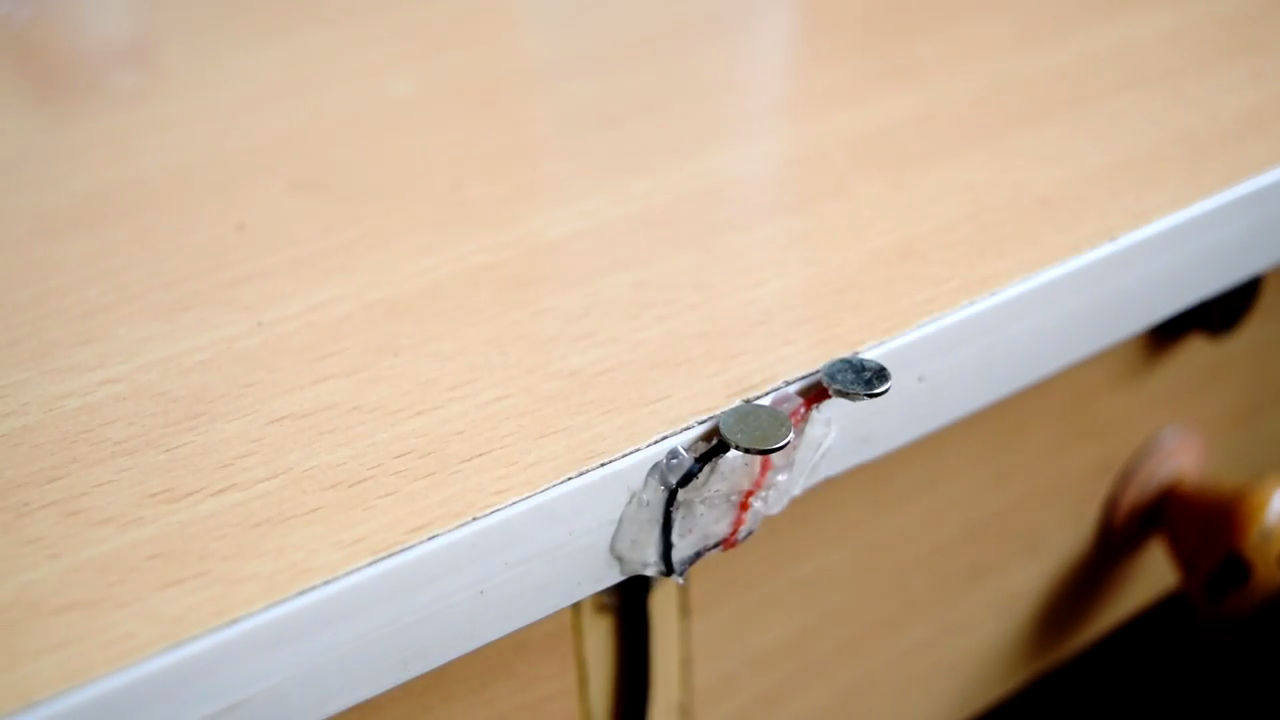

9. Now hot glues two magnets to your desk in right polarity and keep some wire to move freely

Magnets Attract ! What's More...

download (7).png
download (4).png
download (20).png
download (5).png
download (30).png
download (26).png
download (28).png

Un-like poles of magnet attracts each other so if we solder wires to a magnet , we will get a wireless charging connector which automatically engages when cellphone comes in vicinity !

Next, You can integrate this feature into your power bank so just put your phone near power bank & Get it to charging !

Keep in Mind !

3201853932_a64bf3dbbc_o (1).jpg

Magnets attract any metallic piece so if your desk is filled with all kind of metalic stuff be careful it may short circuit the charger

Manufacturer Warranty will be void on your device

Anyways its fun and useful Hack.
