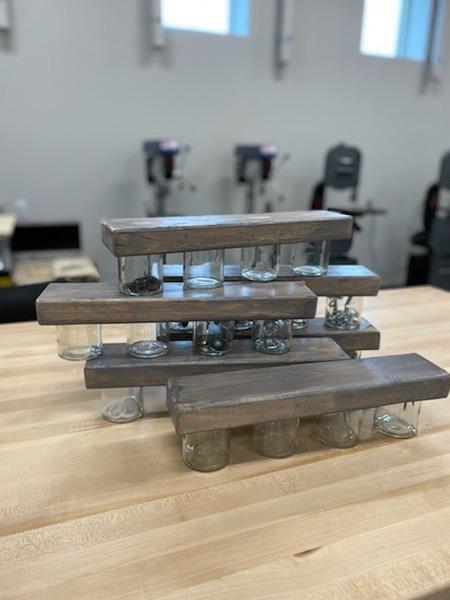

Magnetic Jar Holder

As part of an assignment for my engineering class in high school, I was trying to find the correct screws to use. I spent what felt like forever sorting through many jars in hopes of finding screws. Then, it occurred to me that this would be burdensome for someone who has to constantly find specific tools. It would help so many people if there was a way to see what the jars held individually, and if they were organized. This is how I was inspired to create a magnetic jar holder for my engineering class.

Supplies:

• Magnets (50 lbs strength)
• 2x4 Stud Frame
• Water-Based Interior Wood Stain
• Measuring Tape
• Miter Saw
• Drill Press
• Circle 70mm and 40mm Drill Bits
• Clamps
• Sand Belt
• Sandpaper
• Washers
• Adhesive (Gorilla Glue)

Mark the desired length of the shelf and where you are going to drill holes. This is going to be where the jars are placed.

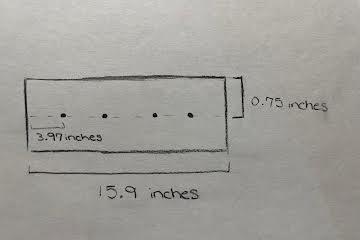

I decided to go with 4 holes on one shelf so that the jars would not be too far apart or close together. The second photo shows the dimensions I used.

I used a Miter Saw to cross cut the wood to my desired length, 15.9 inches.

I used a drill press to drill a circle (70mm circle bit and approximately 0.75 inches deep) for the jar to be attached. Then, I used a smaller bit (40mm) to make an indentation to super glue the magnet.

I used clamps to ensure that the washers did not move while the glue was drying. (optional)

After each coat of stain, I used ultra-fine sand paper to give the wood a more polished, smooth look.

I also chose to round the corners using a sand belt. (optional)

Make sure you draw out where the nails will go before drilling!
