Magna Lamp
Once a day I was playing with the magnets, then I thought why don't I make something out of these magnets? Then I decided let's make a lamp I named it "Magna Lamp" by using a waste softwood (MDF). Which I can use as a table lamp or as a night lamp in the room.
Supplies
Requirements:-
- Laser Cutting Machine,
- 12vdc adaptor,
- Black matt finish mdf,
- Fevicol
- RGB LED strip
- Micro switch
- Connecting wires
- Magnets

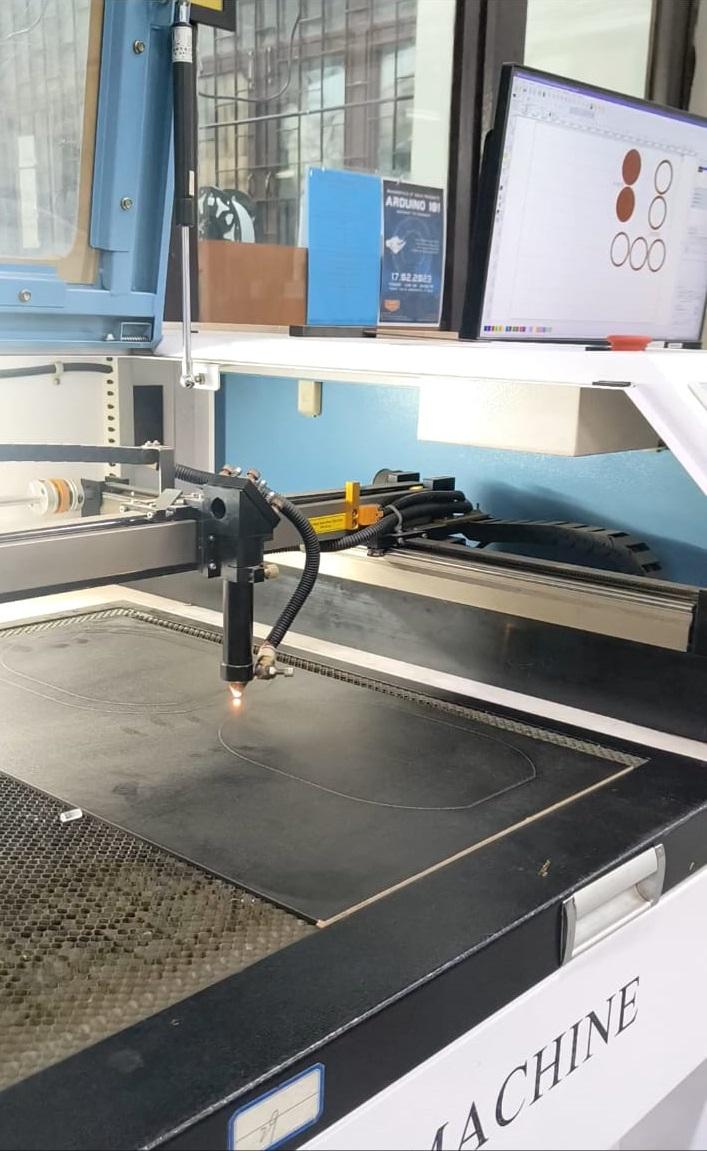

Cutting on Laser Cutter
Make the design ion CAD software and cut all the parts into Laser cutter Machine.
Downloads
Collection

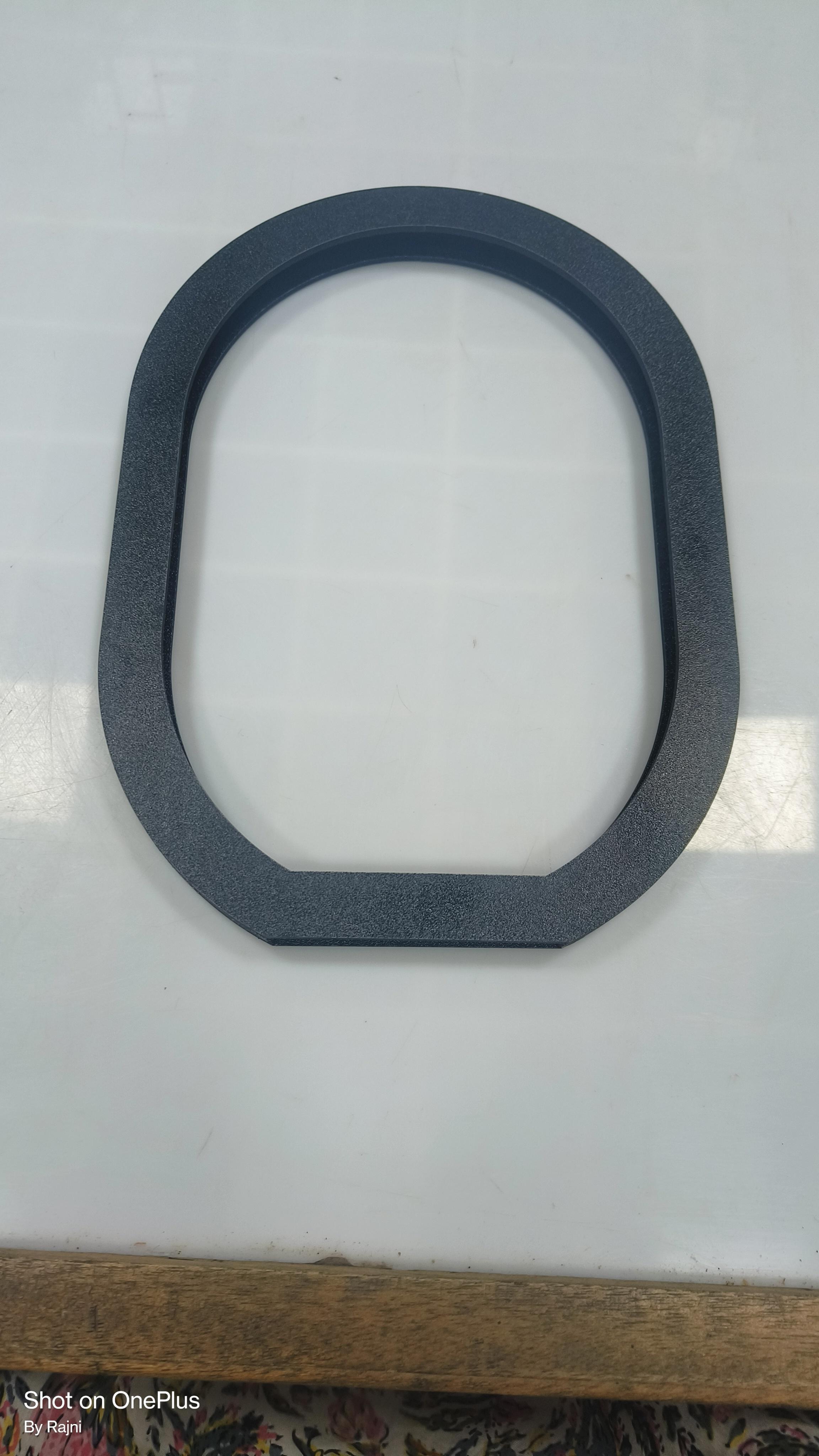

Collect all the parts for the further task.
Adhesion
Fix the parts as shown in the images. We can make different designs as well.
Attachments

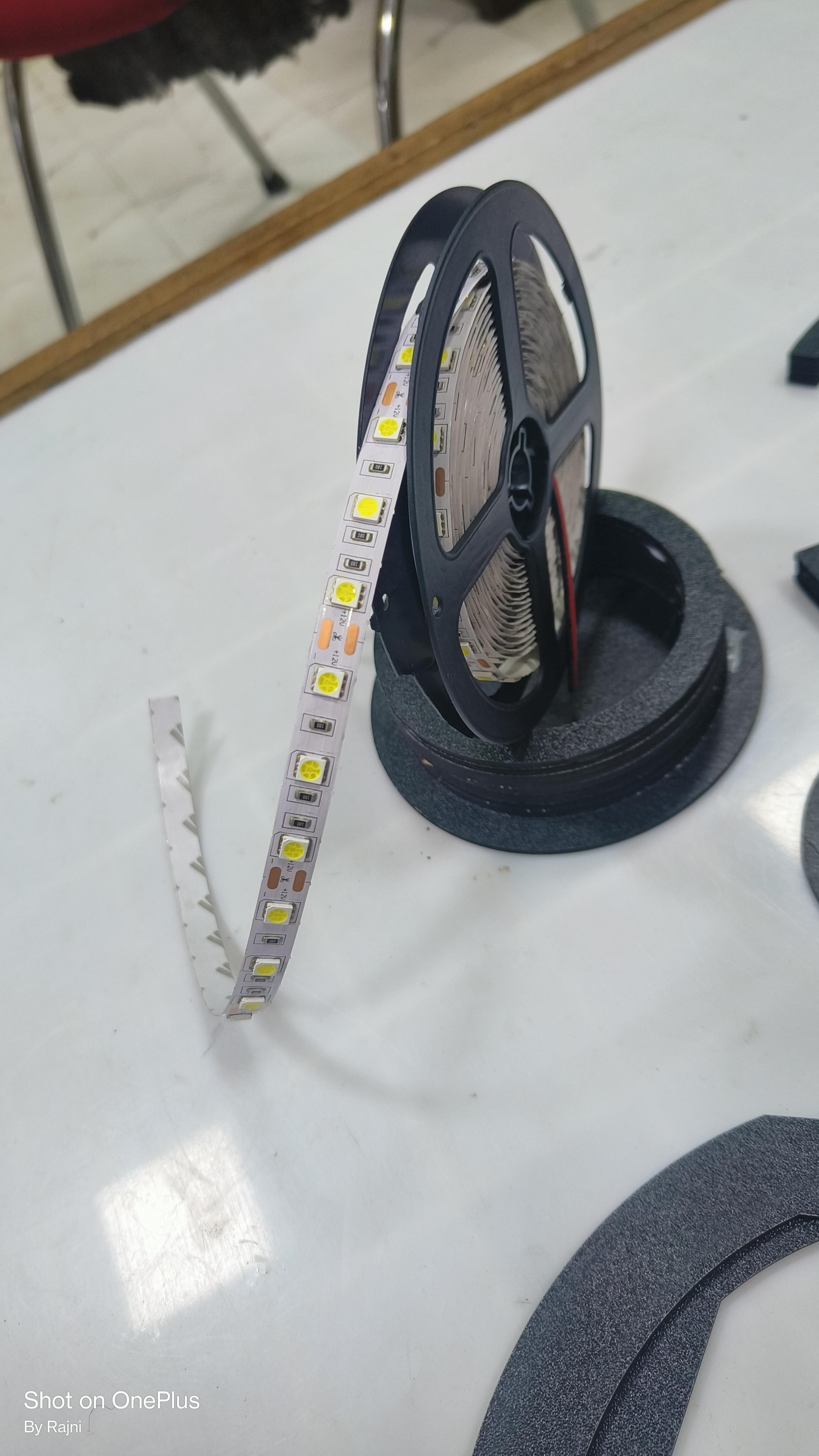

Attach and solder the RGB LED with a 12vdc supply and insert it inside the frame.

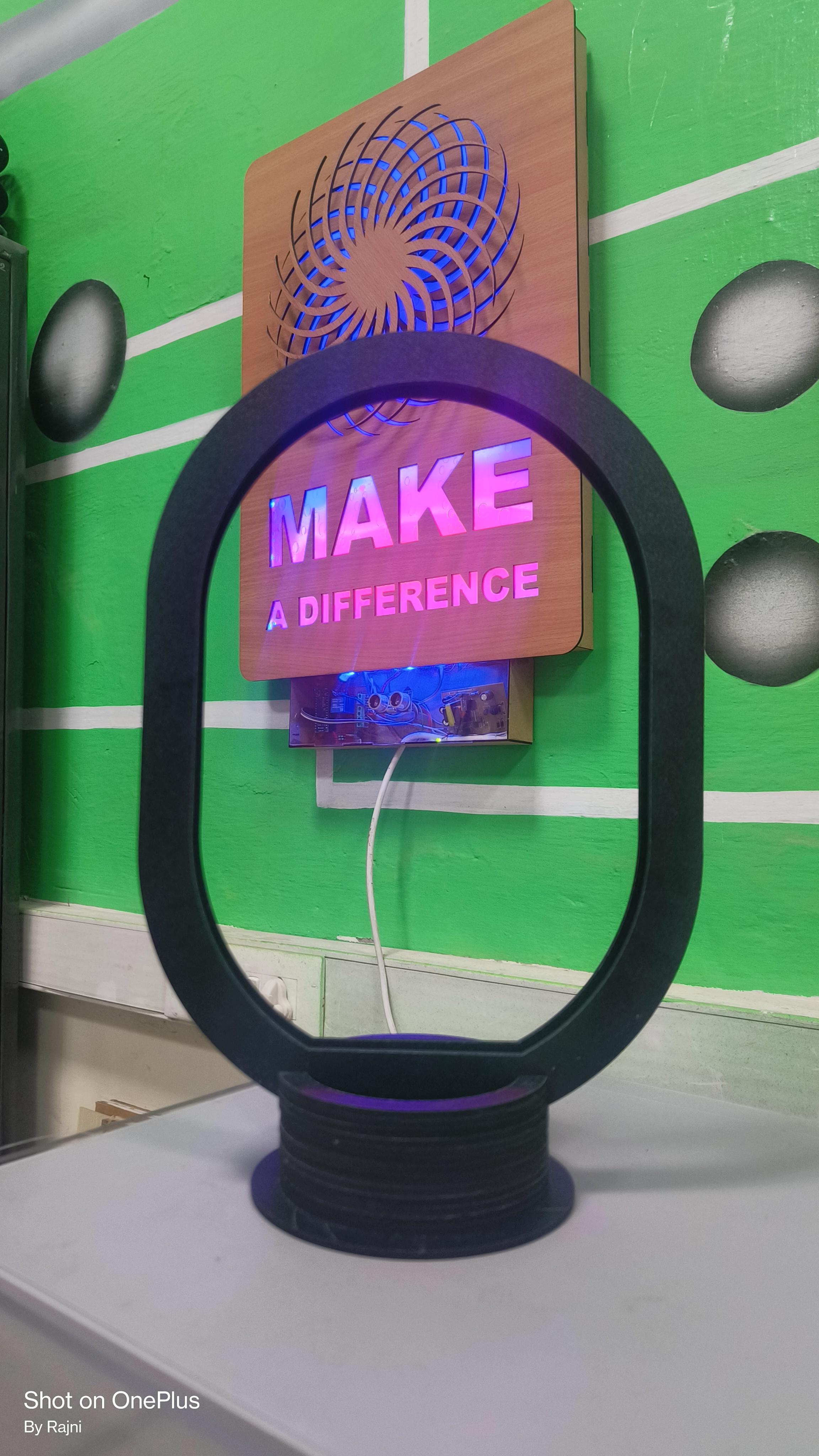

Final Touch
![Screenshot_2023-07-13-16-08-06-21_92460851df6f172a4592fca41cc2d2e6[1].jpg](/proxy/?url=https://content.instructables.com/FLH/GYXG/LJZQF3PL/FLHGYXGLJZQF3PL.jpg&filename=Screenshot_2023-07-13-16-08-06-21_92460851df6f172a4592fca41cc2d2e6[1].jpg)
![Screenshot_2023-07-13-16-08-47-61_92460851df6f172a4592fca41cc2d2e6[1].jpg](/proxy/?url=https://content.instructables.com/FCX/3A35/LJZQF3PM/FCX3A35LJZQF3PM.jpg&filename=Screenshot_2023-07-13-16-08-47-61_92460851df6f172a4592fca41cc2d2e6[1].jpg)
![Screenshot_2023-07-13-16-09-42-20_92460851df6f172a4592fca41cc2d2e6[1].jpg](/proxy/?url=https://content.instructables.com/FU8/GDGX/LJZQF3PN/FU8GDGXLJZQF3PN.jpg&filename=Screenshot_2023-07-13-16-09-42-20_92460851df6f172a4592fca41cc2d2e6[1].jpg)
![Screenshot_2023-07-13-16-09-00-92_92460851df6f172a4592fca41cc2d2e6[1].jpg](/proxy/?url=https://content.instructables.com/FRA/LJ0Q/LJZQF3PO/FRALJ0QLJZQF3PO.jpg&filename=Screenshot_2023-07-13-16-09-00-92_92460851df6f172a4592fca41cc2d2e6[1].jpg)
Please watch the final "MAGNA LAMP" video.
https://youtube.com/shorts/DjcNSJZE_L8?feature=share
