Magic Tree House Book Series Tree House

As part of my assistive technology project for Physical computing, we worked with the Boston College Campus School. This project was made for the Campus School as an interactive tree house for a student to play with. On a button press, it will rotate, light up, and Jack and Annie will speak. I hope the student I made it for enjoys it!

• Raspberry Pi Pico W (with headers and a breadboard)
• STEMMA QT / Qwiic JST SH 4-pin to Premium Male Headers Cable
• Aligator clips
• 1/4in Baltic Birch
• Double-sided tape
• Hot glue
• Laser cutter
• LED light strand
• Speaker
• Continuos rotation servo
• Laptop
• Adobe
• Circuit python

After playing around with some pre-existing treehouse fabrication files, I made my own by modifying one that I got from boxes.py. Attached below is the birdhouse that I based this treehouse on.

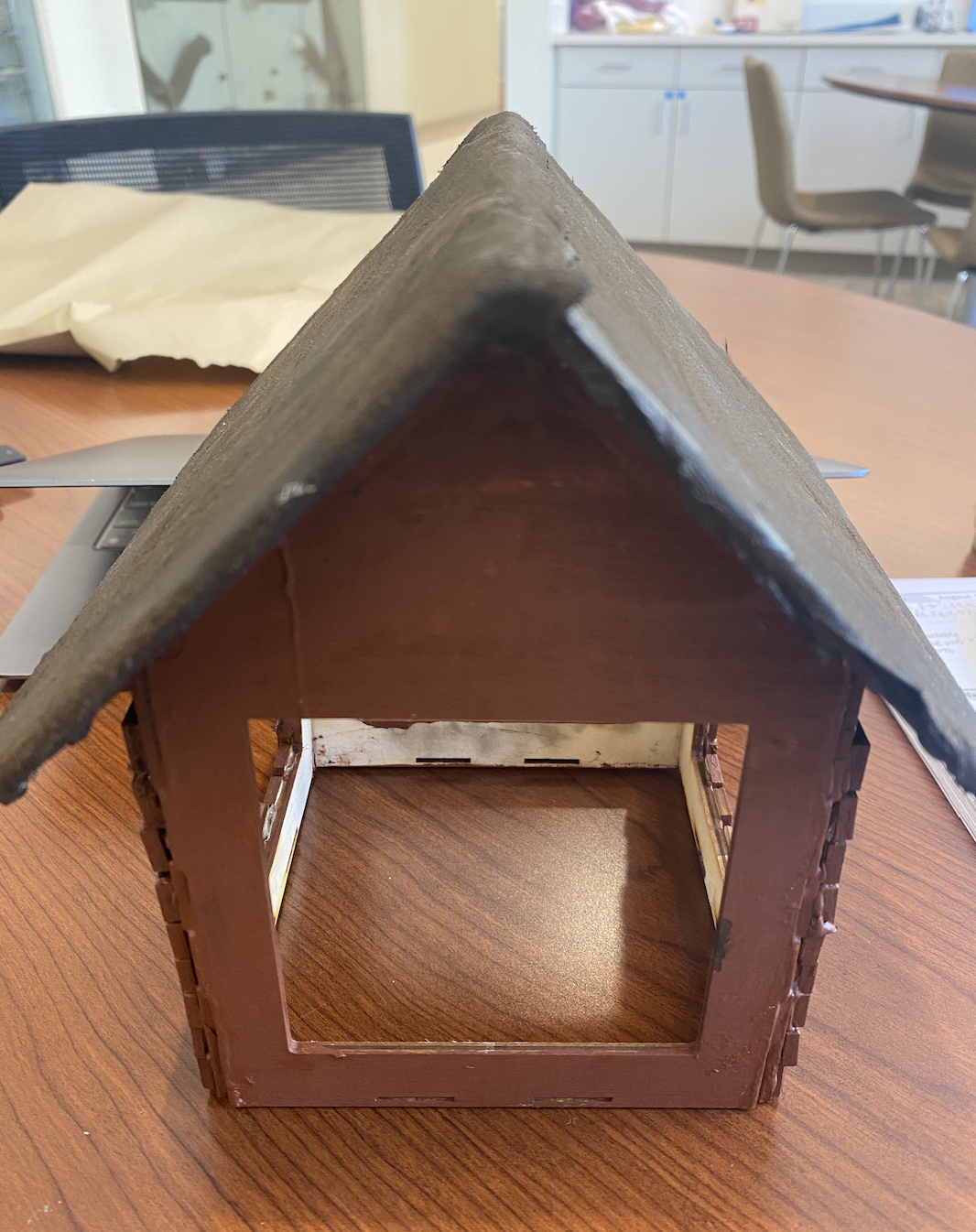

I used 1/8th inch Baltic Birch to laser cut the house. I then painted it with a rust brown color and added thick brown fabric on top for the roofing.

I stacked and glued the rings together to be similar to a tree trunk. I then painted it green to contrast with the dark-colored house.

I laser-cut small rectangles to glue to the tree house. I also laser cut an image of Jack and Annie for inside the treehouse.

I attached the LED light strip using double-sided tape around the perimeter of the platform that the treehouse rested on.

Follow the wiring diagrams above.

I wired the button to GP15, the servo to GP14, the sound to GP13, and the lights to GP16.

I used a text-to-sound website to have Jack and Annie say "I want to go there," so they can be transported to a foreign location and time period. I then used Audacity to compress and make the sound fit the Raspberry Pi.

Above is my code. I coded it so that the servo would rotate in one direction when the button is clicked the first time and another direction when the button is clicked the next time to prevent tangling.

I hot-glued a servo onto the treetrunk after I created a half-elevated ring. Then, I screwed a wheel into the servo. Lastly, I hot-glued the wheel onto the platform of the tree house.

And you are done!
