Magic Ball ( PID Control, Arduino Due )
by galkin.vadim.prog in Circuits > Arduino
846 Views, 13 Favorites, 0 Comments
Magic Ball ( PID Control, Arduino Due )
![29 марта 2021 г.](/proxy/?url=https://content.instructables.com/FEK/DCT4/KMULQ8P7/FEKDCT4KMULQ8P7.jpg&filename=29 марта 2021 г.)
Breadboard to demonstrate PID control on the Arduino Due.
Supplies
1. Arduino Due x1
2. Touchscreen 5 wires x1

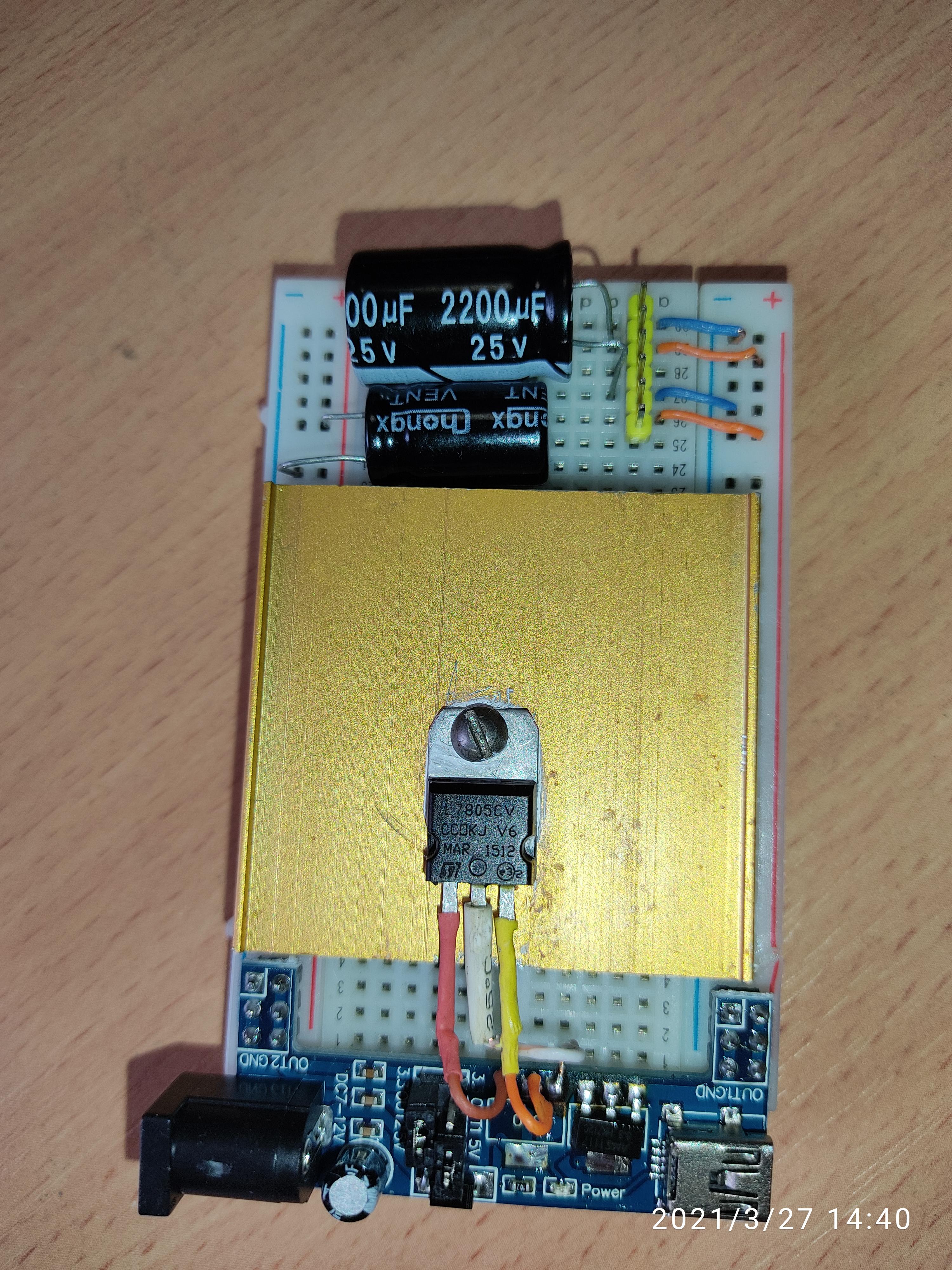

3. Power supply unit 5 V. x1

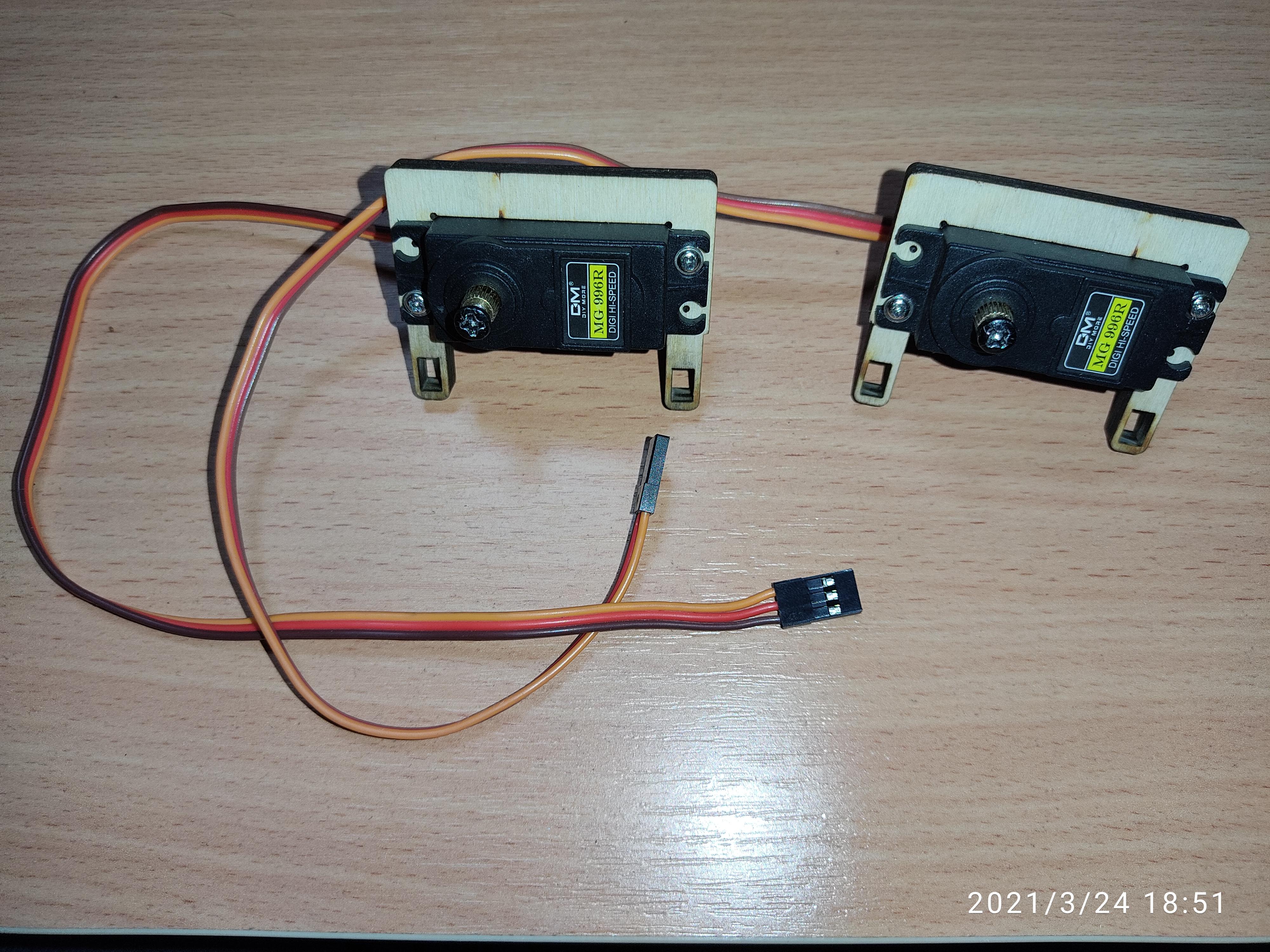

4. Servomotors x2
5. Plywood 6 and 8 mm.
Layout created in Autodesk Fusion 360 and CorelDraw 2021.
Making the Platform
![photo_2021-03-21_17-31-50.jpg](/proxy/?url=https://content.instructables.com/FQU/7YOI/KMULQW7S/FQU7YOIKMULQW7S.jpg&filename=photo_2021-03-21_17-31-50.jpg)
![Alling.png](/proxy/?url=https://content.instructables.com/FPN/MOX9/KMULQYWN/FPNMOX9KMULQYWN.png&filename=Alling.png)
![1617043798168.jpg](/proxy/?url=https://content.instructables.com/FBF/1XCU/KMULQVVP/FBF1XCUKMULQVVP.jpg&filename=1617043798168.jpg)
![1617043798121.jpg](/proxy/?url=https://content.instructables.com/F7J/WJA8/KMULQVNJ/F7JWJA8KMULQVNJ.jpg&filename=1617043798121.jpg)
![1617043798157.jpg](/proxy/?url=https://content.instructables.com/FZR/DQ2G/KMULQVVO/FZRDQ2GKMULQVVO.jpg&filename=1617043798157.jpg)
![1617043798139.jpg](/proxy/?url=https://content.instructables.com/F6B/5D0A/KMULQVTS/F6B5D0AKMULQVTS.jpg&filename=1617043798139.jpg)
![1617043798133.jpg](/proxy/?url=https://content.instructables.com/FEW/XJQJ/KMULQVOU/FEWXJQJKMULQVOU.jpg&filename=1617043798133.jpg)
![1617043798127.jpg](/proxy/?url=https://content.instructables.com/FLZ/01YH/KMULQVOS/FLZ01YHKMULQVOS.jpg&filename=1617043798127.jpg)
![1617043798109.jpg](/proxy/?url=https://content.instructables.com/FLW/G1FG/KMULQVN0/FLWG1FGKMULQVN0.jpg&filename=1617043798109.jpg)
![1617043798043.jpg](/proxy/?url=https://content.instructables.com/FP1/R8L3/KMULQV0V/FP1R8L3KMULQV0V.jpg&filename=1617043798043.jpg)
![1617043798037.jpg](/proxy/?url=https://content.instructables.com/F0C/Z2FC/KMULQUWN/F0CZ2FCKMULQUWN.jpg&filename=1617043798037.jpg)
![1617043798055.jpg](/proxy/?url=https://content.instructables.com/FU8/RJOO/KMULQVAD/FU8RJOOKMULQVAD.jpg&filename=1617043798055.jpg)
![1617043798068.jpg](/proxy/?url=https://content.instructables.com/FI3/FJJQ/KMULQVFB/FI3FJJQKMULQVFB.jpg&filename=1617043798068.jpg)
![1617043798074.jpg](/proxy/?url=https://content.instructables.com/FAT/YDOC/KMULQVI8/FATYDOCKMULQVI8.jpg&filename=1617043798074.jpg)
![1617043798080.jpg](/proxy/?url=https://content.instructables.com/FOA/LFBZ/KMULQVIV/FOALFBZKMULQVIV.jpg&filename=1617043798080.jpg)
![1617043798097.jpg](/proxy/?url=https://content.instructables.com/FN7/4RE1/KMULQVK6/FN74RE1KMULQVK6.jpg&filename=1617043798097.jpg)
![1617043798091.jpg](/proxy/?url=https://content.instructables.com/F12/DDS3/KMULQVJG/F12DDS3KMULQVJG.jpg&filename=1617043798091.jpg)
![1617043798086.jpg](/proxy/?url=https://content.instructables.com/FTI/7PEQ/KMULQVIW/FTI7PEQKMULQVIW.jpg&filename=1617043798086.jpg)
![1617043798025.jpg](/proxy/?url=https://content.instructables.com/F8V/SJC3/KMULQUM0/F8VSJC3KMULQUM0.jpg&filename=1617043798025.jpg)
![1617043798019.jpg](/proxy/?url=https://content.instructables.com/FPZ/CJW1/KMULQUJF/FPZCJW1KMULQUJF.jpg&filename=1617043798019.jpg)
![1617043798013.jpg](/proxy/?url=https://content.instructables.com/FHQ/AHEA/KMULQUFV/FHQAHEAKMULQUFV.jpg&filename=1617043798013.jpg)

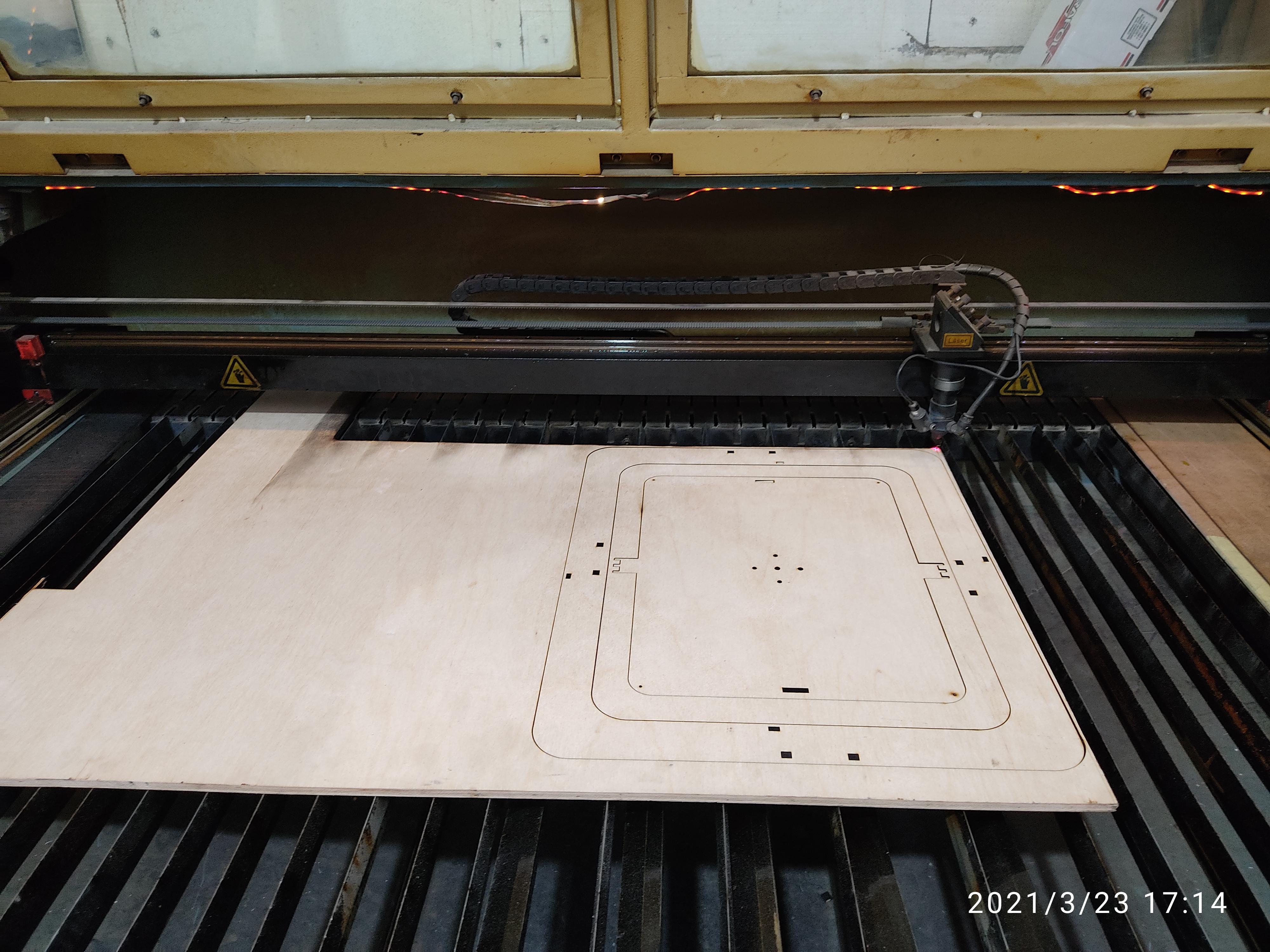

We cut out the details with a laser cutter.
Then we put the parts together and glue them with wood glue.
Download the Program to the Arduino Due.
![1617043797988.jpg](/proxy/?url=https://content.instructables.com/FBS/2L0K/KMULQFT8/FBS2L0KKMULQFT8.jpg&filename=1617043797988.jpg)
![1617043797980.jpg](/proxy/?url=https://content.instructables.com/FBW/8VXM/KMULQTTT/FBW8VXMKMULQTTT.jpg&filename=1617043797980.jpg)
![1617043797995.jpg](/proxy/?url=https://content.instructables.com/FKV/C3GJ/KMULQU4C/FKVC3GJKMULQU4C.jpg&filename=1617043797995.jpg)

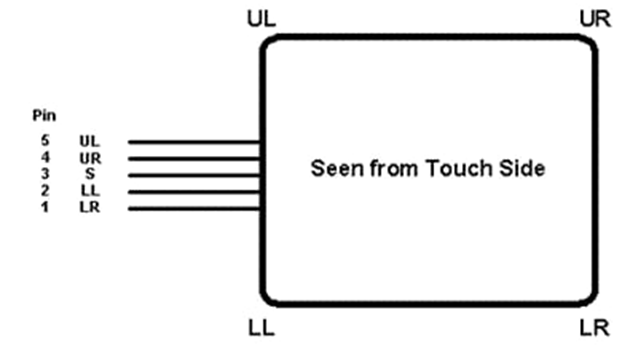

![TouhscreenPins01.png](/proxy/?url=https://content.instructables.com/FYS/5NDC/KMXGK31C/FYS5NDCKMXGK31C.png&filename=TouhscreenPins01.png)
![TouhscreenPins.png](/proxy/?url=https://content.instructables.com/FEG/20S3/KMXGK31B/FEG20S3KMXGK31B.png&filename=TouhscreenPins.png)
#include <Servo.h> #include <PID_v1.h> // Specify links and initial settings double Kp = 4, Ki = 1, Kd = 2; // Define the variables we will connect to double Setpoint_X, Input_X, Output_X; double Setpoint_Y, Input_Y, Output_Y; PID myPID_X(&Input_X, &Output_X, &Setpoint_X, Kp, Ki, Kd, DIRECT); PID myPID_Y(&Input_Y, &Output_Y, &Setpoint_Y, Kp, Ki, Kd, DIRECT); int Target_x, Target_y; int Delta_x, Delta_y; const int servo1 = 8; // servo motor X const int servo2 = 9; // servo motor Y Servo myservo1; // create a Servo object to control servo motor X Servo myservo2; // create a Servo object to control servo motor Y // NEC touch screen const byte PS = 0; // PS touchscreen output const byte UL = 3; // UL touchscreen output const byte UR = 4; // UR touchscreen output const byte LL = 5; // LL touchscreen output const byte LR = 6; // LR touchscreen output int TouchScreenVal_x; // variable for storing data from analog pin X int TouchScreenVal_y; // variable for storing data from analog pin Y int TouchScreenVal_xm; // variable to store data for servo motor X int TouchScreenVal_ym; // variable to store data for servo motor Y int TouchScreenVal_x0; // variable to store the starting point X0 int TouchScreenVal_y0; // variable to store the starting point Y0 int servoVal_xm; // variable for storing data from servo motor X int servoVal_ym; // variable for storing data from servo motor Y int servoVal_x0; // variable for storing data X0 int servoVal_y0; // variable for storing data Y0 void setup () { // Setting up the touchscreen pinMode (PS, INPUT); pinMode (UR, OUTPUT); pinMode (UL, OUTPUT); pinMode (LL, OUTPUT); pinMode (LR, OUTPUT); digitalWrite (UL, LOW); // UL digitalWrite (UR, LOW); // UR digitalWrite (LL, LOW); // LL digitalWrite (LR, LOW); // LR // Initialize the serial communication protocol Serial.begin (9600); // ADC analogReadResolution (12); // Servo myservo1.attach (servo1); // connect servo motor X myservo2.attach (servo2); // connect servo motor Y // enable PID myPID_X.SetMode (AUTOMATIC); myPID_Y.SetMode (AUTOMATIC); TouchScreenVal_x0 = 0; TouchScreenVal_y0 = 0; servoVal_x0 = 107; servoVal_y0 = 104; Target_x = 512; Target_y = 360; } void loop () { digitalWrite (UR, HIGH); // UR digitalWrite (LL, LOW); // LR // read the X value from the touchscreen along the horizontal axis (values between 1000 and 3000) digitalWrite (UL, LOW); // UL digitalWrite (LR, HIGH); // LL delayMicroseconds (200); // delay (1); TouchScreenVal_x = analogRead (PS); TouchScreenVal_xm = TouchScreenVal_x0; if (TouchScreenVal_x> 100) TouchScreenVal_xm = TouchScreenVal_x0 + map (TouchScreenVal_x, 1330, 2570, 0, 1023); // scale the resulting value for use with a servo motor (range: 100 to 110) // read the Y value from the touchscreen along the vertical axis (value from 1000 to 3000) digitalWrite (UL, HIGH); // UL digitalWrite (LR, LOW); // LL delayMicroseconds (200); // delay (1); TouchScreenVal_y = analogRead (PS); TouchScreenVal_ym = TouchScreenVal_y0; if (TouchScreenVal_y> 100) TouchScreenVal_ym = TouchScreenVal_y0 + map (TouchScreenVal_y, 1330, 2680, 0, 767); // scale the resulting value for use with a servo motor (range: 100 to 110) Setpoint_X = Target_x; Input_X = TouchScreenVal_xm; myPID_X.Compute (); servoVal_xm = servoVal_x0 + map (Output_X, 0, 255, +4, -4); // scale the resulting value for use with the servo motor (result in the range 99 to 109) myservo1.write (servoVal_xm); // display the rotor of the second servo motor in accordance with the obtained scale level Delta_x = Target_x - TouchScreenVal_xm; Setpoint_Y = Target_y; Input_Y = TouchScreenVal_ym; myPID_Y.Compute (); servoVal_ym = servoVal_y0 + map (Output_Y, 0, 255, -4, +4); // scale the resulting value for use with the servo motor (result in the range 99 to 109) myservo2.write (servoVal_ym); // display the rotor of the second servo motor in accordance with the obtained scale level Delta_y = Target_y - TouchScreenVal_ym; //OutputPID (); } // display PID values void OutputPID () { Serial.print ("SX ="); Serial.print (Setpoint_X); //Serial.print ("TX ="); Serial.print(TouchScreenVal_x); Serial.print ("MX ="); Serial.print (TouchScreenVal_xm); Serial.print ("DX ="); Serial.print (Delta_x); Serial.print ("OX ="); Serial.print (Output_X); Serial.print ("SMX ="); Serial.print (servoVal_xm); Serial.print ("---"); Serial.print ("SY ="); Serial.print (Setpoint_Y); //Serial.print ("TY ="); Serial.print(TouchScreenVal_y); Serial.print ("MY ="); Serial.print (TouchScreenVal_ym); Serial.print ("DY ="); Serial.print (Delta_y); Serial.print ("OY ="); Serial.print (Output_Y); Serial.print ("SMY ="); Serial.print (servoVal_ym); Serial.println ("!"); }
Downloads
Demonstration of Work and Experiment With Different Balls and Settings of the PID Controller.
![1617043798001.jpg](/proxy/?url=https://content.instructables.com/FV7/2ZSF/KMULQU90/FV72ZSFKMULQU90.jpg&filename=1617043798001.jpg)
