MY SMALL TABLE SAW CART
by Kink Jarfold in Workshop > Workbenches
2326 Views, 25 Favorites, 0 Comments
MY SMALL TABLE SAW CART
![IMG_7835.JPG](/proxy/?url=https://content.instructables.com/FO3/KYRQ/JK2UJOWQ/FO3KYRQJK2UJOWQ.jpg&filename=IMG_7835.JPG)
![Are you really going there.png](/proxy/?url=https://content.instructables.com/FUW/L8PL/JK2UJQV9/FUWL8PLJK2UJQV9.png&filename=Are you really going there.png)
![egyptian.png](/proxy/?url=https://content.instructables.com/FDV/FUGT/JK2UJQYE/FDVFUGTJK2UJQYE.png&filename=egyptian.png)
My table saw is too high. It sits on top of a 36" high cart alongside my miter saw. I want the top of the table saw to be equal to the height of my palm above the ground when I make an L with my hand. And for some reason I keep singing Walk Like An Egyptian.
I CAME ACROSS THIS PIECE
![IMG_7836.JPG](/proxy/?url=https://content.instructables.com/F4T/Q07L/JK2UJOWS/F4TQ07LJK2UJOWS.jpg&filename=IMG_7836.JPG)
![IMG_7842.JPG](/proxy/?url=https://content.instructables.com/FQV/CQY5/JK2UJUQY/FQVCQY5JK2UJUQY.jpg&filename=IMG_7842.JPG)

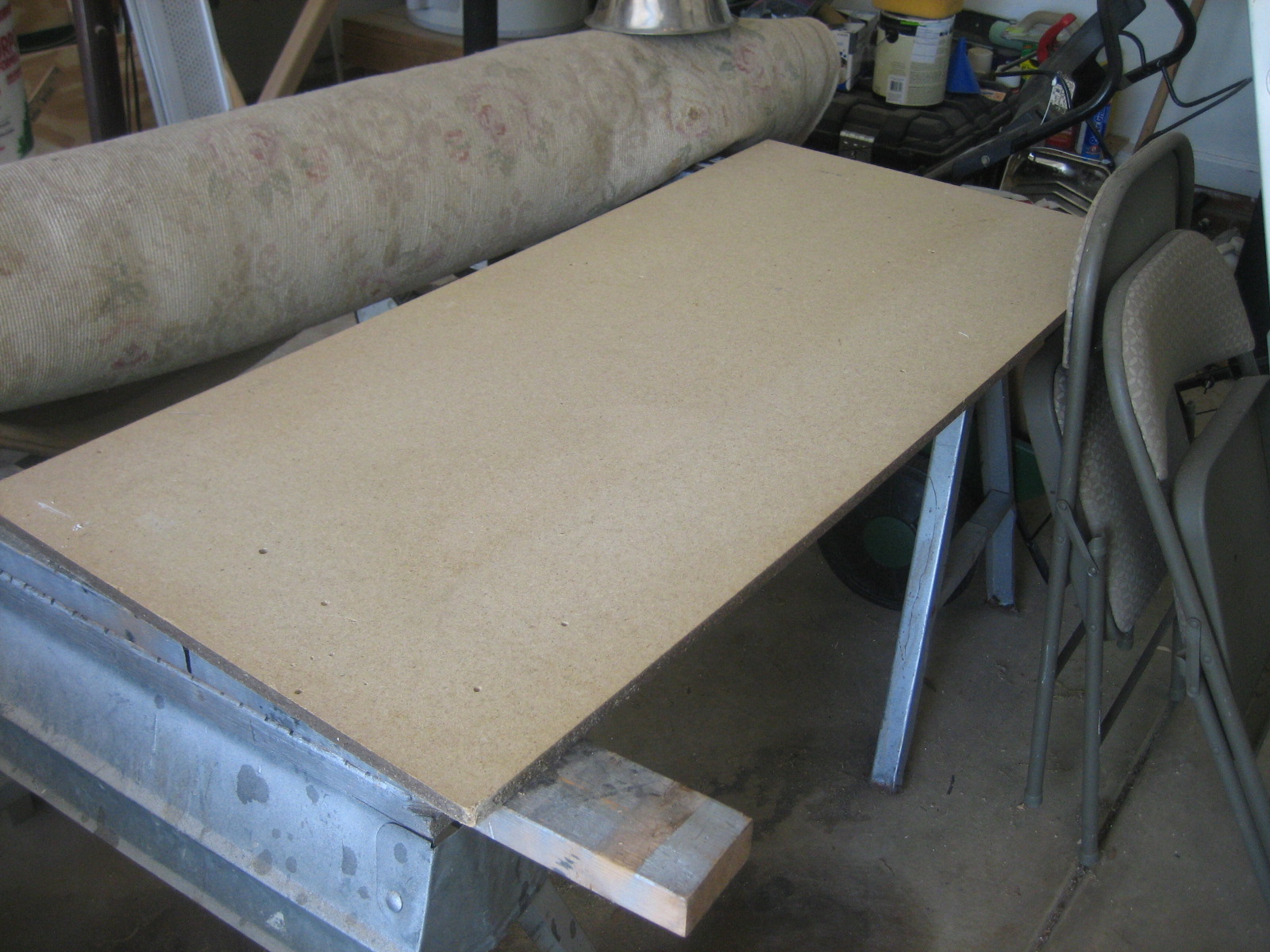

This piece of MDF was left here by the previous owners of this house. I figured it was the right size so I decided to make a cut plan based on it.
MATERIALS
![IMG_7837.JPG](/proxy/?url=https://content.instructables.com/FK9/YL7J/JK2UJOXR/FK9YL7JJK2UJOXR.jpg&filename=IMG_7837.JPG)
![IMG_7838.JPG](/proxy/?url=https://content.instructables.com/FQT/RGF9/JK2UJOYQ/FQTRGF9JK2UJOYQ.jpg&filename=IMG_7838.JPG)

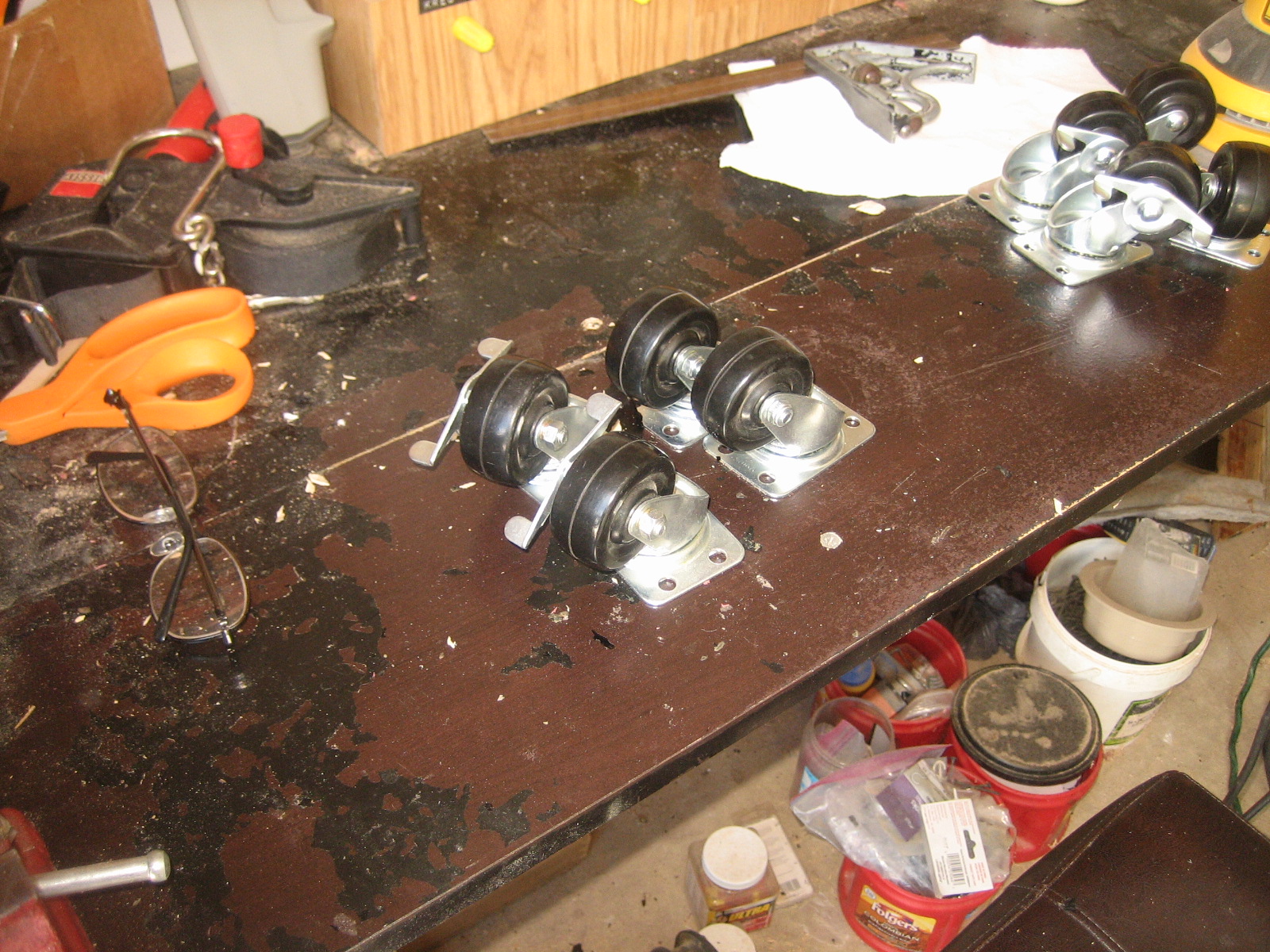

I bought three 8' 2 x 4s and 4 casters: two lockable and two not.
I CUT ALL THE LUMBER TO SIZE
![IMG_7843.JPG](/proxy/?url=https://content.instructables.com/F9R/6IL1/JK2UJP1R/F9R6IL1JK2UJP1R.jpg&filename=IMG_7843.JPG)
![IMG_7845.JPG](/proxy/?url=https://content.instructables.com/FN3/GCS3/JK2UJP3U/FN3GCS3JK2UJP3U.jpg&filename=IMG_7845.JPG)
![IMG_7846.JPG](/proxy/?url=https://content.instructables.com/FR8/U80A/JK2UJP5P/FR8U80AJK2UJP5P.jpg&filename=IMG_7846.JPG)
![IMG_7847.JPG](/proxy/?url=https://content.instructables.com/F32/AQDW/JK2UJP7M/F32AQDWJK2UJP7M.jpg&filename=IMG_7847.JPG)

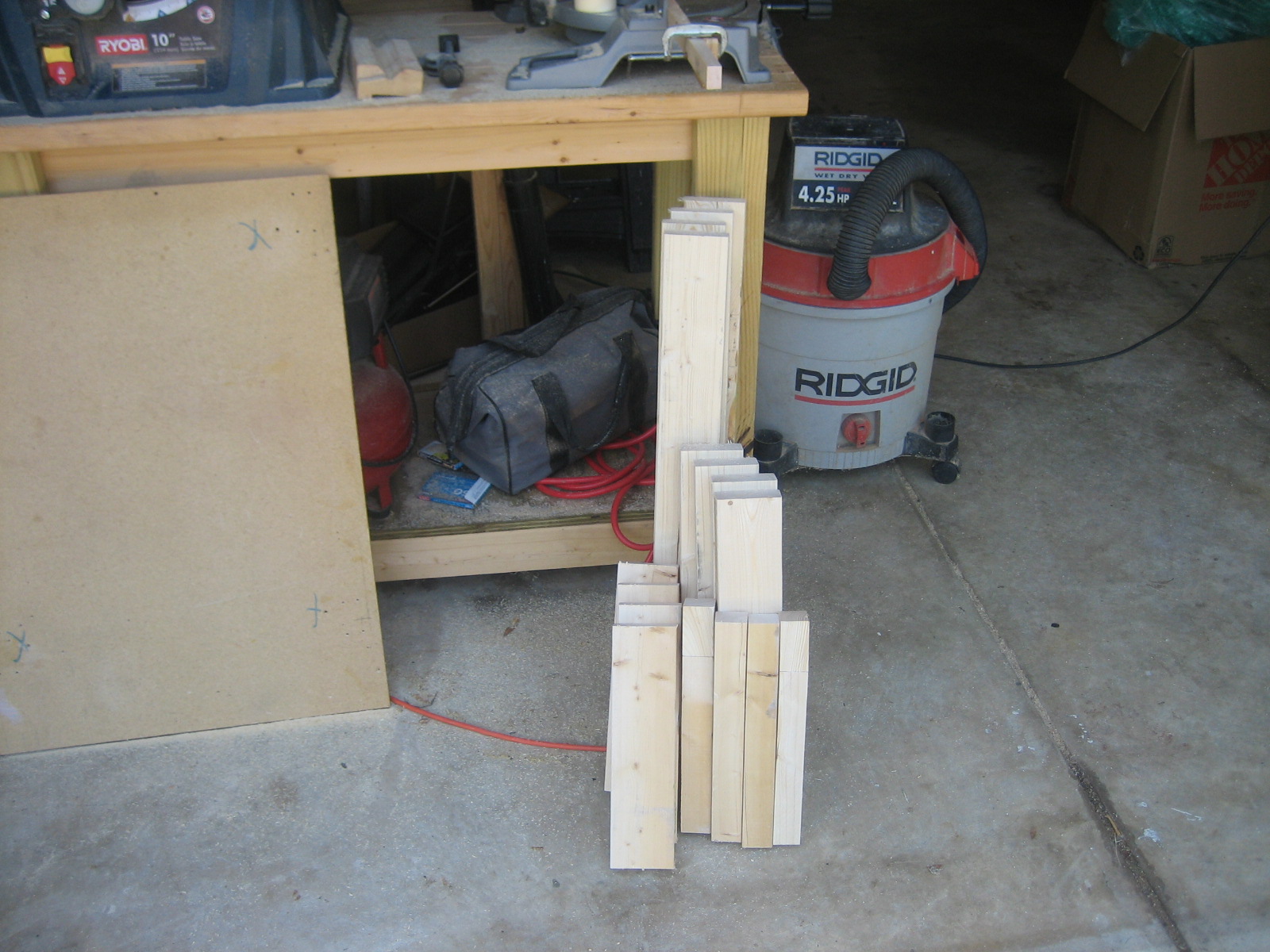

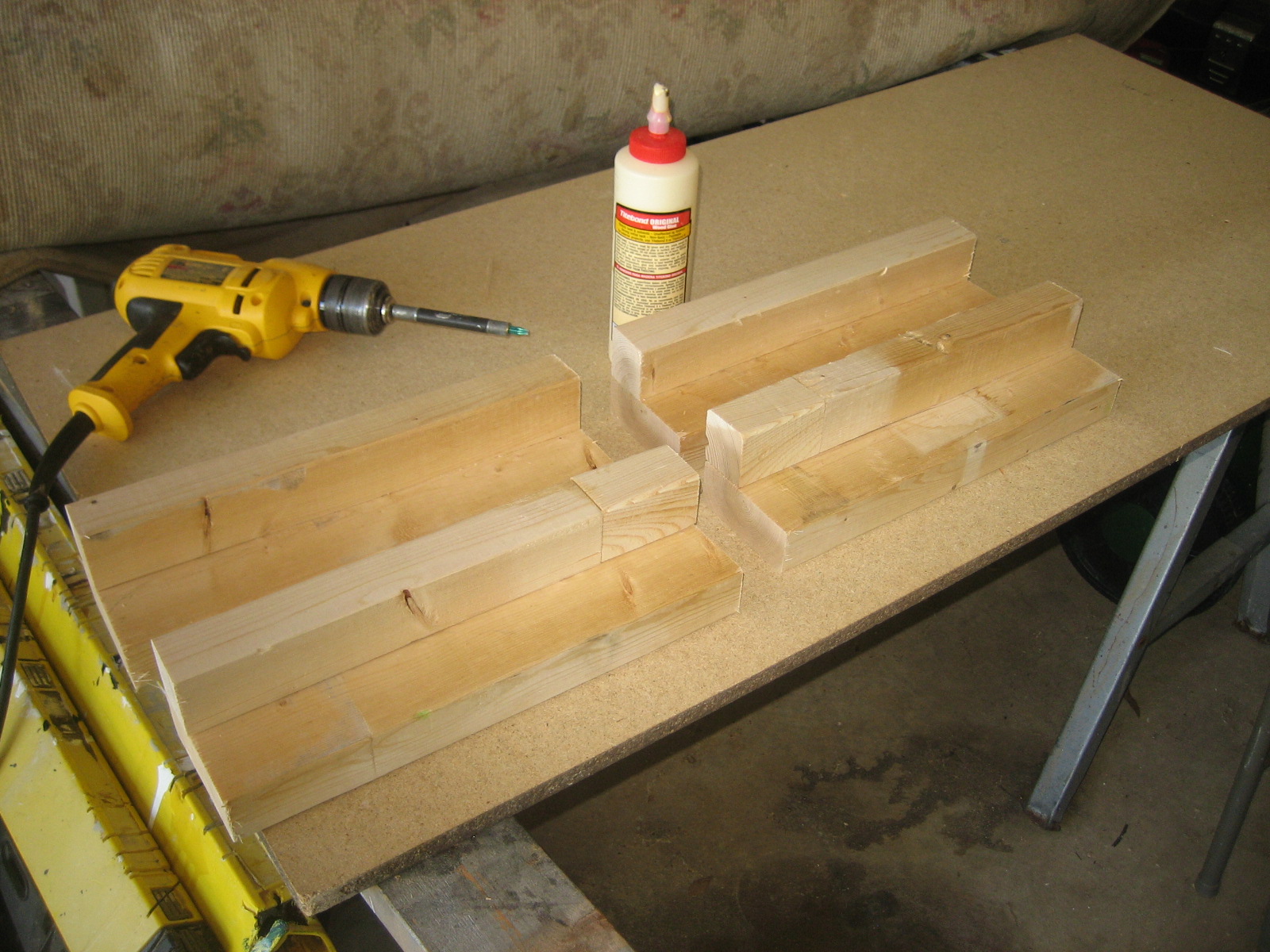

From the three 2 x 4s I had two small pieces left over. I did, however, have to attach a piece to the ripped down leg. You can see it in the last picture. I created corners for the legs from the ripped down 2 x 4s. Glued and screwed.
POCKET HOLE DRILLING STATION
![IMG_7844.JPG](/proxy/?url=https://content.instructables.com/F9Y/83F7/JK2UJP2S/F9Y83F7JK2UJP2S.jpg&filename=IMG_7844.JPG)
![IMG_7850.JPG](/proxy/?url=https://content.instructables.com/FCJ/15LQ/JK2UJP9P/FCJ15LQJK2UJP9P.jpg&filename=IMG_7850.JPG)
![IMG_7851.JPG](/proxy/?url=https://content.instructables.com/F7W/JMEI/JK2UJPBN/F7WJMEIJK2UJPBN.jpg&filename=IMG_7851.JPG)

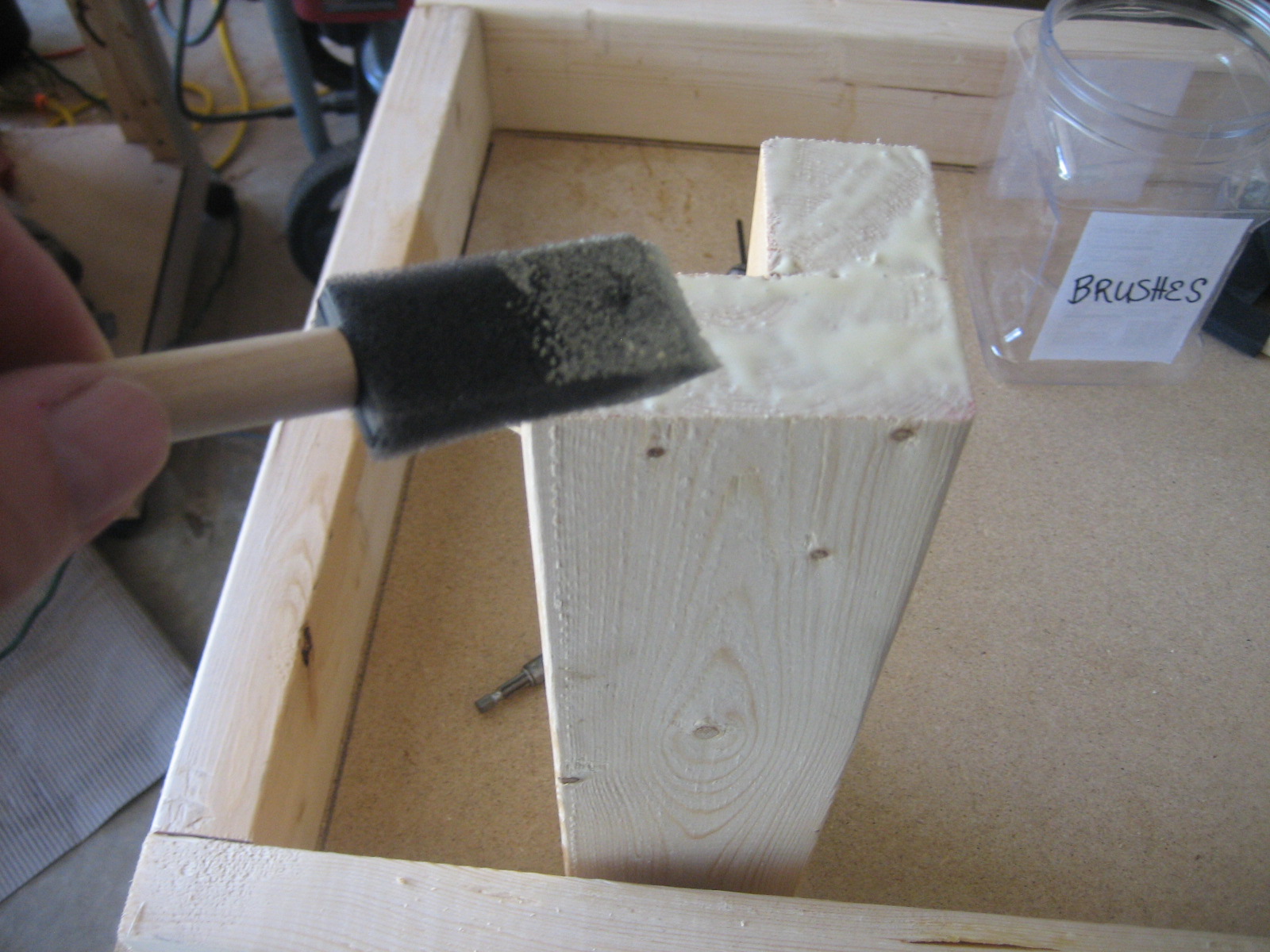

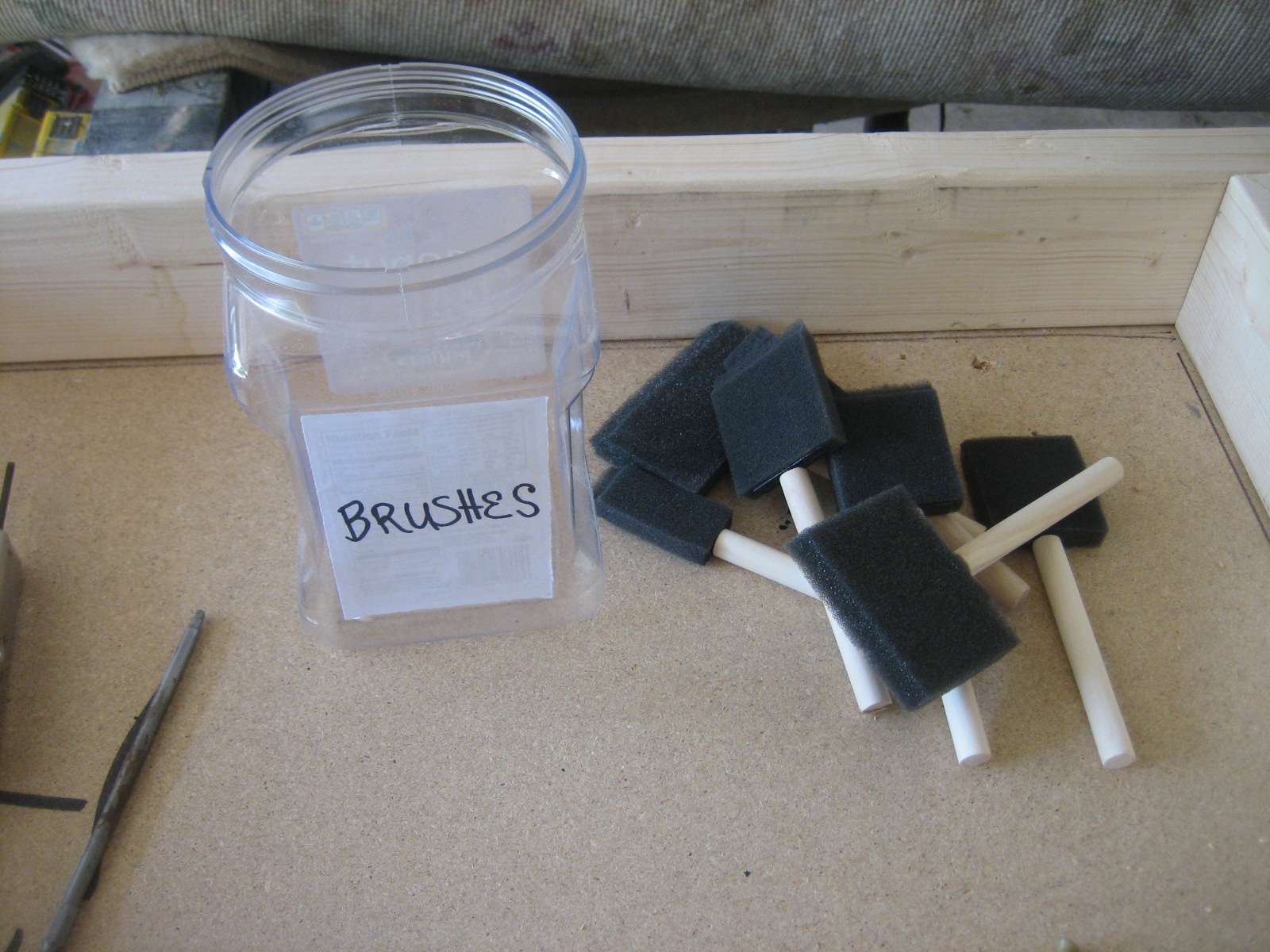

I found the perfect spot to set up my permanent pocket hole drilling station. And since I always like to glue and screw, I bought some foam spreading brushes at the Dollar Store. Look at all I got for a buck.
ASSEMBLY
![IMG_7848.JPG](/proxy/?url=https://content.instructables.com/F7C/DG6D/JK2UJP8L/F7CDG6DJK2UJP8L.jpg&filename=IMG_7848.JPG)
![IMG_7849.JPG](/proxy/?url=https://content.instructables.com/FGJ/7T4J/JK2UJP8N/FGJ7T4JJK2UJP8N.jpg&filename=IMG_7849.JPG)
![IMG_7852.JPG](/proxy/?url=https://content.instructables.com/FBI/GGWT/JK2UJPCL/FBIGGWTJK2UJPCL.jpg&filename=IMG_7852.JPG)
![IMG_7854.JPG](/proxy/?url=https://content.instructables.com/FIP/9KDQ/JK2UJPDO/FIP9KDQJK2UJPDO.jpg&filename=IMG_7854.JPG)
![IMG_7853.JPG](/proxy/?url=https://content.instructables.com/FLC/WVFJ/JK2UJPDJ/FLCWVFJJK2UJPDJ.jpg&filename=IMG_7853.JPG)
![IMG_7855.JPG](/proxy/?url=https://content.instructables.com/F9K/VCYF/JK2UJPEQ/F9KVCYFJK2UJPEQ.jpg&filename=IMG_7855.JPG)
I made the top and bottom frames and attached the legs, then screwed on the top and added the casters.
I SECURED THE TABLE SAW
![IMG_7856.JPG](/proxy/?url=https://content.instructables.com/FFM/UYY0/JK2UJPFP/FFMUYY0JK2UJPFP.jpg&filename=IMG_7856.JPG)
![IMG_7857.JPG](/proxy/?url=https://content.instructables.com/FNB/0XHO/JK2UJPGP/FNB0XHOJK2UJPGP.jpg&filename=IMG_7857.JPG)
![Kudos to Kink.png](/proxy/?url=https://content.instructables.com/F9E/5JRG/JK2UJVVH/F9E5JRGJK2UJVVH.png&filename=Kudos to Kink.png)

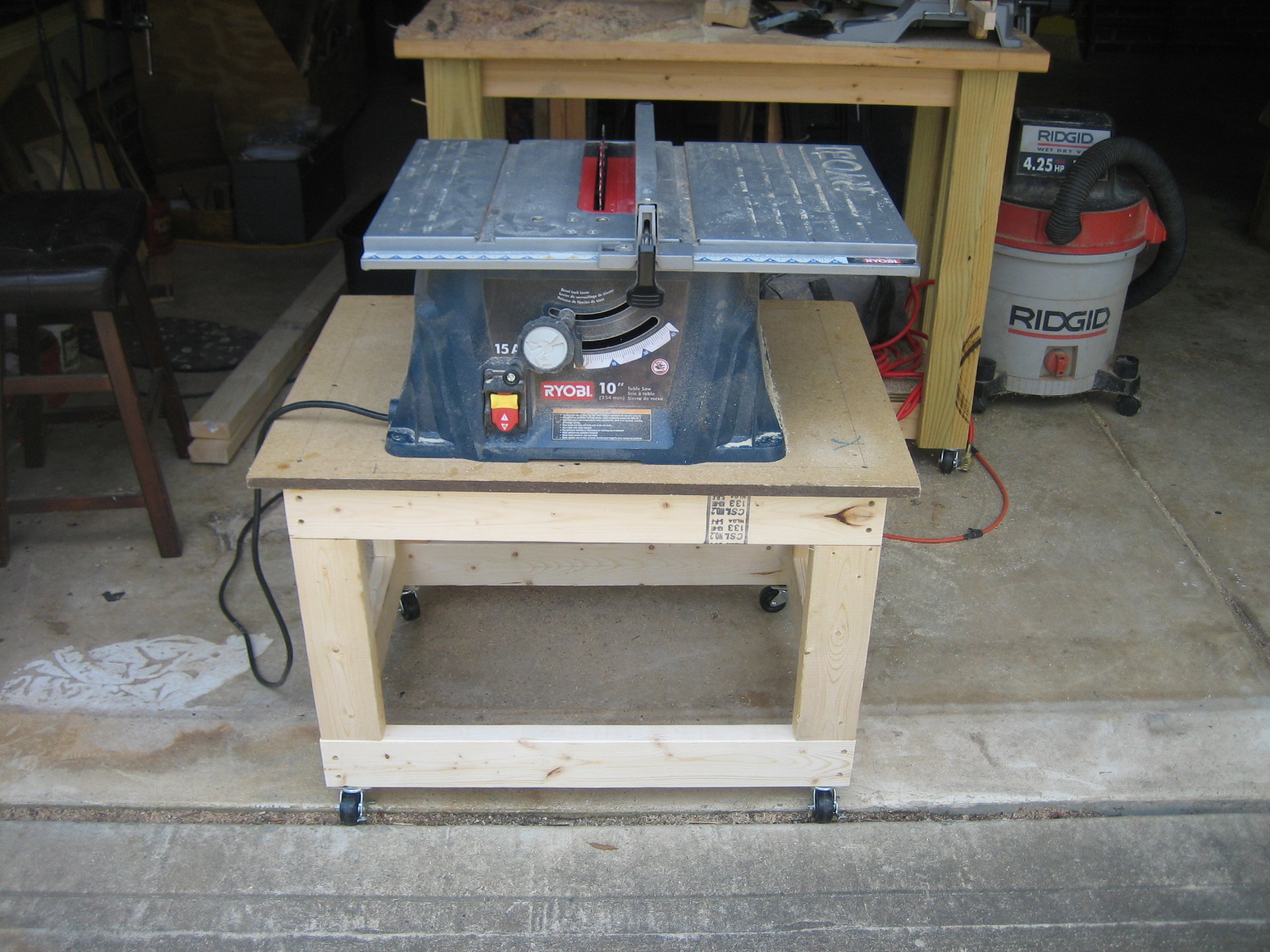

I screwed down the table saw and checked the height. I was done. How easy was that?
STAY TUNED FOR MY OUTFEED TABLE
![LITTLE SHOP (2).png](/proxy/?url=https://content.instructables.com/FZI/XIE8/JK2UJTW0/FZIXIE8JK2UJTW0.png&filename=LITTLE SHOP (2).png)
![IMG_7839.JPG](/proxy/?url=https://content.instructables.com/FMH/FGWH/JK2UJOZP/FMHFGWHJK2UJOZP.jpg&filename=IMG_7839.JPG)
![IMG_7840.JPG](/proxy/?url=https://content.instructables.com/FSB/EWOL/JK2UJP0O/FSBEWOLJK2UJP0O.jpg&filename=IMG_7840.JPG)

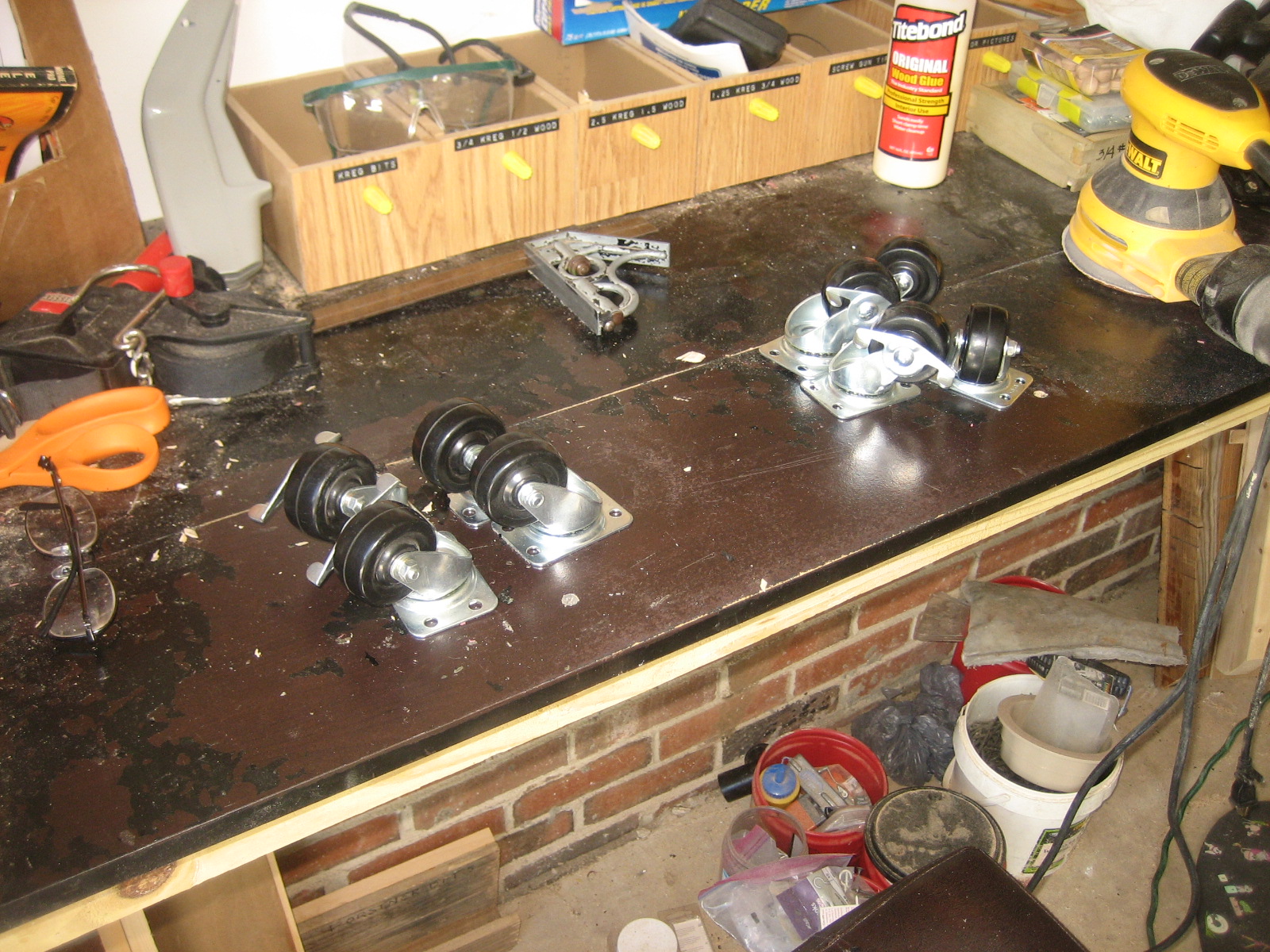

This table saw needs an outfeed table. I already found the perfect top for one, and I picked up 4 more casters for it.
Hope you enjoyed this simple cart build. Comments are always welcome and questions are always answered.
KJ
