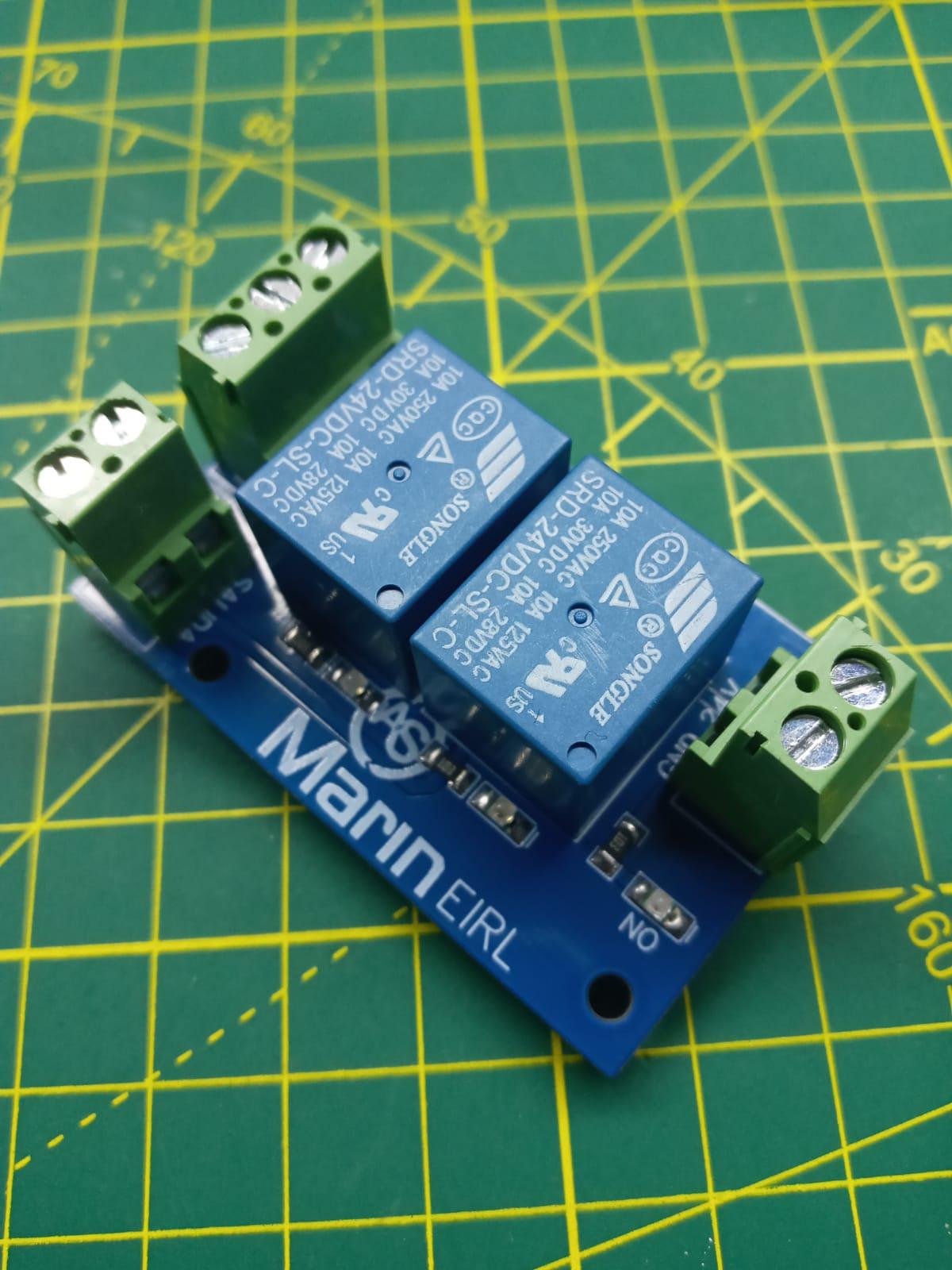

MOTOR ROTATION CONTROL 24VDC WITH RELAYS

We carry out a project of an inversion of DC motor rotation through relays controlling 24DC motors at a maximum current of 10A

GERBER PCB:

https://mega.nz/file/jR5g3IyQ#mAg3qP3NX3wlF0Y5mBYcUJFOBW4aQHA1nEjlwjcusEc

Like all my projects, I share the schematic diagram so that you can do it yourself. The schematic diagram was designed in EASYEDA, a very professional and free electronic circuit design software, we can observe the electronic components that we use for this project and their respective values.

The power supply of this circuit is 24VDC with an external source. It has a double switch as control that will allow me to open each main output. The common of the relay is to GND and the commutation of our switch will make the change of rotation and they have indicator leds for see which relay is active and it will give me the gear that I require very easy to understand we can control DC24V motors up to 10A

• 2 RELAYS 24VDC 5 PINS
• 3 RESISTOR 3K 1206 SMD
• 3 DIODES LEDS RED 1206
• 2 DIODES M7 SMD
• 2 BLOCK TERMINAL GREEN 2 PINS
• 1 BLOCK TERMINAL GREEN 3 PIN
• 1 PCB

• VIN 24VDC
• IMAX CONTROL 100mA
• IMAX CONTROL OUTPUT 30VDC 10A
• IMAX CONTROL OUTPUT 220VAC 10A
• DC MOTOR ROTATION SHIFT CONTROL

This project was made in the Easyeda software as we can see the tracks and the 3D image of the project working perfectly are no difficulty
